Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module SPECpower_ssj2008 = 11,765 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Dec 5, 2021
Hardware Availability: Apr-2021 Software Availability: Sep-2021 Publication: Feb 3, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 6,570 24.4
Calibration 2 6,559 23.7
Calibration 3 6,564 23.6
100% 6,559 23.6
90% 6,207 23.5
80% 4,869 23.4
70% 4,205 24.1
60% 3,642 24.8
50% 3,198 25.6
40% 2,846 25.9
30% 2,557 26.1
20% 2,272 26.6
10% 1,974 26.9
Active Idle 1,335 26.6
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-F673T-80-1
Date of Calibration: 14-May-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supplies 1 and 2
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47169
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-F91A5-220-1
Date of Calibration: 26-Jun-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supplies 3 and 4
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91K112854
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-F673T-40-1
Date of Calibration: 15-May-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: SUT Power Supplies 5 and 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 10.3 20.0 0.997 2,183 0.4%
Calibration 2 213 300.0 10.3 20.0 0.998 2,184 0.4%
Calibration 3 213 300.0 10.3 20.0 0.998 2,193 0.4%
100% 213 300.0 10.3 20.0 0.998 2,194 0.4%
90% 213 300.0 9.76 20.0 0.997 2,077 0.5%
80% 214 300.0 7.57 20.0 0.995 1,611 0.5%
70% 214 300.0 6.52 10.0 0.993 1,385 0.4%
60% 214 300.0 5.64 10.0 0.992 1,198 0.4%
50% 214 300.0 4.96 10.0 0.990 1,050 0.5%
40% 215 300.0 4.39 10.0 0.988 932 0.5%
30% 215 300.0 3.95 10.0 0.984 836 0.5%
20% 215 300.0 3.52 10.0 0.981 742 0.6%
10% 215 300.0 3.10 5.0 0.976 650 0.4%
Active Idle 215 300.0 2.18 5.0 0.949 444 0.6%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 10.2 20.0 0.994 2,144 0.5%
Calibration 2 211 300.0 10.2 20.0 0.994 2,130 0.5%
Calibration 3 211 300.0 10.2 20.0 0.994 2,137 0.5%
100% 211 300.0 10.2 20.0 0.994 2,137 0.5%
90% 211 300.0 9.57 20.0 0.993 2,003 0.5%
80% 211 300.0 7.63 20.0 0.989 1,593 0.6%
70% 211 300.0 6.61 10.0 0.984 1,375 0.4%
60% 211 300.0 5.73 10.0 0.981 1,188 0.4%
50% 211 300.0 5.05 10.0 0.975 1,041 0.5%
40% 212 300.0 4.50 10.0 0.970 925 0.5%
30% 212 300.0 4.04 10.0 0.963 826 0.6%
20% 212 300.0 3.59 10.0 0.955 726 0.6%
10% 212 300.0 3.10 5.0 0.943 620 0.5%
Active Idle 212 300.0 2.08 5.0 0.894 394 0.6%

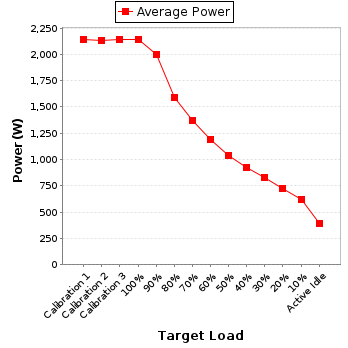

Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 10.6 10.0 0.997 2,244 0.3%
Calibration 2 213 300.0 10.6 10.0 0.997 2,245 0.3%
Calibration 3 213 300.0 10.5 10.0 0.997 2,234 0.3%
100% 213 300.0 10.5 10.0 0.997 2,227 0.3%
90% 213 300.0 10.0 10.0 0.997 2,127 0.3%
80% 214 300.0 7.84 10.0 0.995 1,666 0.4%
70% 214 300.0 6.80 10.0 0.992 1,444 0.4%
60% 214 300.0 5.92 10.0 0.991 1,256 0.4%
50% 214 300.0 5.23 10.0 0.988 1,107 0.5%
40% 215 300.0 4.68 10.0 0.986 989 0.5%
30% 215 300.0 4.24 10.0 0.983 896 0.5%
20% 215 300.0 3.82 10.0 0.978 803 0.6%
10% 215 300.0 3.37 10.0 0.972 704 0.6%
Active Idle 215 300.0 2.45 5.0 0.946 497 0.5%

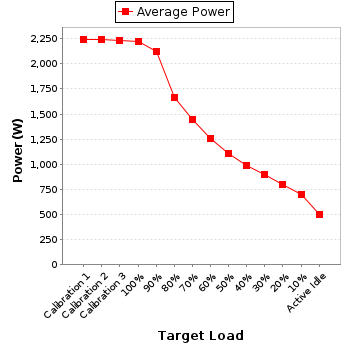

Power details for pwr3
