Hewlett Packard Enterprise ProLiant DL110 Gen10 Plus ssj_ops@100% = 105,483
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jul 12, 2021
Hardware Availability: Aug-2021 Software Availability: Jun-2021 Publication: Aug 31, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,524
Calibration 2     105,493
Calibration 3     105,537
ssj_ops@calibrated=105,515
100% 100.0% 105,515 105,483
90% 89.8% 94,964 94,711
80% 79.2% 84,412 83,519
70% 69.7% 73,861 73,591
60% 60.2% 63,309 63,479
50% 49.7% 52,758 52,426
40% 40.0% 42,206 42,164
30% 30.2% 31,655 31,916
20% 20.0% 21,103 21,149
10% 10.1% 10,552 10,683
Active Idle   0 0

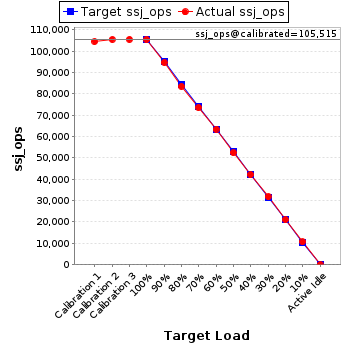

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL110 Gen10 Plus
Form Factor: 1U
CPU Name: Intel Xeon Gold 6314U CPU @ 2.30GHz (Intel Turbo Boost Technology up to 3.4GHz)
CPU Characteristics: 32-Core, 2.30 GHz, 48MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 32 cores, 1 chip, 32 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1280 MB I+D on chip per core
Tertiary Cache: 48 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8192 MB
Memory Details: 8 x 8GB 1Rx8 PC4-3200-AA-RD1-12; slots 1,2,3,4,5,6,7,8 populated in each socket
Power Supply Quantity and Rating (W): 1 x 700
Power Supply Details: HPE 700W Flex Slot Platinum Hot Plug Low Halogen AC Power Supply Kit (P44975-B21)
Disk Drive: 1 x HPE 240GB SATA 6G M.2 5300 SSD (P19888-B21)
Disk Controller: None
# and type of Network Interface Cards (NICs) Installed: 1 x Ethernet 10/25Gb 2-port SFP28 MCX562A-ACAI OCP3 Adapter
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809 (Build 17763.1132)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1475m -Xms1675m -Xmx1675m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: start /NODE [0,1] /AFFINITY[3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C00000000]
JVM Instances: 32
JVM Initial Heap (MB): 1675
JVM Maximum Heap (MB): 1675
JVM Address Bits: 64
Boot Firmware Version: U56 v1.40 (04/28/2021)
Management Firmware Version: 1.40 Apr 28 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version:2021.06.21, KB4554354
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 7,617,035 1,186
Payment 7,617,036
Order Status 761,705
Delivery 761,702
Stock Level 761,705
Customer Report 7,617,040
Calibration 2 New Order 7,675,641 1,186
Payment 7,675,640
Order Status 767,564
Delivery 767,564
Stock Level 767,563
Customer Report 7,675,644
Calibration 3 New Order 7,679,605 1,186
Payment 7,679,604
Order Status 767,960
Delivery 767,959
Stock Level 767,959
Customer Report 7,679,602
100% 100.0% New Order 7,672,193 1,186
Payment 7,672,188
Order Status 767,219
Delivery 767,220
Stock Level 767,220
Customer Report 7,672,190
90% 89.8% New Order 6,891,638 1,186
Payment 6,891,636
Order Status 689,163
Delivery 689,163
Stock Level 689,162
Customer Report 6,891,634
80% 79.2% New Order 6,074,872 1,186
Payment 6,074,875
Order Status 607,488
Delivery 607,486
Stock Level 607,489
Customer Report 6,074,878
70% 69.7% New Order 5,353,940 1,186
Payment 5,353,946
Order Status 535,394
Delivery 535,395
Stock Level 535,395
Customer Report 5,353,948
60% 60.2% New Order 4,618,044 1,186
Payment 4,618,040
Order Status 461,805
Delivery 461,804
Stock Level 461,804
Customer Report 4,618,038
50% 49.7% New Order 3,813,279 1,186
Payment 3,813,279
Order Status 381,327
Delivery 381,327
Stock Level 381,328
Customer Report 3,813,280
40% 40.0% New Order 3,067,073 1,186
Payment 3,067,077
Order Status 306,707
Delivery 306,707
Stock Level 306,707
Customer Report 3,067,071
30% 30.2% New Order 2,321,476 1,186
Payment 2,321,476
Order Status 232,147
Delivery 232,147
Stock Level 232,147
Customer Report 2,321,478
20% 20.0% New Order 1,538,220 1,186
Payment 1,538,216
Order Status 153,821
Delivery 153,822
Stock Level 153,821
Customer Report 1,538,219
10% 10.1% New Order 776,968 1,186
Payment 776,972
Order Status 77,697
Delivery 77,697
Stock Level 77,697
Customer Report 776,969
Active Idle New Order 0 1,186
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
