Inspur Corporation Inspur NF5280M5 | ssj_ops@100% = 1,908,801 ssj_ops@100% per JVM = 79,533 |
||||
Test Sponsor: | Inspur Corporation | SPEC License #: | 3358 | Test Method: | Single Node |
Tested By: | Inspur Corporation | Test Location: | JINAN, CHINA | Test Date: | Jul 6, 2021 |
Hardware Availability: | May-2021 | Software Availability: | Jan-2021 | Publication: | Aug 19, 2021 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,918,740 | ||
Calibration 2 | 1,918,610 | ||
Calibration 3 | 1,915,822 | ||
ssj_ops@calibrated=1,917,216 | |||
100% | 99.6% | 1,917,216 | 1,908,801 |
90% | 90.0% | 1,725,495 | 1,724,757 |
80% | 79.9% | 1,533,773 | 1,530,910 |
70% | 70.2% | 1,342,051 | 1,346,322 |
60% | 59.9% | 1,150,330 | 1,149,347 |
50% | 50.0% | 958,608 | 957,764 |
40% | 39.9% | 766,886 | 765,069 |
30% | 30.1% | 575,165 | 576,666 |
20% | 20.0% | 383,443 | 383,571 |
10% | 10.0% | 191,722 | 191,773 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | Single Node |
Hardware | |
---|---|
Hardware Vendor: | Inspur Corporation |
Model: | Inspur NF5280M5 |
Form Factor: | 2U |
CPU Name: | Intel Xeon Gold 6252 |
CPU Characteristics: | 24-Core, 2.10 GHz, 35.75 MB L3 Cache |
CPU Frequency (MHz): | 2100 |
CPU(s) Enabled: | 24 cores, 1 chip, 24 cores/chip |
Hardware Threads: | 48 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per chip |
Tertiary Cache: | 36608 KB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 384 |
# and size of DIMM: | 12 x 32 GB |
Memory Details: | 12 x 32GB SA 2Rx4 2933ER;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0 populated |
Power Supply Quantity and Rating (W): | 1 x 550 |
Power Supply Details: | Delta DPS-550AB-11 A Platinum P/N:ZMPS1000105 |
Disk Drive: | SSD_I_480G_SSDSC2BB480G7_S3520 * 2, PN:ZMHD1000273; Intel_SSD_S4500_1.92T_SSDSC2KB019T7 * 4, PN:ZMHD1000389 |
Disk Controller: | INSPUR Adaptec PM 8222-SmartHBA , PN:YZSA-01188-101 |
# and type of Network Interface Cards (NICs) Installed: | 1 x Intel I350 Gigabit Ethernet controller with 2 port; |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | Yes |
Other Hardware: | 1 x NIC_Inspur_OCP 25G_CX4LX_25G_LC_PCI-EX8_2,PN:YZNC-00762-101; 2 x G_NIC_INSPUR_82599ES_10G_LC_PCIEX8_2_XR,PN:YZCA-00431-103; 2 x SFP_Hisense_LC_LTF8505-BC+_25G_SW_MM ,PN: V075013000000000; 4 x SFP_Hisense_LC_LTF8502-BC+_10G_SW_MM, PN: V07500P000000000 |
Software | |
---|---|
Power Management: | Balanced Mode enabled in OS |
Operating System (OS): | Windows Server 2019 Datacenter |
OS Version: | Version 1809 (OS Build 17763.1728) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode) |
JVM Command-line Options: | -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes |
JVM Affinity: | start /NODE 0 /AFFINITY [3,C,C00,3000,C000,C00000,3000000,C000000,C00000000,3000000000,C000000000,30000000000];start /NODE 1 /AFFINITY [3,C,30,C00,3000,C000,C00000,3000000,C000000,C00000000,3000000000,C000000000] |
JVM Instances: | 24 |
JVM Initial Heap (MB): | 1950 |
JVM Maximum Heap (MB): | 1950 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 4.1.19 |
Management Firmware Version: | 4.26.9 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | Microsoft Windows KB4598296 |
JVM Instance | ssj_ops@100% |
---|---|
WIN-QA6L6VTPI40.001 | 79,212 |
WIN-QA6L6VTPI40.002 | 82,085 |
WIN-QA6L6VTPI40.003 | 76,819 |
WIN-QA6L6VTPI40.004 | 79,305 |
WIN-QA6L6VTPI40.005 | 81,083 |
WIN-QA6L6VTPI40.006 | 77,087 |
WIN-QA6L6VTPI40.007 | 79,089 |
WIN-QA6L6VTPI40.008 | 81,365 |
WIN-QA6L6VTPI40.009 | 78,761 |
WIN-QA6L6VTPI40.010 | 78,676 |
WIN-QA6L6VTPI40.011 | 78,269 |
WIN-QA6L6VTPI40.012 | 78,031 |
WIN-QA6L6VTPI40.013 | 80,604 |
WIN-QA6L6VTPI40.014 | 82,392 |
WIN-QA6L6VTPI40.015 | 80,317 |
WIN-QA6L6VTPI40.016 | 79,156 |
WIN-QA6L6VTPI40.017 | 81,411 |
WIN-QA6L6VTPI40.018 | 76,837 |
WIN-QA6L6VTPI40.019 | 79,105 |
WIN-QA6L6VTPI40.020 | 79,322 |
WIN-QA6L6VTPI40.021 | 80,500 |
WIN-QA6L6VTPI40.022 | 80,464 |
WIN-QA6L6VTPI40.023 | 77,459 |
WIN-QA6L6VTPI40.024 | 81,451 |
ssj_ops@100% | 1,908,801 |
ssj_ops@100% per JVM | 79,533 |

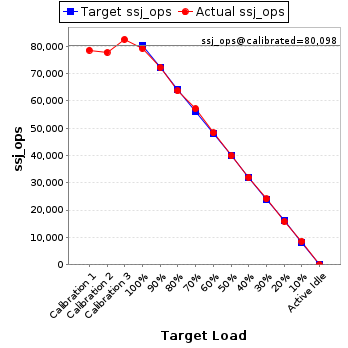

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 78,546 | ||
Calibration 2 | 77,697 | ||
Calibration 3 | 82,499 | ||
ssj_ops@calibrated=80,098 | |||
100% | 98.9% | 80,098 | 79,212 |
90% | 90.2% | 72,088 | 72,212 |
80% | 79.4% | 64,078 | 63,622 |
70% | 71.4% | 56,069 | 57,189 |
60% | 60.3% | 48,059 | 48,293 |
50% | 49.8% | 40,049 | 39,921 |
40% | 40.0% | 32,039 | 32,019 |
30% | 30.1% | 24,029 | 24,116 |
20% | 19.8% | 16,020 | 15,820 |
10% | 10.8% | 8,010 | 8,616 |
Active Idle | 0 | 0 |

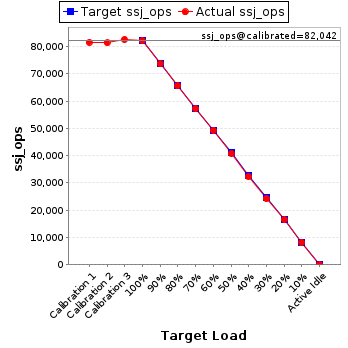

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,638 | ||
Calibration 2 | 81,413 | ||
Calibration 3 | 82,672 | ||
ssj_ops@calibrated=82,042 | |||
100% | 100.1% | 82,042 | 82,085 |
90% | 89.9% | 73,838 | 73,747 |
80% | 79.9% | 65,634 | 65,583 |
70% | 69.7% | 57,430 | 57,207 |
60% | 60.2% | 49,225 | 49,360 |
50% | 49.7% | 41,021 | 40,762 |
40% | 39.4% | 32,817 | 32,351 |
30% | 29.7% | 24,613 | 24,338 |
20% | 20.3% | 16,408 | 16,636 |
10% | 10.0% | 8,204 | 8,179 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 77,433 | ||
Calibration 2 | 76,330 | ||
Calibration 3 | 76,231 | ||
ssj_ops@calibrated=76,280 | |||
100% | 100.7% | 76,280 | 76,819 |
90% | 89.6% | 68,652 | 68,365 |
80% | 79.5% | 61,024 | 60,662 |
70% | 70.8% | 53,396 | 53,977 |
60% | 60.0% | 45,768 | 45,779 |
50% | 49.6% | 38,140 | 37,803 |
40% | 40.2% | 30,512 | 30,632 |
30% | 30.6% | 22,884 | 23,307 |
20% | 20.0% | 15,256 | 15,225 |
10% | 9.5% | 7,628 | 7,237 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,239 | ||
Calibration 2 | 80,296 | ||
Calibration 3 | 80,235 | ||
ssj_ops@calibrated=80,265 | |||
100% | 98.8% | 80,265 | 79,305 |
90% | 90.1% | 72,239 | 72,346 |
80% | 79.8% | 64,212 | 64,064 |
70% | 70.0% | 56,186 | 56,207 |
60% | 60.2% | 48,159 | 48,348 |
50% | 50.5% | 40,133 | 40,573 |
40% | 40.0% | 32,106 | 32,107 |
30% | 30.5% | 24,080 | 24,513 |
20% | 20.2% | 16,053 | 16,231 |
10% | 10.0% | 8,027 | 8,013 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,942 | ||
Calibration 2 | 82,666 | ||
Calibration 3 | 79,308 | ||
ssj_ops@calibrated=80,987 | |||
100% | 100.1% | 80,987 | 81,083 |
90% | 89.7% | 72,888 | 72,610 |
80% | 80.0% | 64,790 | 64,770 |
70% | 70.7% | 56,691 | 57,293 |
60% | 59.9% | 48,592 | 48,537 |
50% | 49.4% | 40,494 | 40,042 |
40% | 39.9% | 32,395 | 32,322 |
30% | 30.1% | 24,296 | 24,389 |
20% | 20.0% | 16,197 | 16,212 |
10% | 9.8% | 8,099 | 7,975 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 78,651 | ||
Calibration 2 | 77,970 | ||
Calibration 3 | 77,876 | ||
ssj_ops@calibrated=77,923 | |||
100% | 98.9% | 77,923 | 77,087 |
90% | 90.1% | 70,131 | 70,244 |
80% | 80.2% | 62,338 | 62,487 |
70% | 70.3% | 54,546 | 54,751 |
60% | 60.5% | 46,754 | 47,141 |
50% | 49.9% | 38,961 | 38,913 |
40% | 39.3% | 31,169 | 30,657 |
30% | 30.4% | 23,377 | 23,657 |
20% | 19.9% | 15,585 | 15,524 |
10% | 10.0% | 7,792 | 7,766 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 79,289 | ||
Calibration 2 | 78,399 | ||
Calibration 3 | 79,560 | ||
ssj_ops@calibrated=78,979 | |||
100% | 100.1% | 78,979 | 79,089 |
90% | 89.3% | 71,081 | 70,534 |
80% | 80.3% | 63,183 | 63,416 |
70% | 69.7% | 55,285 | 55,014 |
60% | 60.6% | 47,388 | 47,848 |
50% | 50.2% | 39,490 | 39,650 |
40% | 39.4% | 31,592 | 31,100 |
30% | 29.4% | 23,694 | 23,239 |
20% | 19.9% | 15,796 | 15,712 |
10% | 10.3% | 7,898 | 8,100 |
Active Idle | 0 | 0 |

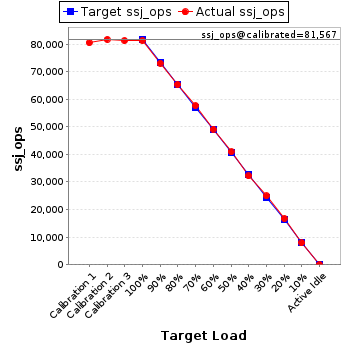

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,495 | ||
Calibration 2 | 81,788 | ||
Calibration 3 | 81,347 | ||
ssj_ops@calibrated=81,567 | |||
100% | 99.8% | 81,567 | 81,365 |
90% | 89.7% | 73,411 | 73,126 |
80% | 80.2% | 65,254 | 65,399 |
70% | 70.8% | 57,097 | 57,724 |
60% | 60.3% | 48,940 | 49,211 |
50% | 50.2% | 40,784 | 40,975 |
40% | 39.5% | 32,627 | 32,219 |
30% | 30.6% | 24,470 | 24,978 |
20% | 20.6% | 16,313 | 16,804 |
10% | 9.8% | 8,157 | 7,966 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 79,071 | ||
Calibration 2 | 78,165 | ||
Calibration 3 | 78,384 | ||
ssj_ops@calibrated=78,275 | |||
100% | 100.6% | 78,275 | 78,761 |
90% | 90.4% | 70,447 | 70,786 |
80% | 80.1% | 62,620 | 62,663 |
70% | 69.4% | 54,792 | 54,345 |
60% | 60.7% | 46,965 | 47,491 |
50% | 50.5% | 39,137 | 39,566 |
40% | 40.3% | 31,310 | 31,547 |
30% | 30.2% | 23,482 | 23,655 |
20% | 20.4% | 15,655 | 15,945 |
10% | 9.8% | 7,827 | 7,678 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 79,311 | ||
Calibration 2 | 78,103 | ||
Calibration 3 | 78,518 | ||
ssj_ops@calibrated=78,311 | |||
100% | 100.5% | 78,311 | 78,676 |
90% | 91.0% | 70,480 | 71,296 |
80% | 80.5% | 62,649 | 63,042 |
70% | 69.6% | 54,817 | 54,483 |
60% | 59.8% | 46,986 | 46,797 |
50% | 50.9% | 39,155 | 39,879 |
40% | 40.3% | 31,324 | 31,529 |
30% | 29.5% | 23,493 | 23,096 |
20% | 19.6% | 15,662 | 15,347 |
10% | 10.0% | 7,831 | 7,800 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 76,471 | ||
Calibration 2 | 81,525 | ||
Calibration 3 | 77,151 | ||
ssj_ops@calibrated=79,338 | |||
100% | 98.7% | 79,338 | 78,269 |
90% | 90.0% | 71,404 | 71,414 |
80% | 80.7% | 63,471 | 64,030 |
70% | 70.0% | 55,537 | 55,549 |
60% | 58.8% | 47,603 | 46,649 |
50% | 49.6% | 39,669 | 39,324 |
40% | 39.7% | 31,735 | 31,530 |
30% | 29.8% | 23,801 | 23,641 |
20% | 20.0% | 15,868 | 15,837 |
10% | 10.0% | 7,934 | 7,918 |
Active Idle | 0 | 0 |

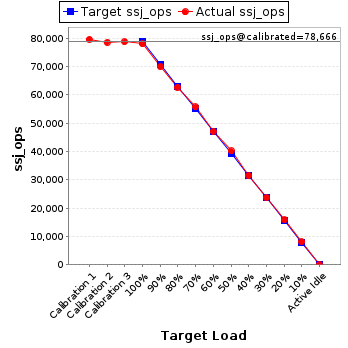

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 79,638 | ||
Calibration 2 | 78,572 | ||
Calibration 3 | 78,760 | ||
ssj_ops@calibrated=78,666 | |||
100% | 99.2% | 78,666 | 78,031 |
90% | 89.0% | 70,800 | 70,009 |
80% | 79.8% | 62,933 | 62,747 |
70% | 70.8% | 55,066 | 55,721 |
60% | 59.9% | 47,200 | 47,146 |
50% | 51.0% | 39,333 | 40,158 |
40% | 40.1% | 31,467 | 31,569 |
30% | 30.1% | 23,600 | 23,691 |
20% | 20.2% | 15,733 | 15,866 |
10% | 10.3% | 7,867 | 8,137 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 79,177 | ||
Calibration 2 | 79,137 | ||
Calibration 3 | 81,395 | ||
ssj_ops@calibrated=80,266 | |||
100% | 100.4% | 80,266 | 80,604 |
90% | 89.8% | 72,240 | 72,048 |
80% | 79.4% | 64,213 | 63,750 |
70% | 70.6% | 56,186 | 56,693 |
60% | 59.0% | 48,160 | 47,382 |
50% | 50.3% | 40,133 | 40,375 |
40% | 39.4% | 32,106 | 31,627 |
30% | 30.3% | 24,080 | 24,329 |
20% | 19.8% | 16,053 | 15,892 |
10% | 9.7% | 8,027 | 7,766 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 82,255 | ||
Calibration 2 | 83,260 | ||
Calibration 3 | 83,323 | ||
ssj_ops@calibrated=83,292 | |||
100% | 98.9% | 83,292 | 82,392 |
90% | 90.0% | 74,963 | 74,979 |
80% | 79.6% | 66,633 | 66,319 |
70% | 70.6% | 58,304 | 58,798 |
60% | 60.0% | 49,975 | 49,990 |
50% | 49.3% | 41,646 | 41,079 |
40% | 40.6% | 33,317 | 33,838 |
30% | 29.8% | 24,988 | 24,786 |
20% | 20.0% | 16,658 | 16,695 |
10% | 10.1% | 8,329 | 8,381 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,236 | ||
Calibration 2 | 79,418 | ||
Calibration 3 | 80,482 | ||
ssj_ops@calibrated=79,950 | |||
100% | 100.5% | 79,950 | 80,317 |
90% | 90.5% | 71,955 | 72,370 |
80% | 80.0% | 63,960 | 63,980 |
70% | 70.1% | 55,965 | 56,048 |
60% | 59.6% | 47,970 | 47,641 |
50% | 50.7% | 39,975 | 40,529 |
40% | 40.1% | 31,980 | 32,083 |
30% | 30.1% | 23,985 | 24,070 |
20% | 20.0% | 15,990 | 15,991 |
10% | 10.1% | 7,995 | 8,070 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,919 | ||
Calibration 2 | 80,270 | ||
Calibration 3 | 80,123 | ||
ssj_ops@calibrated=80,196 | |||
100% | 98.7% | 80,196 | 79,156 |
90% | 89.8% | 72,177 | 72,039 |
80% | 78.4% | 64,157 | 62,850 |
70% | 70.4% | 56,137 | 56,429 |
60% | 60.8% | 48,118 | 48,728 |
50% | 50.2% | 40,098 | 40,268 |
40% | 39.4% | 32,079 | 31,605 |
30% | 30.4% | 24,059 | 24,388 |
20% | 20.0% | 16,039 | 16,049 |
10% | 9.8% | 8,020 | 7,883 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,566 | ||
Calibration 2 | 81,645 | ||
Calibration 3 | 81,652 | ||
ssj_ops@calibrated=81,649 | |||
100% | 99.7% | 81,649 | 81,411 |
90% | 90.8% | 73,484 | 74,130 |
80% | 80.6% | 65,319 | 65,791 |
70% | 71.3% | 57,154 | 58,224 |
60% | 59.9% | 48,989 | 48,923 |
50% | 50.4% | 40,824 | 41,136 |
40% | 40.1% | 32,659 | 32,772 |
30% | 29.7% | 24,495 | 24,233 |
20% | 20.0% | 16,330 | 16,303 |
10% | 10.1% | 8,165 | 8,270 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,366 | ||
Calibration 2 | 79,782 | ||
Calibration 3 | 74,456 | ||
ssj_ops@calibrated=77,119 | |||
100% | 99.6% | 77,119 | 76,837 |
90% | 89.3% | 69,407 | 68,905 |
80% | 79.5% | 61,695 | 61,281 |
70% | 70.1% | 53,983 | 54,056 |
60% | 60.4% | 46,271 | 46,572 |
50% | 50.0% | 38,560 | 38,529 |
40% | 40.1% | 30,848 | 30,948 |
30% | 30.5% | 23,136 | 23,527 |
20% | 20.5% | 15,424 | 15,783 |
10% | 10.2% | 7,712 | 7,870 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 78,974 | ||
Calibration 2 | 79,509 | ||
Calibration 3 | 78,504 | ||
ssj_ops@calibrated=79,006 | |||
100% | 100.1% | 79,006 | 79,105 |
90% | 90.6% | 71,106 | 71,575 |
80% | 80.8% | 63,205 | 63,828 |
70% | 69.5% | 55,304 | 54,909 |
60% | 60.1% | 47,404 | 47,447 |
50% | 49.4% | 39,503 | 39,002 |
40% | 39.2% | 31,603 | 31,006 |
30% | 30.0% | 23,702 | 23,704 |
20% | 19.9% | 15,801 | 15,724 |
10% | 10.1% | 7,901 | 7,962 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,436 | ||
Calibration 2 | 79,739 | ||
Calibration 3 | 79,873 | ||
ssj_ops@calibrated=79,806 | |||
100% | 99.4% | 79,806 | 79,322 |
90% | 90.8% | 71,825 | 72,472 |
80% | 78.7% | 63,845 | 62,839 |
70% | 70.5% | 55,864 | 56,263 |
60% | 59.7% | 47,883 | 47,635 |
50% | 49.4% | 39,903 | 39,388 |
40% | 40.4% | 31,922 | 32,206 |
30% | 30.5% | 23,942 | 24,324 |
20% | 19.6% | 15,961 | 15,646 |
10% | 9.8% | 7,981 | 7,783 |
Active Idle | 0 | 0 |

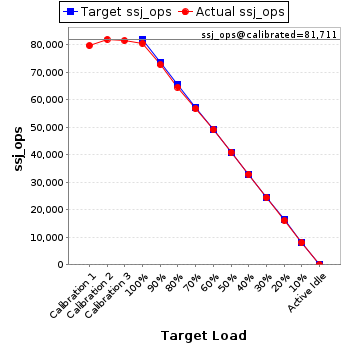

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 79,676 | ||
Calibration 2 | 81,928 | ||
Calibration 3 | 81,495 | ||
ssj_ops@calibrated=81,711 | |||
100% | 98.5% | 81,711 | 80,500 |
90% | 89.0% | 73,540 | 72,731 |
80% | 79.0% | 65,369 | 64,537 |
70% | 69.4% | 57,198 | 56,709 |
60% | 60.1% | 49,027 | 49,079 |
50% | 50.0% | 40,856 | 40,879 |
40% | 40.3% | 32,685 | 32,906 |
30% | 29.8% | 24,513 | 24,388 |
20% | 19.7% | 16,342 | 16,074 |
10% | 9.9% | 8,171 | 8,091 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 81,399 | ||
Calibration 2 | 80,408 | ||
Calibration 3 | 81,244 | ||
ssj_ops@calibrated=80,826 | |||
100% | 99.6% | 80,826 | 80,464 |
90% | 89.5% | 72,743 | 72,347 |
80% | 80.4% | 64,661 | 65,008 |
70% | 69.0% | 56,578 | 55,791 |
60% | 59.0% | 48,496 | 47,673 |
50% | 48.5% | 40,413 | 39,232 |
40% | 40.0% | 32,330 | 32,324 |
30% | 30.2% | 24,248 | 24,373 |
20% | 19.7% | 16,165 | 15,963 |
10% | 9.9% | 8,083 | 8,016 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 79,103 | ||
Calibration 2 | 79,181 | ||
Calibration 3 | 78,469 | ||
ssj_ops@calibrated=78,825 | |||
100% | 98.3% | 78,825 | 77,459 |
90% | 90.1% | 70,943 | 71,057 |
80% | 79.9% | 63,060 | 62,993 |
70% | 69.8% | 55,178 | 54,998 |
60% | 59.9% | 47,295 | 47,210 |
50% | 50.2% | 39,413 | 39,533 |
40% | 40.4% | 31,530 | 31,821 |
30% | 30.4% | 23,648 | 23,925 |
20% | 19.8% | 15,765 | 15,570 |
10% | 10.4% | 7,883 | 8,166 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 80,910 | ||
Calibration 2 | 81,409 | ||
Calibration 3 | 82,263 | ||
ssj_ops@calibrated=81,836 | |||
100% | 99.5% | 81,836 | 81,451 |
90% | 89.7% | 73,653 | 73,415 |
80% | 79.7% | 65,469 | 65,248 |
70% | 70.8% | 57,285 | 57,945 |
60% | 59.2% | 49,102 | 48,466 |
50% | 49.2% | 40,918 | 40,249 |
40% | 39.5% | 32,735 | 32,350 |
30% | 29.3% | 24,551 | 23,999 |
20% | 20.4% | 16,367 | 16,720 |
10% | 9.9% | 8,184 | 8,129 |
Active Idle | 0 | 0 |
