SPECpower_ssj2008 JVM Instance 'WIN-KJ9F99931U6.085' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-KJ9F99931U6.085' Performance Report

Inspur Corporation Inspur NF8480M6			ssj_ops@100% = 103,092
Test Sponsor:	Inspur Corporation	SPEC License #:	3358	Test Method:	Single Node
Tested By:	Inspur Corporation	Test Location:	JINAN, CHINA	Test Date:	Jan 11, 2021
Hardware Availability:	Nov-2020	Software Availability:	Oct-2020	Publication:	Jan 28, 2021
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

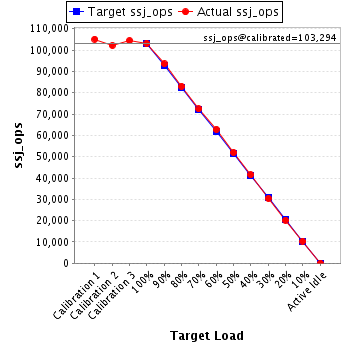

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			105,137
Calibration 2			102,221
Calibration 3			104,367
ssj_ops@calibrated=103,294
100%	99.8%	103,294	103,092
90%	90.5%	92,964	93,529
80%	80.4%	82,635	83,051
70%	70.1%	72,306	72,390
60%	60.8%	61,976	62,809
50%	50.3%	51,647	51,994
40%	40.2%	41,317	41,496
30%	29.5%	30,988	30,460
20%	19.6%	20,659	20,221
10%	10.0%	10,329	10,364
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	Single Node

Hardware
Hardware Vendor:	Inspur Corporation
Model:	Inspur NF8480M6
Form Factor:	4U
CPU Name:	Intel Xeon Platinum 8380HL
CPU Characteristics:	28-Core, 2.90GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2900
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per chip
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16 GB
Memory Details:	24 x 16 GB 2Rx8 3200;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0,CPU2_C0D0,CPU2_C1D0, CPU2_C2D0, CPU2_C3D0, CPU2_C4D0, CPU2_C5D0, CPU3_C0D0,CPU3_C1D0, CPU3_C2D0, CPU3_C3D0, CPU3_C4D0, CPU3_C5D0 populated
Power Supply Quantity and Rating (W):	1 x 1300
Power Supply Details:	DELTA_DPS-1300AB-27 A PN:ZMPS1000228
Disk Drive:	Intel_SSDSCKKB240G_240G_M.2 PN:ZMHD1000582
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power Saver Mode enabled in OS
Operating System (OS):	Windows Server 2019 Datacenter
OS Version:	Version 1809 (OS Build 17763)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options:	-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	start /NODE [0,2,4,6] /AFFINITY [3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE [1,3,5,7] /AFFINITY [3,C,30,3000,C000,30000,C0000,30000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances:	112
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	4.10.0
Management Firmware Version:	4.10.02
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows KB4056898

Boot Firmware Settings

Set "Hardware Prefetcher = Disabled" in BIOS.
Set "Adjacent Cache Prefetcher = Disabled" in BIOS.
Set "DCU Streamer Prefetcher = Disabled" in BIOS.
Set "Turbo mode = Disabled" in BIOS
Set "Sub NUMA Cluster (SNC) = Enable" in BIOS
Set "C-state = Enabled" in BIOS
Set "CPU C6 Report = Enabled" in BIOS
Set "Monitor/Mwait = Enabled" in BIOS
Set "Memory Patrol Scrub = Disabled"
Set Memory Frequency 2933 MHz in BIOS
Set "Energy Performance BIAS = Balanced Power" in BIOS
Set "VT-D = Disabled" in BIOS
Set all USB Ports Disabled in BIOS

Management Firmware Settings

None

System Under Test Notes

Set "Turn off hard disk after = 1 Minute" in OS.
Minimum Processor State:0%.
Maximum Processor State:100%.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.
Each JVM instance was affinitized to 2 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	7,653,482	1,118
		Payment	7,653,481
		Order Status	765,349
		Delivery	765,349
		Stock Level	765,347
		Customer Report	7,653,481
Calibration 2		New Order	7,437,584	1,118
		Payment	7,437,581
		Order Status	743,758
		Delivery	743,758
		Stock Level	743,757
		Customer Report	7,437,581
Calibration 3		New Order	7,596,195	1,118
		Payment	7,596,196
		Order Status	759,619
		Delivery	759,619
		Stock Level	759,619
		Customer Report	7,596,200
100%	99.8%	New Order	7,499,306	1,118
		Payment	7,499,306
		Order Status	749,931
		Delivery	749,931
		Stock Level	749,930
		Customer Report	7,499,300
90%	90.5%	New Order	6,803,866	1,118
		Payment	6,803,865
		Order Status	680,386
		Delivery	680,387
		Stock Level	680,386
		Customer Report	6,803,865
80%	80.4%	New Order	6,040,420	1,118
		Payment	6,040,418
		Order Status	604,042
		Delivery	604,042
		Stock Level	604,042
		Customer Report	6,040,423
70%	70.1%	New Order	5,265,251	1,118
		Payment	5,265,245
		Order Status	526,524
		Delivery	526,527
		Stock Level	526,524
		Customer Report	5,265,254
60%	60.8%	New Order	4,569,036	1,118
		Payment	4,569,034
		Order Status	456,904
		Delivery	456,903
		Stock Level	456,904
		Customer Report	4,569,034
50%	50.3%	New Order	3,781,461	1,118
		Payment	3,781,464
		Order Status	378,147
		Delivery	378,146
		Stock Level	378,146
		Customer Report	3,781,463
40%	40.2%	New Order	3,018,330	1,118
		Payment	3,018,328
		Order Status	301,833
		Delivery	301,833
		Stock Level	301,832
		Customer Report	3,018,329
30%	29.5%	New Order	2,215,656	1,118
		Payment	2,215,657
		Order Status	221,566
		Delivery	221,565
		Stock Level	221,566
		Customer Report	2,215,653
20%	19.6%	New Order	1,470,607	1,118
		Payment	1,470,606
		Order Status	147,060
		Delivery	147,062
		Stock Level	147,062
		Customer Report	1,470,603
10%	10.0%	New Order	753,794	1,118
		Payment	753,796
		Order Status	75,379
		Delivery	75,379
		Stock Level	75,381
		Customer Report	753,794
Active Idle		New Order	0	1,118
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
