SPECpower_ssj2008 JVM Instance 'WIN-KJ9F99931U6.044' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-KJ9F99931U6.044' Performance Report

Inspur Corporation Inspur NF8480M6			ssj_ops@100% = 105,461
Test Sponsor:	Inspur Corporation	SPEC License #:	3358	Test Method:	Single Node
Tested By:	Inspur Corporation	Test Location:	JINAN, CHINA	Test Date:	Jan 11, 2021
Hardware Availability:	Nov-2020	Software Availability:	Oct-2020	Publication:	Jan 28, 2021
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

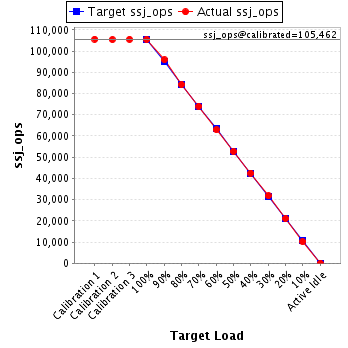

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			105,613
Calibration 2			105,370
Calibration 3			105,555
ssj_ops@calibrated=105,462
100%	100.0%	105,462	105,461
90%	91.0%	94,916	95,936
80%	79.8%	84,370	84,165
70%	70.2%	73,824	74,003
60%	59.6%	63,277	62,894
50%	50.1%	52,731	52,818
40%	40.3%	42,185	42,518
30%	30.1%	31,639	31,733
20%	20.0%	21,092	21,124
10%	9.7%	10,546	10,183
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	Single Node

Hardware
Hardware Vendor:	Inspur Corporation
Model:	Inspur NF8480M6
Form Factor:	4U
CPU Name:	Intel Xeon Platinum 8380HL
CPU Characteristics:	28-Core, 2.90GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2900
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per chip
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16 GB
Memory Details:	24 x 16 GB 2Rx8 3200;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0,CPU2_C0D0,CPU2_C1D0, CPU2_C2D0, CPU2_C3D0, CPU2_C4D0, CPU2_C5D0, CPU3_C0D0,CPU3_C1D0, CPU3_C2D0, CPU3_C3D0, CPU3_C4D0, CPU3_C5D0 populated
Power Supply Quantity and Rating (W):	1 x 1300
Power Supply Details:	DELTA_DPS-1300AB-27 A PN:ZMPS1000228
Disk Drive:	Intel_SSDSCKKB240G_240G_M.2 PN:ZMHD1000582
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power Saver Mode enabled in OS
Operating System (OS):	Windows Server 2019 Datacenter
OS Version:	Version 1809 (OS Build 17763)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options:	-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	start /NODE [0,2,4,6] /AFFINITY [3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE [1,3,5,7] /AFFINITY [3,C,30,3000,C000,30000,C0000,30000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances:	112
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	4.10.0
Management Firmware Version:	4.10.02
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows KB4056898

Boot Firmware Settings

Set "Hardware Prefetcher = Disabled" in BIOS.
Set "Adjacent Cache Prefetcher = Disabled" in BIOS.
Set "DCU Streamer Prefetcher = Disabled" in BIOS.
Set "Turbo mode = Disabled" in BIOS
Set "Sub NUMA Cluster (SNC) = Enable" in BIOS
Set "C-state = Enabled" in BIOS
Set "CPU C6 Report = Enabled" in BIOS
Set "Monitor/Mwait = Enabled" in BIOS
Set "Memory Patrol Scrub = Disabled"
Set Memory Frequency 2933 MHz in BIOS
Set "Energy Performance BIAS = Balanced Power" in BIOS
Set "VT-D = Disabled" in BIOS
Set all USB Ports Disabled in BIOS

Management Firmware Settings

None

System Under Test Notes

Set "Turn off hard disk after = 1 Minute" in OS.
Minimum Processor State:0%.
Maximum Processor State:100%.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.
Each JVM instance was affinitized to 2 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	7,692,405	1,118
		Payment	7,692,411
		Order Status	769,241
		Delivery	769,242
		Stock Level	769,240
		Customer Report	7,692,412
Calibration 2		New Order	7,664,690	1,118
		Payment	7,664,691
		Order Status	766,469
		Delivery	766,469
		Stock Level	766,470
		Customer Report	7,664,694
Calibration 3		New Order	7,679,211	1,118
		Payment	7,679,208
		Order Status	767,921
		Delivery	767,921
		Stock Level	767,922
		Customer Report	7,679,209
100%	100.0%	New Order	7,672,317	1,118
		Payment	7,672,321
		Order Status	767,232
		Delivery	767,232
		Stock Level	767,233
		Customer Report	7,672,321
90%	91.0%	New Order	6,979,717	1,118
		Payment	6,979,724
		Order Status	697,972
		Delivery	697,972
		Stock Level	697,972
		Customer Report	6,979,720
80%	79.8%	New Order	6,121,809	1,118
		Payment	6,121,805
		Order Status	612,181
		Delivery	612,182
		Stock Level	612,180
		Customer Report	6,121,811
70%	70.2%	New Order	5,382,124	1,118
		Payment	5,382,124
		Order Status	538,212
		Delivery	538,212
		Stock Level	538,213
		Customer Report	5,382,119
60%	59.6%	New Order	4,577,358	1,118
		Payment	4,577,357
		Order Status	457,735
		Delivery	457,736
		Stock Level	457,735
		Customer Report	4,577,355
50%	50.1%	New Order	3,844,781	1,118
		Payment	3,844,779
		Order Status	384,476
		Delivery	384,478
		Stock Level	384,477
		Customer Report	3,844,784
40%	40.3%	New Order	3,092,387	1,118
		Payment	3,092,384
		Order Status	309,239
		Delivery	309,238
		Stock Level	309,239
		Customer Report	3,092,385
30%	30.1%	New Order	2,307,884	1,118
		Payment	2,307,885
		Order Status	230,788
		Delivery	230,790
		Stock Level	230,787
		Customer Report	2,307,889
20%	20.0%	New Order	1,536,363	1,118
		Payment	1,536,365
		Order Status	153,636
		Delivery	153,636
		Stock Level	153,637
		Customer Report	1,536,363
10%	9.7%	New Order	740,604	1,118
		Payment	740,607
		Order Status	74,061
		Delivery	74,060
		Stock Level	74,060
		Customer Report	740,608
Active Idle		New Order	0	1,118
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
