SPECpower_ssj2008 JVM Instance 'WIN-KJ9F99931U6.007' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-KJ9F99931U6.007' Performance Report

Inspur Corporation Inspur NF8480M6			ssj_ops@100% = 102,874
Test Sponsor:	Inspur Corporation	SPEC License #:	3358	Test Method:	Single Node
Tested By:	Inspur Corporation	Test Location:	JINAN, CHINA	Test Date:	Jan 11, 2021
Hardware Availability:	Nov-2020	Software Availability:	Oct-2020	Publication:	Jan 28, 2021
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

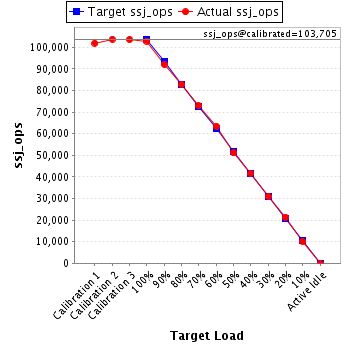

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			101,923
Calibration 2			103,742
Calibration 3			103,668
ssj_ops@calibrated=103,705
100%	99.2%	103,705	102,874
90%	88.8%	93,334	92,142
80%	79.9%	82,964	82,809
70%	70.3%	72,593	72,888
60%	61.2%	62,223	63,432
50%	49.2%	51,852	51,060
40%	40.2%	41,482	41,714
30%	29.9%	31,111	30,957
20%	20.6%	20,741	21,385
10%	9.8%	10,370	10,150
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	Single Node

Hardware
Hardware Vendor:	Inspur Corporation
Model:	Inspur NF8480M6
Form Factor:	4U
CPU Name:	Intel Xeon Platinum 8380HL
CPU Characteristics:	28-Core, 2.90GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2900
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per chip
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16 GB
Memory Details:	24 x 16 GB 2Rx8 3200;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0,CPU2_C0D0,CPU2_C1D0, CPU2_C2D0, CPU2_C3D0, CPU2_C4D0, CPU2_C5D0, CPU3_C0D0,CPU3_C1D0, CPU3_C2D0, CPU3_C3D0, CPU3_C4D0, CPU3_C5D0 populated
Power Supply Quantity and Rating (W):	1 x 1300
Power Supply Details:	DELTA_DPS-1300AB-27 A PN:ZMPS1000228
Disk Drive:	Intel_SSDSCKKB240G_240G_M.2 PN:ZMHD1000582
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power Saver Mode enabled in OS
Operating System (OS):	Windows Server 2019 Datacenter
OS Version:	Version 1809 (OS Build 17763)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options:	-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	start /NODE [0,2,4,6] /AFFINITY [3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE [1,3,5,7] /AFFINITY [3,C,30,3000,C000,30000,C0000,30000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances:	112
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	4.10.0
Management Firmware Version:	4.10.02
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows KB4056898

Boot Firmware Settings

Set "Hardware Prefetcher = Disabled" in BIOS.
Set "Adjacent Cache Prefetcher = Disabled" in BIOS.
Set "DCU Streamer Prefetcher = Disabled" in BIOS.
Set "Turbo mode = Disabled" in BIOS
Set "Sub NUMA Cluster (SNC) = Enable" in BIOS
Set "C-state = Enabled" in BIOS
Set "CPU C6 Report = Enabled" in BIOS
Set "Monitor/Mwait = Enabled" in BIOS
Set "Memory Patrol Scrub = Disabled"
Set Memory Frequency 2933 MHz in BIOS
Set "Energy Performance BIAS = Balanced Power" in BIOS
Set "VT-D = Disabled" in BIOS
Set all USB Ports Disabled in BIOS

Management Firmware Settings

None

System Under Test Notes

Set "Turn off hard disk after = 1 Minute" in OS.
Minimum Processor State:0%.
Maximum Processor State:100%.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.
Each JVM instance was affinitized to 2 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	7,432,294	1,118
		Payment	7,432,290
		Order Status	743,230
		Delivery	743,230
		Stock Level	743,229
		Customer Report	7,432,298
Calibration 2		New Order	7,552,658	1,118
		Payment	7,552,662
		Order Status	755,266
		Delivery	755,266
		Stock Level	755,266
		Customer Report	7,552,658
Calibration 3		New Order	7,543,836	1,118
		Payment	7,543,838
		Order Status	754,384
		Delivery	754,384
		Stock Level	754,384
		Customer Report	7,543,840
100%	99.2%	New Order	7,482,665	1,118
		Payment	7,482,661
		Order Status	748,266
		Delivery	748,267
		Stock Level	748,268
		Customer Report	7,482,666
90%	88.8%	New Order	6,705,239	1,118
		Payment	6,705,237
		Order Status	670,525
		Delivery	670,524
		Stock Level	670,524
		Customer Report	6,705,235
80%	79.9%	New Order	6,022,501	1,118
		Payment	6,022,508
		Order Status	602,249
		Delivery	602,250
		Stock Level	602,251
		Customer Report	6,022,501
70%	70.3%	New Order	5,303,956	1,118
		Payment	5,303,952
		Order Status	530,396
		Delivery	530,395
		Stock Level	530,396
		Customer Report	5,303,955
60%	61.2%	New Order	4,613,453	1,118
		Payment	4,613,452
		Order Status	461,345
		Delivery	461,344
		Stock Level	461,346
		Customer Report	4,613,450
50%	49.2%	New Order	3,713,585	1,118
		Payment	3,713,588
		Order Status	371,359
		Delivery	371,359
		Stock Level	371,359
		Customer Report	3,713,589
40%	40.2%	New Order	3,034,501	1,118
		Payment	3,034,501
		Order Status	303,449
		Delivery	303,449
		Stock Level	303,451
		Customer Report	3,034,503
30%	29.9%	New Order	2,251,508	1,118
		Payment	2,251,503
		Order Status	225,152
		Delivery	225,150
		Stock Level	225,149
		Customer Report	2,251,505
20%	20.6%	New Order	1,555,352	1,118
		Payment	1,555,351
		Order Status	155,534
		Delivery	155,534
		Stock Level	155,534
		Customer Report	1,555,350
10%	9.8%	New Order	738,211	1,118
		Payment	738,214
		Order Status	73,822
		Delivery	73,822
		Stock Level	73,821
		Customer Report	738,216
Active Idle		New Order	0	1,118
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0
