SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2020 Standard Performance Evaluation Corporation
| Inspur Corporation Inspur Yingxin NF8480M5 | SPECpower_ssj2008 = 13,013 overall ssj_ops/watt | ||||
| Test Sponsor: | Inspur Corporation | SPEC License #: | 3358 | Test Method: | Single Node |
| Tested By: | Inspur Corporation | Test Location: | JINAN, CHINA | Test Date: | Sep 18, 2020 |
| Hardware Availability: | Aug-2020 | Software Availability: | Dec-2019 | Publication: | Oct 7, 2020 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

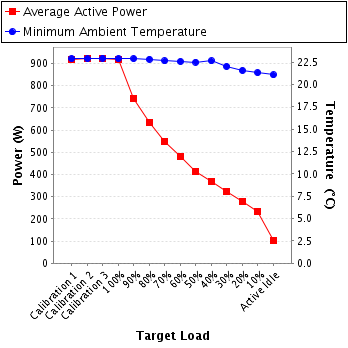

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 920 | 22.9 |
| Calibration 2 | 924 | 22.9 |
| Calibration 3 | 922 | 22.9 |
| 100% | 919 | 22.9 |
| 90% | 744 | 22.9 |
| 80% | 634 | 22.8 |
| 70% | 549 | 22.6 |
| 60% | 482 | 22.6 |
| 50% | 414 | 22.5 |
| 40% | 366 | 22.6 |
| 30% | 323 | 22.0 |
| 20% | 280 | 21.6 |
| 10% | 234 | 21.3 |
| Active Idle | 102 | 21.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT310E |
| Serial Number: | C2QK23022V |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | China National Accreditation Service for Conformity Assessment (CNAS) |
| Accredited by: | Calibration and Testing Center of CEPREI |
| Calibration Label: | LT1923338725Z-21 |
| Date of Calibration: | 12-Oct-2019 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.1-a2d19f26-20190717 |
| Setup Description: | Connected to PSU 0 and PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | placed in front the main airflow inlet of the SUT less than 50mm. |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 220 | 300.0 | 4.22 | 5.0 | 0.992 | 920 | 0.2% |
| Calibration 2 | 221 | 300.0 | 4.22 | 5.0 | 0.992 | 924 | 0.2% |
| Calibration 3 | 220 | 300.0 | 4.22 | 5.0 | 0.992 | 922 | 0.2% |
| 100% | 220 | 300.0 | 4.21 | 5.0 | 0.992 | 919 | 0.2% |
| 90% | 220 | 300.0 | 3.42 | 5.0 | 0.987 | 744 | 0.2% |
| 80% | 221 | 300.0 | 2.90 | 5.0 | 0.991 | 634 | 0.2% |
| 70% | 221 | 300.0 | 2.51 | 5.0 | 0.988 | 549 | 0.3% |
| 60% | 222 | 300.0 | 2.26 | 5.0 | 0.963 | 482 | 0.3% |
| 50% | 222 | 300.0 | 1.90 | 5.0 | 0.982 | 414 | 0.3% |
| 40% | 221 | 300.0 | 1.69 | 5.0 | 0.980 | 366 | 0.3% |
| 30% | 222 | 300.0 | 1.57 | 5.0 | 0.924 | 323 | 0.4% |
| 20% | 222 | 300.0 | 1.40 | 2.0 | 0.905 | 280 | 0.3% |
| 10% | 222 | 300.0 | 1.09 | 2.0 | 0.962 | 234 | 0.3% |
| Active Idle | 222 | 300.0 | 0.491 | 2.0 | 0.933 | 102 | 0.5% |
