ASUSTeK Computer Inc. RS620SA-E10-RS12 SPECpower_ssj2008 = 24,238 overall ssj_ops/watt
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Multi Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan. Test Date: Sep 15, 2020
Hardware Availability: Sep-2020 Software Availability: Aug-2020 Publication: Oct 7, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 36,876,127 1,140 32,361
90% 90.0% 33,262,445 1,071 31,044
80% 80.0% 29,578,242 1,001 29,562
70% 70.0% 25,871,573 929 27,859
60% 60.0% 22,181,770 853 25,999
50% 50.0% 18,498,873 785 23,578
40% 40.0% 14,777,371 696 21,245
30% 30.0% 11,107,687 627 17,707
20% 20.0% 7,392,750 565 13,095
10% 10.0% 3,699,927 492 7,513
Active Idle 0 228 0
∑ssj_ops / ∑power = 24,238

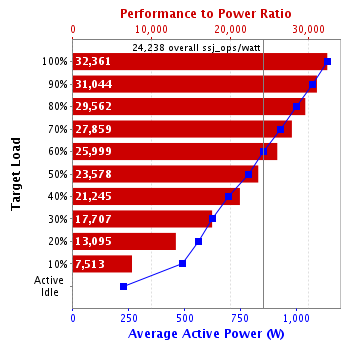

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
6 6 384 768 768 6 192
System Under Test
Shared Hardware
Shared Hardware
Enclosure: RS620SA-E10
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 3000
Power Supply Details: GOSPOWER G1236-3000WNA Rev:0.1 P/N: 0A100-00440000
Network Switch: ASUSTek GigaX1116
Network Switch Details: 16-Port Giga LAN
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: 16 Port Gigabit Ethernet Switch
Set: 'RS620SA-E10-RS12'
Set Identifier: RS620SA-E10-RS12
Set Description: System Under Test
# of Identical Nodes: 6
Comment: 'SUT'
Hardware per Node
Hardware Vendor: ASUSTeK Computer Inc.
Model: RS620SA-E10-RS12
Form Factor: 1U
CPU Name: AMD EPYC 7742 2.25Ghz
CPU Characteristics: 64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 8 x 16GB 2Rx8 PC4-3200AA-R ECC RDIMM; all slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 240GB Seagate Nytro 510DCT M.2 PCIE SSD P/N: 03B03-00130200
Disk Controller: Integrated PCIE controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I210 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled(See SUT Notes)
Operating System (OS): Microsoft Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.1397)
Filesystem: NTFS
JVM Vendor: Oracle
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 14.0.2+12-46, mixed mode, sharing), version 14.0.2
JVM Command-line Options: -server -Xmn1200m -Xms1400m -Xmx1400m -XX:MaxTenuringThreshold=1 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=3000 -XX:+UseParallelGC -XX:+UseLargePages
JVM Affinity: start /NODE [0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15] /AFFINITY [0xF,0xF0]
JVM Instances: 32
JVM Initial Heap (MB): 1400
JVM Maximum Heap (MB): 1400
JVM Address Bits: 64
Boot Firmware Version: 0305
Management Firmware Version: 2.1.09
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: MS-KB4565349
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: ASUSTeK Computer Inc.
Model: RS200-E9-PS2
CPU Description: 1 x E3-1240L V5
Memory amount (GB): 64
Software
Operating System (OS): Windows Server 2012 R2 Datacenter (64-bit)
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT210
Serial Number: 91J615902
Connectivity: RS-232
Input Connection: Default
Metrology Institute: National Measurement Laboratory of the R.O.C.
Accredited by: Tai Yi Electronics & Surveillance Co., Ltd.
Calibration Label: A2007141001
Date of Calibration: 17-Jul-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: Connected to PSU1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50 mm.
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 1,140 20.6
90% 1,071 20.6
80% 1,001 20.6
70% 929 21.2
60% 853 20.9
50% 785 20.8
40% 696 20.6
30% 627 20.4
20% 565 20.4
10% 492 20.9
Active Idle 228 21.0
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 60 Hz / 1 phase / 2 wires 20.4 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     36,933,146
Calibration 2     36,963,737
Calibration 3     36,987,078
ssj_ops@calibrated=36,975,407
100% 99.7% 36,975,407 36,876,127
90% 90.0% 33,277,867 33,262,445
80% 80.0% 29,580,326 29,578,242
70% 70.0% 25,882,785 25,871,573
60% 60.0% 22,185,244 22,181,770
50% 50.0% 18,487,704 18,498,873
40% 40.0% 14,790,163 14,777,371
30% 30.0% 11,092,622 11,107,687
20% 20.0% 7,395,081 7,392,750
10% 10.0% 3,697,541 3,699,927
Active Idle   0 0
Graph of results
