Lenovo Global Technology Think System SR645 ssj_ops@100% = 191,940
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Mar 3, 2020
Hardware Availability: Jun-2020 Software Availability: Dec-2019 Publication: May 11, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,746
Calibration 2     191,987
Calibration 3     191,975
ssj_ops@calibrated=191,981
100% 100.0% 191,981 191,940
90% 90.3% 172,783 173,295
80% 79.7% 153,585 153,070
70% 70.3% 134,387 134,930
60% 60.0% 115,189 115,098
50% 50.0% 95,991 95,976
40% 40.2% 76,792 77,099
30% 30.0% 57,594 57,539
20% 20.3% 38,396 38,900
10% 10.0% 19,198 19,267
Active Idle   0 0

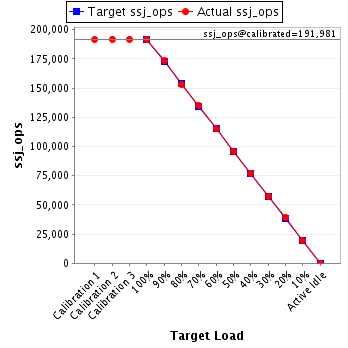

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR645
Form Factor: 1U
CPU Name: AMD EPYC 7742 2.25GHz
CPU Characteristics: 64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16, 17, 19, 21, 23, 26, 28, 30,and 32 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:SP57A14665
Disk Drive: 1 x 128GB M.2 SSD P/N:SSS7A06667
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-port OCP Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 12 SP5
OS Version: 4.12.14-120-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.3+12-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 64 }
JVM Instances: 64
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: d8e105f-1.00
Management Firmware Version: d8bt05s-2.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,945,361 1,690
Payment 13,945,364
Order Status 1,394,536
Delivery 1,394,535
Stock Level 1,394,537
Customer Report 13,945,362
Calibration 2 New Order 13,962,725 1,690
Payment 13,962,721
Order Status 1,396,271
Delivery 1,396,273
Stock Level 1,396,271
Customer Report 13,962,718
Calibration 3 New Order 13,961,854 1,690
Payment 13,961,857
Order Status 1,396,187
Delivery 1,396,187
Stock Level 1,396,186
Customer Report 13,961,867
100% 100.0% New Order 13,959,313 1,690
Payment 13,959,309
Order Status 1,395,932
Delivery 1,395,932
Stock Level 1,395,933
Customer Report 13,959,307
90% 90.3% New Order 12,603,469 1,690
Payment 12,603,468
Order Status 1,260,346
Delivery 1,260,346
Stock Level 1,260,347
Customer Report 12,603,474
80% 79.7% New Order 11,132,367 1,690
Payment 11,132,372
Order Status 1,113,236
Delivery 1,113,235
Stock Level 1,113,238
Customer Report 11,132,362
70% 70.3% New Order 9,813,071 1,690
Payment 9,813,065
Order Status 981,309
Delivery 981,308
Stock Level 981,306
Customer Report 9,813,070
60% 60.0% New Order 8,370,776 1,690
Payment 8,370,783
Order Status 837,080
Delivery 837,079
Stock Level 837,077
Customer Report 8,370,781
50% 50.0% New Order 6,980,068 1,690
Payment 6,980,067
Order Status 698,008
Delivery 698,005
Stock Level 698,007
Customer Report 6,980,072
40% 40.2% New Order 5,607,189 1,690
Payment 5,607,189
Order Status 560,720
Delivery 560,716
Stock Level 560,719
Customer Report 5,607,193
30% 30.0% New Order 4,184,682 1,690
Payment 4,184,686
Order Status 418,470
Delivery 418,469
Stock Level 418,470
Customer Report 4,184,685
20% 20.3% New Order 2,829,095 1,690
Payment 2,829,088
Order Status 282,909
Delivery 282,908
Stock Level 282,911
Customer Report 2,829,089
10% 10.0% New Order 1,401,212 1,690
Payment 1,401,211
Order Status 140,122
Delivery 140,123
Stock Level 140,120
Customer Report 1,401,212
Active Idle New Order 0 1,690
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
