Lenovo Global Technology Think System SR665 SPECpower_ssj2008 = 23,191 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Feb 27, 2020
Hardware Availability: Jun-2020 Software Availability: Sep-2019 Publication: May 11, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 12,150,181 395 30,749
90% 90.0% 10,973,215 352 31,164
80% 80.1% 9,764,458 332 29,377
70% 70.0% 8,534,974 309 27,600
60% 60.0% 7,316,424 288 25,362
50% 50.1% 6,104,738 268 22,786
40% 40.0% 4,878,961 249 19,611
30% 30.0% 3,658,588 228 16,037
20% 20.0% 2,436,387 205 11,858
10% 10.0% 1,220,464 181 6,754
Active Idle 0 82.3 0
∑ssj_ops / ∑power = 23,191
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR665
Form Factor: 2U
CPU Name: AMD EPYC 7742 2.25GHz
CPU Characteristics: 64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16, 17, 19, 21, 23, 26, 28, 30,and 32 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:SP57A14665
Disk Drive: 1 x 128GB M.2 SSD P/N:SSS7A06667
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-port OCP Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.737)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.4+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0-31] /AFFINITY [0xF,0xF0]
JVM Instances: 64
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: d8e105f-1.00
Management Firmware Version: d8bt05s-2.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB4512578
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Lenovo System x3650 M5
CPU Description: 2 x Intel Xeon CPU E5-2699A V4
Memory amount (GB): 384
Software
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter - Version 6.3.9600 (Build 9600)
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31009E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: China CEPREI Laboratory
Calibration Label: 1GA19013841-0007
Date of Calibration: 27-Sep-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 395 23.5
90% 352 22.8
80% 332 23.0
70% 309 23.8
60% 288 23.4
50% 268 22.9
40% 249 22.9
30% 228 23.4
20% 205 23.0
10% 181 22.7
Active Idle 82.3 22.9
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 22.7 43
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,166,532
Calibration 2     12,191,872
Calibration 3     12,197,759
ssj_ops@calibrated=12,194,815
100% 99.6% 12,194,815 12,150,181
90% 90.0% 10,975,334 10,973,215
80% 80.1% 9,755,852 9,764,458
70% 70.0% 8,536,371 8,534,974
60% 60.0% 7,316,889 7,316,424
50% 50.1% 6,097,408 6,104,738
40% 40.0% 4,877,926 4,878,961
30% 30.0% 3,658,445 3,658,588
20% 20.0% 2,438,963 2,436,387
10% 10.0% 1,219,482 1,220,464
Active Idle   0 0

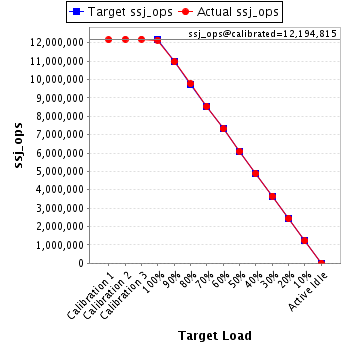

Graph of results
