SPECpower_ssj2008

Fujitsu FUJITSU Server PRIMERGY LX1430 M1			SPECpower_ssj2008 = 17,278 overall ssj_ops/watt
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Single Node
Tested By:	Fujitsu	Test Location:	Kawasaki, Kanagawa, Japan	Test Date:	Dec 3, 2019
Hardware Availability:	Dec-2019	Software Availability:	Oct-2019	Publication:	Dec 18, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Fujitsu
Model:	FUJITSU Server PRIMERGY LX1430 M1
Form Factor:	1U
CPU Name:	AMD EPYC 7742 2.25GHz
CPU Characteristics:	64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	64 cores, 1 chip, 64 cores/chip
Hardware Threads:	128 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	8 x 32 GB
Memory Details:	8 x 32GB 2Rx4 PC4-3200AA-RE2-12; slots A1, B1, C1, D1, E1, F1, G1, H1 populated
Power Supply Quantity and Rating (W):	1 x 650
Power Supply Details:	PYBPU651
Disk Drive:	1 x SATA SSD 240GB, PYBSS24NKL
Disk Controller:	Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed:	2 x Intel i350-AM2 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP1
OS Version:	4.12.14-195-default
Filesystem:	btrfs
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.5+10-LTS, mixed mode)
JVM Command-line Options:	-server -Xmn1400m -Xms1600m -Xmx1600m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=8 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=0
JVM Affinity:	for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 64 }
JVM Instances:	64
JVM Initial Heap (MB):	1600
JVM Maximum Heap (MB):	1600
JVM Address Bits:	64
Boot Firmware Version:	R07
Management Firmware Version:	2.94.4
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

None

Benchmark started via ssh
modprobe cpufreq_conservative
cpupower frequency-set --governor conservative
echo -n 94 > /sys/devices/system/cpu/cpufreq/conservative/up_threshold
echo -n 93 > /sys/devices/system/cpu/cpufreq/conservative/down_threshold
echo -n 2 > /sys/devices/system/cpu/cpufreq/conservative/freq_step
echo -n 1000000 > /sys/devices/system/cpu/cpufreq/conservative/sampling_rate
echo -n 0 > /sys/devices/system/cpu/cpufreq/conservative/ignore_nice_load
sysctl -w kernel.sched_migration_cost_ns=6000
echo -n 1 > /sys/devices/system/cpu/cpufreq/conservative/sampling_down_factor
sysctl -w kernel.sched_min_granularity_ns=10000000
echo always > /sys/kernel/mm/transparent_hugepage/enabled
echo 0 > /proc/sys/kernel/nmi_watchdog
sysctl -w vm.swappiness=50
sysctl -w vm.laptop_mode=5
<N/A>: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
<Yes>: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
<Yes>: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Software
Operating System (OS):	Microsoft Windows Server 2012 R2 Standard
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Hioki
Model:	Hioki3336
Serial Number:	170121768
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	NICT (National Institute of Information and Communications Technology)
Accredited by:	HIOKI E.E. CORPORATION
Calibration Label:	H06400085-1902
Date of Calibration:	25-Feb-2019
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.1-a2d19f26-20190717
Setup Description:	Connected to PSU 1

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	Watchport Virtual Port 5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	5 mm in front of SUT main air intake

SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.

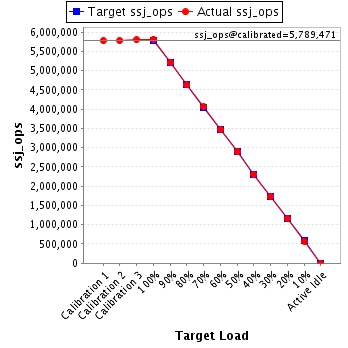

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	250	22.6
90%	229	22.6
80%	212	22.6
70%	192	22.5
60%	179	22.4
50%	168	22.3
40%	156	22.4
30%	145	22.3
20%	133	22.4
10%	119	22.5
Active Idle	60.8	22.6

Line Standard	Minimum Temperature (°C)	Elevation (m)
200V / 50 Hz / 1 phase / 2 wires	22.3	11

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
