Fujitsu FUJITSU Server PRIMERGY RX1330 M4 SPECpower_ssj2008 = 11,660 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Dec 3, 2019
Hardware Availability: Oct-2019 Software Availability: Dec-2018 Publication: Dec 18, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 98.8% 786,578 57.4 13,702
90% 90.3% 718,749 50.6 14,191
80% 80.1% 637,381 44.7 14,258
70% 70.3% 559,173 40.1 13,943
60% 60.3% 479,727 35.8 13,402
50% 49.6% 395,072 31.6 12,485
40% 39.9% 317,856 28.3 11,234
30% 29.9% 238,148 25.6 9,314
20% 20.0% 159,527 23.2 6,864
10% 10.0% 79,813 20.7 3,847
Active Idle 0 16.8 0
∑ssj_ops / ∑power = 11,660

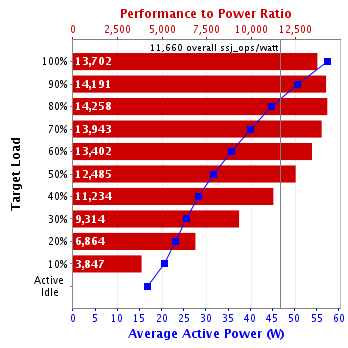

Graph of results
System Under Test
Set: 'RX1330M4'
Set Identifier: RX1330M4
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX1330 M4
Form Factor: 1U
CPU Name: Intel Xeon E-2288G
CPU Characteristics: 8-Core, 3.7GHz, 16MB L3 Cache
CPU Frequency (MHz): 3700
CPU(s) Enabled: 8 cores, 1 chip, 8 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 16 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 2 x 8192 MB
Memory Details: 2 x 8 GB 1Rx8 PC4-2666V-E; slots 1A, 1B, populated
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: S26113-F575-E13
Disk Drive: 1 x M.2 SSD 240GB, S26361-F5706-E240
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I210 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn10500m -Xms12000m -Xmx12000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=8 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=0
JVM Affinity: chrt -r 1 numactl --localalloc
JVM Instances: 1
JVM Initial Heap (MB): 12000
JVM Maximum Heap (MB): 12000
JVM Address Bits: 64
Boot Firmware Version: R1.12.0
Management Firmware Version: 2.50P
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX2530 M2
CPU Description: 2x Intel Xeon E5-2643 v4
Memory amount (GB): 64
Software
Operating System (OS): Microsoft Windows Server 2012 R2 Standard
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Hioki
Model: Hioki3336
Serial Number: 170130930
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NICT (National Institute of Information and Communications Technology)
Accredited by: HIOKI E.E. CORPORATION
Calibration Label: H06400086-1901
Date of Calibration: 30-Jan-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 57.4 22.4
90% 50.6 22.4
80% 44.7 22.4
70% 40.1 22.4
60% 35.8 22.6
50% 31.6 22.6
40% 28.3 22.6
30% 25.6 22.6
20% 23.2 22.5
10% 20.7 22.5
Active Idle 16.8 22.4
Line Standard Minimum Temperature (°C) Elevation (m)
200V / 50 Hz / 1 phase / 2 wires 22.4 11
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     695,404
Calibration 2     796,369
Calibration 3     795,315
ssj_ops@calibrated=795,842
100% 98.8% 795,842 786,578
90% 90.3% 716,258 718,749
80% 80.1% 636,673 637,381
70% 70.3% 557,089 559,173
60% 60.3% 477,505 479,727
50% 49.6% 397,921 395,072
40% 39.9% 318,337 317,856
30% 29.9% 238,753 238,148
20% 20.0% 159,168 159,527
10% 10.0% 79,584 79,813
Active Idle   0 0
Graph of results
