Inspur Corporation Inspur NF5280M5 ssj_ops@100% = 4,864,136
ssj_ops@100% per JVM = 86,860
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: Sep 16, 2019
Hardware Availability: Jun-2019 Software Availability: Sep-2019 Publication: Oct 9, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,886,457
Calibration 2     4,877,834
Calibration 3     4,879,035
ssj_ops@calibrated=4,878,434
100% 99.7% 4,878,434 4,864,136
90% 90.0% 4,390,591 4,389,196
80% 80.1% 3,902,747 3,905,724
70% 70.1% 3,414,904 3,418,737
60% 60.0% 2,927,061 2,925,811
50% 50.0% 2,439,217 2,439,017
40% 40.0% 1,951,374 1,951,394
30% 30.0% 1,463,530 1,461,411
20% 20.0% 975,687 974,045
10% 10.0% 487,843 485,973
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Inspur Corporation
Model: Inspur NF5280M5
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8276L
CPU Characteristics: 28-Core, 2.20GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y ECC RDIMM;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Delta DPS-800AB-9X P/N:V07LP0400000000F
Disk Drive: Intel SSD DC S3500 Series 6Gb/s 80G PN:ZMHD1000018
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Balanced Power" power plan)
Operating System (OS): Microsoft Windows Servers 2012 R2 Datacenter
OS Version: Version 6.3.9600.18969
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM)64-Bit Server VM(build 24.80-b11,mixed mode),version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2] /AFFINITY [3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE [1,3] /AFFINITY [3,C,30,3000,C000,30000,C0000,30000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 4.1.7
Management Firmware Version: 4.24.0
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4056898
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-B3I5TIB3APM.001 92,207
WIN-B3I5TIB3APM.002 89,761
WIN-B3I5TIB3APM.003 89,997
WIN-B3I5TIB3APM.004 85,017
WIN-B3I5TIB3APM.005 89,513
WIN-B3I5TIB3APM.006 89,484
WIN-B3I5TIB3APM.007 90,209
WIN-B3I5TIB3APM.008 90,846
WIN-B3I5TIB3APM.009 90,299
WIN-B3I5TIB3APM.010 89,790
WIN-B3I5TIB3APM.011 85,194
WIN-B3I5TIB3APM.012 89,392
WIN-B3I5TIB3APM.013 91,080
WIN-B3I5TIB3APM.014 91,619
WIN-B3I5TIB3APM.015 90,590
WIN-B3I5TIB3APM.016 91,103
WIN-B3I5TIB3APM.017 90,694
WIN-B3I5TIB3APM.018 86,504
WIN-B3I5TIB3APM.019 90,060
WIN-B3I5TIB3APM.020 90,773
WIN-B3I5TIB3APM.021 89,221
WIN-B3I5TIB3APM.022 89,650
WIN-B3I5TIB3APM.023 90,003
WIN-B3I5TIB3APM.024 90,436
WIN-B3I5TIB3APM.025 85,310
WIN-B3I5TIB3APM.026 90,661
WIN-B3I5TIB3APM.027 91,475
WIN-B3I5TIB3APM.028 91,321
WIN-B3I5TIB3APM.029 78,526
WIN-B3I5TIB3APM.030 80,477
WIN-B3I5TIB3APM.031 79,063
WIN-B3I5TIB3APM.032 71,857
WIN-B3I5TIB3APM.033 79,698
WIN-B3I5TIB3APM.034 82,137
WIN-B3I5TIB3APM.035 79,290
WIN-B3I5TIB3APM.036 79,552
WIN-B3I5TIB3APM.037 81,954
WIN-B3I5TIB3APM.038 78,915
WIN-B3I5TIB3APM.039 72,028
WIN-B3I5TIB3APM.040 80,115
WIN-B3I5TIB3APM.041 80,135
WIN-B3I5TIB3APM.042 79,680
WIN-B3I5TIB3APM.043 89,949
WIN-B3I5TIB3APM.044 92,391
WIN-B3I5TIB3APM.045 88,689
WIN-B3I5TIB3APM.046 82,843
WIN-B3I5TIB3APM.047 90,341
WIN-B3I5TIB3APM.048 92,781
WIN-B3I5TIB3APM.049 89,227
WIN-B3I5TIB3APM.050 88,719
WIN-B3I5TIB3APM.051 89,786
WIN-B3I5TIB3APM.052 91,066
WIN-B3I5TIB3APM.053 82,814
WIN-B3I5TIB3APM.054 89,634
WIN-B3I5TIB3APM.055 89,578
WIN-B3I5TIB3APM.056 90,681
ssj_ops@100% 4,864,136
ssj_ops@100% per JVM 86,860

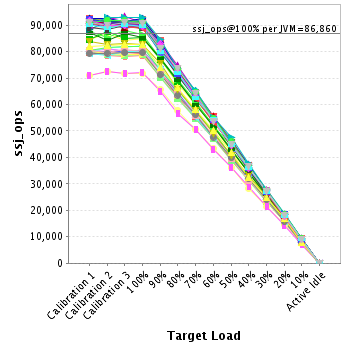

Graph of per-instance results
JVM 'WIN-B3I5TIB3APM.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,453
Calibration 2     91,927
Calibration 3     91,093
ssj_ops@calibrated=91,510
100% 100.8% 91,510 92,207
90% 92.0% 82,359 84,145
80% 80.4% 73,208 73,616
70% 70.5% 64,057 64,488
60% 60.0% 54,906 54,929
50% 49.7% 45,755 45,477
40% 39.6% 36,604 36,214
30% 29.9% 27,453 27,348
20% 19.6% 18,302 17,953
10% 10.2% 9,151 9,291
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,825
Calibration 2     90,589
Calibration 3     88,563
ssj_ops@calibrated=89,576
100% 100.2% 89,576 89,761
90% 88.7% 80,618 79,411
80% 81.1% 71,661 72,646
70% 70.5% 62,703 63,166
60% 60.1% 53,746 53,805
50% 50.1% 44,788 44,860
40% 40.0% 35,830 35,839
30% 30.5% 26,873 27,287
20% 19.7% 17,915 17,686
10% 10.0% 8,958 8,953
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,658
Calibration 2     91,231
Calibration 3     90,996
ssj_ops@calibrated=91,114
100% 98.8% 91,114 89,997
90% 89.1% 82,002 81,193
80% 80.0% 72,891 72,928
70% 69.8% 63,780 63,627
60% 59.5% 54,668 54,179
50% 50.4% 45,557 45,898
40% 40.1% 36,445 36,574
30% 29.4% 27,334 26,823
20% 20.4% 18,223 18,557
10% 9.8% 9,111 8,912
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,436
Calibration 2     86,703
Calibration 3     84,221
ssj_ops@calibrated=85,462
100% 99.5% 85,462 85,017
90% 90.1% 76,915 77,007
80% 79.6% 68,369 68,019
70% 70.3% 59,823 60,109
60% 60.3% 51,277 51,549
50% 49.5% 42,731 42,306
40% 40.2% 34,185 34,384
30% 29.6% 25,638 25,301
20% 20.7% 17,092 17,674
10% 10.0% 8,546 8,507
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,743
Calibration 2     89,978
Calibration 3     89,784
ssj_ops@calibrated=89,881
100% 99.6% 89,881 89,513
90% 90.2% 80,893 81,116
80% 80.3% 71,905 72,152
70% 69.7% 62,917 62,608
60% 59.6% 53,929 53,554
50% 50.4% 44,941 45,256
40% 39.7% 35,953 35,713
30% 29.9% 26,964 26,890
20% 19.6% 17,976 17,620
10% 10.0% 8,988 9,029
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,652
Calibration 2     89,293
Calibration 3     90,251
ssj_ops@calibrated=89,772
100% 99.7% 89,772 89,484
90% 89.7% 80,795 80,497
80% 80.1% 71,818 71,898
70% 69.5% 62,840 62,371
60% 59.9% 53,863 53,732
50% 49.6% 44,886 44,546
40% 39.9% 35,909 35,806
30% 30.1% 26,932 27,032
20% 19.8% 17,954 17,816
10% 10.1% 8,977 9,062
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,891
Calibration 2     89,994
Calibration 3     90,921
ssj_ops@calibrated=90,458
100% 99.7% 90,458 90,209
90% 88.8% 81,412 80,345
80% 78.8% 72,366 71,320
70% 70.0% 63,320 63,295
60% 60.2% 54,275 54,413
50% 49.5% 45,229 44,817
40% 40.1% 36,183 36,245
30% 30.4% 27,137 27,485
20% 19.6% 18,092 17,741
10% 10.0% 9,046 9,041
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,240
Calibration 2     92,283
Calibration 3     91,069
ssj_ops@calibrated=91,676
100% 99.1% 91,676 90,846
90% 90.2% 82,508 82,671
80% 79.9% 73,341 73,264
70% 69.9% 64,173 64,067
60% 59.3% 55,006 54,318
50% 49.9% 45,838 45,702
40% 40.3% 36,670 36,917
30% 30.4% 27,503 27,853
20% 20.3% 18,335 18,587
10% 9.5% 9,168 8,753
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,798
Calibration 2     91,074
Calibration 3     90,372
ssj_ops@calibrated=90,723
100% 99.5% 90,723 90,299
90% 89.9% 81,651 81,528
80% 80.6% 72,578 73,142
70% 69.8% 63,506 63,284
60% 59.5% 54,434 54,011
50% 49.8% 45,362 45,202
40% 40.6% 36,289 36,811
30% 30.1% 27,217 27,268
20% 20.2% 18,145 18,294
10% 10.0% 9,072 9,062
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,711
Calibration 2     89,992
Calibration 3     90,221
ssj_ops@calibrated=90,106
100% 99.6% 90,106 89,790
90% 89.6% 81,096 80,742
80% 79.1% 72,085 71,314
70% 69.8% 63,074 62,862
60% 60.2% 54,064 54,218
50% 49.5% 45,053 44,585
40% 41.1% 36,042 37,064
30% 29.8% 27,032 26,836
20% 20.1% 18,021 18,107
10% 9.7% 9,011 8,749
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,645
Calibration 2     87,595
Calibration 3     84,910
ssj_ops@calibrated=86,253
100% 98.8% 86,253 85,194
90% 89.1% 77,627 76,870
80% 79.6% 69,002 68,666
70% 70.5% 60,377 60,766
60% 60.3% 51,752 52,009
50% 49.9% 43,126 43,065
40% 39.7% 34,501 34,273
30% 29.8% 25,876 25,739
20% 19.8% 17,251 17,065
10% 10.0% 8,625 8,608
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,964
Calibration 2     89,895
Calibration 3     90,084
ssj_ops@calibrated=89,990
100% 99.3% 89,990 89,392
90% 89.5% 80,991 80,550
80% 80.4% 71,992 72,319
70% 69.0% 62,993 62,076
60% 59.9% 53,994 53,892
50% 50.8% 44,995 45,750
40% 39.8% 35,996 35,823
30% 30.4% 26,997 27,374
20% 19.6% 17,998 17,662
10% 10.0% 8,999 9,041
Active Idle   0 0
Graph of results

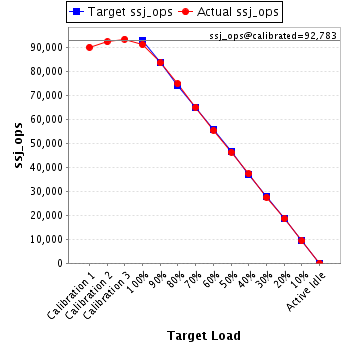

JVM 'WIN-B3I5TIB3APM.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,950
Calibration 2     92,232
Calibration 3     93,333
ssj_ops@calibrated=92,783
100% 98.2% 92,783 91,080
90% 90.0% 83,504 83,469
80% 80.6% 74,226 74,780
70% 70.1% 64,948 65,010
60% 59.7% 55,670 55,378
50% 49.8% 46,391 46,241
40% 40.1% 37,113 37,206
30% 29.6% 27,835 27,475
20% 20.0% 18,557 18,548
10% 10.0% 9,278 9,304
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,485
Calibration 2     90,920
Calibration 3     91,547
ssj_ops@calibrated=91,234
100% 100.4% 91,234 91,619
90% 90.1% 82,110 82,194
80% 80.0% 72,987 72,955
70% 71.6% 63,864 65,283
60% 59.3% 54,740 54,133
50% 49.7% 45,617 45,347
40% 39.9% 36,493 36,371
30% 29.8% 27,370 27,182
20% 20.2% 18,247 18,444
10% 9.7% 9,123 8,808
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,436
Calibration 2     90,939
Calibration 3     91,109
ssj_ops@calibrated=91,024
100% 99.5% 91,024 90,590
90% 89.6% 81,922 81,515
80% 81.1% 72,819 73,783
70% 69.7% 63,717 63,406
60% 60.1% 54,615 54,710
50% 49.9% 45,512 45,406
40% 40.0% 36,410 36,442
30% 29.6% 27,307 26,973
20% 20.0% 18,205 18,190
10% 10.2% 9,102 9,249
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,250
Calibration 2     91,546
Calibration 3     91,444
ssj_ops@calibrated=91,495
100% 99.6% 91,495 91,103
90% 89.9% 82,345 82,212
80% 79.3% 73,196 72,577
70% 70.3% 64,046 64,355
60% 60.6% 54,897 55,459
50% 49.5% 45,747 45,323
40% 40.4% 36,598 36,924
30% 29.8% 27,448 27,291
20% 19.8% 18,299 18,136
10% 9.6% 9,149 8,812
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,913
Calibration 2     91,496
Calibration 3     91,607
ssj_ops@calibrated=91,551
100% 99.1% 91,551 90,694
90% 90.1% 82,396 82,522
80% 80.2% 73,241 73,380
70% 70.0% 64,086 64,121
60% 59.7% 54,931 54,680
50% 50.2% 45,776 45,979
40% 40.3% 36,621 36,880
30% 29.9% 27,465 27,368
20% 19.8% 18,310 18,124
10% 10.1% 9,155 9,224
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,669
Calibration 2     85,183
Calibration 3     88,053
ssj_ops@calibrated=86,618
100% 99.9% 86,618 86,504
90% 89.5% 77,956 77,560
80% 80.1% 69,294 69,345
70% 70.5% 60,633 61,067
60% 59.9% 51,971 51,860
50% 51.2% 43,309 44,360
40% 39.9% 34,647 34,596
30% 29.5% 25,985 25,586
20% 20.0% 17,324 17,363
10% 10.1% 8,662 8,715
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,839
Calibration 2     90,445
Calibration 3     90,779
ssj_ops@calibrated=90,612
100% 99.4% 90,612 90,060
90% 90.3% 81,551 81,829
80% 79.9% 72,490 72,387
70% 70.3% 63,428 63,678
60% 60.6% 54,367 54,870
50% 49.8% 45,306 45,127
40% 40.1% 36,245 36,294
30% 29.9% 27,184 27,094
20% 19.8% 18,122 17,970
10% 10.0% 9,061 9,024
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,272
Calibration 2     90,610
Calibration 3     91,445
ssj_ops@calibrated=91,028
100% 99.7% 91,028 90,773
90% 89.5% 81,925 81,483
80% 79.3% 72,822 72,140
70% 69.6% 63,719 63,353
60% 60.0% 54,617 54,577
50% 49.9% 45,514 45,439
40% 39.7% 36,411 36,173
30% 30.1% 27,308 27,398
20% 19.3% 18,206 17,532
10% 9.8% 9,103 8,879
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,022
Calibration 2     88,562
Calibration 3     90,754
ssj_ops@calibrated=89,658
100% 99.5% 89,658 89,221
90% 90.1% 80,692 80,827
80% 79.9% 71,726 71,649
70% 70.1% 62,761 62,875
60% 59.6% 53,795 53,435
50% 50.4% 44,829 45,193
40% 40.0% 35,863 35,859
30% 29.8% 26,897 26,694
20% 20.2% 17,932 18,086
10% 10.1% 8,966 9,020
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,932
Calibration 2     89,893
Calibration 3     89,297
ssj_ops@calibrated=89,595
100% 100.1% 89,595 89,650
90% 90.0% 80,636 80,669
80% 80.6% 71,676 72,211
70% 70.1% 62,717 62,849
60% 60.7% 53,757 54,382
50% 49.8% 44,798 44,618
40% 40.1% 35,838 35,927
30% 30.1% 26,879 26,985
20% 19.6% 17,919 17,603
10% 10.3% 8,960 9,264
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,327
Calibration 2     91,445
Calibration 3     89,300
ssj_ops@calibrated=90,372
100% 99.6% 90,372 90,003
90% 89.2% 81,335 80,620
80% 80.0% 72,298 72,332
70% 69.7% 63,260 62,952
60% 59.6% 54,223 53,848
50% 49.0% 45,186 44,311
40% 39.6% 36,149 35,769
30% 29.6% 27,112 26,765
20% 19.9% 18,074 18,004
10% 10.0% 9,037 9,029
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,120
Calibration 2     91,549
Calibration 3     90,823
ssj_ops@calibrated=91,186
100% 99.2% 91,186 90,436
90% 89.1% 82,068 81,275
80% 79.6% 72,949 72,613
70% 69.6% 63,830 63,441
60% 59.5% 54,712 54,227
50% 50.0% 45,593 45,622
40% 40.6% 36,475 36,987
30% 29.8% 27,356 27,173
20% 20.0% 18,237 18,231
10% 10.1% 9,119 9,199
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,049
Calibration 2     84,254
Calibration 3     86,920
ssj_ops@calibrated=85,587
100% 99.7% 85,587 85,310
90% 90.2% 77,028 77,210
80% 80.8% 68,470 69,190
70% 70.0% 59,911 59,944
60% 60.5% 51,352 51,749
50% 50.0% 42,794 42,752
40% 40.0% 34,235 34,252
30% 30.1% 25,676 25,732
20% 19.8% 17,117 16,978
10% 9.9% 8,559 8,462
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,541
Calibration 2     90,749
Calibration 3     90,633
ssj_ops@calibrated=90,691
100% 100.0% 90,691 90,661
90% 90.3% 81,622 81,863
80% 81.3% 72,553 73,693
70% 69.4% 63,484 62,926
60% 60.1% 54,415 54,501
50% 50.2% 45,346 45,568
40% 39.8% 36,276 36,135
30% 30.0% 27,207 27,240
20% 19.9% 18,138 18,091
10% 9.7% 9,069 8,799
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,043
Calibration 2     91,193
Calibration 3     91,054
ssj_ops@calibrated=91,124
100% 100.4% 91,124 91,475
90% 89.2% 82,011 81,316
80% 80.2% 72,899 73,110
70% 70.6% 63,787 64,351
60% 59.4% 54,674 54,152
50% 50.7% 45,562 46,230
40% 40.4% 36,449 36,819
30% 29.8% 27,337 27,121
20% 20.2% 18,225 18,407
10% 9.9% 9,112 9,024
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,506
Calibration 2     91,327
Calibration 3     91,117
ssj_ops@calibrated=91,222
100% 100.1% 91,222 91,321
90% 90.7% 82,100 82,706
80% 79.7% 72,978 72,736
70% 70.0% 63,855 63,882
60% 60.0% 54,733 54,702
50% 49.8% 45,611 45,411
40% 39.8% 36,489 36,285
30% 30.1% 27,367 27,428
20% 20.4% 18,244 18,590
10% 10.0% 9,122 9,129
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,006
Calibration 2     78,526
Calibration 3     78,276
ssj_ops@calibrated=78,401
100% 100.2% 78,401 78,526
90% 89.5% 70,561 70,162
80% 80.4% 62,721 63,040
70% 69.9% 54,881 54,831
60% 60.2% 47,041 47,206
50% 49.4% 39,201 38,731
40% 40.3% 31,360 31,603
30% 30.0% 23,520 23,499
20% 20.4% 15,680 15,957
10% 10.1% 7,840 7,950
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,061
Calibration 2     81,172
Calibration 3     79,890
ssj_ops@calibrated=80,531
100% 99.9% 80,531 80,477
90% 90.9% 72,478 73,186
80% 80.1% 64,425 64,473
70% 69.9% 56,372 56,313
60% 59.5% 48,318 47,901
50% 50.9% 40,265 41,010
40% 40.0% 32,212 32,214
30% 29.8% 24,159 24,002
20% 20.4% 16,106 16,426
10% 10.0% 8,053 8,070
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,491
Calibration 2     78,789
Calibration 3     78,361
ssj_ops@calibrated=78,575
100% 100.6% 78,575 79,063
90% 89.2% 70,717 70,099
80% 79.2% 62,860 62,265
70% 69.8% 55,002 54,820
60% 59.9% 47,145 47,073
50% 49.6% 39,287 38,947
40% 39.6% 31,430 31,097
30% 29.6% 23,572 23,258
20% 20.0% 15,715 15,712
10% 10.1% 7,857 7,970
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,132
Calibration 2     72,586
Calibration 3     71,692
ssj_ops@calibrated=72,139
100% 99.6% 72,139 71,857
90% 91.0% 64,925 65,639
80% 80.2% 57,711 57,832
70% 70.3% 50,497 50,723
60% 60.2% 43,283 43,436
50% 50.1% 36,070 36,114
40% 39.1% 28,856 28,178
30% 29.5% 21,642 21,295
20% 20.1% 14,428 14,528
10% 10.3% 7,214 7,416
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,446
Calibration 2     80,762
Calibration 3     80,611
ssj_ops@calibrated=80,687
100% 98.8% 80,687 79,698
90% 90.5% 72,618 73,013
80% 79.7% 64,549 64,282
70% 70.6% 56,481 56,978
60% 59.4% 48,412 47,892
50% 50.9% 40,343 41,048
40% 39.7% 32,275 32,057
30% 29.7% 24,206 23,999
20% 20.0% 16,137 16,112
10% 10.2% 8,069 8,256
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,807
Calibration 2     81,493
Calibration 3     81,429
ssj_ops@calibrated=81,461
100% 100.8% 81,461 82,137
90% 91.0% 73,315 74,125
80% 80.7% 65,169 65,707
70% 70.0% 57,023 57,040
60% 60.6% 48,877 49,374
50% 49.9% 40,730 40,672
40% 40.1% 32,584 32,644
30% 29.8% 24,438 24,259
20% 19.6% 16,292 15,991
10% 10.1% 8,146 8,241
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,034
Calibration 2     79,409
Calibration 3     79,699
ssj_ops@calibrated=79,554
100% 99.7% 79,554 79,290
90% 90.4% 71,598 71,883
80% 81.0% 63,643 64,463
70% 69.2% 55,688 55,063
60% 60.3% 47,732 47,957
50% 49.5% 39,777 39,394
40% 40.4% 31,821 32,104
30% 29.9% 23,866 23,766
20% 19.7% 15,911 15,697
10% 9.5% 7,955 7,565
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,710
Calibration 2     79,987
Calibration 3     80,086
ssj_ops@calibrated=80,037
100% 99.4% 80,037 79,552
90% 89.1% 72,033 71,310
80% 80.7% 64,029 64,592
70% 69.4% 56,026 55,576
60% 60.0% 48,022 48,025
50% 49.7% 40,018 39,764
40% 40.6% 32,015 32,502
30% 30.1% 24,011 24,082
20% 20.5% 16,007 16,403
10% 10.2% 8,004 8,183
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,348
Calibration 2     81,618
Calibration 3     81,912
ssj_ops@calibrated=81,765
100% 100.2% 81,765 81,954
90% 89.0% 73,589 72,768
80% 80.4% 65,412 65,733
70% 70.3% 57,236 57,480
60% 60.9% 49,059 49,777
50% 49.6% 40,883 40,527
40% 39.2% 32,706 32,080
30% 30.0% 24,530 24,503
20% 20.1% 16,353 16,449
10% 10.1% 8,177 8,283
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,048
Calibration 2     79,457
Calibration 3     79,082
ssj_ops@calibrated=79,269
100% 99.6% 79,269 78,915
90% 90.6% 71,342 71,833
80% 79.9% 63,416 63,352
70% 71.1% 55,489 56,400
60% 60.3% 47,562 47,776
50% 49.8% 39,635 39,514
40% 40.3% 31,708 31,978
30% 29.8% 23,781 23,617
20% 19.8% 15,854 15,703
10% 9.8% 7,927 7,741
Active Idle   0 0
Graph of results

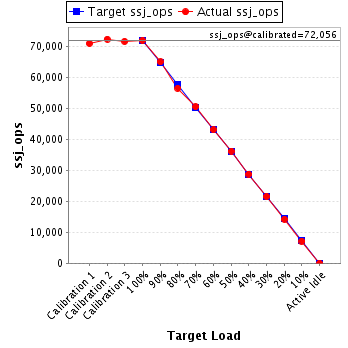

JVM 'WIN-B3I5TIB3APM.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     71,038
Calibration 2     72,407
Calibration 3     71,706
ssj_ops@calibrated=72,056
100% 100.0% 72,056 72,028
90% 90.3% 64,851 65,071
80% 78.5% 57,645 56,566
70% 70.2% 50,440 50,565
60% 59.9% 43,234 43,130
50% 50.3% 36,028 36,236
40% 40.0% 28,823 28,831
30% 30.0% 21,617 21,607
20% 19.7% 14,411 14,229
10% 9.9% 7,206 7,164
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,405
Calibration 2     78,669
Calibration 3     80,214
ssj_ops@calibrated=79,442
100% 100.8% 79,442 80,115
90% 89.6% 71,498 71,163
80% 80.8% 63,553 64,167
70% 69.5% 55,609 55,180
60% 60.0% 47,665 47,627
50% 50.3% 39,721 39,989
40% 39.7% 31,777 31,552
30% 30.2% 23,833 24,007
20% 19.9% 15,888 15,791
10% 10.1% 7,944 8,029
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,518
Calibration 2     79,487
Calibration 3     80,757
ssj_ops@calibrated=80,122
100% 100.0% 80,122 80,135
90% 89.4% 72,110 71,613
80% 79.8% 64,098 63,921
70% 69.6% 56,086 55,776
60% 60.2% 48,073 48,236
50% 49.5% 40,061 39,636
40% 38.8% 32,049 31,127
30% 29.9% 24,037 23,975
20% 20.1% 16,024 16,107
10% 10.2% 8,012 8,154
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,370
Calibration 2     79,378
Calibration 3     79,618
ssj_ops@calibrated=79,498
100% 100.2% 79,498 79,680
90% 89.6% 71,548 71,201
80% 80.0% 63,598 63,564
70% 70.7% 55,648 56,193
60% 60.0% 47,699 47,719
50% 50.2% 39,749 39,912
40% 40.2% 31,799 31,961
30% 30.2% 23,849 23,981
20% 19.8% 15,900 15,732
10% 10.0% 7,950 7,945
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,964
Calibration 2     90,796
Calibration 3     90,186
ssj_ops@calibrated=90,491
100% 99.4% 90,491 89,949
90% 90.2% 81,442 81,579
80% 80.5% 72,393 72,827
70% 70.7% 63,344 63,993
60% 61.1% 54,295 55,310
50% 50.5% 45,245 45,692
40% 40.3% 36,196 36,464
30% 30.6% 27,147 27,689
20% 20.1% 18,098 18,156
10% 10.0% 9,049 9,020
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,381
Calibration 2     92,669
Calibration 3     91,551
ssj_ops@calibrated=92,110
100% 100.3% 92,110 92,391
90% 90.8% 82,899 83,615
80% 79.9% 73,688 73,636
70% 70.2% 64,477 64,660
60% 59.5% 55,266 54,788
50% 49.7% 46,055 45,822
40% 40.0% 36,844 36,880
30% 30.0% 27,633 27,672
20% 19.8% 18,422 18,245
10% 10.0% 9,211 9,214
Active Idle   0 0
Graph of results

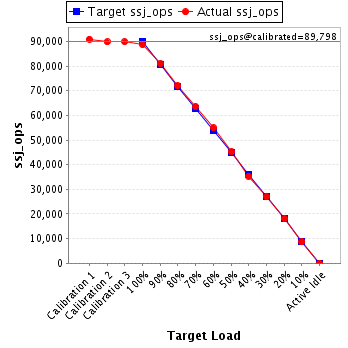

JVM 'WIN-B3I5TIB3APM.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,920
Calibration 2     89,780
Calibration 3     89,816
ssj_ops@calibrated=89,798
100% 98.8% 89,798 88,689
90% 90.2% 80,818 81,010
80% 80.2% 71,839 72,032
70% 70.8% 62,859 63,559
60% 61.2% 53,879 54,913
50% 50.4% 44,899 45,237
40% 39.3% 35,919 35,281
30% 30.0% 26,939 26,924
20% 20.2% 17,960 18,174
10% 9.7% 8,980 8,679
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,731
Calibration 2     82,821
Calibration 3     83,169
ssj_ops@calibrated=82,995
100% 99.8% 82,995 82,843
90% 91.1% 74,696 75,591
80% 79.0% 66,396 65,594
70% 69.4% 58,097 57,575
60% 59.2% 49,797 49,172
50% 48.9% 41,498 40,597
40% 39.9% 33,198 33,083
30% 30.3% 24,899 25,173
20% 19.9% 16,599 16,495
10% 10.1% 8,300 8,362
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,819
Calibration 2     90,097
Calibration 3     90,720
ssj_ops@calibrated=90,408
100% 99.9% 90,408 90,341
90% 90.6% 81,368 81,870
80% 79.2% 72,327 71,605
70% 70.4% 63,286 63,680
60% 59.2% 54,245 53,493
50% 50.0% 45,204 45,202
40% 39.4% 36,163 35,651
30% 30.4% 27,123 27,491
20% 19.8% 18,082 17,931
10% 9.9% 9,041 8,916
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,310
Calibration 2     92,735
Calibration 3     92,918
ssj_ops@calibrated=92,826
100% 100.0% 92,826 92,781
90% 91.0% 83,544 84,431
80% 79.5% 74,261 73,787
70% 70.3% 64,978 65,296
60% 59.3% 55,696 55,005
50% 51.4% 46,413 47,704
40% 40.8% 37,131 37,832
30% 30.2% 27,848 28,044
20% 20.4% 18,565 18,903
10% 9.9% 9,283 9,212
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,160
Calibration 2     88,334
Calibration 3     89,804
ssj_ops@calibrated=89,069
100% 100.2% 89,069 89,227
90% 90.1% 80,162 80,234
80% 79.6% 71,255 70,892
70% 69.9% 62,348 62,252
60% 60.4% 53,441 53,789
50% 50.2% 44,534 44,689
40% 39.8% 35,627 35,418
30% 29.4% 26,721 26,178
20% 19.8% 17,814 17,648
10% 9.9% 8,907 8,783
Active Idle   0 0
Graph of results

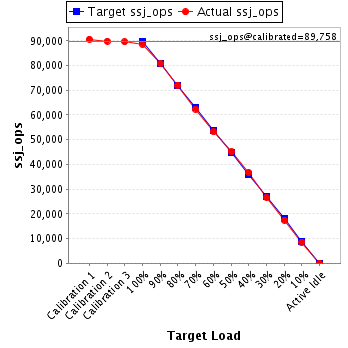

JVM 'WIN-B3I5TIB3APM.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,684
Calibration 2     89,904
Calibration 3     89,613
ssj_ops@calibrated=89,758
100% 98.8% 89,758 88,719
90% 90.2% 80,782 80,964
80% 80.3% 71,807 72,099
70% 69.5% 62,831 62,406
60% 59.3% 53,855 53,242
50% 50.3% 44,879 45,150
40% 40.9% 35,903 36,689
30% 29.8% 26,927 26,750
20% 19.5% 17,952 17,482
10% 9.5% 8,976 8,566
Active Idle   0 0
Graph of results

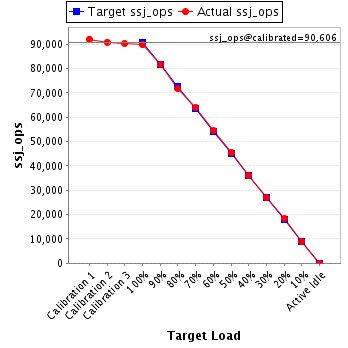

JVM 'WIN-B3I5TIB3APM.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,113
Calibration 2     90,883
Calibration 3     90,329
ssj_ops@calibrated=90,606
100% 99.1% 90,606 89,786
90% 90.2% 81,546 81,698
80% 79.2% 72,485 71,724
70% 70.6% 63,424 63,997
60% 60.0% 54,364 54,376
50% 50.1% 45,303 45,398
40% 39.8% 36,242 36,068
30% 29.9% 27,182 27,050
20% 20.2% 18,121 18,328
10% 9.9% 9,061 8,933
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,042
Calibration 2     91,848
Calibration 3     91,641
ssj_ops@calibrated=91,745
100% 99.3% 91,745 91,066
90% 89.4% 82,570 81,984
80% 79.8% 73,396 73,182
70% 70.5% 64,221 64,677
60% 59.6% 55,047 54,720
50% 50.0% 45,872 45,866
40% 39.7% 36,698 36,448
30% 30.2% 27,523 27,690
20% 20.0% 18,349 18,328
10% 10.2% 9,174 9,364
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,873
Calibration 2     82,497
Calibration 3     82,870
ssj_ops@calibrated=82,683
100% 100.2% 82,683 82,814
90% 89.4% 74,415 73,892
80% 80.3% 66,147 66,389
70% 70.2% 57,878 58,063
60% 60.8% 49,610 50,267
50% 50.6% 41,342 41,827
40% 39.3% 33,073 32,523
30% 29.9% 24,805 24,736
20% 20.3% 16,537 16,778
10% 9.6% 8,268 7,962
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,755
Calibration 2     89,935
Calibration 3     90,060
ssj_ops@calibrated=89,997
100% 99.6% 89,997 89,634
90% 92.1% 80,997 82,886
80% 80.3% 71,998 72,307
70% 69.8% 62,998 62,856
60% 59.9% 53,998 53,878
50% 49.4% 44,999 44,426
40% 39.9% 35,999 35,901
30% 30.4% 26,999 27,336
20% 19.5% 17,999 17,549
10% 10.0% 9,000 9,008
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,103
Calibration 2     88,899
Calibration 3     90,236
ssj_ops@calibrated=89,568
100% 100.0% 89,568 89,578
90% 89.2% 80,611 79,901
80% 80.5% 71,654 72,080
70% 69.6% 62,697 62,345
60% 61.1% 53,741 54,688
50% 49.7% 44,784 44,554
40% 40.2% 35,827 36,039
30% 30.3% 26,870 27,123
20% 20.0% 17,914 17,930
10% 10.1% 8,957 9,041
Active Idle   0 0
Graph of results
JVM 'WIN-B3I5TIB3APM.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,822
Calibration 2     89,996
Calibration 3     91,089
ssj_ops@calibrated=90,543
100% 100.2% 90,543 90,681
90% 89.6% 81,488 81,132
80% 81.1% 72,434 73,444
70% 70.9% 63,380 64,228
60% 59.4% 54,326 53,770
50% 49.7% 45,271 44,969
40% 40.4% 36,217 36,607
30% 29.8% 27,163 26,961
20% 20.1% 18,109 18,202
10% 9.9% 9,054 8,991
Active Idle   0 0
Graph of results
