Fujitsu FUJITSU Server PRIMERGY RX2520 M5 ssj_ops@100% = 3,872,265
ssj_ops@100% per JVM = 107,563
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Jul 30, 2019
Hardware Availability: Jul-2019 Software Availability: Dec-2018 Publication: Sep 19, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,544,304
Calibration 2     3,874,567
Calibration 3     3,877,559
ssj_ops@calibrated=3,876,063
100% 99.9% 3,876,063 3,872,265
90% 90.1% 3,488,456 3,493,729
80% 79.8% 3,100,850 3,093,414
70% 70.0% 2,713,244 2,712,055
60% 60.0% 2,325,638 2,325,712
50% 50.0% 1,938,031 1,938,275
40% 40.1% 1,550,425 1,553,224
30% 30.0% 1,162,819 1,161,157
20% 20.0% 775,213 774,176
10% 10.0% 387,606 387,384
Active Idle   0 0
Graph of results
System Under Test
Set: 'RX2520M5'
Set Identifier: RX2520M5
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX2520 M5
Form Factor: 2U
CPU Name: Intel Xeon Gold 5220
CPU Characteristics: 18-Core, 2.20GHz, 24.75MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 25344 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16 GB 2Rx8 PC4-2933Y-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: Fujitsu Technology Solutions S26113-F574-E13
Disk Drive: 1 x SSD M.2 240GB, S26361-F5706-E240
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) I350 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=8 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=0
JVM Affinity: chrt -r 1 taskset -c [(0,36),(1,37),(2,38),(5,41),(6,42),(9,45),(10,46),(14,50),(15,51),(3,39),(4,40),(7,43),(8,44),(11,47),(12,48),(13,49),(16,52),(17,53),(18,54),(19,55),(20,56),(23,59),(24,60),(27,63),(28,64),(32,68),(33,69),(21,57),(22,58),(25,61),(26,62),(29,65),(30,66),(31,67),(34,70),(35,71)] numactl --membind=[0-3]
JVM Instances: 36
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: R1.11.0
Management Firmware Version: 2.43P
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
sles12sp4.001 61,497
sles12sp4.002 109,724
sles12sp4.003 109,939
sles12sp4.004 111,459
sles12sp4.005 110,672
sles12sp4.006 110,260
sles12sp4.007 112,251
sles12sp4.008 110,366
sles12sp4.009 110,306
sles12sp4.010 108,034
sles12sp4.011 108,202
sles12sp4.012 108,353
sles12sp4.013 106,480
sles12sp4.014 109,459
sles12sp4.015 107,450
sles12sp4.016 106,788
sles12sp4.017 108,218
sles12sp4.018 108,816
sles12sp4.019 109,559
sles12sp4.020 107,821
sles12sp4.021 109,318
sles12sp4.022 110,020
sles12sp4.023 109,956
sles12sp4.024 109,282
sles12sp4.025 108,749
sles12sp4.026 107,691
sles12sp4.027 109,733
sles12sp4.028 107,636
sles12sp4.029 109,418
sles12sp4.030 108,319
sles12sp4.031 108,320
sles12sp4.032 108,501
sles12sp4.033 108,378
sles12sp4.034 106,567
sles12sp4.035 105,254
sles12sp4.036 109,470
ssj_ops@100% 3,872,265
ssj_ops@100% per JVM 107,563

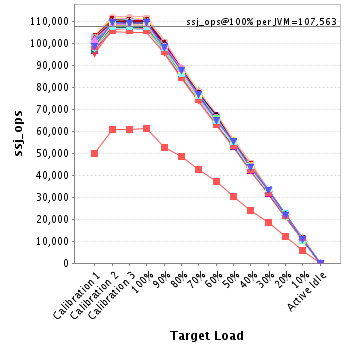

Graph of per-instance results

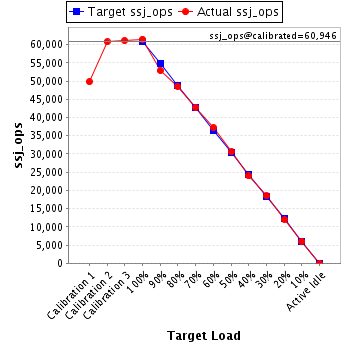

JVM 'sles12sp4.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     49,769
Calibration 2     60,800
Calibration 3     61,091
ssj_ops@calibrated=60,946
100% 100.9% 60,946 61,497
90% 86.8% 54,851 52,888
80% 79.6% 48,757 48,528
70% 70.3% 42,662 42,839
60% 61.0% 36,567 37,197
50% 50.2% 30,473 30,575
40% 39.3% 24,378 23,950
30% 30.3% 18,284 18,462
20% 19.7% 12,189 11,986
10% 9.8% 6,095 5,996
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,283
Calibration 2     110,593
Calibration 3     110,277
ssj_ops@calibrated=110,435
100% 99.4% 110,435 109,724
90% 89.6% 99,392 98,970
80% 79.7% 88,348 88,040
70% 70.0% 77,305 77,271
60% 59.6% 66,261 65,852
50% 50.1% 55,218 55,320
40% 40.0% 44,174 44,127
30% 29.6% 33,131 32,717
20% 20.0% 22,087 22,079
10% 9.8% 11,044 10,851
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,887
Calibration 2     110,484
Calibration 3     110,016
ssj_ops@calibrated=110,250
100% 99.7% 110,250 109,939
90% 91.0% 99,225 100,365
80% 78.8% 88,200 86,928
70% 71.4% 77,175 78,683
60% 59.9% 66,150 66,042
50% 49.4% 55,125 54,453
40% 40.0% 44,100 44,141
30% 30.0% 33,075 33,062
20% 19.9% 22,050 21,970
10% 10.5% 11,025 11,537
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,328
Calibration 2     111,855
Calibration 3     111,639
ssj_ops@calibrated=111,747
100% 99.7% 111,747 111,459
90% 90.1% 100,572 100,701
80% 79.3% 89,398 88,591
70% 70.0% 78,223 78,240
60% 60.0% 67,048 67,005
50% 50.4% 55,874 56,344
40% 40.1% 44,699 44,846
30% 29.7% 33,524 33,221
20% 20.0% 22,349 22,381
10% 9.9% 11,175 11,040
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,678
Calibration 2     111,015
Calibration 3     111,218
ssj_ops@calibrated=111,117
100% 99.6% 111,117 110,672
90% 90.4% 100,005 100,490
80% 79.4% 88,893 88,256
70% 69.6% 77,782 77,363
60% 60.3% 66,670 66,982
50% 49.7% 55,558 55,280
40% 40.6% 44,447 45,077
30% 29.4% 33,335 32,670
20% 20.2% 22,223 22,458
10% 9.6% 11,112 10,638
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,990
Calibration 2     111,114
Calibration 3     110,857
ssj_ops@calibrated=110,985
100% 99.3% 110,985 110,260
90% 89.5% 99,887 99,322
80% 79.1% 88,788 87,737
70% 70.0% 77,690 77,724
60% 59.7% 66,591 66,289
50% 49.5% 55,493 54,918
40% 40.3% 44,394 44,712
30% 29.6% 33,296 32,901
20% 20.4% 22,197 22,654
10% 10.2% 11,099 11,329
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,781
Calibration 2     112,379
Calibration 3     112,398
ssj_ops@calibrated=112,388
100% 99.9% 112,388 112,251
90% 90.2% 101,150 101,382
80% 79.5% 89,911 89,357
70% 70.0% 78,672 78,700
60% 60.6% 67,433 68,120
50% 49.9% 56,194 56,112
40% 41.2% 44,955 46,296
30% 29.8% 33,717 33,441
20% 19.9% 22,478 22,329
10% 10.3% 11,239 11,550
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,148
Calibration 2     110,182
Calibration 3     110,559
ssj_ops@calibrated=110,370
100% 100.0% 110,370 110,366
90% 89.1% 99,333 98,323
80% 79.8% 88,296 88,054
70% 70.4% 77,259 77,723
60% 60.5% 66,222 66,747
50% 48.7% 55,185 53,757
40% 40.2% 44,148 44,413
30% 29.5% 33,111 32,602
20% 20.1% 22,074 22,179
10% 10.0% 11,037 11,062
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,137
Calibration 2     110,947
Calibration 3     110,721
ssj_ops@calibrated=110,834
100% 99.5% 110,834 110,306
90% 90.1% 99,751 99,891
80% 78.7% 88,667 87,281
70% 69.9% 77,584 77,425
60% 60.9% 66,500 67,486
50% 49.4% 55,417 54,747
40% 40.7% 44,334 45,062
30% 30.0% 33,250 33,202
20% 20.1% 22,167 22,302
10% 10.0% 11,083 11,108
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,820
Calibration 2     108,342
Calibration 3     108,321
ssj_ops@calibrated=108,331
100% 99.7% 108,331 108,034
90% 89.8% 97,498 97,305
80% 79.5% 86,665 86,071
70% 69.9% 75,832 75,759
60% 59.1% 64,999 64,066
50% 50.3% 54,166 54,504
40% 40.1% 43,333 43,388
30% 29.4% 32,499 31,880
20% 19.9% 21,666 21,566
10% 9.9% 10,833 10,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,259
Calibration 2     107,605
Calibration 3     107,632
ssj_ops@calibrated=107,619
100% 100.5% 107,619 108,202
90% 90.6% 96,857 97,469
80% 79.9% 86,095 86,009
70% 70.1% 75,333 75,406
60% 60.6% 64,571 65,235
50% 50.9% 53,809 54,730
40% 40.5% 43,047 43,629
30% 30.4% 32,286 32,687
20% 20.2% 21,524 21,696
10% 10.1% 10,762 10,858
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,883
Calibration 2     108,193
Calibration 3     108,431
ssj_ops@calibrated=108,312
100% 100.0% 108,312 108,353
90% 89.0% 97,481 96,412
80% 80.5% 86,650 87,162
70% 69.5% 75,819 75,322
60% 59.4% 64,987 64,287
50% 50.8% 54,156 54,987
40% 40.7% 43,325 44,054
30% 29.7% 32,494 32,184
20% 20.3% 21,662 21,950
10% 10.0% 10,831 10,844
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

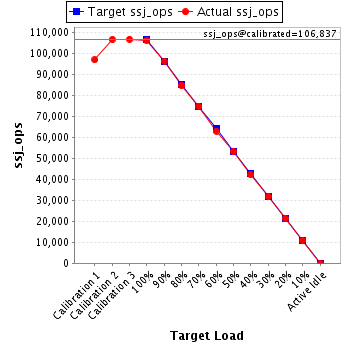

JVM 'sles12sp4.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,020
Calibration 2     106,766
Calibration 3     106,909
ssj_ops@calibrated=106,837
100% 99.7% 106,837 106,480
90% 90.2% 96,154 96,414
80% 79.3% 85,470 84,730
70% 70.2% 74,786 75,024
60% 59.1% 64,102 63,095
50% 49.9% 53,419 53,265
40% 39.5% 42,735 42,153
30% 29.9% 32,051 31,973
20% 20.2% 21,367 21,551
10% 10.2% 10,684 10,912
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,038
Calibration 2     109,379
Calibration 3     109,054
ssj_ops@calibrated=109,217
100% 100.2% 109,217 109,459
90% 89.6% 98,295 97,894
80% 80.4% 87,373 87,759
70% 69.8% 76,452 76,263
60% 60.2% 65,530 65,781
50% 49.2% 54,608 53,781
40% 40.2% 43,687 43,854
30% 30.2% 32,765 32,954
20% 20.5% 21,843 22,384
10% 10.1% 10,922 11,029
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,131
Calibration 2     107,198
Calibration 3     107,213
ssj_ops@calibrated=107,206
100% 100.2% 107,206 107,450
90% 90.6% 96,485 97,084
80% 80.3% 85,764 86,105
70% 70.0% 75,044 75,095
60% 60.7% 64,323 65,046
50% 50.2% 53,603 53,809
40% 39.8% 42,882 42,635
30% 29.2% 32,162 31,346
20% 19.6% 21,441 20,987
10% 9.9% 10,721 10,617
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,398
Calibration 2     106,499
Calibration 3     106,920
ssj_ops@calibrated=106,710
100% 100.1% 106,710 106,788
90% 89.8% 96,039 95,829
80% 79.1% 85,368 84,435
70% 69.3% 74,697 73,899
60% 59.8% 64,026 63,840
50% 50.7% 53,355 54,099
40% 39.7% 42,684 42,384
30% 30.2% 32,013 32,271
20% 19.8% 21,342 21,106
10% 10.0% 10,671 10,688
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,537
Calibration 2     108,599
Calibration 3     108,479
ssj_ops@calibrated=108,539
100% 99.7% 108,539 108,218
90% 90.1% 97,685 97,755
80% 79.4% 86,831 86,132
70% 70.4% 75,977 76,436
60% 60.6% 65,123 65,726
50% 49.8% 54,270 54,016
40% 40.3% 43,416 43,711
30% 30.1% 32,562 32,650
20% 19.9% 21,708 21,633
10% 10.1% 10,854 11,008
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,862
Calibration 2     108,483
Calibration 3     108,779
ssj_ops@calibrated=108,631
100% 100.2% 108,631 108,816
90% 91.2% 97,768 99,022
80% 80.3% 86,905 87,248
70% 69.5% 76,042 75,502
60% 59.8% 65,178 64,959
50% 49.9% 54,315 54,240
40% 39.8% 43,452 43,282
30% 30.6% 32,589 33,199
20% 20.2% 21,726 21,985
10% 9.8% 10,863 10,658
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,333
Calibration 2     109,593
Calibration 3     110,008
ssj_ops@calibrated=109,800
100% 99.8% 109,800 109,559
90% 90.5% 98,820 99,333
80% 79.3% 87,840 87,102
70% 69.7% 76,860 76,502
60% 59.0% 65,880 64,809
50% 49.9% 54,900 54,838
40% 40.5% 43,920 44,458
30% 30.0% 32,940 32,924
20% 19.6% 21,960 21,568
10% 10.0% 10,980 11,033
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,397
Calibration 2     107,994
Calibration 3     108,232
ssj_ops@calibrated=108,113
100% 99.7% 108,113 107,821
90% 90.5% 97,302 97,803
80% 79.7% 86,491 86,172
70% 69.2% 75,679 74,806
60% 59.6% 64,868 64,434
50% 49.8% 54,057 53,860
40% 39.5% 43,245 42,758
30% 29.6% 32,434 32,031
20% 20.1% 21,623 21,784
10% 9.7% 10,811 10,500
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,136
Calibration 2     109,402
Calibration 3     109,585
ssj_ops@calibrated=109,493
100% 99.8% 109,493 109,318
90% 90.1% 98,544 98,640
80% 79.3% 87,595 86,843
70% 70.4% 76,645 77,035
60% 59.9% 65,696 65,637
50% 50.1% 54,747 54,869
40% 40.1% 43,797 43,877
30% 29.8% 32,848 32,617
20% 20.0% 21,899 21,938
10% 9.7% 10,949 10,604
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,892
Calibration 2     109,884
Calibration 3     110,049
ssj_ops@calibrated=109,966
100% 100.0% 109,966 110,020
90% 89.4% 98,970 98,353
80% 80.3% 87,973 88,307
70% 69.1% 76,977 75,964
60% 60.5% 65,980 66,489
50% 49.8% 54,983 54,789
40% 40.1% 43,987 44,081
30% 29.7% 32,990 32,653
20% 20.1% 21,993 22,062
10% 10.0% 10,997 10,983
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,305
Calibration 2     109,825
Calibration 3     110,078
ssj_ops@calibrated=109,952
100% 100.0% 109,952 109,956
90% 90.9% 98,957 99,955
80% 80.6% 87,961 88,628
70% 70.1% 76,966 77,121
60% 59.2% 65,971 65,092
50% 50.3% 54,976 55,287
40% 40.1% 43,981 44,044
30% 29.8% 32,986 32,753
20% 19.9% 21,990 21,921
10% 10.0% 10,995 10,964
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,293
Calibration 2     108,865
Calibration 3     109,779
ssj_ops@calibrated=109,322
100% 100.0% 109,322 109,282
90% 91.0% 98,390 99,508
80% 79.0% 87,457 86,379
70% 70.5% 76,525 77,086
60% 61.7% 65,593 67,413
50% 49.6% 54,661 54,268
40% 39.7% 43,729 43,395
30% 30.2% 32,797 32,991
20% 20.2% 21,864 22,037
10% 10.0% 10,932 10,925
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,605
Calibration 2     108,665
Calibration 3     109,279
ssj_ops@calibrated=108,972
100% 99.8% 108,972 108,749
90% 90.0% 98,075 98,056
80% 80.0% 87,178 87,169
70% 69.5% 76,280 75,773
60% 59.9% 65,383 65,281
50% 50.5% 54,486 55,072
40% 40.1% 43,589 43,646
30% 30.7% 32,692 33,412
20% 19.6% 21,794 21,400
10% 10.1% 10,897 10,962
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,796
Calibration 2     107,193
Calibration 3     108,480
ssj_ops@calibrated=107,836
100% 99.9% 107,836 107,691
90% 90.0% 97,053 97,069
80% 80.4% 86,269 86,731
70% 70.4% 75,485 75,926
60% 60.4% 64,702 65,166
50% 51.0% 53,918 55,019
40% 39.4% 43,135 42,510
30% 30.1% 32,351 32,445
20% 20.2% 21,567 21,803
10% 10.2% 10,784 10,954
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,706
Calibration 2     108,967
Calibration 3     109,608
ssj_ops@calibrated=109,288
100% 100.4% 109,288 109,733
90% 91.2% 98,359 99,666
80% 80.8% 87,430 88,321
70% 69.1% 76,501 75,475
60% 60.0% 65,573 65,620
50% 50.0% 54,644 54,598
40% 40.2% 43,715 43,949
30% 29.5% 32,786 32,239
20% 20.0% 21,858 21,873
10% 10.0% 10,929 10,958
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,096
Calibration 2     107,888
Calibration 3     107,358
ssj_ops@calibrated=107,623
100% 100.0% 107,623 107,636
90% 90.5% 96,860 97,435
80% 80.1% 86,098 86,206
70% 70.0% 75,336 75,284
60% 59.7% 64,574 64,206
50% 49.5% 53,811 53,325
40% 39.7% 43,049 42,775
30% 30.4% 32,287 32,741
20% 19.6% 21,525 21,125
10% 9.8% 10,762 10,550
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,062
Calibration 2     109,012
Calibration 3     109,346
ssj_ops@calibrated=109,179
100% 100.2% 109,179 109,418
90% 89.4% 98,261 97,604
80% 79.8% 87,343 87,166
70% 70.4% 76,425 76,862
60% 60.7% 65,507 66,296
50% 49.6% 54,590 54,108
40% 40.4% 43,672 44,156
30% 29.4% 32,754 32,117
20% 19.9% 21,836 21,683
10% 10.1% 10,918 10,975
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,745
Calibration 2     108,993
Calibration 3     108,778
ssj_ops@calibrated=108,885
100% 99.5% 108,885 108,319
90% 90.3% 97,997 98,273
80% 79.4% 87,108 86,422
70% 70.5% 76,220 76,794
60% 59.9% 65,331 65,193
50% 50.1% 54,443 54,596
40% 40.2% 43,554 43,743
30% 30.8% 32,666 33,501
20% 19.8% 21,777 21,533
10% 10.1% 10,889 11,021
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,101
Calibration 2     108,525
Calibration 3     108,238
ssj_ops@calibrated=108,382
100% 99.9% 108,382 108,320
90% 89.5% 97,544 97,009
80% 80.6% 86,705 87,363
70% 70.7% 75,867 76,642
60% 60.8% 65,029 65,863
50% 50.2% 54,191 54,457
40% 39.7% 43,353 42,974
30% 30.0% 32,515 32,519
20% 19.7% 21,676 21,375
10% 9.8% 10,838 10,579
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,423
Calibration 2     108,567
Calibration 3     108,721
ssj_ops@calibrated=108,644
100% 99.9% 108,644 108,501
90% 90.9% 97,780 98,777
80% 79.6% 86,915 86,519
70% 69.6% 76,051 75,664
60% 58.4% 65,186 63,465
50% 49.6% 54,322 53,869
40% 39.9% 43,458 43,387
30% 30.0% 32,593 32,610
20% 19.6% 21,729 21,242
10% 9.9% 10,864 10,762
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,030
Calibration 2     108,864
Calibration 3     108,594
ssj_ops@calibrated=108,729
100% 99.7% 108,729 108,378
90% 90.9% 97,856 98,825
80% 81.3% 86,983 88,436
70% 69.1% 76,110 75,148
60% 60.0% 65,238 65,189
50% 49.6% 54,365 53,901
40% 40.0% 43,492 43,501
30% 30.5% 32,619 33,199
20% 20.2% 21,746 21,958
10% 10.2% 10,873 11,133
Active Idle   0 0

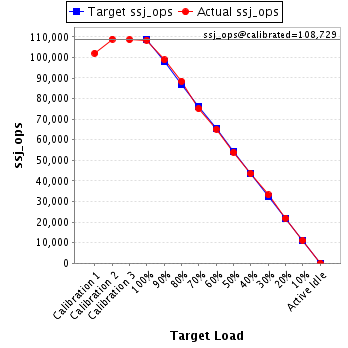

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,822
Calibration 2     106,862
Calibration 3     106,781
ssj_ops@calibrated=106,822
100% 99.8% 106,822 106,567
90% 90.0% 96,140 96,173
80% 80.2% 85,458 85,634
70% 69.9% 74,775 74,667
60% 60.1% 64,093 64,172
50% 50.7% 53,411 54,129
40% 39.8% 42,729 42,535
30% 30.0% 32,047 32,096
20% 19.9% 21,364 21,225
10% 9.7% 10,682 10,369
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,850
Calibration 2     105,438
Calibration 3     105,118
ssj_ops@calibrated=105,278
100% 100.0% 105,278 105,254
90% 90.9% 94,750 95,713
80% 79.8% 84,222 83,986
70% 70.1% 73,694 73,791
60% 59.5% 63,167 62,602
50% 50.3% 52,639 52,905
40% 39.8% 42,111 41,925
30% 30.1% 31,583 31,641
20% 19.9% 21,056 20,920
10% 10.4% 10,528 10,921
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sles12sp4.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,763
Calibration 2     109,597
Calibration 3     109,010
ssj_ops@calibrated=109,303
100% 100.2% 109,303 109,470
90% 89.7% 98,373 98,025
80% 80.1% 87,443 87,606
70% 70.3% 76,512 76,839
60% 59.5% 65,582 65,030
50% 50.7% 54,652 55,448
40% 40.1% 43,721 43,793
30% 30.4% 32,791 33,244
20% 19.7% 21,861 21,532
10% 9.8% 10,930 10,704
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
