Hewlett Packard Enterprise ProLiant DL385 Gen10 SPECpower_ssj2008 = 18,051 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jul 16, 2019
Hardware Availability: Aug-2019 Software Availability: Jun-2019 Publication: Aug 7, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 10,661,631 422 25,277
90% 90.0% 9,645,546 401 24,055
80% 80.0% 8,566,427 378 22,650
70% 70.0% 7,497,889 357 21,027
60% 60.0% 6,422,172 335 19,183
50% 50.0% 5,358,745 311 17,230
40% 39.9% 4,277,090 280 15,276
30% 30.0% 3,213,458 248 12,958
20% 20.0% 2,146,139 221 9,694
10% 10.0% 1,068,119 197 5,420
Active Idle 0 111 0
∑ssj_ops / ∑power = 18,051

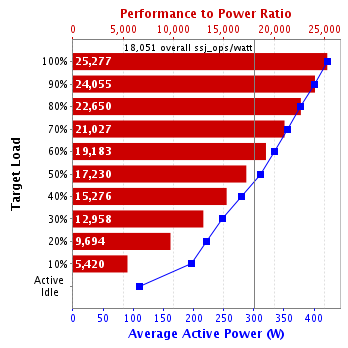

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL385 Gen10
Form Factor: 2U
CPU Name: AMD EPYC 7702 2.0 GHz
CPU Characteristics: 64-Core, 2.0GHz 256MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per core
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16GB 2Rx8 PC4-2933Y-R slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (865438-B21)
Disk Drive: 1 x HPE 240GB SATA 6G Mixed Use M.2 2280 SSD (875488-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 4-port 331i Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: 1 x HPE High Performance Fan Kit (867810-B21), 1 x HPE High Performance Heatsink Kit (882098-B21)
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.557)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 12.0.1+12, mixed mode), version 12.0.1
JVM Command-line Options: -server -Xmx3740m -Xms3740m -Xmn3000m -XX:SurvivorRatio=15 -XX:InlineSmallCode=4000 -XX:FreqInlineSize=3000 -XX:+UseLargePages -XX:+UseBiasedLocking -XX:ParallelGCThreads=4 -XX:+UseParallelOldGC -XX:+OptimizeStringConcat -XX:AllocatePrefetchLines=7 -XX:MaxInlineSize=300 -XX:LoopUnrollLimit=30 -XX:AllocatePrefetchDistance=192 -XX:InitialTenuringThreshold=10
JVM Affinity: start /NODE[0-31] /AFFINITY [0xF, 0xF0]
JVM Instances: 64
JVM Initial Heap (MB): 3740
JVM Maximum Heap (MB): 3740
JVM Address Bits: 64
Boot Firmware Version: A40 v2.00 (07/15/2019)
Management Firmware Version: 1.43 May 23 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft KB4504369, KB4503327, KB900088
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2x Intel Xeon E5-2660 v3
Memory amount (GB): 256
Software
Operating System (OS): Windows Server 2012 R2
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_181-b13 (build 25.181-b13, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-E62NT-80-1
Date of Calibration: 11-Jun-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 422 22.9
90% 401 22.9
80% 378 22.6
70% 357 22.4
60% 335 22.3
50% 311 22.2
40% 280 22.2
30% 248 22.2
20% 221 22.1
10% 197 22.2
Active Idle 111 22.1
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 22.1 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,682,420
Calibration 2     10,708,631
Calibration 3     10,714,094
ssj_ops@calibrated=10,711,363
100% 99.5% 10,711,363 10,661,631
90% 90.0% 9,640,227 9,645,546
80% 80.0% 8,569,090 8,566,427
70% 70.0% 7,497,954 7,497,889
60% 60.0% 6,426,818 6,422,172
50% 50.0% 5,355,681 5,358,745
40% 39.9% 4,284,545 4,277,090
30% 30.0% 3,213,409 3,213,458
20% 20.0% 2,142,273 2,146,139
10% 10.0% 1,071,136 1,068,119
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
