SPECpower_ssj2008

ASUSTeK Computer Inc. RS720-E9-RS8			SPECpower_ssj2008 = 14,066 overall ssj_ops/watt
Test Sponsor:	ASUSTeK Computer Inc.	SPEC License #:	9016	Test Method:	Single Node
Tested By:	ASUSTeK Computer Inc.	Test Location:	Taipei, Taiwan.	Test Date:	Jun 11, 2019
Hardware Availability:	Apr-2019	Software Availability:	Dec-2018	Publication:	Jul 3, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	ASUSTeK Computer Inc.
Model:	RS720-E9-RS8
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8280L
CPU Characteristics:	28-Core, 2.7GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	56 cores, 2 chips, 28 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16 GB
Memory Details:	12 x 16GB 2Rx8 PC4-2933Y ECC RDIMM; slots DIMM_A1, DIMMM_B1, DIMMM_C1, DIMMM_D1, DIMMM_E1, DIMMM_F1, DIMMM_G1, DIMMM_H1, DIMMM_J1, DIMMM_K1, DIMMM_L1, DIMMM_M1
Power Supply Quantity and Rating (W):	1 x 850
Power Supply Details:	Delta DPS-850AB-3 Rev.C
Disk Drive:	1 x 960GB Intel DC S3520 SATA 2.5 SSD P/N: 03B01-00160400
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	4.12.14-94.41-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=0
JVM Affinity:	numactl -C [(0,56),(1,57),(2,58),(3,59),(7,63),(8,64),(9,65),(14,70),(15,71),(16,72),(17,73),(21,77),(22,78),(23,79),(4,60),(5,61),(6,62),(10,66),(11,67),(12,68),(13,69),(18,74),(19,75),(20,76),(24,80),(25,81),(26,82),(27,83),(28,84),(29,85),(30,86),(31,87),(35,91),(36,92),(37,93),(42,98),(43,99),(44,100),(45,101),(49,105),(50,106),(51,107),(32,88),(33,89),(34,90),(38,94),(39,95),(40,96),(41,97),(46,102),(47,103),(48,104),(52,108),(53,109),(54,110),(55,111)] --membind=[0-3]
JVM Instances:	56
JVM Initial Heap (MB):	1550
JVM Maximum Heap (MB):	1550
JVM Address Bits:	64
Boot Firmware Version:	5102
Management Firmware Version:	1.13.3
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

See SUT Notes

kernal parameter:intel_pstate=disable pcie_aspm=force pcie_aspm.policy=powersupersave
Benchmark started via ssh
cpupower frequency-set -g ondemand
echo -n 98 > /sys/devices/system/cpu/cpufreq/ondemand/up_threshold
echo -n 1000000 > /sys/devices/system/cpu/cpufreq/ondemand/sampling_rate
echo 35 > /sys/devices/system/cpu/cpufreq/ondemand/powersave_bias
sysctl -w kernel.sched_migration_cost_ns=6000
sysctl -w kernel.sched_min_granularity_ns=10000000
powertop --auto-tune
echo 0 > /proc/sys/kernel/nmi_watchdog
sysctl -w vm.swappiness=50
sysctl -w vm.laptop_mode=5
<NA>: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
<Yes>: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
<Yes>: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Software
Operating System (OS):	Windows Server 2012 R2 Datacenter (64-bit)
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Good Will Instrument Co., Ltd.
Model:	GPM-8212
Serial Number:	GCR150073
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	NML
Accredited by:	Tai Yi Electronics & Surveillance Co., Ltd.
Calibration Label:	GCR150073
Date of Calibration:	24-Apr-2019
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.0-ee285d08-20190201
Setup Description:	Connected to PSU1

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	5.70.105.0
Connectivity:	RS-232
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	placed in front the main airflow inlet of the SUT less than 50 mm.

SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.

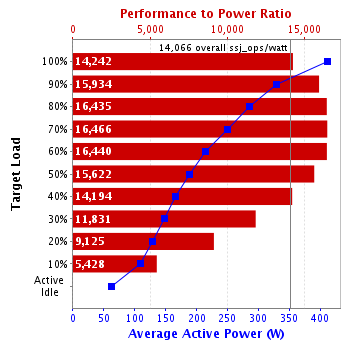

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	412	21.4
90%	330	21.3
80%	285	21.2
70%	249	21.2
60%	214	21.2
50%	188	21.2
40%	165	21.1
30%	149	21.1
20%	129	21.1
10%	109	21.1
Active Idle	62.4	21.2

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 60 Hz / 1 phase / 2 wires	21.1	132

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
