Supermicro Inc. SuperServer SYS-6029P-WTR SPECpower_ssj2008 = 13,623 overall ssj_ops/watt
Test Sponsor: Supermicro Inc. SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Inc. Test Location: San Jose, CA, USA Test Date: Apr 15, 2019
Hardware Availability: Apr-2019 Software Availability: Apr-2019 Publication: Jul 23, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 5,545,677 385 14,386
90% 88.8% 4,936,465 309 15,981
80% 78.8% 4,379,026 271 16,166
70% 68.9% 3,827,490 237 16,163
60% 59.5% 3,304,232 212 15,607
50% 49.9% 2,773,736 189 14,650
40% 40.0% 2,220,617 170 13,041
30% 30.0% 1,666,549 153 10,883
20% 20.1% 1,114,696 135 8,260
10% 10.0% 552,954 116 4,781
Active Idle 0 48.6 0
∑ssj_ops / ∑power = 13,623

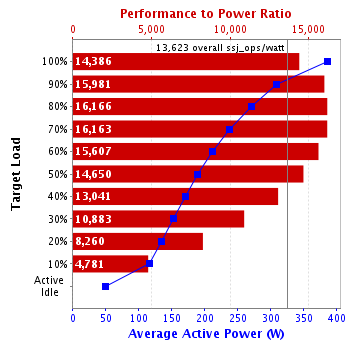

Graph of results
System Under Test
Set: 'X11DDW-L'
Set Identifier: X11DDW-L
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro Inc.
Model: SuperServer SYS-6029P-WTR
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8280 2.70GHz
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 12 x 16GB 2Rx8 PC4-2666V; CPU1/2 A1,B1,C1,D1,E1,F1 populated.
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: PWS-802A-1R (S/N:P802ACH19A00324)
Disk Drive: 1 x Samsung SATA III 480 GB SSD (S/N:MZ7KM480HAHP-00005)
Disk Controller: onboard SCU controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-Port Intel X722 Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver (see SUT Notes)
Operating System (OS): Microsoft Windows Server Enterprise 2012 R2 Standard
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2] /AFFINITY [3, C, 30, C0, C000, 30000, C0000, 30000000, C0000000, 300000000, C00000000, C0000000000, 300000000000, C00000000000];start /NODE [1,3] /AFFINITY [3, C, 30, 3000, C000, 30000, C0000, 30000000, C0000000, 300000000, C00000000, C0000000000, 300000000000, C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: X11DDW9_112
Management Firmware Version: SMT_X11AST2500_164
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4054519, KB4493446 applied to the test system in Apr-2019.
Boot Firmware Settings
  • Power Technology: Custom
  • Power Performance Tuning: BIOS Controls EPB
  • ENERGY_PERF_BIAS_CFG: Max Power Efficient
  • Management Firmware Settings
  • Fan mode: Set Fan to PUE2
  • System Under Test Notes
    Controller System
    Hardware
    Hardware Vendor: Supermicro Inc.
    Model: X11DDW
    CPU Description: Intel Core Skylake
    Memory amount (GB): 192.0
    Software
    Operating System (OS): Windows Server 2016 Standard
    JVM Vendor: Oracle Corporation
    JVM Version: Jave(TM) SE Runtime Environment (build 1.7.0_80-b15) Java HotSpot(TM) 64-Bit Server VM(build 24.80-b11)
    CCS Version: 1.2.6
    Measurement Devices
    Power Analyzer pwr1
    Hardware Vendor: Yokogawa Meters and Instruments Corporation.
    Model: WT210
    Serial Number: 91J523226
    Connectivity: RS-232
    Input Connection: Default
    Metrology Institute: NIST (National Institute of Standards and Technology)
    Accredited by: Trescal
    Calibration Label: C56-0089
    Date of Calibration: 26-Feb-2019
    PTDaemon Host System: same as CCS
    PTDaemon Host OS: same as CCS
    PTDaemon Version: 1.9.0-ee285d08-20190201
    Setup Description: SUT Power Supply
    Temperature Sensor temp1
    Hardware Vendor: Digi International Inc.
    Model: Watchport/H
    Driver Version: 5.70.105.0
    Connectivity: Prolific USB-to-Serial
    PTDaemon Host System: same as CCS
    PTDaemon Host OS: same as CCS
    Setup Description: 50 mm in front of SUT main air flow inlet
    Notes
    None
    Aggregate Electrical and Environmental Data
    Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
    100% 385 23.9
    90% 309 24.0
    80% 271 24.1
    70% 237 24.1
    60% 212 24.1
    50% 189 24.1
    40% 170 24.2
    30% 153 24.2
    20% 135 24.2
    10% 116 24.2
    Active Idle 48.6 24.2
    Line Standard Minimum Temperature (°C) Elevation (m)
    208V / 60 Hz / 1 phase / 2 wires 23.9 50
    Aggregate Performance Data
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     5,609,203
    Calibration 2     5,552,589
    Calibration 3     5,561,157
    ssj_ops@calibrated=5,556,873
    100% 99.8% 5,556,873 5,545,677
    90% 88.8% 5,001,186 4,936,465
    80% 78.8% 4,445,498 4,379,026
    70% 68.9% 3,889,811 3,827,490
    60% 59.5% 3,334,124 3,304,232
    50% 49.9% 2,778,437 2,773,736
    40% 40.0% 2,222,749 2,220,617
    30% 30.0% 1,667,062 1,666,549
    20% 20.1% 1,111,375 1,114,696
    10% 10.0% 555,687 552,954
    Active Idle   0 0

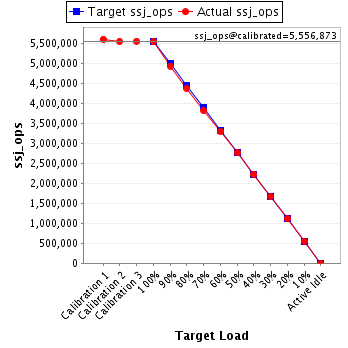

    Graph of results
