New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 79,762,333
ssj_ops@100% per Host = 5,697,310
ssj_ops@100% per JVM = 1,424,327
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 17, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 12, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,875,832
Calibration 2     79,805,465
Calibration 3     79,934,160
ssj_ops@calibrated=79,869,813
100% 99.9% 79,869,813 79,762,333
90% 90.0% 71,882,831 71,858,929
80% 80.0% 63,895,850 63,883,499
70% 70.0% 55,908,869 55,926,881
60% 60.0% 47,921,888 47,937,599
50% 50.0% 39,934,906 39,933,758
40% 40.0% 31,947,925 31,935,135
30% 30.0% 23,960,944 23,971,410
20% 20.0% 15,973,963 15,980,205
10% 10.0% 7,986,981 7,996,568
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
14 28 784 1,568 2,688 14 56
System Under Test
Shared Hardware
Shared Hardware
Enclosure: H3C UniServer B16000
Form Factor: 12U
Power Supply Quantity and Rating (W): 3 x 3000
Power Supply Details: DELTA DPS-3000AB-6 P/N PSR3000-12A
Network Switch: 1
Network Switch Details: H3C S5500 Series
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch not measured for power
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: SUT
Hardware per Node
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 15, 2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
WIN-SUT101 5,691,572
WIN-SUT102 5,687,749
WIN-SUT103 5,677,928
WIN-SUT104 5,727,838
WIN-SUT105 5,707,398
WIN-SUT106 5,693,247
WIN-SUT107 5,683,547
WIN-SUT108 5,701,276
WIN-SUT109 5,662,483
WIN-SUT110 5,699,210
WIN-SUT111 5,703,697
WIN-SUT112 5,711,457
WIN-SUT113 5,695,613
WIN-SUT114 5,719,319
ssj_ops@100% 79,762,333
ssj_ops@100% per Host 5,697,310
ssj_ops@100% per JVM 1,424,327

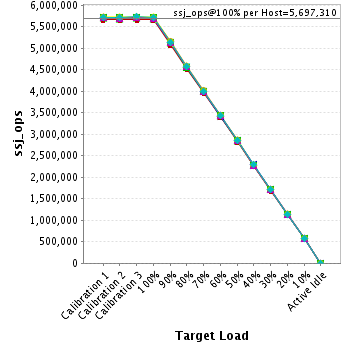

Graph of per-host results
Host 'WIN-SUT101' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,698,142
Calibration 2     5,691,695
Calibration 3     5,708,712
ssj_ops@calibrated=5,700,203
100% 99.8% 5,700,203 5,691,572
90% 89.9% 5,130,183 5,125,947
80% 80.0% 4,560,163 4,558,531
70% 69.9% 3,990,142 3,986,308
60% 60.0% 3,420,122 3,418,058
50% 50.1% 2,850,102 2,854,673
40% 39.9% 2,280,081 2,276,167
30% 30.0% 1,710,061 1,712,248
20% 20.0% 1,140,041 1,140,395
10% 10.0% 570,020 570,410
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT102' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,696,821
Calibration 2     5,693,952
Calibration 3     5,698,330
ssj_ops@calibrated=5,696,141
100% 99.9% 5,696,141 5,687,749
90% 90.1% 5,126,527 5,130,101
80% 80.0% 4,556,913 4,556,926
70% 70.1% 3,987,299 3,990,209
60% 60.0% 3,417,685 3,417,845
50% 49.9% 2,848,070 2,845,057
40% 40.0% 2,278,456 2,280,499
30% 30.0% 1,708,842 1,710,051
20% 20.0% 1,139,228 1,140,005
10% 10.0% 569,614 567,577
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT103' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,686,039
Calibration 2     5,677,591
Calibration 3     5,692,979
ssj_ops@calibrated=5,685,285
100% 99.9% 5,685,285 5,677,928
90% 89.9% 5,116,757 5,110,577
80% 80.1% 4,548,228 4,552,135
70% 70.2% 3,979,700 3,991,940
60% 60.0% 3,411,171 3,410,155
50% 50.0% 2,842,643 2,842,819
40% 39.9% 2,274,114 2,270,932
30% 30.0% 1,705,586 1,704,908
20% 20.0% 1,137,057 1,134,383
10% 10.0% 568,529 569,007
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT104' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,732,296
Calibration 2     5,728,708
Calibration 3     5,741,897
ssj_ops@calibrated=5,735,303
100% 99.9% 5,735,303 5,727,838
90% 90.0% 5,161,772 5,163,268
80% 80.1% 4,588,242 4,592,967
70% 70.0% 4,014,712 4,016,457
60% 60.1% 3,441,182 3,447,188
50% 50.0% 2,867,651 2,867,058
40% 40.0% 2,294,121 2,291,587
30% 30.0% 1,720,591 1,721,322
20% 20.0% 1,147,061 1,148,405
10% 10.0% 573,530 571,715
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT105' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,717,549
Calibration 2     5,719,762
Calibration 3     5,716,704
ssj_ops@calibrated=5,718,233
100% 99.8% 5,718,233 5,707,398
90% 89.9% 5,146,410 5,142,624
80% 80.0% 4,574,586 4,575,332
70% 70.1% 4,002,763 4,011,301
60% 59.9% 3,430,940 3,427,432
50% 49.9% 2,859,116 2,855,101
40% 40.0% 2,287,293 2,285,977
30% 30.0% 1,715,470 1,714,680
20% 20.0% 1,143,647 1,145,635
10% 10.0% 571,823 570,193
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT106' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,704,659
Calibration 2     5,694,556
Calibration 3     5,707,149
ssj_ops@calibrated=5,700,853
100% 99.9% 5,700,853 5,693,247
90% 89.8% 5,130,767 5,121,338
80% 80.1% 4,560,682 4,564,309
70% 69.9% 3,990,597 3,985,586
60% 60.2% 3,420,512 3,430,328
50% 50.0% 2,850,426 2,848,636
40% 40.0% 2,280,341 2,279,117
30% 30.0% 1,710,256 1,712,355
20% 20.1% 1,140,171 1,143,958
10% 10.0% 570,085 568,521
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT107' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,692,495
Calibration 2     5,682,731
Calibration 3     5,694,764
ssj_ops@calibrated=5,688,748
100% 99.9% 5,688,748 5,683,547
90% 89.9% 5,119,873 5,114,413
80% 80.0% 4,550,998 4,553,436
70% 70.0% 3,982,124 3,981,912
60% 60.1% 3,413,249 3,417,889
50% 50.2% 2,844,374 2,853,896
40% 40.0% 2,275,499 2,275,129
30% 30.0% 1,706,624 1,704,169
20% 20.0% 1,137,750 1,139,632
10% 10.0% 568,875 569,435
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT108' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,713,216
Calibration 2     5,707,958
Calibration 3     5,710,426
ssj_ops@calibrated=5,709,192
100% 99.9% 5,709,192 5,701,276
90% 90.1% 5,138,273 5,145,963
80% 80.0% 4,567,353 4,567,977
70% 69.9% 3,996,434 3,990,179
60% 59.9% 3,425,515 3,417,477
50% 50.0% 2,854,596 2,852,953
40% 40.0% 2,283,677 2,282,832
30% 30.0% 1,712,758 1,715,297
20% 20.0% 1,141,838 1,141,410
10% 10.2% 570,919 581,070
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT109' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,666,527
Calibration 2     5,663,526
Calibration 3     5,672,582
ssj_ops@calibrated=5,668,054
100% 99.9% 5,668,054 5,662,483
90% 89.9% 5,101,248 5,097,915
80% 80.0% 4,534,443 4,536,365
70% 69.9% 3,967,638 3,963,329
60% 60.1% 3,400,832 3,404,373
50% 50.1% 2,834,027 2,837,446
40% 40.0% 2,267,222 2,264,552
30% 30.0% 1,700,416 1,701,961
20% 20.0% 1,133,611 1,132,945
10% 10.0% 566,805 568,250
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT110' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,706,418
Calibration 2     5,705,423
Calibration 3     5,718,049
ssj_ops@calibrated=5,711,736
100% 99.8% 5,711,736 5,699,210
90% 90.0% 5,140,563 5,140,940
80% 79.9% 4,569,389 4,562,800
70% 70.0% 3,998,215 4,000,701
60% 59.9% 3,427,042 3,422,466
50% 50.0% 2,855,868 2,855,423
40% 40.0% 2,284,694 2,286,592
30% 30.0% 1,713,521 1,715,094
20% 20.0% 1,142,347 1,143,092
10% 10.0% 571,174 572,358
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT111' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,705,515
Calibration 2     5,706,506
Calibration 3     5,718,174
ssj_ops@calibrated=5,712,340
100% 99.8% 5,712,340 5,703,697
90% 90.0% 5,141,106 5,141,290
80% 79.6% 4,569,872 4,547,578
70% 70.1% 3,998,638 4,001,877
60% 60.2% 3,427,404 3,439,736
50% 50.0% 2,856,170 2,858,013
40% 40.0% 2,284,936 2,282,994
30% 30.1% 1,713,702 1,718,078
20% 20.0% 1,142,468 1,141,995
10% 10.0% 571,234 569,073
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT112' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,724,310
Calibration 2     5,714,294
Calibration 3     5,721,606
ssj_ops@calibrated=5,717,950
100% 99.9% 5,717,950 5,711,457
90% 90.1% 5,146,155 5,149,030
80% 80.0% 4,574,360 4,574,207
70% 70.1% 4,002,565 4,006,708
60% 60.0% 3,430,770 3,432,429
50% 49.9% 2,858,975 2,854,671
40% 39.9% 2,287,180 2,282,435
30% 30.0% 1,715,385 1,713,208
20% 20.0% 1,143,590 1,142,529
10% 10.0% 571,795 573,797
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT113' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,705,775
Calibration 2     5,702,295
Calibration 3     5,704,252
ssj_ops@calibrated=5,703,273
100% 99.9% 5,703,273 5,695,613
90% 90.0% 5,132,946 5,131,483
80% 80.1% 4,562,619 4,565,791
70% 70.1% 3,992,291 3,995,468
60% 60.1% 3,421,964 3,424,863
50% 49.9% 2,851,637 2,848,286
40% 40.0% 2,281,309 2,283,830
30% 30.0% 1,710,982 1,708,198
20% 20.0% 1,140,655 1,141,438
10% 10.0% 570,327 570,048
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-SUT114' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,726,070
Calibration 2     5,716,468
Calibration 3     5,728,535
ssj_ops@calibrated=5,722,502
100% 99.9% 5,722,502 5,719,319
90% 89.9% 5,150,252 5,144,041
80% 80.0% 4,578,002 4,575,146
70% 70.0% 4,005,751 4,004,907
60% 59.9% 3,433,501 3,427,358
50% 50.0% 2,861,251 2,859,726
40% 40.1% 2,289,001 2,292,491
30% 30.1% 1,716,751 1,719,841
20% 20.0% 1,144,500 1,144,385
10% 10.1% 572,250 575,115
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
