New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 5,697,166
ssj_ops@100% per JVM = 1,424,291
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 14, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 12, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,708,707
Calibration 2     5,703,882
Calibration 3     5,713,646
ssj_ops@calibrated=5,708,764
100% 99.8% 5,708,764 5,697,166
90% 90.0% 5,137,888 5,138,810
80% 79.8% 4,567,012 4,554,512
70% 69.9% 3,996,135 3,987,953
60% 60.0% 3,425,259 3,427,134
50% 49.9% 2,854,382 2,850,153
40% 40.0% 2,283,506 2,281,121
30% 30.0% 1,712,629 1,715,005
20% 20.0% 1,141,753 1,141,614
10% 10.0% 570,876 568,431
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 11
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 7,2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SUT109.001 1,429,690
WIN-SUT109.002 1,413,785
WIN-SUT109.003 1,425,679
WIN-SUT109.004 1,428,012
ssj_ops@100% 5,697,166
ssj_ops@100% per JVM 1,424,291

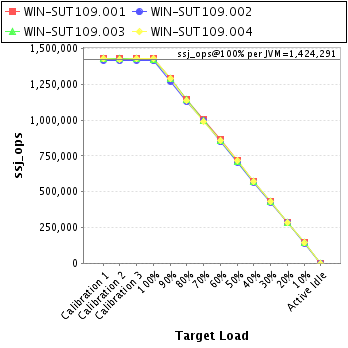

Graph of per-instance results
JVM 'WIN-SUT109.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,429,542
Calibration 2     1,431,528
Calibration 3     1,432,883
ssj_ops@calibrated=1,432,206
100% 99.8% 1,432,206 1,429,690
90% 90.0% 1,288,985 1,288,383
80% 79.7% 1,145,764 1,141,848
70% 70.1% 1,002,544 1,003,262
60% 60.1% 859,323 861,297
50% 50.1% 716,103 716,887
40% 39.9% 572,882 570,847
30% 29.9% 429,662 428,089
20% 20.0% 286,441 286,153
10% 10.0% 143,221 142,517
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT109.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,418,219
Calibration 2     1,415,288
Calibration 3     1,419,046
ssj_ops@calibrated=1,417,167
100% 99.8% 1,417,167 1,413,785
90% 89.7% 1,275,450 1,271,829
80% 79.6% 1,133,734 1,128,330
70% 70.1% 992,017 994,075
60% 59.8% 850,300 847,607
50% 49.8% 708,584 705,527
40% 40.0% 566,867 566,415
30% 30.1% 425,150 425,878
20% 20.0% 283,433 283,824
10% 10.0% 141,717 141,402
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT109.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,432,388
Calibration 2     1,430,672
Calibration 3     1,430,295
ssj_ops@calibrated=1,430,483
100% 99.7% 1,430,483 1,425,679
90% 90.2% 1,287,435 1,289,638
80% 80.2% 1,144,387 1,146,960
70% 69.9% 1,001,338 1,000,110
60% 60.1% 858,290 859,959
50% 49.8% 715,242 712,167
40% 40.0% 572,193 571,966
30% 30.1% 429,145 430,427
20% 20.0% 286,097 285,537
10% 9.9% 143,048 142,226
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT109.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,428,558
Calibration 2     1,426,394
Calibration 3     1,431,423
ssj_ops@calibrated=1,428,908
100% 99.9% 1,428,908 1,428,012
90% 90.2% 1,286,018 1,288,960
80% 79.6% 1,143,127 1,137,374
70% 69.3% 1,000,236 990,506
60% 60.1% 857,345 858,272
50% 50.1% 714,454 715,572
40% 40.0% 571,563 571,892
30% 30.1% 428,673 430,611
20% 20.0% 285,782 286,100
10% 10.0% 142,891 142,287
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
