SPECpower_ssj2008

New H3C Technologies Co., Ltd. H3C UniServer B5700 G3			SPECpower_ssj2008 = 10,954 overall ssj_ops/watt
Test Sponsor:	New H3C Technologies Co., Ltd.	SPEC License #:	9066	Test Method:	Multi Node
Tested By:	New H3C Technologies Co., Ltd.	Test Location:	Hangzhou, Zhejiang, China	Test Date:	May 15, 2019
Hardware Availability:	Jan-2019	Software Availability:	Jan-2019	Publication:	Jun 12, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
10	20	560	1,120	1,920	10	40

Shared Hardware
Enclosure:	H3C UniServer B16000
Form Factor:	12U
Power Supply Quantity and Rating (W):	3 x 3000
Power Supply Details:	DELTA DPS-3000AB-6 P/N PSR3000-12A
Network Switch:	1
Network Switch Details:	H3C S5500 Series
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	None
Comment:	Network switch not measured for power

Hardware per Node
Hardware Vendor:	New H3C Technologies Co., Ltd.
Model:	H3C UniServer B5700 G3
Form Factor:	Other
CPU Name:	Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics:	28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz):	2500
CPU(s) Enabled:	56 cores, 2 chips, 28 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192.0
# and size of DIMM:	12 x 16384 MB
Memory Details:	12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity:	start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances:	4
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	2.00.25
Management Firmware Version:	UIS-OM 1.00.10
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 6, 2019

See SUT Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Run initiated via Windows Remote Desktop Connection
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
Windows Power Plan = Balanced
Turn off display = 1 minute
Turn off hard disk = 1 minute
Processor power management: Minimum Processor State = 0%, Maximum Processor State = 100%
System cooling policy = Active

Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Hardware
Hardware Vendor:	Hangzhou H3C Technologies Co., Ltd.
Model:	UIS R390X G2
CPU Description:	Intel Xeon CPU E5-2620 V4 @2.10GHz
Memory amount (GB):	208.0

Software
Operating System (OS):	Microsoft Windows Server 2012 R2 Standard
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80-b15
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa
Model:	Yokogawa WT1800E
Serial Number:	C3VA04022E
Connectivity:	GPIB
Input Connection:	Default
Metrology Institute:	CNAS (China National Accreditation Service for Conformity Assessment )
Accredited by:	Calibration and Testing Center of CEPEI
Calibration Label:	1GA19J01715-0012
Date of Calibration:	4-Apr-2019
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.0-ee285d08-20190201
Setup Description:	SUT Power Supply 1, 2, and 3

Temperature Sensor temp1
Hardware Vendor:	iButtonLink
Model:	LinkUSBi + T-Probe
Driver Version:	2.12.28.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	placed in front the main airflow inlet of the SUT less than 50mm.

None

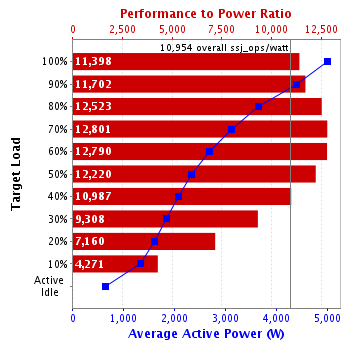

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	4,993	22.8
90%	4,383	22.8
80%	3,641	22.6
70%	3,117	22.8
60%	2,673	23.1
50%	2,332	23.4
40%	2,073	23.6
30%	1,837	23.9
20%	1,592	23.9
10%	1,335	23.9
Active Idle	631	23.6

Line Standard	Minimum Temperature (°C)	Elevation (m)
230V / 50 Hz / 1 phase / 2 wires	22.6	132

See the Power/Temperature Details Report for additional details.

See the Aggregate Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
