SPECpower_ssj2008 Aggregate Performance Report

SPECpower_ssj2008

Aggregate Performance Report

Fujitsu FUJITSU Server PRIMERGY CX2560 M5			ssj_ops@100% = 17,566,126 ssj_ops@100% per Host = 4,391,532 ssj_ops@100% per JVM = 91,490
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Multi Node
Tested By:	Fujitsu	Test Location:	Kawasaki, Kanagawa, Japan	Test Date:	Apr 6, 2019
Hardware Availability:	Jun-2019	Software Availability:	Dec-2018	Publication:	May 22, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			17,470,634
Calibration 2			17,613,693
Calibration 3			17,608,389
ssj_ops@calibrated=17,611,041
100%	99.7%	17,611,041	17,566,126
90%	90.1%	15,849,937	15,861,908
80%	80.0%	14,088,833	14,094,424
70%	70.9%	12,327,729	12,493,145
60%	60.0%	10,566,625	10,566,162
50%	50.0%	8,805,521	8,798,423
40%	40.0%	7,044,417	7,042,265
30%	30.0%	5,283,312	5,279,188
20%	20.0%	3,522,208	3,523,498
10%	10.0%	1,761,104	1,758,976
Active Idle		0	0

Aggregate SUT Data

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
4	8	192	384	768	4	192

System Under Test

Shared Hardware

Shared Hardware
Enclosure:	PRIMERGY CX400 M4
Form Factor:	2U
Power Supply Quantity and Rating (W):	1 x 2400
Power Supply Details:	Fujitsu Technology Solutions S26113-F620-E30
Network Switch:	Fujitsu SR-X324T2
Network Switch Details:	24-Port Gigabit Switch
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	None
Comment:	Gigabit switch was not measured for power

Set: 'CX2560M5'

Set Identifier:	CX2560M5
Set Description:	System Under Test
# of Identical Nodes:	4
Comment:	Multi Node

Hardware per Node
Hardware Vendor:	Fujitsu
Model:	FUJITSU Server PRIMERGY CX2560 M5
Form Factor:	Blade
CPU Name:	Intel Xeon Platinum 6252
CPU Characteristics:	24-Core, 2.10GHz, 35.75MB L3 Cache
CPU Frequency (MHz):	2100
CPU(s) Enabled:	48 cores, 2 chips, 24 cores/chip
Hardware Threads:	96 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	36608 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16384 MB
Memory Details:	12 x 16 GB 2Rx8 PC4-2933Y-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M populated
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x SSD M.2 SATA 6Gbps 128GB N H-P, S26361-F5658-L128
Disk Controller:	Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel(R) I210 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	4.12.14-94.41-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=8 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity:	chrt -r 1 taskset -c [(0,48),(1,49),(2,50),(3,51),(7,55),(8,56),(9,57),(13,61),(14,62),(15,63),(19,67),(20,68),(4,52),(5,53),(6,54),(10,58),(11,59),(12,60),(16,64),(17,65),(18,66),(21,69),(22,70),(23,71),(24,72),(25,73),(26,74),(27,75),(31,79),(32,80),(33,81),(37,85),(38,86),(39,87),(43,91),(44,92),(28,76),(29,77),(30,78),(34,82),(35,83),(36,84),(40,88),(41,89),(42,90),(45,93),(46,94),(47,95)] numactl --membind=[0-3]
JVM Instances:	48
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	R1.6.0
Management Firmware Version:	2.41P
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

Set "HWPM = Native Mode" in BIOS.
Set "ASPM Support = L1 Only" in BIOS.
Set "SATA Controller = Disable" in BIOS.
Set "USB Port Control = Disable all ports" in BIOS.
Set "Network Stack = Disabled" in BIOS.
Set "Hardware Prefetcher = Disabled" in BIOS.
Set "Adjacent Cache Line Prefetcher = Disabled" in BIOS.
Set "DCU Streamer Prefetcher = Disabled" in BIOS.
Set "Intel Virtualization Technology = Disabled" in BIOS.
Set "Power Technology = Custom" in BIOS.
Set "Turbo Mode = Disabled" in BIOS.
Set "Energy Performance = Energy Efficient" in BIOS.
Set "Override OS Energy Performance = Enabled" in BIOS.
Set "P-State Coordination = SW_ANY" in BIOS.
Set "Package C State Limit = C6" in BIOS.
Set "UPI Link Frequency Select = 9.6GT/s" in BIOS.
Set "Uncore Frequency Scaling = Disabled" in BIOS.
Set "Sub NUMA Clustering = Enabled" in BIOS.
Set "DDR Performance = Energy optimized" in BIOS.

Management Firmware Settings

None

System Under Test Notes

kernal parameter:pcie_aspm=force pcie_aspm.policy=powersave intel_pstate=disable rcu_nocbs=1-95 nohz=off isolcpus=1-95
Benchmark started via ssh
modprobe cpufreq_conservative
cpupower frequency-set --governor conservative
echo -n 98 > /sys/devices/system/cpu/cpufreq/conservative/up_threshold
echo -n 1 > /sys/devices/system/cpu/cpufreq/conservative/freq_step
echo -n 1000000 > /sys/devices/system/cpu/cpufreq/conservative/sampling_rate
echo -n 0 > /sys/devices/system/cpu/cpufreq/conservative/ignore_nice_load
sysctl -w kernel.sched_migration_cost_ns=6000
echo -n 97 > /sys/devices/system/cpu/cpufreq/conservative/down_threshold
echo -n 1 > /sys/devices/system/cpu/cpufreq/conservative/sampling_down_factor
sysctl -w kernel.sched_min_granularity_ns=10000000
echo always > /sys/kernel/mm/transparent_hugepage/enabled
powertop --auto-tune
echo 0 > /proc/sys/kernel/nmi_watchdog
sysctl -w vm.swappiness=50
sysctl -w vm.laptop_mode=5
<Yes>: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
<Yes>: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
<Yes>: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 96 due to a known inconsistency in processor reporting with this Java version.

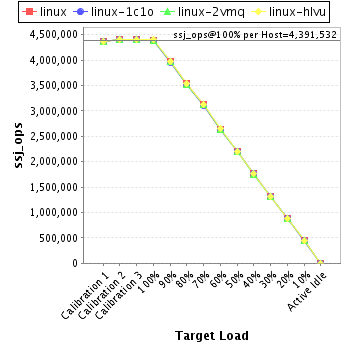

Host Instance Summary

Host	ssj_ops@100%
linux	4,386,726
linux-1c1o	4,392,810
linux-2vmq	4,382,719
linux-hlvu	4,403,871
ssj_ops@100%	17,566,126
ssj_ops@100% per Host	4,391,532
ssj_ops@100% per JVM	91,490

Host 'linux' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			4,365,311
Calibration 2			4,410,728
Calibration 3			4,408,280
ssj_ops@calibrated=4,409,504
100%	99.5%	4,409,504	4,386,726
90%	90.1%	3,968,554	3,974,342
80%	80.2%	3,527,603	3,535,621
70%	71.0%	3,086,653	3,131,518
60%	59.9%	2,645,702	2,641,171
50%	50.1%	2,204,752	2,207,563
40%	40.0%	1,763,802	1,764,796
30%	30.0%	1,322,851	1,321,603
20%	20.0%	881,901	882,064
10%	10.0%	440,950	441,395
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'linux-1c1o' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			4,366,415
Calibration 2			4,395,808
Calibration 3			4,399,526
ssj_ops@calibrated=4,397,667
100%	99.9%	4,397,667	4,392,810
90%	89.9%	3,957,900	3,954,185
80%	79.8%	3,518,133	3,510,147
70%	70.6%	3,078,367	3,105,614
60%	60.0%	2,638,600	2,637,688
50%	49.9%	2,198,833	2,196,076
40%	40.0%	1,759,067	1,758,233
30%	30.0%	1,319,300	1,319,610
20%	20.0%	879,533	880,295
10%	10.0%	439,767	438,181
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'linux-2vmq' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			4,366,563
Calibration 2			4,396,717
Calibration 3			4,396,899
ssj_ops@calibrated=4,396,808
100%	99.7%	4,396,808	4,382,719
90%	90.1%	3,957,127	3,963,460
80%	80.0%	3,517,446	3,519,071
70%	71.2%	3,077,766	3,130,113
60%	60.1%	2,638,085	2,641,955
50%	50.0%	2,198,404	2,196,852
40%	39.9%	1,758,723	1,755,794
30%	29.9%	1,319,042	1,315,168
20%	20.0%	879,362	879,628
10%	10.0%	439,681	438,692
Active Idle		0	0

See the Host Performance Report for additional details.

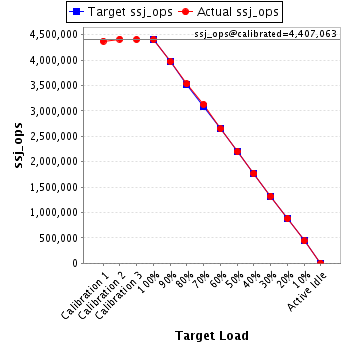

Host 'linux-hlvu' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			4,372,345
Calibration 2			4,410,441
Calibration 3			4,403,684
ssj_ops@calibrated=4,407,063
100%	99.9%	4,407,063	4,403,871
90%	90.1%	3,966,356	3,969,922
80%	80.1%	3,525,650	3,529,585
70%	70.9%	3,084,944	3,125,899
60%	60.0%	2,644,238	2,645,348
50%	49.9%	2,203,531	2,197,933
40%	40.0%	1,762,825	1,763,441
30%	30.0%	1,322,119	1,322,808
20%	20.0%	881,413	881,510
10%	10.0%	440,706	440,708
Active Idle		0	0

See the Host Performance Report for additional details.
