Fujitsu FUJITSU Server PRIMERGY RX2530 M5 | SPECpower_ssj2008 = 13,006 overall ssj_ops/watt | ||||
Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Apr 9, 2019 |
Hardware Availability: | Jun-2019 | Software Availability: | Dec-2018 | Publication: | May 22, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

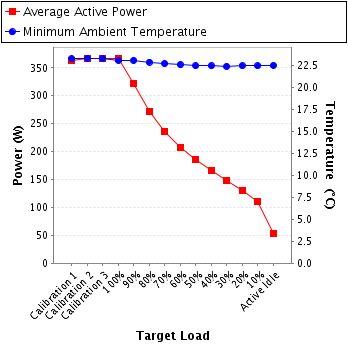

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 364 | 23.2 |
Calibration 2 | 367 | 23.3 |
Calibration 3 | 367 | 23.2 |
100% | 367 | 23.1 |
90% | 322 | 23.1 |
80% | 272 | 22.9 |
70% | 236 | 22.7 |
60% | 208 | 22.6 |
50% | 185 | 22.4 |
40% | 166 | 22.4 |
30% | 148 | 22.4 |
20% | 130 | 22.4 |
10% | 111 | 22.4 |
Active Idle | 53.6 | 22.5 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Hioki |
Model: | Hioki3336 |
Serial Number: | 170130930 |
Connectivity: | RS-232 |
Input Connection: | Default |
Metrology Institute: | NICT (National Institute of Information and Communications Technology) |
Accredited by: | HIOKI E.E. CORPORATION |
Calibration Label: | H06400086-1901 |
Date of Calibration: | 30-Jan-2019 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | Connected to PSU 1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | Watchport Virtual Port 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main air intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 205 | 300.0 | 1.80 | 5.0 | 0.986 | 364 | 0.3% |
Calibration 2 | 205 | 300.0 | 1.82 | 5.0 | 0.986 | 367 | 0.3% |
Calibration 3 | 205 | 300.0 | 1.82 | 5.0 | 0.986 | 367 | 0.3% |
100% | 205 | 300.0 | 1.82 | 5.0 | 0.986 | 367 | 0.3% |
90% | 205 | 300.0 | 1.60 | 5.0 | 0.982 | 322 | 0.4% |
80% | 205 | 300.0 | 1.36 | 2.0 | 0.977 | 272 | 0.2% |
70% | 205 | 300.0 | 1.19 | 2.0 | 0.972 | 236 | 0.3% |
60% | 205 | 300.0 | 1.05 | 2.0 | 0.967 | 208 | 0.3% |
50% | 205 | 300.0 | 0.938 | 2.0 | 0.964 | 185 | 0.3% |
40% | 205 | 300.0 | 0.846 | 2.0 | 0.959 | 166 | 0.3% |
30% | 205 | 300.0 | 0.760 | 2.0 | 0.952 | 148 | 0.3% |
20% | 205 | 300.0 | 0.674 | 2.0 | 0.944 | 130 | 0.4% |
10% | 205 | 300.0 | 0.582 | 1.0 | 0.933 | 111 | 0.3% |
Active Idle | 205 | 300.0 | 0.308 | 1.0 | 0.849 | 53.6 | 0.4% |
