Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module SPECpower_ssj2008 = 11,516 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 26, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 3,185 22.0
Calibration 2 3,181 22.1
Calibration 3 3,188 22.1
100% 3,182 22.1
90% 2,810 22.1
80% 2,382 22.1
70% 2,085 22.2
60% 1,820 22.1
50% 1,594 22.1
40% 1,423 22.1
30% 1,278 22.1
20% 1,135 22.1
10% 982 22.0
Active Idle 585 22.0
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 3
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 3.81 5.0 0.988 798 0.4%
Calibration 2 212 300.0 3.80 5.0 0.988 796 0.4%
Calibration 3 212 300.0 3.81 5.0 0.989 798 0.4%
100% 212 300.0 3.81 5.0 0.989 798 0.4%
90% 212 300.0 3.35 5.0 0.985 700 0.4%
80% 212 300.0 2.84 5.0 0.979 589 0.4%
70% 212 300.0 2.49 5.0 0.972 513 0.5%
60% 213 300.0 2.19 5.0 0.966 449 0.5%
50% 213 300.0 1.94 5.0 0.956 395 0.6%
40% 212 300.0 1.75 5.0 0.947 353 0.6%
30% 213 300.0 1.60 5.0 0.936 318 0.7%
20% 212 300.0 1.45 2.0 0.924 285 0.4%
10% 213 300.0 1.33 2.0 0.908 256 0.5%
Active Idle 213 300.0 0.849 2.0 0.770 139 0.7%

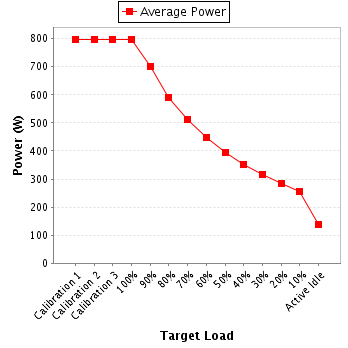

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 3.54 5.0 0.991 754 0.4%
Calibration 2 215 300.0 3.54 5.0 0.991 754 0.4%
Calibration 3 215 300.0 3.54 5.0 0.991 754 0.4%
100% 215 300.0 3.52 5.0 0.991 750 0.4%
90% 215 300.0 3.16 5.0 0.991 672 0.4%
80% 215 300.0 2.72 5.0 0.987 576 0.4%
70% 215 300.0 2.39 5.0 0.983 505 0.5%
60% 215 300.0 2.05 5.0 0.976 431 0.5%
50% 215 300.0 1.76 5.0 0.969 368 0.6%
40% 215 300.0 1.56 5.0 0.960 322 0.7%
30% 216 300.0 1.38 2.0 0.949 281 0.4%
20% 215 300.0 1.19 2.0 0.925 237 0.5%
10% 216 300.0 0.972 2.0 0.869 182 0.6%
Active Idle 216 300.0 0.661 1.0 0.756 108 0.6%

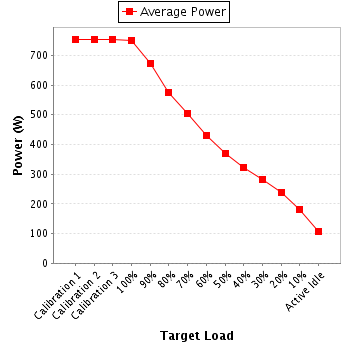

Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 7.80 10.0 0.994 1,634 0.4%
Calibration 2 211 300.0 7.78 10.0 0.994 1,631 0.4%
Calibration 3 211 300.0 7.80 10.0 0.994 1,635 0.4%
100% 211 300.0 7.80 10.0 0.994 1,634 0.4%
90% 211 300.0 6.87 10.0 0.991 1,438 0.4%
80% 211 300.0 5.82 10.0 0.989 1,217 0.4%
70% 212 300.0 5.12 10.0 0.985 1,068 0.5%
60% 212 300.0 4.52 10.0 0.981 940 0.5%
50% 212 300.0 4.01 10.0 0.976 831 0.6%
40% 212 300.0 3.64 5.0 0.971 749 0.4%
30% 212 300.0 3.32 5.0 0.965 679 0.4%
20% 212 300.0 3.02 5.0 0.958 613 0.5%
10% 212 300.0 2.71 5.0 0.947 544 0.5%
Active Idle 213 300.0 1.81 5.0 0.877 338 0.7%
Power details for pwr3
