Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module SPECpower_ssj2008 = 11,804 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 26, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 4,953 24.1
Calibration 2 4,975 24.3
Calibration 3 4,991 24.4
100% 4,975 24.7
90% 4,359 24.9
80% 3,700 24.9
70% 3,223 24.9
60% 2,796 25.0
50% 2,433 24.9
40% 2,161 24.9
30% 1,929 24.8
20% 1,700 24.7
10% 1,459 24.6
Active Idle 845 24.4
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1 and 4
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 2 and 5
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 3 and 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 5.92 10.0 0.994 1,243 0.4%
Calibration 2 211 300.0 5.95 10.0 0.994 1,249 0.4%
Calibration 3 211 300.0 5.96 10.0 0.994 1,249 0.4%
100% 211 300.0 5.93 10.0 0.994 1,243 0.4%
90% 211 300.0 5.17 10.0 0.994 1,085 0.4%
80% 211 300.0 4.42 10.0 0.991 926 0.5%
70% 212 300.0 3.82 5.0 0.989 799 0.4%
60% 212 300.0 3.31 5.0 0.985 689 0.4%
50% 212 300.0 2.88 5.0 0.981 598 0.4%
40% 212 300.0 2.57 5.0 0.975 529 0.5%
30% 212 300.0 2.30 5.0 0.969 473 0.5%
20% 212 300.0 2.06 5.0 0.961 419 0.6%
10% 212 300.0 1.81 2.0 0.949 363 0.4%
Active Idle 212 300.0 1.17 2.0 0.874 217 0.5%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 214 300.0 5.48 10.0 0.996 1,168 0.4%
Calibration 2 214 300.0 5.49 10.0 0.996 1,168 0.4%
Calibration 3 214 300.0 5.56 10.0 0.996 1,183 0.4%
100% 214 300.0 5.53 10.0 0.996 1,176 0.4%
90% 214 300.0 4.89 10.0 0.995 1,041 0.5%
80% 214 300.0 4.06 10.0 0.994 864 0.5%
70% 214 300.0 3.61 5.0 0.992 767 0.4%
60% 214 300.0 3.17 5.0 0.991 674 0.4%
50% 214 300.0 2.79 5.0 0.988 591 0.4%
40% 214 300.0 2.49 5.0 0.984 525 0.5%
30% 214 300.0 2.21 5.0 0.980 464 0.5%
20% 214 300.0 1.91 5.0 0.973 397 0.6%
10% 214 300.0 1.59 2.0 0.962 327 0.4%
Active Idle 214 300.0 0.924 2.0 0.865 171 0.6%
Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 210 300.0 12.2 10.0 0.996 2,542 0.4%
Calibration 2 210 300.0 12.2 10.0 0.996 2,558 0.4%
Calibration 3 210 300.0 12.3 10.0 0.995 2,559 0.4%
100% 210 300.0 12.2 10.0 0.995 2,555 0.4%
90% 210 300.0 10.7 10.0 0.996 2,233 0.3%
80% 210 300.0 9.12 10.0 0.995 1,910 0.3%
70% 211 300.0 7.91 10.0 0.994 1,657 0.4%
60% 211 300.0 6.85 10.0 0.992 1,433 0.4%
50% 211 300.0 5.96 10.0 0.989 1,244 0.4%
40% 211 300.0 5.32 10.0 0.986 1,107 0.5%
30% 211 300.0 4.78 10.0 0.983 993 0.5%
20% 211 300.0 4.28 5.0 0.978 884 0.4%
10% 211 300.0 3.75 5.0 0.972 769 0.4%
Active Idle 211 300.0 2.34 5.0 0.923 457 0.6%

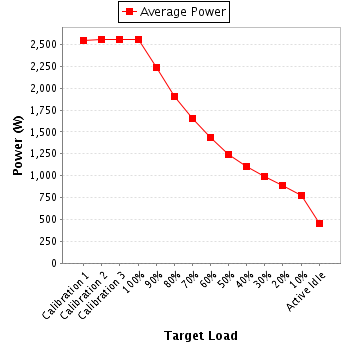

Power details for pwr3
