Lenovo Global Technology ThinkSystem SR650 (Intel Xeon Platinum 8280 CPU 2.70 GHz) | ssj_ops@100% = 2,626,299 ssj_ops@100% per JVM = 93,796 |
||||
Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
Tested By: | Lenovo Global Technology | Test Location: | Taipei, Taiwan | Test Date: | Mar 12, 2019 |
Hardware Availability: | Apr-2019 | Software Availability: | Jun-2019 | Publication: | Apr 2, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 2,662,158 | ||
Calibration 2 | 2,675,491 | ||
Calibration 3 | 2,661,957 | ||
ssj_ops@calibrated=2,668,724 | |||
100% | 98.4% | 2,668,724 | 2,626,299 |
90% | 90.0% | 2,401,852 | 2,401,698 |
80% | 80.0% | 2,134,979 | 2,136,159 |
70% | 69.9% | 1,868,107 | 1,864,512 |
60% | 60.0% | 1,601,234 | 1,600,859 |
50% | 50.1% | 1,334,362 | 1,335,979 |
40% | 40.1% | 1,067,490 | 1,069,153 |
30% | 29.9% | 800,617 | 797,725 |
20% | 20.0% | 533,745 | 533,114 |
10% | 10.0% | 266,872 | 265,897 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | Here is a comment for this set. |
Hardware | |
---|---|
Hardware Vendor: | Lenovo Global Technology |
Model: | ThinkSystem SR650 (Intel Xeon Platinum 8280 CPU 2.70 GHz) |
Form Factor: | 2U |
CPU Name: | Intel Xeon Platinum 8280 CPU 2.70 GHz |
CPU Characteristics: | 28 core, 2.70GHz, 38.5MB L3 Cache |
CPU Frequency (MHz): | 2700 |
CPU(s) Enabled: | 28 cores, 1 chip, 28 cores/chip |
Hardware Threads: | 56 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 39424 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 96 |
# and size of DIMM: | 6 x 16384 MB |
Memory Details: | 16GB 2Rx8 PC4-2933Y-RE2-12-MH1, Slots 1, 3, 5, 8, 10 and 12 populated. |
Power Supply Quantity and Rating (W): | 1 x 750 |
Power Supply Details: | Lenovo P/N:7N67A00884 |
Disk Drive: | 1 x 128GB M.2 SSD (Lenovo P/N 7N47A00130) |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x ThinkSystem 1Gb 2-Port RJ45 LOM (Lenovo P/N: 7ZT7A00544) |
NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | SUSE Linux Enterprise Server 12 SP4 |
OS Version: | Kernel 4.12.14-94.41-default |
Filesystem: | xfs |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80 |
JVM Command-line Options: | -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC |
JVM Affinity: | for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 28 } |
JVM Instances: | 28 |
JVM Initial Heap (MB): | 1550 |
JVM Maximum Heap (MB): | 1550 |
JVM Address Bits: | 64 |
Boot Firmware Version: | IVE135S (2019/03/08) |
Management Firmware Version: | CDI333V (2019/03/07) |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | Lenovo Power Plan V1.0 for SuSE Linux Enterprise Server 12 SP4 |

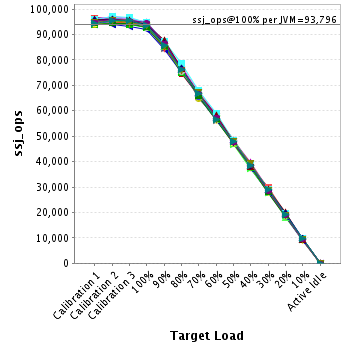

JVM Instance | ssj_ops@100% |
---|---|
cybrog.001 | 94,399 |
cybrog.002 | 93,371 |
cybrog.003 | 93,520 |
cybrog.004 | 93,293 |
cybrog.005 | 95,153 |
cybrog.006 | 94,276 |
cybrog.007 | 93,525 |
cybrog.008 | 93,016 |
cybrog.009 | 93,318 |
cybrog.010 | 91,990 |
cybrog.011 | 92,846 |
cybrog.012 | 93,901 |
cybrog.013 | 94,574 |
cybrog.014 | 94,677 |
cybrog.015 | 94,699 |
cybrog.016 | 93,522 |
cybrog.017 | 93,282 |
cybrog.018 | 94,176 |
cybrog.019 | 93,745 |
cybrog.020 | 94,613 |
cybrog.021 | 94,917 |
cybrog.022 | 92,924 |
cybrog.023 | 94,000 |
cybrog.024 | 94,052 |
cybrog.025 | 92,586 |
cybrog.026 | 93,423 |
cybrog.027 | 94,842 |
cybrog.028 | 93,659 |
ssj_ops@100% | 2,626,299 |
ssj_ops@100% per JVM | 93,796 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,138 | ||
Calibration 2 | 96,503 | ||
Calibration 3 | 95,654 | ||
ssj_ops@calibrated=96,079 | |||
100% | 98.3% | 96,079 | 94,399 |
90% | 90.1% | 86,471 | 86,609 |
80% | 80.4% | 76,863 | 77,290 |
70% | 69.8% | 67,255 | 67,062 |
60% | 60.0% | 57,647 | 57,663 |
50% | 50.1% | 48,039 | 48,098 |
40% | 39.8% | 38,431 | 38,212 |
30% | 30.9% | 28,824 | 29,696 |
20% | 20.3% | 19,216 | 19,525 |
10% | 10.0% | 9,608 | 9,600 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,439 | ||
Calibration 2 | 95,005 | ||
Calibration 3 | 94,803 | ||
ssj_ops@calibrated=94,904 | |||
100% | 98.4% | 94,904 | 93,371 |
90% | 89.5% | 85,414 | 84,977 |
80% | 79.9% | 75,923 | 75,853 |
70% | 69.6% | 66,433 | 66,068 |
60% | 59.4% | 56,942 | 56,402 |
50% | 49.8% | 47,452 | 47,283 |
40% | 39.7% | 37,962 | 37,649 |
30% | 30.0% | 28,471 | 28,467 |
20% | 20.1% | 18,981 | 19,063 |
10% | 10.0% | 9,490 | 9,522 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,093 | ||
Calibration 2 | 95,062 | ||
Calibration 3 | 94,434 | ||
ssj_ops@calibrated=94,748 | |||
100% | 98.7% | 94,748 | 93,520 |
90% | 89.9% | 85,273 | 85,171 |
80% | 79.4% | 75,798 | 75,267 |
70% | 70.5% | 66,324 | 66,845 |
60% | 60.1% | 56,849 | 56,927 |
50% | 49.9% | 47,374 | 47,271 |
40% | 39.7% | 37,899 | 37,572 |
30% | 29.2% | 28,424 | 27,655 |
20% | 19.1% | 18,950 | 18,089 |
10% | 9.9% | 9,475 | 9,371 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,359 | ||
Calibration 2 | 94,725 | ||
Calibration 3 | 94,341 | ||
ssj_ops@calibrated=94,533 | |||
100% | 98.7% | 94,533 | 93,293 |
90% | 89.7% | 85,080 | 84,834 |
80% | 80.7% | 75,626 | 76,288 |
70% | 70.2% | 66,173 | 66,323 |
60% | 59.5% | 56,720 | 56,274 |
50% | 49.8% | 47,267 | 47,061 |
40% | 40.5% | 37,813 | 38,315 |
30% | 29.6% | 28,360 | 27,996 |
20% | 19.9% | 18,907 | 18,851 |
10% | 9.5% | 9,453 | 8,962 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,808 | ||
Calibration 2 | 96,845 | ||
Calibration 3 | 95,795 | ||
ssj_ops@calibrated=96,320 | |||
100% | 98.8% | 96,320 | 95,153 |
90% | 88.8% | 86,688 | 85,516 |
80% | 80.4% | 77,056 | 77,463 |
70% | 69.2% | 67,424 | 66,607 |
60% | 60.2% | 57,792 | 58,013 |
50% | 50.2% | 48,160 | 48,359 |
40% | 39.0% | 38,528 | 37,569 |
30% | 30.3% | 28,896 | 29,188 |
20% | 20.2% | 19,264 | 19,489 |
10% | 10.0% | 9,632 | 9,608 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,096 | ||
Calibration 2 | 96,166 | ||
Calibration 3 | 95,436 | ||
ssj_ops@calibrated=95,801 | |||
100% | 98.4% | 95,801 | 94,276 |
90% | 90.0% | 86,221 | 86,264 |
80% | 78.9% | 76,641 | 75,592 |
70% | 70.5% | 67,061 | 67,529 |
60% | 60.1% | 57,481 | 57,614 |
50% | 49.8% | 47,901 | 47,665 |
40% | 40.2% | 38,320 | 38,537 |
30% | 30.4% | 28,740 | 29,098 |
20% | 19.8% | 19,160 | 19,000 |
10% | 10.1% | 9,580 | 9,712 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,093 | ||
Calibration 2 | 95,490 | ||
Calibration 3 | 94,547 | ||
ssj_ops@calibrated=95,018 | |||
100% | 98.4% | 95,018 | 93,525 |
90% | 89.9% | 85,516 | 85,418 |
80% | 81.0% | 76,015 | 76,994 |
70% | 69.5% | 66,513 | 66,043 |
60% | 59.4% | 57,011 | 56,456 |
50% | 49.6% | 47,509 | 47,175 |
40% | 40.3% | 38,007 | 38,267 |
30% | 29.7% | 28,505 | 28,217 |
20% | 19.7% | 19,004 | 18,683 |
10% | 9.9% | 9,502 | 9,408 |
Active Idle | 0 | 0 |

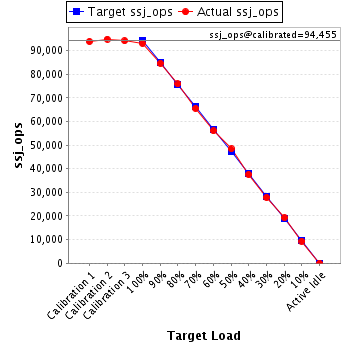

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,821 | ||
Calibration 2 | 94,818 | ||
Calibration 3 | 94,091 | ||
ssj_ops@calibrated=94,455 | |||
100% | 98.5% | 94,455 | 93,016 |
90% | 89.6% | 85,009 | 84,594 |
80% | 80.3% | 75,564 | 75,874 |
70% | 69.4% | 66,118 | 65,549 |
60% | 59.3% | 56,673 | 56,005 |
50% | 51.2% | 47,227 | 48,395 |
40% | 39.8% | 37,782 | 37,561 |
30% | 29.4% | 28,336 | 27,814 |
20% | 20.4% | 18,891 | 19,261 |
10% | 9.9% | 9,445 | 9,325 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,411 | ||
Calibration 2 | 95,232 | ||
Calibration 3 | 94,368 | ||
ssj_ops@calibrated=94,800 | |||
100% | 98.4% | 94,800 | 93,318 |
90% | 90.3% | 85,320 | 85,645 |
80% | 78.9% | 75,840 | 74,782 |
70% | 69.6% | 66,360 | 65,971 |
60% | 60.5% | 56,880 | 57,400 |
50% | 49.7% | 47,400 | 47,088 |
40% | 40.1% | 37,920 | 38,021 |
30% | 29.9% | 28,440 | 28,381 |
20% | 19.7% | 18,960 | 18,662 |
10% | 10.0% | 9,480 | 9,517 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,919 | ||
Calibration 2 | 93,800 | ||
Calibration 3 | 93,230 | ||
ssj_ops@calibrated=93,515 | |||
100% | 98.4% | 93,515 | 91,990 |
90% | 90.1% | 84,163 | 84,243 |
80% | 80.5% | 74,812 | 75,233 |
70% | 70.5% | 65,460 | 65,889 |
60% | 60.1% | 56,109 | 56,221 |
50% | 50.9% | 46,757 | 47,586 |
40% | 40.0% | 37,406 | 37,418 |
30% | 30.0% | 28,054 | 28,015 |
20% | 19.7% | 18,703 | 18,402 |
10% | 9.8% | 9,351 | 9,129 |
Active Idle | 0 | 0 |

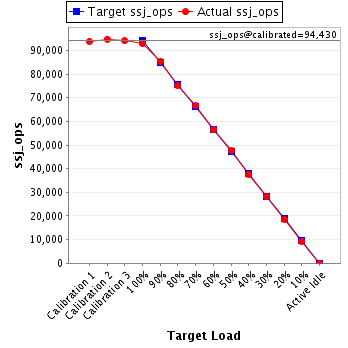

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,773 | ||
Calibration 2 | 94,783 | ||
Calibration 3 | 94,076 | ||
ssj_ops@calibrated=94,430 | |||
100% | 98.3% | 94,430 | 92,846 |
90% | 90.5% | 84,987 | 85,458 |
80% | 79.6% | 75,544 | 75,193 |
70% | 70.5% | 66,101 | 66,559 |
60% | 59.8% | 56,658 | 56,491 |
50% | 50.4% | 47,215 | 47,559 |
40% | 39.9% | 37,772 | 37,687 |
30% | 29.9% | 28,329 | 28,221 |
20% | 19.8% | 18,886 | 18,654 |
10% | 9.9% | 9,443 | 9,367 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,132 | ||
Calibration 2 | 95,011 | ||
Calibration 3 | 94,620 | ||
ssj_ops@calibrated=94,816 | |||
100% | 99.0% | 94,816 | 93,901 |
90% | 90.3% | 85,334 | 85,632 |
80% | 81.4% | 75,853 | 77,139 |
70% | 68.5% | 66,371 | 64,972 |
60% | 60.4% | 56,889 | 57,235 |
50% | 49.7% | 47,408 | 47,097 |
40% | 40.1% | 37,926 | 37,992 |
30% | 29.6% | 28,445 | 28,067 |
20% | 20.3% | 18,963 | 19,287 |
10% | 9.7% | 9,482 | 9,200 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,891 | ||
Calibration 2 | 96,070 | ||
Calibration 3 | 95,851 | ||
ssj_ops@calibrated=95,960 | |||
100% | 98.6% | 95,960 | 94,574 |
90% | 89.6% | 86,364 | 85,977 |
80% | 80.4% | 76,768 | 77,138 |
70% | 70.1% | 67,172 | 67,238 |
60% | 60.2% | 57,576 | 57,774 |
50% | 50.4% | 47,980 | 48,396 |
40% | 41.1% | 38,384 | 39,484 |
30% | 30.1% | 28,788 | 28,854 |
20% | 19.9% | 19,192 | 19,104 |
10% | 9.9% | 9,596 | 9,454 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,638 | ||
Calibration 2 | 96,480 | ||
Calibration 3 | 95,942 | ||
ssj_ops@calibrated=96,211 | |||
100% | 98.4% | 96,211 | 94,677 |
90% | 89.5% | 86,590 | 86,147 |
80% | 79.0% | 76,969 | 75,992 |
70% | 69.9% | 67,348 | 67,237 |
60% | 59.3% | 57,727 | 57,073 |
50% | 50.3% | 48,106 | 48,366 |
40% | 40.5% | 38,485 | 38,933 |
30% | 29.8% | 28,863 | 28,625 |
20% | 20.4% | 19,242 | 19,625 |
10% | 9.8% | 9,621 | 9,396 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,519 | ||
Calibration 2 | 95,769 | ||
Calibration 3 | 95,636 | ||
ssj_ops@calibrated=95,703 | |||
100% | 99.0% | 95,703 | 94,699 |
90% | 89.6% | 86,133 | 85,759 |
80% | 79.8% | 76,562 | 76,376 |
70% | 69.2% | 66,992 | 66,219 |
60% | 60.1% | 57,422 | 57,517 |
50% | 50.7% | 47,851 | 48,558 |
40% | 40.3% | 38,281 | 38,548 |
30% | 30.6% | 28,711 | 29,255 |
20% | 20.1% | 19,141 | 19,204 |
10% | 10.2% | 9,570 | 9,809 |
Active Idle | 0 | 0 |

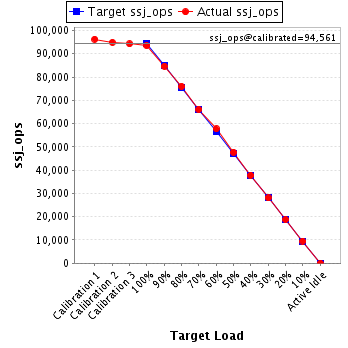

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,287 | ||
Calibration 2 | 94,905 | ||
Calibration 3 | 94,217 | ||
ssj_ops@calibrated=94,561 | |||
100% | 98.9% | 94,561 | 93,522 |
90% | 89.5% | 85,105 | 84,651 |
80% | 80.4% | 75,649 | 76,059 |
70% | 69.9% | 66,193 | 66,105 |
60% | 61.1% | 56,737 | 57,745 |
50% | 50.5% | 47,280 | 47,761 |
40% | 40.0% | 37,824 | 37,800 |
30% | 29.7% | 28,368 | 28,056 |
20% | 19.8% | 18,912 | 18,753 |
10% | 10.1% | 9,456 | 9,554 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,194 | ||
Calibration 2 | 95,107 | ||
Calibration 3 | 95,003 | ||
ssj_ops@calibrated=95,055 | |||
100% | 98.1% | 95,055 | 93,282 |
90% | 90.3% | 85,549 | 85,825 |
80% | 80.0% | 76,044 | 76,067 |
70% | 68.6% | 66,538 | 65,190 |
60% | 59.7% | 57,033 | 56,711 |
50% | 49.8% | 47,527 | 47,380 |
40% | 40.2% | 38,022 | 38,182 |
30% | 30.0% | 28,516 | 28,504 |
20% | 20.4% | 19,011 | 19,419 |
10% | 10.3% | 9,505 | 9,837 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,704 | ||
Calibration 2 | 95,247 | ||
Calibration 3 | 95,308 | ||
ssj_ops@calibrated=95,277 | |||
100% | 98.8% | 95,277 | 94,176 |
90% | 89.4% | 85,750 | 85,171 |
80% | 80.2% | 76,222 | 76,382 |
70% | 69.9% | 66,694 | 66,617 |
60% | 61.1% | 57,166 | 58,228 |
50% | 49.2% | 47,639 | 46,833 |
40% | 39.3% | 38,111 | 37,476 |
30% | 29.4% | 28,583 | 28,038 |
20% | 19.9% | 19,055 | 18,925 |
10% | 9.8% | 9,528 | 9,321 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,539 | ||
Calibration 2 | 95,752 | ||
Calibration 3 | 95,600 | ||
ssj_ops@calibrated=95,676 | |||
100% | 98.0% | 95,676 | 93,745 |
90% | 90.6% | 86,108 | 86,676 |
80% | 79.7% | 76,541 | 76,228 |
70% | 71.0% | 66,973 | 67,932 |
60% | 59.9% | 57,406 | 57,273 |
50% | 49.9% | 47,838 | 47,699 |
40% | 39.9% | 38,270 | 38,132 |
30% | 29.8% | 28,703 | 28,487 |
20% | 19.9% | 19,135 | 19,023 |
10% | 9.8% | 9,568 | 9,400 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,542 | ||
Calibration 2 | 96,957 | ||
Calibration 3 | 96,382 | ||
ssj_ops@calibrated=96,669 | |||
100% | 97.9% | 96,669 | 94,613 |
90% | 90.1% | 87,003 | 87,105 |
80% | 79.3% | 77,336 | 76,659 |
70% | 70.4% | 67,669 | 68,026 |
60% | 60.1% | 58,002 | 58,124 |
50% | 49.9% | 48,335 | 48,266 |
40% | 39.2% | 38,668 | 37,920 |
30% | 30.0% | 29,001 | 28,982 |
20% | 19.8% | 19,334 | 19,108 |
10% | 10.2% | 9,667 | 9,817 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,993 | ||
Calibration 2 | 97,158 | ||
Calibration 3 | 96,867 | ||
ssj_ops@calibrated=97,013 | |||
100% | 97.8% | 97,013 | 94,917 |
90% | 89.9% | 87,311 | 87,258 |
80% | 80.9% | 77,610 | 78,447 |
70% | 70.0% | 67,909 | 67,900 |
60% | 60.6% | 58,208 | 58,794 |
50% | 49.9% | 48,506 | 48,421 |
40% | 40.1% | 38,805 | 38,921 |
30% | 29.8% | 29,104 | 28,893 |
20% | 20.0% | 19,403 | 19,392 |
10% | 9.9% | 9,701 | 9,615 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,993 | ||
Calibration 2 | 95,891 | ||
Calibration 3 | 94,736 | ||
ssj_ops@calibrated=95,314 | |||
100% | 97.5% | 95,314 | 92,924 |
90% | 90.2% | 85,782 | 85,962 |
80% | 79.2% | 76,251 | 75,447 |
70% | 69.9% | 66,719 | 66,611 |
60% | 59.2% | 57,188 | 56,450 |
50% | 50.4% | 47,657 | 48,015 |
40% | 40.2% | 38,125 | 38,358 |
30% | 29.6% | 28,594 | 28,167 |
20% | 19.8% | 19,063 | 18,904 |
10% | 9.9% | 9,531 | 9,462 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,822 | ||
Calibration 2 | 95,722 | ||
Calibration 3 | 95,532 | ||
ssj_ops@calibrated=95,627 | |||
100% | 98.3% | 95,627 | 94,000 |
90% | 91.6% | 86,065 | 87,620 |
80% | 80.3% | 76,502 | 76,806 |
70% | 69.7% | 66,939 | 66,629 |
60% | 60.9% | 57,376 | 58,237 |
50% | 50.1% | 47,814 | 47,882 |
40% | 39.7% | 38,251 | 37,967 |
30% | 30.4% | 28,688 | 29,100 |
20% | 20.8% | 19,125 | 19,883 |
10% | 9.9% | 9,563 | 9,476 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,683 | ||
Calibration 2 | 96,008 | ||
Calibration 3 | 95,233 | ||
ssj_ops@calibrated=95,620 | |||
100% | 98.4% | 95,620 | 94,052 |
90% | 90.3% | 86,058 | 86,319 |
80% | 80.2% | 76,496 | 76,653 |
70% | 69.9% | 66,934 | 66,823 |
60% | 59.8% | 57,372 | 57,136 |
50% | 49.6% | 47,810 | 47,449 |
40% | 40.3% | 38,248 | 38,561 |
30% | 30.1% | 28,686 | 28,767 |
20% | 20.6% | 19,124 | 19,675 |
10% | 10.4% | 9,562 | 9,904 |
Active Idle | 0 | 0 |

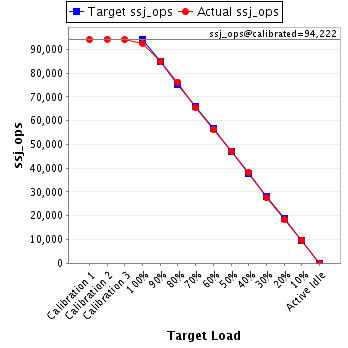

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,138 | ||
Calibration 2 | 94,281 | ||
Calibration 3 | 94,163 | ||
ssj_ops@calibrated=94,222 | |||
100% | 98.3% | 94,222 | 92,586 |
90% | 90.2% | 84,800 | 84,994 |
80% | 80.9% | 75,377 | 76,251 |
70% | 69.6% | 65,955 | 65,599 |
60% | 59.7% | 56,533 | 56,258 |
50% | 50.1% | 47,111 | 47,195 |
40% | 40.4% | 37,689 | 38,109 |
30% | 29.2% | 28,267 | 27,477 |
20% | 19.7% | 18,844 | 18,567 |
10% | 10.3% | 9,422 | 9,750 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,669 | ||
Calibration 2 | 95,370 | ||
Calibration 3 | 94,929 | ||
ssj_ops@calibrated=95,150 | |||
100% | 98.2% | 95,150 | 93,423 |
90% | 89.6% | 85,635 | 85,296 |
80% | 79.9% | 76,120 | 75,982 |
70% | 70.7% | 66,605 | 67,228 |
60% | 59.7% | 57,090 | 56,760 |
50% | 50.3% | 47,575 | 47,903 |
40% | 41.1% | 38,060 | 39,121 |
30% | 30.0% | 28,545 | 28,517 |
20% | 19.6% | 19,030 | 18,624 |
10% | 9.9% | 9,515 | 9,389 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,974 | ||
Calibration 2 | 95,806 | ||
Calibration 3 | 95,560 | ||
ssj_ops@calibrated=95,683 | |||
100% | 99.1% | 95,683 | 94,842 |
90% | 90.6% | 86,115 | 86,723 |
80% | 79.8% | 76,546 | 76,374 |
70% | 70.0% | 66,978 | 66,948 |
60% | 60.2% | 57,410 | 57,575 |
50% | 49.4% | 47,841 | 47,292 |
40% | 40.1% | 38,273 | 38,383 |
30% | 29.5% | 28,705 | 28,234 |
20% | 19.6% | 19,137 | 18,753 |
10% | 9.7% | 9,568 | 9,287 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,491 | ||
Calibration 2 | 95,527 | ||
Calibration 3 | 95,602 | ||
ssj_ops@calibrated=95,565 | |||
100% | 98.0% | 95,565 | 93,659 |
90% | 89.8% | 86,008 | 85,853 |
80% | 79.9% | 76,452 | 76,330 |
70% | 69.9% | 66,895 | 66,791 |
60% | 59.1% | 57,339 | 56,503 |
50% | 50.1% | 47,782 | 47,924 |
40% | 40.2% | 38,226 | 38,459 |
30% | 30.3% | 28,669 | 28,955 |
20% | 20.1% | 19,113 | 19,188 |
10% | 10.2% | 9,556 | 9,702 |
Active Idle | 0 | 0 |
