Huawei Technologies Co., Ltd Fusion Server 5288 V5 SPECpower_ssj2008 = 14,071 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Mar 13, 2019
Hardware Availability: Apr-2019 Software Availability: Jul-2018 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 399 20.5
Calibration 2 426 21.2
Calibration 3 426 21.9
100% 422 21.9
90% 336 23.7
80% 283 21.3
70% 256 21.2
60% 236 22.4
50% 194 22.6
40% 188 22.6
30% 165 23.6
20% 142 21.8
10% 119 22.1
Active Idle 51.5 22.0
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91M412342
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: B18008105-0029
Date of Calibration: 4-Aug-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 225 300.0 1.83 5.0 0.982 399 0.6%
Calibration 2 225 300.0 1.92 5.0 0.986 426 0.5%
Calibration 3 225 300.0 1.92 5.0 0.986 426 0.5%
100% 225 300.0 1.91 5.0 0.986 422 0.5%
90% 225 300.0 1.52 2.0 0.982 336 0.4%
80% 225 300.0 1.29 2.0 0.975 283 0.4%
70% 225 300.0 1.17 2.0 0.973 256 0.4%
60% 225 300.0 1.08 2.0 0.969 236 0.5%
50% 225 300.0 0.903 2.0 0.956 194 0.5%
40% 225 300.0 0.878 2.0 0.950 188 0.5%
30% 225 300.0 0.778 1.0 0.940 165 0.4%
20% 225 300.0 0.680 1.0 0.928 142 0.4%
10% 225 300.0 0.577 1.0 0.915 119 0.5%
Active Idle 226 300.0 0.314 0.5 0.729 51.5 0.6%

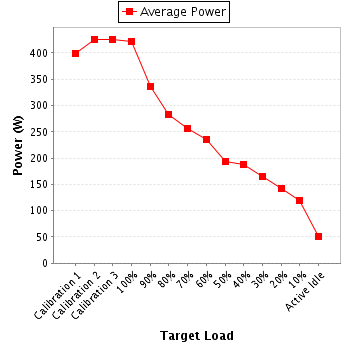

Power details for pwr1
