Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module SPECpower_ssj2008 = 10,684 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 12, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 2,965 22.8
Calibration 2 2,985 23.1
Calibration 3 2,990 23.1
100% 2,980 23.1
90% 2,703 23.0
80% 2,368 23.0
70% 2,023 22.9
60% 1,780 22.9
50% 1,566 22.9
40% 1,369 22.8
30% 1,185 22.8
20% 1,016 22.8
10% 864 22.8
Active Idle 477 22.8

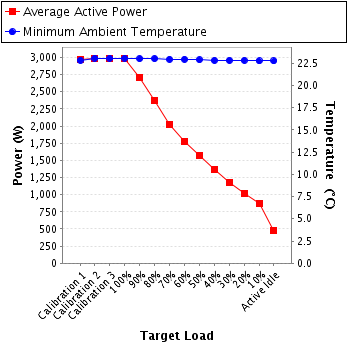

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 3
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 3.38 5.0 0.990 720 0.4%
Calibration 2 215 300.0 3.39 5.0 0.990 723 0.4%
Calibration 3 215 300.0 3.39 5.0 0.990 721 0.4%
100% 215 300.0 3.37 5.0 0.990 719 0.4%
90% 215 300.0 3.11 5.0 0.988 663 0.4%
80% 216 300.0 2.76 5.0 0.985 585 0.4%
70% 216 300.0 2.36 5.0 0.979 499 0.5%
60% 216 300.0 2.05 5.0 0.971 429 0.5%
50% 216 300.0 1.76 5.0 0.962 365 0.6%
40% 216 300.0 1.49 5.0 0.947 305 0.7%
30% 216 300.0 1.26 2.0 0.923 251 0.5%
20% 216 300.0 1.06 2.0 0.874 201 0.6%
10% 216 300.0 0.994 2.0 0.854 184 0.6%
Active Idle 216 300.0 0.634 1.0 0.700 96.0 0.7%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 7.12 10.0 0.993 1,516 0.4%
Calibration 2 215 300.0 7.17 10.0 0.993 1,527 0.4%
Calibration 3 215 300.0 7.19 10.0 0.993 1,531 0.4%
100% 215 300.0 7.16 10.0 0.993 1,526 0.4%
90% 215 300.0 6.47 10.0 0.991 1,379 0.4%
80% 215 300.0 5.69 10.0 0.989 1,210 0.4%
70% 215 300.0 4.89 10.0 0.984 1,035 0.5%
60% 215 300.0 4.35 10.0 0.980 919 0.5%
50% 215 300.0 3.89 5.0 0.975 818 0.4%
40% 216 300.0 3.46 5.0 0.968 722 0.4%
30% 216 300.0 3.06 5.0 0.959 633 0.4%
20% 216 300.0 2.79 5.0 0.949 571 0.5%
10% 216 300.0 2.45 5.0 0.922 488 0.5%
Active Idle 216 300.0 1.51 2.0 0.813 264 0.5%
Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 3.47 5.0 0.989 729 0.4%
Calibration 2 213 300.0 3.50 5.0 0.989 735 0.4%
Calibration 3 212 300.0 3.51 5.0 0.989 737 0.4%
100% 213 300.0 3.49 5.0 0.989 735 0.4%
90% 213 300.0 3.15 5.0 0.987 662 0.4%
80% 213 300.0 2.74 5.0 0.982 572 0.5%
70% 213 300.0 2.35 5.0 0.976 489 0.5%
60% 213 300.0 2.10 5.0 0.969 432 0.5%
50% 213 300.0 1.87 5.0 0.962 384 0.6%
40% 213 300.0 1.69 5.0 0.954 343 0.7%
30% 213 300.0 1.50 2.0 0.941 301 0.4%
20% 213 300.0 1.25 2.0 0.914 244 0.5%
10% 213 300.0 1.06 2.0 0.850 193 0.6%
Active Idle 213 300.0 0.723 1.0 0.755 116 0.6%
Power details for pwr3
