Hewlett Packard Enterprise ProLiant ML350 Gen10 SPECpower_ssj2008 = 12,272 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 7, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2018 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 429 22.9
Calibration 2 436 22.8
Calibration 3 438 22.8
100% 435 22.8
90% 385 22.8
80% 328 22.9
70% 284 23.1
60% 246 23.2
50% 213 23.4
40% 187 23.4
30% 166 23.4
20% 145 23.2
10% 123 23.2
Active Idle 64.2 23.2

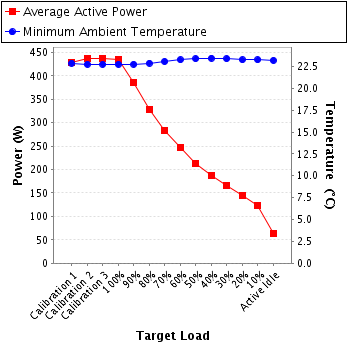

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47167
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EL6R4-80-1
Date of Calibration: 05-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 2.03 2.0 0.980 429 0.3%
Calibration 2 215 300.0 2.07 2.0 0.981 436 0.3%
Calibration 3 215 300.0 2.08 2.0 0.981 438 0.3%
100% 214 300.0 2.07 2.0 0.981 435 0.3%
90% 214 300.0 1.84 2.0 0.976 385 0.4%
80% 215 300.0 1.57 2.0 0.969 328 0.4%
70% 215 300.0 1.37 2.0 0.961 284 0.4%
60% 215 300.0 1.20 2.0 0.951 246 0.5%
50% 216 300.0 1.05 2.0 0.941 213 0.5%
40% 216 300.0 0.937 2.0 0.926 187 0.6%
30% 216 300.0 0.845 2.0 0.910 166 0.6%
20% 216 300.0 0.758 2.0 0.887 145 0.7%
10% 216 300.0 0.666 2.0 0.855 123 0.8%
Active Idle 216 300.0 0.456 1.0 0.652 64.2 0.9%

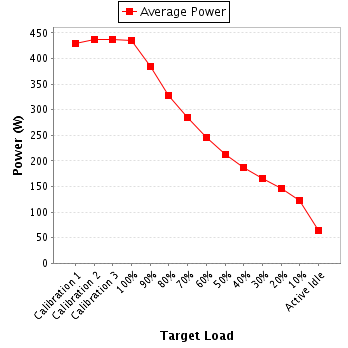

Power details for pwr1
