Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module ssj_ops@100% = 11,858,455
ssj_ops@100% per JVM = 1,482,307
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 11, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,913,677
Calibration 2     11,884,131
Calibration 3     11,899,118
ssj_ops@calibrated=11,891,625
100% 99.7% 11,891,625 11,858,455
90% 90.0% 10,702,462 10,705,273
80% 79.9% 9,513,300 9,506,351
70% 70.0% 8,324,137 8,328,704
60% 60.0% 7,134,975 7,132,912
50% 50.0% 5,945,812 5,945,291
40% 40.0% 4,756,650 4,759,515
30% 30.0% 3,567,487 3,568,943
20% 20.0% 2,378,325 2,378,821
10% 10.0% 1,189,162 1,191,144
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 2
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 660 Gen10 Compute Module
Form Factor: blade
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 8
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I43 v2.10 (01/18/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SY660-02.001 1,497,197
SY660-02.002 1,488,793
SY660-02.003 1,470,473
SY660-02.004 1,493,198
SY660-02.005 1,467,750
SY660-02.006 1,492,029
SY660-02.007 1,482,369
SY660-02.008 1,466,646
ssj_ops@100% 11,858,455
ssj_ops@100% per JVM 1,482,307

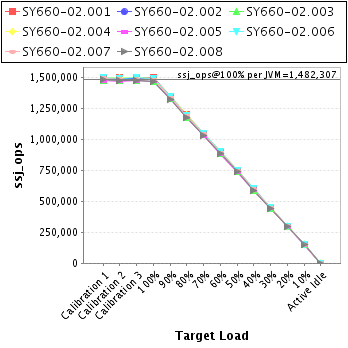

Graph of per-instance results
JVM 'SY660-02.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,498,731
Calibration 2     1,499,894
Calibration 3     1,501,055
ssj_ops@calibrated=1,500,474
100% 99.8% 1,500,474 1,497,197
90% 89.9% 1,350,427 1,348,683
80% 79.9% 1,200,379 1,198,474
70% 69.9% 1,050,332 1,049,438
60% 59.9% 900,285 899,039
50% 49.8% 750,237 747,469
40% 40.0% 600,190 600,077
30% 30.0% 450,142 450,015
20% 20.0% 300,095 299,551
10% 10.0% 150,047 150,423
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SY660-02.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,497,383
Calibration 2     1,491,332
Calibration 3     1,493,735
ssj_ops@calibrated=1,492,534
100% 99.7% 1,492,534 1,488,793
90% 90.3% 1,343,280 1,347,201
80% 79.9% 1,194,027 1,192,068
70% 70.0% 1,044,774 1,044,085
60% 59.8% 895,520 891,808
50% 50.1% 746,267 748,030
40% 39.9% 597,013 596,053
30% 30.0% 447,760 447,503
20% 19.9% 298,507 297,682
10% 10.0% 149,253 149,869
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SY660-02.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,475,155
Calibration 2     1,473,849
Calibration 3     1,476,001
ssj_ops@calibrated=1,474,925
100% 99.7% 1,474,925 1,470,473
90% 90.0% 1,327,432 1,326,993
80% 79.8% 1,179,940 1,176,669
70% 70.2% 1,032,447 1,035,276
60% 60.2% 884,955 887,707
50% 50.0% 737,462 738,118
40% 39.9% 589,970 588,760
30% 30.0% 442,477 442,374
20% 20.0% 294,985 295,516
10% 10.1% 147,492 148,266
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SY660-02.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,501,315
Calibration 2     1,497,084
Calibration 3     1,500,502
ssj_ops@calibrated=1,498,793
100% 99.6% 1,498,793 1,493,198
90% 90.0% 1,348,914 1,348,435
80% 80.1% 1,199,035 1,199,844
70% 70.1% 1,049,155 1,050,483
60% 60.0% 899,276 899,791
50% 49.9% 749,397 748,045
40% 39.9% 599,517 597,617
30% 30.0% 449,638 450,175
20% 20.0% 299,759 300,224
10% 10.0% 149,879 149,984
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SY660-02.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,472,304
Calibration 2     1,469,724
Calibration 3     1,471,618
ssj_ops@calibrated=1,470,671
100% 99.8% 1,470,671 1,467,750
90% 90.2% 1,323,604 1,327,169
80% 80.2% 1,176,537 1,179,714
70% 70.0% 1,029,470 1,029,126
60% 59.9% 882,403 880,656
50% 50.0% 735,335 735,377
40% 40.1% 588,268 590,060
30% 30.1% 441,201 443,294
20% 19.9% 294,134 292,766
10% 10.0% 147,067 146,649
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SY660-02.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,497,667
Calibration 2     1,494,525
Calibration 3     1,495,028
ssj_ops@calibrated=1,494,777
100% 99.8% 1,494,777 1,492,029
90% 90.0% 1,345,299 1,345,279
80% 79.7% 1,195,821 1,191,966
70% 70.1% 1,046,344 1,048,290
60% 60.1% 896,866 899,066
50% 49.9% 747,388 746,104
40% 40.2% 597,911 600,154
30% 29.9% 448,433 447,155
20% 20.1% 298,955 299,727
10% 10.0% 149,478 149,930
Active Idle   0 0

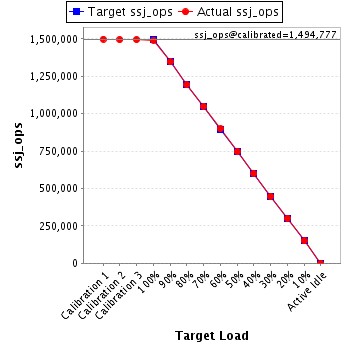

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SY660-02.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,490,854
Calibration 2     1,486,034
Calibration 3     1,486,205
ssj_ops@calibrated=1,486,120
100% 99.7% 1,486,120 1,482,369
90% 90.0% 1,337,508 1,337,412
80% 80.1% 1,188,896 1,190,596
70% 70.1% 1,040,284 1,042,431
60% 59.9% 891,672 890,283
50% 50.1% 743,060 744,475
40% 40.2% 594,448 597,285
30% 30.0% 445,836 446,421
20% 20.0% 297,224 297,830
10% 10.0% 148,612 148,404
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'SY660-02.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,480,268
Calibration 2     1,471,689
Calibration 3     1,474,974
ssj_ops@calibrated=1,473,332
100% 99.5% 1,473,332 1,466,646
90% 89.9% 1,325,999 1,324,101
80% 79.9% 1,178,665 1,177,021
70% 69.9% 1,031,332 1,029,575
60% 60.0% 883,999 884,562
50% 50.1% 736,666 737,671
40% 40.0% 589,333 589,507
30% 30.0% 442,000 442,007
20% 20.1% 294,666 295,525
10% 10.0% 147,333 147,619
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
