Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module | SPECpower_ssj2008 = 10,349 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Multi Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Mar 11, 2019 |
Hardware Availability: | Apr-2019 | Software Availability: | Mar-2019 | Publication: | Apr 2, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

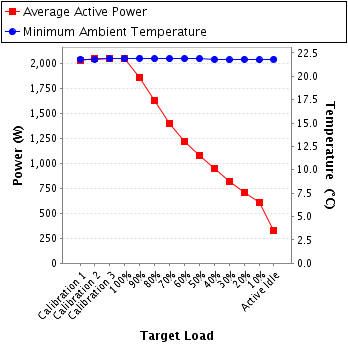

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 2,026 | 21.8 |
Calibration 2 | 2,049 | 21.8 |
Calibration 3 | 2,050 | 21.9 |
100% | 2,045 | 21.9 |
90% | 1,859 | 21.9 |
80% | 1,629 | 21.9 |
70% | 1,394 | 21.9 |
60% | 1,220 | 21.9 |
50% | 1,077 | 21.9 |
40% | 942 | 21.8 |
30% | 821 | 21.8 |
20% | 706 | 21.8 |
10% | 604 | 21.8 |
Active Idle | 330 | 21.8 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB53024 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-EM5Y4-80-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supply 5 |
Power Analyzer pwr2 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB47168 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-EM5Y4-60-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supply 3 |
Power Analyzer pwr3 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GC21887 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-EM5Y4-20-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supplies 1 and 2 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |

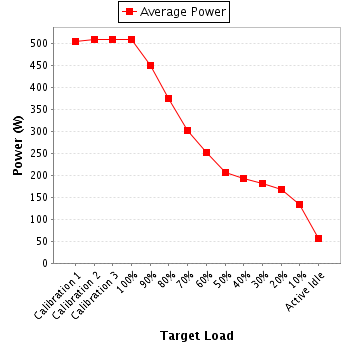

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 215 | 300.0 | 2.39 | 5.0 | 0.979 | 503 | 0.5% |
Calibration 2 | 215 | 300.0 | 2.42 | 5.0 | 0.980 | 509 | 0.5% |
Calibration 3 | 215 | 300.0 | 2.42 | 5.0 | 0.980 | 509 | 0.5% |
100% | 215 | 300.0 | 2.41 | 5.0 | 0.980 | 508 | 0.5% |
90% | 215 | 300.0 | 2.15 | 5.0 | 0.974 | 450 | 0.5% |
80% | 215 | 300.0 | 1.80 | 5.0 | 0.963 | 374 | 0.6% |
70% | 216 | 300.0 | 1.48 | 5.0 | 0.946 | 302 | 0.7% |
60% | 216 | 300.0 | 1.26 | 2.0 | 0.921 | 251 | 0.5% |
50% | 216 | 300.0 | 1.12 | 2.0 | 0.855 | 207 | 0.6% |
40% | 216 | 300.0 | 1.04 | 2.0 | 0.860 | 193 | 0.6% |
30% | 216 | 300.0 | 0.986 | 1.0 | 0.846 | 181 | 0.4% |
20% | 217 | 300.0 | 0.925 | 1.0 | 0.835 | 167 | 0.5% |
10% | 216 | 300.0 | 0.778 | 1.0 | 0.787 | 132 | 0.5% |
Active Idle | 216 | 300.0 | 0.542 | 0.5 | 0.483 | 56.7 | 0.8% |

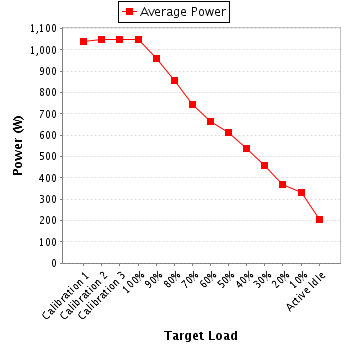

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 215 | 300.0 | 4.91 | 10.0 | 0.984 | 1,038 | 0.5% |
Calibration 2 | 215 | 300.0 | 4.97 | 10.0 | 0.985 | 1,050 | 0.5% |
Calibration 3 | 215 | 300.0 | 4.97 | 10.0 | 0.985 | 1,051 | 0.5% |
100% | 215 | 300.0 | 4.95 | 10.0 | 0.985 | 1,048 | 0.5% |
90% | 215 | 300.0 | 4.55 | 10.0 | 0.982 | 960 | 0.5% |
80% | 215 | 300.0 | 4.08 | 5.0 | 0.977 | 858 | 0.4% |
70% | 215 | 300.0 | 3.57 | 5.0 | 0.970 | 745 | 0.4% |
60% | 216 | 300.0 | 3.19 | 5.0 | 0.962 | 662 | 0.4% |
50% | 216 | 300.0 | 2.97 | 5.0 | 0.953 | 611 | 0.5% |
40% | 216 | 300.0 | 2.65 | 5.0 | 0.940 | 538 | 0.5% |
30% | 216 | 300.0 | 2.32 | 5.0 | 0.912 | 457 | 0.6% |
20% | 216 | 300.0 | 1.94 | 5.0 | 0.879 | 370 | 0.7% |
10% | 216 | 300.0 | 1.77 | 2.0 | 0.862 | 330 | 0.4% |
Active Idle | 216 | 300.0 | 1.29 | 2.0 | 0.737 | 205 | 0.6% |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 212 | 300.0 | 2.34 | 5.0 | 0.976 | 485 | 0.5% |
Calibration 2 | 212 | 300.0 | 2.37 | 5.0 | 0.976 | 490 | 0.5% |
Calibration 3 | 212 | 300.0 | 2.37 | 5.0 | 0.976 | 490 | 0.5% |
100% | 212 | 300.0 | 2.36 | 5.0 | 0.976 | 489 | 0.5% |
90% | 212 | 300.0 | 2.18 | 5.0 | 0.972 | 450 | 0.5% |
80% | 213 | 300.0 | 1.94 | 5.0 | 0.964 | 398 | 0.6% |
70% | 213 | 300.0 | 1.71 | 2.0 | 0.955 | 347 | 0.4% |
60% | 213 | 300.0 | 1.53 | 2.0 | 0.943 | 307 | 0.4% |
50% | 213 | 300.0 | 1.32 | 2.0 | 0.921 | 259 | 0.5% |
40% | 213 | 300.0 | 1.14 | 2.0 | 0.868 | 212 | 0.5% |
30% | 214 | 300.0 | 1.03 | 2.0 | 0.838 | 184 | 0.6% |
20% | 214 | 300.0 | 0.954 | 1.0 | 0.827 | 169 | 0.5% |
10% | 213 | 300.0 | 0.832 | 1.0 | 0.797 | 142 | 0.5% |
Active Idle | 213 | 300.0 | 0.563 | 1.0 | 0.570 | 68.5 | 0.9% |
