SPECpower_ssj2008 Host 'SY660-05' Performance Report

SPECpower_ssj2008

Host 'SY660-05' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,843,010 ssj_ops@100% per JVM = 1,480,376
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 10, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,909,917
Calibration 2			11,877,490
Calibration 3			11,898,589
ssj_ops@calibrated=11,888,039
100%	99.6%	11,888,039	11,843,010
90%	90.1%	10,699,235	10,714,179
80%	80.0%	9,510,431	9,514,787
70%	70.0%	8,321,627	8,315,700
60%	60.1%	7,132,823	7,139,562
50%	50.0%	5,944,020	5,949,680
40%	40.1%	4,755,216	4,761,781
30%	30.0%	3,566,412	3,562,266
20%	20.0%	2,377,608	2,380,197
10%	10.0%	1,188,804	1,187,044
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	5
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	4.12.14-94.41-default
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: Dynamic Power Savings Mode (default)
Intel Turbo Boost Technology: Disabled
Energy Efficient Turbo: Disabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Power Savings Mode (default: Balanced Performance)
Collaborative Power Control: Disabled (default: Enabled)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

systemctl stop irqbalance.service
echo 970000 > /proc/sys/kernel/sched_rt_runtime_us
echo 40000000 > /proc/sys/kernel/sched_latency_ns
echo 15000 > /proc/sys/vm/dirty_expire_centisecs
echo 64 > /proc/sys/kernel/sched_nr_migrate

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3640 (Variant 3a) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3639 (Variant 4) is mitigated in the system as tested and documented.

Notes

None

JVM Instance Summary

JVM Instance	ssj_ops@100%
SY660-05.001	1,480,228
SY660-05.002	1,477,490
SY660-05.003	1,479,072
SY660-05.004	1,483,304
SY660-05.005	1,468,314
SY660-05.006	1,490,441
SY660-05.007	1,484,883
SY660-05.008	1,479,277
ssj_ops@100%	11,843,010
ssj_ops@100% per JVM	1,480,376

JVM 'SY660-05.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,488,822
Calibration 2			1,486,158
Calibration 3			1,486,030
ssj_ops@calibrated=1,486,094
100%	99.6%	1,486,094	1,480,228
90%	90.3%	1,337,485	1,342,091
80%	80.2%	1,188,875	1,192,037
70%	69.8%	1,040,266	1,037,150
60%	60.3%	891,656	895,629
50%	50.0%	743,047	743,676
40%	40.1%	594,438	596,038
30%	29.8%	445,828	442,766
20%	19.9%	297,219	296,447
10%	10.0%	148,609	148,507
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-05.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,486,365
Calibration 2			1,483,350
Calibration 3			1,486,672
ssj_ops@calibrated=1,485,011
100%	99.5%	1,485,011	1,477,490
90%	90.2%	1,336,510	1,339,141
80%	79.8%	1,188,009	1,184,889
70%	70.2%	1,039,508	1,042,153
60%	59.9%	891,007	888,927
50%	50.0%	742,505	742,439
40%	40.0%	594,004	594,534
30%	30.2%	445,503	448,055
20%	20.0%	297,002	297,440
10%	10.0%	148,501	149,228
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-05.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,488,106
Calibration 2			1,481,548
Calibration 3			1,485,801
ssj_ops@calibrated=1,483,674
100%	99.7%	1,483,674	1,479,072
90%	89.8%	1,335,307	1,333,053
80%	80.1%	1,186,939	1,188,004
70%	69.9%	1,038,572	1,037,511
60%	60.2%	890,205	892,510
50%	50.1%	741,837	743,079
40%	40.1%	593,470	594,639
30%	29.9%	445,102	443,809
20%	20.1%	296,735	298,132
10%	10.0%	148,367	148,803
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-05.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,492,136
Calibration 2			1,486,298
Calibration 3			1,489,055
ssj_ops@calibrated=1,487,677
100%	99.7%	1,487,677	1,483,304
90%	90.3%	1,338,909	1,343,790
80%	80.1%	1,190,141	1,192,321
70%	70.1%	1,041,374	1,042,755
60%	59.9%	892,606	890,864
50%	50.1%	743,838	746,008
40%	40.0%	595,071	595,388
30%	30.1%	446,303	447,259
20%	19.9%	297,535	296,649
10%	9.9%	148,768	147,712
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-05.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,472,631
Calibration 2			1,470,211
Calibration 3			1,472,873
ssj_ops@calibrated=1,471,542
100%	99.8%	1,471,542	1,468,314
90%	90.3%	1,324,388	1,328,652
80%	80.1%	1,177,234	1,179,307
70%	70.1%	1,030,079	1,032,239
60%	60.0%	882,925	882,603
50%	50.0%	735,771	735,240
40%	40.1%	588,617	589,970
30%	30.0%	441,463	441,431
20%	20.0%	294,308	294,653
10%	9.9%	147,154	146,407
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

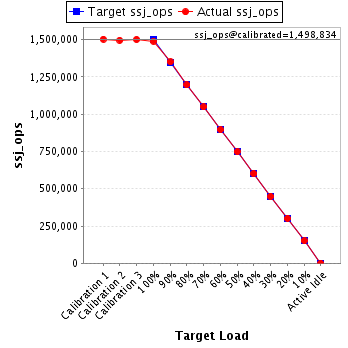

JVM 'SY660-05.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,503,800
Calibration 2			1,496,472
Calibration 3			1,501,195
ssj_ops@calibrated=1,498,834
100%	99.4%	1,498,834	1,490,441
90%	90.2%	1,348,950	1,351,660
80%	79.9%	1,199,067	1,197,150
70%	70.0%	1,049,183	1,048,867
60%	59.8%	899,300	896,299
50%	49.9%	749,417	748,396
40%	40.1%	599,533	601,090
30%	30.0%	449,650	449,154
20%	20.1%	299,767	300,914
10%	10.1%	149,883	150,689
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-05.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,492,470
Calibration 2			1,489,012
Calibration 3			1,491,175
ssj_ops@calibrated=1,490,093
100%	99.7%	1,490,093	1,484,883
90%	89.9%	1,341,084	1,340,314
80%	80.0%	1,192,075	1,192,570
70%	69.7%	1,043,065	1,038,957
60%	60.4%	894,056	899,283
50%	50.0%	745,047	745,717
40%	40.1%	596,037	597,809
30%	29.9%	447,028	445,162
20%	20.0%	298,019	298,404
10%	10.0%	149,009	148,747
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-05.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,485,588
Calibration 2			1,484,441
Calibration 3			1,485,788
ssj_ops@calibrated=1,485,115
100%	99.6%	1,485,115	1,479,277
90%	89.9%	1,336,603	1,335,479
80%	80.0%	1,188,092	1,188,509
70%	69.8%	1,039,580	1,036,067
60%	60.2%	891,069	893,447
50%	50.2%	742,557	745,124
40%	39.9%	594,046	592,313
30%	29.9%	445,534	444,631
20%	20.0%	297,023	297,559
10%	9.9%	148,511	146,951
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
