SPECpower_ssj2008 Host 'SY660-02' Performance Report

SPECpower_ssj2008

Host 'SY660-02' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,804,714 ssj_ops@100% per JVM = 1,475,589
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 10, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,874,150
Calibration 2			11,847,259
Calibration 3			11,850,893
ssj_ops@calibrated=11,849,076
100%	99.6%	11,849,076	11,804,714
90%	90.0%	10,664,168	10,669,723
80%	80.1%	9,479,261	9,488,943
70%	70.0%	8,294,353	8,295,527
60%	60.1%	7,109,445	7,122,379
50%	50.1%	5,924,538	5,930,968
40%	40.0%	4,739,630	4,744,249
30%	30.0%	3,554,723	3,555,860
20%	20.0%	2,369,815	2,369,178
10%	10.0%	1,184,908	1,184,764
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	5
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	4.12.14-94.41-default
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: Dynamic Power Savings Mode (default)
Intel Turbo Boost Technology: Disabled
Energy Efficient Turbo: Disabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Power Savings Mode (default: Balanced Performance)
Collaborative Power Control: Disabled (default: Enabled)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

systemctl stop irqbalance.service
echo 970000 > /proc/sys/kernel/sched_rt_runtime_us
echo 40000000 > /proc/sys/kernel/sched_latency_ns
echo 15000 > /proc/sys/vm/dirty_expire_centisecs
echo 64 > /proc/sys/kernel/sched_nr_migrate

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3640 (Variant 3a) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3639 (Variant 4) is mitigated in the system as tested and documented.

Notes

None

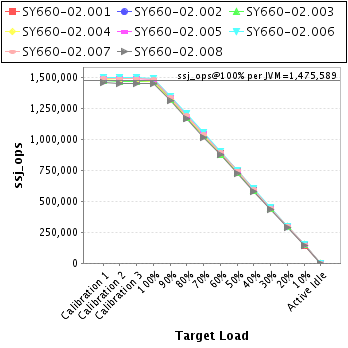

JVM Instance Summary

JVM Instance	ssj_ops@100%
SY660-02.001	1,472,494
SY660-02.002	1,474,243
SY660-02.003	1,467,329
SY660-02.004	1,471,057
SY660-02.005	1,484,991
SY660-02.006	1,493,918
SY660-02.007	1,488,009
SY660-02.008	1,452,673
ssj_ops@100%	11,804,714
ssj_ops@100% per JVM	1,475,589

JVM 'SY660-02.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,480,389
Calibration 2			1,477,683
Calibration 3			1,475,770
ssj_ops@calibrated=1,476,727
100%	99.7%	1,476,727	1,472,494
90%	90.3%	1,329,054	1,333,529
80%	79.9%	1,181,381	1,180,327
70%	69.9%	1,033,709	1,032,441
60%	60.1%	886,036	886,784
50%	50.1%	738,363	739,188
40%	40.1%	590,691	591,462
30%	30.1%	443,018	444,774
20%	20.0%	295,345	296,067
10%	10.0%	147,673	147,082
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-02.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,481,638
Calibration 2			1,479,048
Calibration 3			1,480,761
ssj_ops@calibrated=1,479,904
100%	99.6%	1,479,904	1,474,243
90%	90.1%	1,331,914	1,333,996
80%	80.1%	1,183,924	1,185,263
70%	70.0%	1,035,933	1,036,137
60%	60.1%	887,943	889,454
50%	50.1%	739,952	741,047
40%	40.2%	591,962	595,200
30%	30.0%	443,971	443,342
20%	19.9%	295,981	295,105
10%	10.0%	147,990	147,864
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-02.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,475,105
Calibration 2			1,469,562
Calibration 3			1,470,850
ssj_ops@calibrated=1,470,206
100%	99.8%	1,470,206	1,467,329
90%	89.9%	1,323,185	1,322,025
80%	79.9%	1,176,165	1,175,361
70%	70.0%	1,029,144	1,029,451
60%	60.0%	882,124	881,677
50%	50.0%	735,103	735,282
40%	40.1%	588,082	590,161
30%	30.2%	441,062	443,977
20%	20.0%	294,041	293,972
10%	10.1%	147,021	148,086
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-02.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,483,475
Calibration 2			1,477,576
Calibration 3			1,478,166
ssj_ops@calibrated=1,477,871
100%	99.5%	1,477,871	1,471,057
90%	89.8%	1,330,084	1,327,374
80%	80.2%	1,182,297	1,184,726
70%	70.0%	1,034,510	1,033,833
60%	60.2%	886,723	889,109
50%	50.1%	738,935	739,955
40%	40.1%	591,148	593,015
30%	29.9%	443,361	442,491
20%	19.9%	295,574	293,913
10%	10.0%	147,787	148,486
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

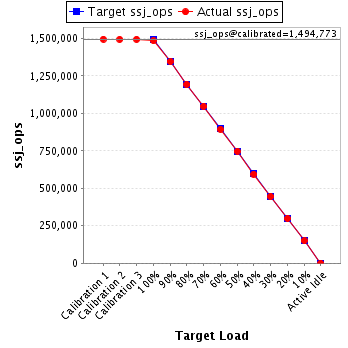

JVM 'SY660-02.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,495,790
Calibration 2			1,494,346
Calibration 3			1,495,200
ssj_ops@calibrated=1,494,773
100%	99.3%	1,494,773	1,484,991
90%	90.1%	1,345,296	1,346,835
80%	79.9%	1,195,818	1,193,852
70%	70.2%	1,046,341	1,049,216
60%	59.9%	896,864	894,889
50%	50.0%	747,387	747,942
40%	39.8%	597,909	595,061
30%	29.8%	448,432	445,911
20%	20.0%	298,955	299,099
10%	10.0%	149,477	150,080
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-02.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,502,532
Calibration 2			1,499,608
Calibration 3			1,504,489
ssj_ops@calibrated=1,502,048
100%	99.5%	1,502,048	1,493,918
90%	89.8%	1,351,844	1,349,416
80%	80.4%	1,201,639	1,207,300
70%	70.2%	1,051,434	1,054,422
60%	60.2%	901,229	904,471
50%	50.0%	751,024	750,856
40%	40.1%	600,819	601,627
30%	30.0%	450,615	450,989
20%	20.0%	300,410	301,158
10%	9.9%	150,205	148,659
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-02.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,496,558
Calibration 2			1,492,996
Calibration 3			1,489,881
ssj_ops@calibrated=1,491,439
100%	99.8%	1,491,439	1,488,009
90%	90.1%	1,342,295	1,343,458
80%	80.2%	1,193,151	1,195,488
70%	69.9%	1,044,007	1,042,143
60%	60.3%	894,863	899,264
50%	50.1%	745,719	747,914
40%	40.0%	596,575	596,539
30%	29.9%	447,432	446,001
20%	20.2%	298,288	300,768
10%	10.0%	149,144	148,623
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-02.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,458,663
Calibration 2			1,456,441
Calibration 3			1,455,775
ssj_ops@calibrated=1,456,108
100%	99.8%	1,456,108	1,452,673
90%	90.2%	1,310,497	1,313,091
80%	80.1%	1,164,886	1,166,625
70%	69.9%	1,019,275	1,017,883
60%	60.2%	873,665	876,731
50%	50.1%	728,054	728,784
40%	39.9%	582,443	581,183
30%	30.1%	436,832	438,375
20%	19.9%	291,222	289,096
10%	10.0%	145,611	145,885
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
