Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module SPECpower_ssj2008 = 11,074 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 10, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 4,937 22.4
Calibration 2 4,993 22.5
Calibration 3 5,004 22.6
100% 4,983 22.7
90% 4,502 22.8
80% 3,912 22.7
70% 3,304 22.5
60% 2,859 22.4
50% 2,482 22.9
40% 2,143 23.2
30% 1,835 23.1
20% 1,540 23.2
10% 1,279 23.2
Active Idle 592 23.2
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 3
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 214 300.0 5.59 10.0 0.995 1,190 0.4%
Calibration 2 214 300.0 5.61 10.0 0.995 1,193 0.4%
Calibration 3 214 300.0 5.61 10.0 0.995 1,194 0.4%
100% 214 300.0 5.57 10.0 0.995 1,186 0.4%
90% 214 300.0 5.05 10.0 0.995 1,074 0.4%
80% 214 300.0 4.32 5.0 0.993 919 0.3%
70% 214 300.0 3.70 5.0 0.991 786 0.4%
60% 216 300.0 3.25 5.0 0.989 693 0.4%
50% 216 300.0 2.88 5.0 0.986 612 0.4%
40% 216 300.0 2.51 5.0 0.981 530 0.5%
30% 216 300.0 2.13 5.0 0.974 448 0.5%
20% 216 300.0 1.72 2.0 0.960 357 0.4%
10% 216 300.0 1.36 2.0 0.936 275 0.4%
Active Idle 216 300.0 0.776 1.0 0.774 130 0.5%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 11.9 20.0 0.996 2,530 0.4%
Calibration 2 213 300.0 12.1 20.0 0.996 2,560 0.4%
Calibration 3 213 300.0 12.0 20.0 0.996 2,553 0.4%
100% 213 300.0 12.0 20.0 0.996 2,554 0.4%
90% 213 300.0 10.9 20.0 0.996 2,311 0.4%
80% 214 300.0 9.54 10.0 0.996 2,029 0.3%
70% 214 300.0 7.96 10.0 0.994 1,691 0.3%
60% 215 300.0 6.83 10.0 0.992 1,458 0.4%
50% 215 300.0 5.94 10.0 0.990 1,266 0.4%
40% 215 300.0 5.16 10.0 0.986 1,095 0.5%
30% 216 300.0 4.45 5.0 0.982 943 0.3%
20% 216 300.0 3.82 5.0 0.974 804 0.4%
10% 216 300.0 3.25 5.0 0.964 679 0.4%
Active Idle 216 300.0 1.76 2.0 0.856 326 0.5%

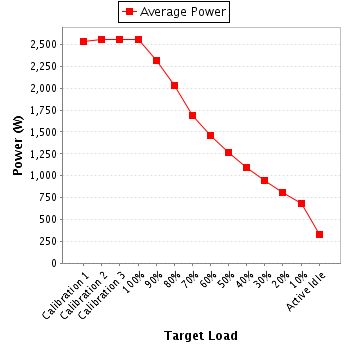

Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 5.79 10.0 0.995 1,217 0.4%
Calibration 2 211 300.0 5.90 10.0 0.995 1,240 0.4%
Calibration 3 211 300.0 5.98 10.0 0.995 1,257 0.4%
100% 211 300.0 5.91 10.0 0.995 1,242 0.4%
90% 211 300.0 5.31 10.0 0.995 1,117 0.4%
80% 212 300.0 4.58 10.0 0.993 963 0.5%
70% 212 300.0 3.94 5.0 0.991 827 0.4%
60% 213 300.0 3.37 5.0 0.988 708 0.4%
50% 213 300.0 2.88 5.0 0.984 604 0.4%
40% 213 300.0 2.48 5.0 0.978 517 0.5%
30% 213 300.0 2.15 5.0 0.971 445 0.5%
20% 213 300.0 1.85 2.0 0.961 380 0.4%
10% 214 300.0 1.61 2.0 0.949 326 0.4%
Active Idle 214 300.0 0.822 1.0 0.779 137 0.5%
Power details for pwr3
