Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module | SPECpower_ssj2008 = 10,977 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Multi Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Mar 10, 2019 |
Hardware Availability: | Apr-2019 | Software Availability: | Mar-2019 | Publication: | Apr 2, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 1,851 | 22.3 |
Calibration 2 | 1,867 | 22.4 |
Calibration 3 | 1,867 | 22.4 |
100% | 1,864 | 22.4 |
90% | 1,667 | 22.4 |
80% | 1,411 | 22.4 |
70% | 1,237 | 22.2 |
60% | 1,084 | 22.2 |
50% | 954 | 22.4 |
40% | 857 | 22.3 |
30% | 773 | 22.4 |
20% | 692 | 22.4 |
10% | 603 | 22.4 |
Active Idle | 361 | 22.4 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB53024 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-EM5Y4-80-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supply 5 |
Power Analyzer pwr2 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB47168 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-EM5Y4-60-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supply 3 |
Power Analyzer pwr3 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GC21887 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-EM5Y4-20-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supplies 1 and 2 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 216 | 300.0 | 2.15 | 5.0 | 0.974 | 452 | 0.5% |
Calibration 2 | 216 | 300.0 | 2.17 | 5.0 | 0.975 | 458 | 0.5% |
Calibration 3 | 216 | 300.0 | 2.16 | 5.0 | 0.975 | 456 | 0.5% |
100% | 216 | 300.0 | 2.16 | 5.0 | 0.974 | 453 | 0.5% |
90% | 216 | 300.0 | 1.85 | 5.0 | 0.965 | 386 | 0.6% |
80% | 216 | 300.0 | 1.50 | 5.0 | 0.948 | 307 | 0.7% |
70% | 215 | 300.0 | 1.28 | 2.0 | 0.927 | 256 | 0.5% |
60% | 216 | 300.0 | 1.13 | 2.0 | 0.857 | 208 | 0.6% |
50% | 215 | 300.0 | 1.04 | 2.0 | 0.860 | 193 | 0.6% |
40% | 216 | 300.0 | 1.01 | 2.0 | 0.851 | 185 | 0.6% |
30% | 216 | 300.0 | 0.965 | 1.0 | 0.834 | 173 | 0.5% |
20% | 216 | 300.0 | 0.917 | 1.0 | 0.831 | 165 | 0.5% |
10% | 216 | 300.0 | 0.782 | 1.0 | 0.786 | 133 | 0.5% |
Active Idle | 216 | 300.0 | 0.559 | 1.0 | 0.525 | 63.4 | 0.9% |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 216 | 300.0 | 4.50 | 10.0 | 0.982 | 953 | 0.5% |
Calibration 2 | 216 | 300.0 | 4.53 | 10.0 | 0.982 | 960 | 0.5% |
Calibration 3 | 216 | 300.0 | 4.54 | 10.0 | 0.982 | 961 | 0.5% |
100% | 215 | 300.0 | 4.55 | 10.0 | 0.982 | 960 | 0.5% |
90% | 215 | 300.0 | 4.16 | 10.0 | 0.978 | 875 | 0.5% |
80% | 215 | 300.0 | 3.62 | 5.0 | 0.971 | 755 | 0.4% |
70% | 215 | 300.0 | 3.24 | 5.0 | 0.963 | 670 | 0.4% |
60% | 215 | 300.0 | 3.00 | 5.0 | 0.954 | 615 | 0.5% |
50% | 215 | 300.0 | 2.70 | 5.0 | 0.943 | 546 | 0.5% |
40% | 215 | 300.0 | 2.43 | 5.0 | 0.920 | 482 | 0.5% |
30% | 215 | 300.0 | 2.16 | 5.0 | 0.901 | 419 | 0.6% |
20% | 216 | 300.0 | 1.92 | 5.0 | 0.877 | 362 | 0.7% |
10% | 215 | 300.0 | 1.78 | 5.0 | 0.862 | 330 | 0.7% |
Active Idle | 215 | 300.0 | 1.35 | 2.0 | 0.763 | 222 | 0.6% |

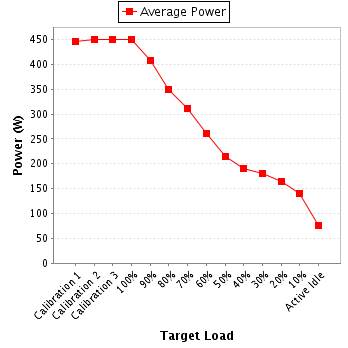

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 213 | 300.0 | 2.15 | 5.0 | 0.971 | 446 | 0.5% |
Calibration 2 | 213 | 300.0 | 2.17 | 5.0 | 0.971 | 449 | 0.5% |
Calibration 3 | 213 | 300.0 | 2.17 | 5.0 | 0.971 | 450 | 0.5% |
100% | 213 | 300.0 | 2.18 | 5.0 | 0.972 | 450 | 0.5% |
90% | 213 | 300.0 | 1.98 | 5.0 | 0.965 | 407 | 0.6% |
80% | 213 | 300.0 | 1.72 | 5.0 | 0.955 | 349 | 0.6% |
70% | 213 | 300.0 | 1.55 | 2.0 | 0.945 | 311 | 0.4% |
60% | 213 | 300.0 | 1.33 | 2.0 | 0.923 | 261 | 0.5% |
50% | 213 | 300.0 | 1.16 | 2.0 | 0.874 | 215 | 0.5% |
40% | 213 | 300.0 | 1.06 | 2.0 | 0.845 | 190 | 0.6% |
30% | 213 | 300.0 | 1.02 | 2.0 | 0.835 | 181 | 0.6% |
20% | 213 | 300.0 | 0.941 | 1.0 | 0.824 | 165 | 0.5% |
10% | 213 | 300.0 | 0.829 | 1.0 | 0.792 | 140 | 0.5% |
Active Idle | 213 | 300.0 | 0.583 | 1.0 | 0.604 | 75.0 | 0.8% |
