Hewlett Packard Enterprise ProLiant DL560 Gen10 SPECpower_ssj2008 = 12,045 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 7, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 11,994,247 942 12,734
90% 90.0% 10,822,280 849 12,747
80% 80.0% 9,627,925 733 13,133
70% 70.0% 8,417,170 619 13,598
60% 60.0% 7,214,991 538 13,410
50% 50.0% 6,018,137 467 12,883
40% 39.9% 4,805,731 401 11,995
30% 30.0% 3,607,097 340 10,605
20% 20.0% 2,405,293 281 8,550
10% 10.0% 1,204,064 229 5,266
Active Idle 0 90.1 0
∑ssj_ops / ∑power = 12,045

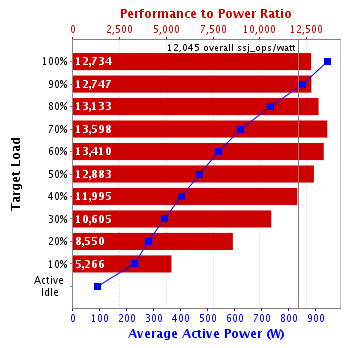

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL560 Gen10
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8280 2.70GHz
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 24 x 8192 MB
Memory Details: 8 GB 2Rx8 PC4-2666V-R: slots 1, 3, 5, 8, 10, 12 populated on each socket
Power Supply Quantity and Rating (W): 2 x 800
Power Supply Details: HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit 96% (865438-B21)
Disk Drive: 1 x HPE 240GB SATA 6G M.2 2280 SSD (875488-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HP Ethernet 1Gb 2-port 332T Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: 6 x High Performance Fans
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: XFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=37 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: numactl --cpunodebind=[0-7] --localalloc
JVM Instances: 8
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: U34 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 G9
CPU Description: 2x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2012 R2 - V6.3 9600
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_191 (build 25.191-b12, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310E
Serial Number: C2QM2201V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 1-EM8E7-40-1
Date of Calibration: 16-Jul-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 942 23.1
90% 849 23.1
80% 733 23.9
70% 619 24.2
60% 538 24.2
50% 467 24.5
40% 401 24.3
30% 340 24.2
20% 281 23.9
10% 229 23.8
Active Idle 90.1 23.9
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 60 Hz / 1 phase / 2 wires 23.1 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,058,418
Calibration 2     12,021,621
Calibration 3     12,037,338
ssj_ops@calibrated=12,029,479
100% 99.7% 12,029,479 11,994,247
90% 90.0% 10,826,531 10,822,280
80% 80.0% 9,623,583 9,627,925
70% 70.0% 8,420,636 8,417,170
60% 60.0% 7,217,688 7,214,991
50% 50.0% 6,014,740 6,018,137
40% 39.9% 4,811,792 4,805,731
30% 30.0% 3,608,844 3,607,097
20% 20.0% 2,405,896 2,405,293
10% 10.0% 1,202,948 1,204,064
Active Idle   0 0

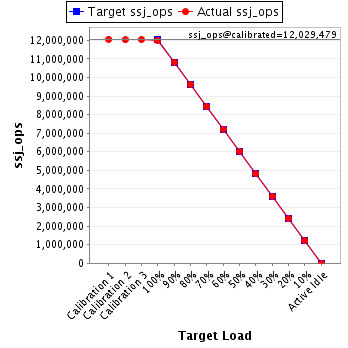

Graph of results
