Quanta Computer Inc. QuantaGrid D52BQ-2U | SPECpower_ssj2008 = 12,801 overall ssj_ops/watt | ||||
Test Sponsor: | Quanta Computer Inc. | SPEC License #: | 9050 | Test Method: | Single Node |
Tested By: | Quanta Computer Inc. | Test Location: | Taoyuan, TW, R.O.C | Test Date: | Oct 25, 2018 |
Hardware Availability: | Sep-2018 | Software Availability: | Oct-2018 | Publication: | Dec 6, 2018 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

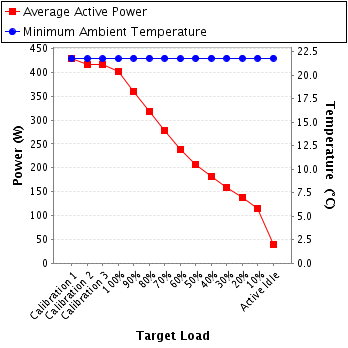

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 430 | 21.8 |
Calibration 2 | 416 | 21.8 |
Calibration 3 | 416 | 21.8 |
100% | 401 | 21.8 |
90% | 361 | 21.8 |
80% | 318 | 21.8 |
70% | 279 | 21.8 |
60% | 239 | 21.8 |
50% | 207 | 21.8 |
40% | 181 | 21.8 |
30% | 159 | 21.8 |
20% | 138 | 21.8 |
10% | 115 | 21.8 |
Active Idle | 38.4 | 21.8 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
Model: | WT310 |
Serial Number: | C2PM12064V |
Connectivity: | USB |
Input Connection: | Default |
Metrology Institute: | NML (National Measurement Laboratory) |
Accredited by: | Electronics Testing Center,Taiwan |
Calibration Label: | Q10680080 |
Date of Calibration: | 16-Apr-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | Connected to power supply |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/T |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 25 mm in front of SUT main airflow intake |

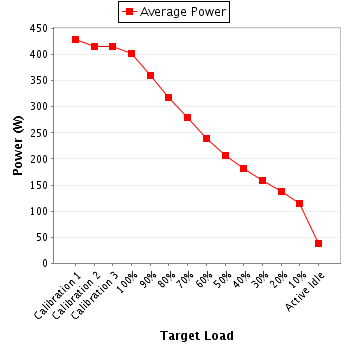

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 218 | 300.0 | 1.99 | 5.0 | 0.994 | 430 | 0.5% |
Calibration 2 | 218 | 300.0 | 1.92 | 5.0 | 0.994 | 416 | 0.5% |
Calibration 3 | 218 | 300.0 | 1.93 | 5.0 | 0.994 | 416 | 0.5% |
100% | 218 | 300.0 | 1.86 | 5.0 | 0.994 | 401 | 0.5% |
90% | 218 | 300.0 | 1.67 | 5.0 | 0.992 | 361 | 0.5% |
80% | 218 | 300.0 | 1.48 | 2.0 | 0.989 | 318 | 0.3% |
70% | 218 | 300.0 | 1.30 | 2.0 | 0.986 | 279 | 0.4% |
60% | 218 | 300.0 | 1.12 | 2.0 | 0.982 | 239 | 0.4% |
50% | 218 | 300.0 | 0.970 | 2.0 | 0.977 | 207 | 0.4% |
40% | 218 | 300.0 | 0.856 | 1.0 | 0.971 | 181 | 0.3% |
30% | 218 | 300.0 | 0.758 | 1.0 | 0.962 | 159 | 0.3% |
20% | 218 | 300.0 | 0.663 | 1.0 | 0.951 | 138 | 0.4% |
10% | 219 | 300.0 | 0.564 | 1.0 | 0.932 | 115 | 0.4% |
Active Idle | 219 | 300.0 | 0.329 | 1.0 | 0.533 | 38.4 | 0.8% |
