Hewlett Packard Enterprise ProLiant DL380 Gen10 ssj_ops@100% = 5,758,036
ssj_ops@100% per JVM = 1,439,509
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 28, 2018
Hardware Availability: Jun-2018 Software Availability: Jul-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,772,538
Calibration 2     5,774,772
Calibration 3     5,771,764
ssj_ops@calibrated=5,773,268
100% 99.7% 5,773,268 5,758,036
90% 89.9% 5,195,941 5,187,730
80% 80.1% 4,618,614 4,624,500
70% 70.0% 4,041,288 4,039,806
60% 59.9% 3,463,961 3,459,701
50% 50.0% 2,886,634 2,885,565
40% 40.0% 2,309,307 2,307,605
30% 30.0% 1,731,980 1,730,201
20% 20.0% 1,154,654 1,154,607
10% 10.0% 577,327 575,883
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL380 Gen10
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 96
# and size of DIMM: 12 x 8182 MB
Memory Details: 12 x 8GB 2Rx8 PC4-2666V-RE1-12; slots 1, 3, 5, 8, 10, and 12 populated in each socket
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply 96% (865438-B21)
Disk Drive: 1 x HPE 480GB SATA 6G M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10 (784308-B21)
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 4-port 331i Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: none
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP3
OS Version: Kernel 4.4.120-94.17-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -Djava.awt.headless=true -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: numactl --cpunodebind=[0-3] --localalloc
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: U32 v1.42 (06/20/2018)
Management Firmware Version: 1.30 pass 01 Dec 14 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version:2018.06.0 (26 Jun 2018), HPE Microprocessor Vulnerability ROM Updates (spp_supplement-2018.06.0.2) Version:2018.06.0(9 Jul 2018); ucode-intel-20180312-13.17.1
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
linux-gi0t.001 1,447,293
linux-gi0t.002 1,432,749
linux-gi0t.003 1,439,761
linux-gi0t.004 1,438,232
ssj_ops@100% 5,758,036
ssj_ops@100% per JVM 1,439,509

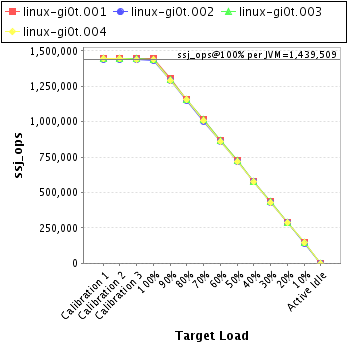

Graph of per-instance results
JVM 'linux-gi0t.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,445,232
Calibration 2     1,447,216
Calibration 3     1,448,496
ssj_ops@calibrated=1,447,856
100% 100.0% 1,447,856 1,447,293
90% 90.0% 1,303,070 1,302,921
80% 80.1% 1,158,285 1,159,122
70% 70.0% 1,013,499 1,013,886
60% 59.9% 868,713 866,791
50% 50.1% 723,928 724,945
40% 40.0% 579,142 579,303
30% 30.0% 434,357 434,304
20% 20.1% 289,571 290,855
10% 10.0% 144,786 145,401
Active Idle   0 0

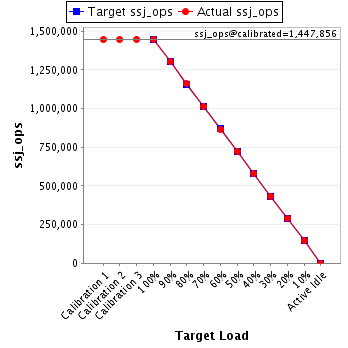

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux-gi0t.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,439,902
Calibration 2     1,438,776
Calibration 3     1,436,538
ssj_ops@calibrated=1,437,657
100% 99.7% 1,437,657 1,432,749
90% 89.9% 1,293,891 1,292,877
80% 80.1% 1,150,125 1,151,480
70% 69.9% 1,006,360 1,004,789
60% 60.0% 862,594 862,342
50% 50.0% 718,828 718,471
40% 40.1% 575,063 576,079
30% 30.1% 431,297 432,206
20% 20.0% 287,531 287,904
10% 10.0% 143,766 143,069
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux-gi0t.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,442,706
Calibration 2     1,445,472
Calibration 3     1,444,106
ssj_ops@calibrated=1,444,789
100% 99.7% 1,444,789 1,439,761
90% 89.8% 1,300,310 1,298,103
80% 80.2% 1,155,831 1,158,945
70% 70.1% 1,011,352 1,012,360
60% 60.0% 866,874 867,548
50% 50.0% 722,395 723,077
40% 40.0% 577,916 578,079
30% 30.0% 433,437 434,107
20% 19.9% 288,958 288,110
10% 9.9% 144,479 143,513
Active Idle   0 0

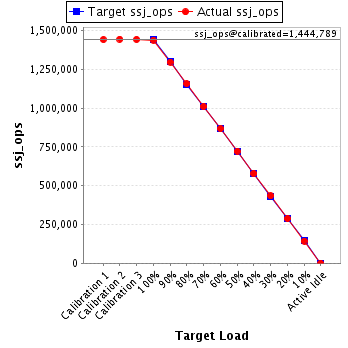

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'linux-gi0t.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,444,698
Calibration 2     1,443,308
Calibration 3     1,442,624
ssj_ops@calibrated=1,442,966
100% 99.7% 1,442,966 1,438,232
90% 89.7% 1,298,670 1,293,829
80% 80.0% 1,154,373 1,154,954
70% 69.9% 1,010,076 1,008,772
60% 59.8% 865,780 863,020
50% 49.8% 721,483 719,073
40% 39.8% 577,187 574,143
30% 29.8% 432,890 429,584
20% 19.9% 288,593 287,739
10% 10.0% 144,297 143,899
Active Idle   0 0

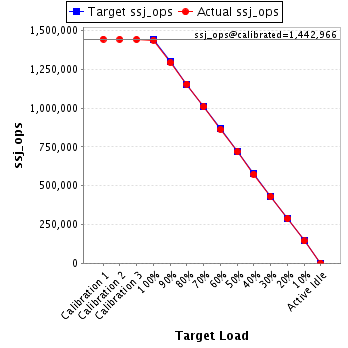

Graph of results
See the JVM Instance Performance Report for additional details.
