Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,744,838
ssj_ops@100% per JVM = 1,436,210
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 24, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,761,450
Calibration 2     5,758,038
Calibration 3     5,770,286
ssj_ops@calibrated=5,764,162
100% 99.7% 5,764,162 5,744,838
90% 90.0% 5,187,746 5,186,644
80% 80.6% 4,611,330 4,646,848
70% 70.0% 4,034,914 4,032,153
60% 60.0% 3,458,497 3,457,642
50% 50.1% 2,882,081 2,885,425
40% 40.1% 2,305,665 2,308,793
30% 30.0% 1,729,249 1,728,090
20% 20.0% 1,152,832 1,154,959
10% 10.0% 576,416 575,980
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 6
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE06.001 1,438,214
NODE06.002 1,438,435
NODE06.003 1,423,789
NODE06.004 1,444,400
ssj_ops@100% 5,744,838
ssj_ops@100% per JVM 1,436,210

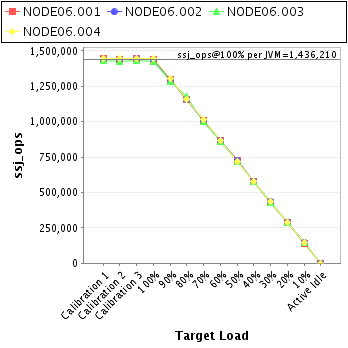

Graph of per-instance results
JVM 'NODE06.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,443,985
Calibration 2     1,440,868
Calibration 3     1,444,113
ssj_ops@calibrated=1,442,491
100% 99.7% 1,442,491 1,438,214
90% 89.9% 1,298,241 1,297,161
80% 80.0% 1,153,992 1,153,852
70% 69.7% 1,009,743 1,005,743
60% 60.0% 865,494 866,038
50% 50.2% 721,245 723,515
40% 39.9% 576,996 575,837
30% 29.9% 432,747 431,933
20% 20.1% 288,498 290,325
10% 9.9% 144,249 142,998
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE06.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,442,079
Calibration 2     1,441,886
Calibration 3     1,444,661
ssj_ops@calibrated=1,443,274
100% 99.7% 1,443,274 1,438,435
90% 90.1% 1,298,946 1,300,277
80% 80.1% 1,154,619 1,156,178
70% 70.1% 1,010,292 1,011,945
60% 59.9% 865,964 864,610
50% 50.1% 721,637 722,969
40% 40.0% 577,309 577,508
30% 30.0% 432,982 433,396
20% 19.9% 288,655 287,185
10% 10.0% 144,327 144,222
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE06.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,428,952
Calibration 2     1,428,179
Calibration 3     1,432,740
ssj_ops@calibrated=1,430,459
100% 99.5% 1,430,459 1,423,789
90% 89.9% 1,287,413 1,286,353
80% 82.4% 1,144,367 1,179,354
70% 70.0% 1,001,321 1,001,161
60% 60.1% 858,275 859,098
50% 50.2% 715,230 717,614
40% 40.2% 572,184 574,536
30% 29.9% 429,138 427,672
20% 20.0% 286,092 286,324
10% 10.1% 143,046 143,889
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE06.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,446,434
Calibration 2     1,447,105
Calibration 3     1,448,773
ssj_ops@calibrated=1,447,939
100% 99.8% 1,447,939 1,444,400
90% 90.0% 1,303,145 1,302,853
80% 79.9% 1,158,351 1,157,464
70% 70.0% 1,013,557 1,013,303
60% 59.9% 868,763 867,897
50% 49.8% 723,969 721,327
40% 40.1% 579,176 580,913
30% 30.0% 434,382 435,090
20% 20.1% 289,588 291,125
10% 10.0% 144,794 144,870
Active Idle   0 0

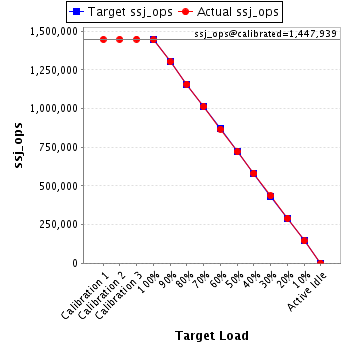

Graph of results
See the JVM Instance Performance Report for additional details.
