Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,710,983
ssj_ops@100% per JVM = 1,427,746
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 24, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,733,713
Calibration 2     5,723,168
Calibration 3     5,736,183
ssj_ops@calibrated=5,729,676
100% 99.7% 5,729,676 5,710,983
90% 90.0% 5,156,708 5,158,397
80% 80.5% 4,583,741 4,614,475
70% 69.8% 4,010,773 4,001,210
60% 60.0% 3,437,806 3,437,496
50% 49.9% 2,864,838 2,860,912
40% 40.0% 2,291,870 2,292,170
30% 30.1% 1,718,903 1,722,844
20% 20.0% 1,145,935 1,148,008
10% 10.0% 572,968 571,170
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 8
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE07.001 1,419,100
NODE07.002 1,426,424
NODE07.003 1,438,362
NODE07.004 1,427,096
ssj_ops@100% 5,710,983
ssj_ops@100% per JVM 1,427,746
Graph of per-instance results
JVM 'NODE07.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,428,962
Calibration 2     1,424,824
Calibration 3     1,425,524
ssj_ops@calibrated=1,425,174
100% 99.6% 1,425,174 1,419,100
90% 89.9% 1,282,657 1,281,709
80% 80.1% 1,140,139 1,140,942
70% 70.0% 997,622 997,149
60% 60.0% 855,104 854,800
50% 50.1% 712,587 714,404
40% 40.1% 570,070 571,707
30% 30.2% 427,552 429,690
20% 20.1% 285,035 285,757
10% 10.0% 142,517 142,066
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE07.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,431,950
Calibration 2     1,430,507
Calibration 3     1,434,271
ssj_ops@calibrated=1,432,389
100% 99.6% 1,432,389 1,426,424
90% 90.1% 1,289,150 1,290,359
80% 80.0% 1,145,911 1,145,689
70% 69.6% 1,002,672 997,619
60% 59.9% 859,433 857,442
50% 49.9% 716,194 715,274
40% 39.9% 572,956 571,876
30% 30.0% 429,717 429,204
20% 20.0% 286,478 286,695
10% 9.9% 143,239 142,023
Active Idle   0 0

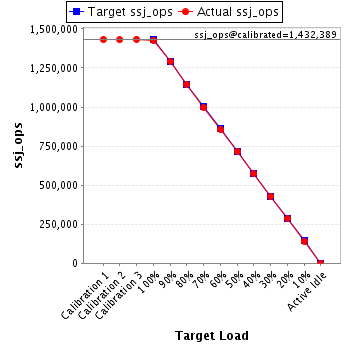

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE07.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,443,704
Calibration 2     1,439,450
Calibration 3     1,443,615
ssj_ops@calibrated=1,441,532
100% 99.8% 1,441,532 1,438,362
90% 90.0% 1,297,379 1,297,403
80% 79.8% 1,153,226 1,150,414
70% 70.0% 1,009,073 1,008,367
60% 60.1% 864,919 865,677
50% 49.9% 720,766 719,085
40% 39.8% 576,613 574,278
30% 30.1% 432,460 433,234
20% 20.1% 288,306 289,553
10% 10.0% 144,153 143,750
Active Idle   0 0

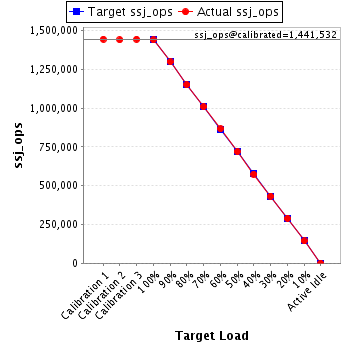

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE07.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,429,098
Calibration 2     1,428,388
Calibration 3     1,432,773
ssj_ops@calibrated=1,430,581
100% 99.8% 1,430,581 1,427,096
90% 90.1% 1,287,523 1,288,926
80% 82.3% 1,144,465 1,177,430
70% 69.8% 1,001,406 998,076
60% 60.1% 858,348 859,577
50% 49.8% 715,290 712,149
40% 40.1% 572,232 574,309
30% 30.1% 429,174 430,716
20% 20.0% 286,116 286,003
10% 10.0% 143,058 143,331
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
