Fujitsu FUJITSU Server PRIMERGY RX4770 M4 ssj_ops@100% = 10,249,832
ssj_ops@100% per JVM = 91,516
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Dec 18, 2017
Hardware Availability: Mar-2018 Software Availability: Jan-2015 Publication: Jan 10, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,307,197
Calibration 2     10,256,015
Calibration 3     10,269,599
ssj_ops@calibrated=10,262,807
100% 99.9% 10,262,807 10,249,832
90% 90.0% 9,236,526 9,232,029
80% 80.0% 8,210,245 8,208,471
70% 70.0% 7,183,965 7,180,090
60% 59.9% 6,157,684 6,151,365
50% 50.0% 5,131,403 5,128,907
40% 39.9% 4,105,123 4,096,830
30% 30.0% 3,078,842 3,074,915
20% 20.0% 2,052,561 2,047,755
10% 10.0% 1,026,281 1,026,271
Active Idle   0 0
Graph of results
System Under Test
Set: 'RX4770 M4'
Set Identifier: RX4770 M4
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX4770 M4
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176M
CPU Characteristics: 28-Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 24 x 8192 MB
Memory Details: 24 x 8 GB DDR4, registered, ECC, 2666 MHz, PC4-2666V, DIMM, 2Rx8; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R, 1S, 1T, 1U, 1V, 1W, 1X, 1Y, 1Z populated
Power Supply Quantity and Rating (W): 1 x 1600
Power Supply Details: Standard power supply part of base unit S26361-K1587-V100
Disk Drive: 1 x SSD M.2 SATA 6Gbps 150GB N H-P, S26361-F5656-L150
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x PLAN EM 4 x 1Gb T OCP(Dynamic LOM), S26361-F3953-E401
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1400m -Xmx1400m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2,4,6] /AFFINTY 0x3,0xC,0x30,0xC0,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000 /NODE [1,3,5,7] /AFFINTY 0x3,0xC,0x30,0x3000,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0x30000000000,0xC0000000000,0x300000000000,0xC00000000000
JVM Instances: 112
JVM Initial Heap (MB): 1400
JVM Maximum Heap (MB): 1400
JVM Address Bits: 64
Boot Firmware Version: R1.7.0
Management Firmware Version: 1.10P
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
RX4770M4.001 92,485
RX4770M4.002 89,824
RX4770M4.003 91,452
RX4770M4.004 90,213
RX4770M4.005 90,213
RX4770M4.006 93,187
RX4770M4.007 92,418
RX4770M4.008 94,244
RX4770M4.009 92,678
RX4770M4.010 91,874
RX4770M4.011 90,049
RX4770M4.012 91,087
RX4770M4.013 91,548
RX4770M4.014 91,609
RX4770M4.015 89,031
RX4770M4.016 91,601
RX4770M4.017 90,376
RX4770M4.018 89,437
RX4770M4.019 90,973
RX4770M4.020 91,332
RX4770M4.021 91,652
RX4770M4.022 90,930
RX4770M4.023 91,472
RX4770M4.024 90,651
RX4770M4.025 92,007
RX4770M4.026 91,435
RX4770M4.027 92,167
RX4770M4.028 90,694
RX4770M4.029 92,447
RX4770M4.030 94,219
RX4770M4.031 91,482
RX4770M4.032 91,106
RX4770M4.033 91,785
RX4770M4.034 93,724
RX4770M4.035 90,746
RX4770M4.036 92,135
RX4770M4.037 93,886
RX4770M4.038 91,585
RX4770M4.039 89,851
RX4770M4.040 91,036
RX4770M4.041 91,350
RX4770M4.042 91,436
RX4770M4.043 91,389
RX4770M4.044 91,499
RX4770M4.045 92,547
RX4770M4.046 92,232
RX4770M4.047 91,058
RX4770M4.048 90,855
RX4770M4.049 91,825
RX4770M4.050 91,766
RX4770M4.051 90,444
RX4770M4.052 92,194
RX4770M4.053 93,110
RX4770M4.054 92,028
RX4770M4.055 91,563
RX4770M4.056 92,012
RX4770M4.057 91,493
RX4770M4.058 92,145
RX4770M4.059 91,730
RX4770M4.060 89,980
RX4770M4.061 92,203
RX4770M4.062 92,587
RX4770M4.063 92,082
RX4770M4.064 91,176
RX4770M4.065 92,367
RX4770M4.066 89,535
RX4770M4.067 89,101
RX4770M4.068 90,700
RX4770M4.069 92,832
RX4770M4.070 91,778
RX4770M4.071 90,977
RX4770M4.072 94,213
RX4770M4.073 91,556
RX4770M4.074 92,952
RX4770M4.075 89,982
RX4770M4.076 91,581
RX4770M4.077 90,894
RX4770M4.078 91,562
RX4770M4.079 92,416
RX4770M4.080 90,271
RX4770M4.081 92,190
RX4770M4.082 90,885
RX4770M4.083 90,676
RX4770M4.084 90,151
RX4770M4.085 91,117
RX4770M4.086 89,597
RX4770M4.087 90,013
RX4770M4.088 90,302
RX4770M4.089 93,207
RX4770M4.090 92,169
RX4770M4.091 92,296
RX4770M4.092 92,897
RX4770M4.093 92,260
RX4770M4.094 90,512
RX4770M4.095 90,164
RX4770M4.096 90,489
RX4770M4.097 93,992
RX4770M4.098 91,922
RX4770M4.099 91,240
RX4770M4.100 92,584
RX4770M4.101 93,023
RX4770M4.102 91,613
RX4770M4.103 90,803
RX4770M4.104 91,823
RX4770M4.105 89,882
RX4770M4.106 91,749
RX4770M4.107 91,862
RX4770M4.108 90,454
RX4770M4.109 93,210
RX4770M4.110 90,487
RX4770M4.111 90,507
RX4770M4.112 91,692
ssj_ops@100% 10,249,832
ssj_ops@100% per JVM 91,516

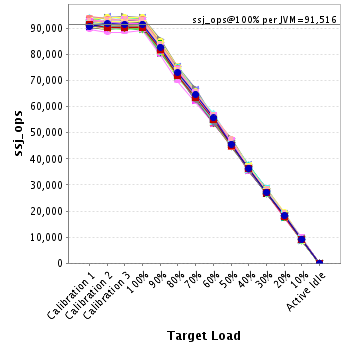

Graph of per-instance results
JVM 'RX4770M4.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,376
Calibration 2     92,088
Calibration 3     92,372
ssj_ops@calibrated=92,230
100% 100.3% 92,230 92,485
90% 89.9% 83,007 82,925
80% 79.9% 73,784 73,649
70% 69.6% 64,561 64,238
60% 60.0% 55,338 55,371
50% 49.8% 46,115 45,970
40% 40.4% 36,892 37,240
30% 29.9% 27,669 27,612
20% 20.1% 18,446 18,541
10% 10.3% 9,223 9,535
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,782
Calibration 2     90,958
Calibration 3     90,702
ssj_ops@calibrated=90,830
100% 98.9% 90,830 89,824
90% 90.3% 81,747 82,010
80% 80.1% 72,664 72,730
70% 70.4% 63,581 63,954
60% 60.2% 54,498 54,702
50% 50.0% 45,415 45,391
40% 40.1% 36,332 36,452
30% 29.5% 27,249 26,794
20% 19.6% 18,166 17,799
10% 9.7% 9,083 8,821
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

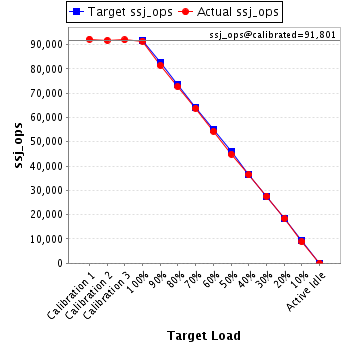

JVM 'RX4770M4.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,206
Calibration 2     91,690
Calibration 3     91,913
ssj_ops@calibrated=91,801
100% 99.6% 91,801 91,452
90% 88.7% 82,621 81,437
80% 79.2% 73,441 72,682
70% 69.5% 64,261 63,767
60% 59.2% 55,081 54,313
50% 48.8% 45,901 44,834
40% 39.6% 36,721 36,399
30% 30.1% 27,540 27,603
20% 20.1% 18,360 18,431
10% 9.6% 9,180 8,858
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,361
Calibration 2     90,779
Calibration 3     91,258
ssj_ops@calibrated=91,019
100% 99.1% 91,019 90,213
90% 91.2% 81,917 83,033
80% 79.2% 72,815 72,103
70% 69.4% 63,713 63,153
60% 60.1% 54,611 54,705
50% 49.0% 45,509 44,596
40% 40.3% 36,408 36,640
30% 30.3% 27,306 27,593
20% 19.9% 18,204 18,120
10% 10.0% 9,102 9,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,123
Calibration 2     91,018
Calibration 3     90,833
ssj_ops@calibrated=90,925
100% 99.2% 90,925 90,213
90% 89.9% 81,833 81,753
80% 80.5% 72,740 73,236
70% 69.3% 63,648 63,032
60% 60.2% 54,555 54,715
50% 49.5% 45,463 45,019
40% 40.3% 36,370 36,641
30% 29.7% 27,278 26,990
20% 19.3% 18,185 17,511
10% 9.8% 9,093 8,886
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,385
Calibration 2     93,456
Calibration 3     93,454
ssj_ops@calibrated=93,455
100% 99.7% 93,455 93,187
90% 88.9% 84,109 83,124
80% 80.7% 74,764 75,390
70% 70.7% 65,418 66,106
60% 59.8% 56,073 55,847
50% 49.8% 46,727 46,539
40% 39.4% 37,382 36,782
30% 30.6% 28,036 28,589
20% 19.5% 18,691 18,187
10% 9.8% 9,345 9,166
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,881
Calibration 2     92,342
Calibration 3     92,245
ssj_ops@calibrated=92,294
100% 100.1% 92,294 92,418
90% 89.8% 83,064 82,876
80% 80.1% 73,835 73,960
70% 69.3% 64,606 63,937
60% 60.2% 55,376 55,527
50% 49.9% 46,147 46,049
40% 39.8% 36,917 36,740
30% 30.2% 27,688 27,868
20% 19.8% 18,459 18,255
10% 10.0% 9,229 9,194
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,298
Calibration 2     94,248
Calibration 3     94,640
ssj_ops@calibrated=94,444
100% 99.8% 94,444 94,244
90% 90.8% 85,000 85,773
80% 79.9% 75,555 75,463
70% 71.1% 66,111 67,149
60% 59.2% 56,666 55,873
50% 50.5% 47,222 47,672
40% 39.7% 37,778 37,473
30% 30.5% 28,333 28,798
20% 20.0% 18,889 18,935
10% 9.9% 9,444 9,387
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

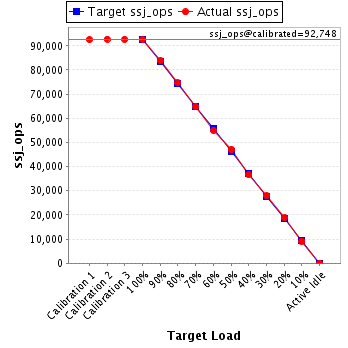

JVM 'RX4770M4.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,564
Calibration 2     92,753
Calibration 3     92,742
ssj_ops@calibrated=92,748
100% 99.9% 92,748 92,678
90% 90.4% 83,473 83,868
80% 80.5% 74,198 74,645
70% 69.8% 64,923 64,738
60% 59.3% 55,649 55,005
50% 50.8% 46,374 47,090
40% 39.5% 37,099 36,632
30% 30.1% 27,824 27,892
20% 20.2% 18,550 18,735
10% 9.9% 9,275 9,195
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

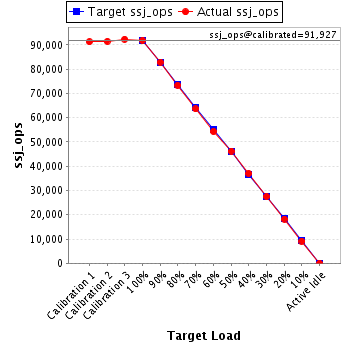

JVM 'RX4770M4.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,242
Calibration 2     91,475
Calibration 3     92,380
ssj_ops@calibrated=91,927
100% 99.9% 91,927 91,874
90% 90.2% 82,735 82,950
80% 79.8% 73,542 73,389
70% 69.2% 64,349 63,593
60% 59.1% 55,156 54,340
50% 50.3% 45,964 46,237
40% 40.3% 36,771 37,039
30% 30.0% 27,578 27,538
20% 19.8% 18,385 18,238
10% 9.9% 9,193 9,112
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,686
Calibration 2     90,588
Calibration 3     90,561
ssj_ops@calibrated=90,574
100% 99.4% 90,574 90,049
90% 88.9% 81,517 80,491
80% 80.2% 72,459 72,659
70% 69.8% 63,402 63,189
60% 59.9% 54,344 54,254
50% 50.5% 45,287 45,702
40% 40.2% 36,230 36,367
30% 30.2% 27,172 27,334
20% 19.3% 18,115 17,450
10% 9.6% 9,057 8,670
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,090
Calibration 2     91,406
Calibration 3     91,331
ssj_ops@calibrated=91,369
100% 99.7% 91,369 91,087
90% 89.4% 82,232 81,689
80% 80.0% 73,095 73,126
70% 69.7% 63,958 63,645
60% 59.8% 54,821 54,669
50% 50.0% 45,684 45,726
40% 39.5% 36,547 36,114
30% 30.7% 27,411 28,047
20% 19.9% 18,274 18,174
10% 9.9% 9,137 9,054
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,357
Calibration 2     91,656
Calibration 3     91,890
ssj_ops@calibrated=91,773
100% 99.8% 91,773 91,548
90% 90.2% 82,596 82,823
80% 79.5% 73,418 72,987
70% 69.4% 64,241 63,652
60% 59.9% 55,064 54,949
50% 49.9% 45,886 45,800
40% 39.9% 36,709 36,618
30% 30.0% 27,532 27,540
20% 19.8% 18,355 18,175
10% 10.0% 9,177 9,196
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,028
Calibration 2     91,453
Calibration 3     91,639
ssj_ops@calibrated=91,546
100% 100.1% 91,546 91,609
90% 90.0% 82,391 82,375
80% 79.8% 73,237 73,090
70% 70.0% 64,082 64,109
60% 60.3% 54,928 55,183
50% 49.4% 45,773 45,219
40% 40.5% 36,618 37,034
30% 29.4% 27,464 26,920
20% 20.2% 18,309 18,491
10% 9.9% 9,155 9,058
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,540
Calibration 2     89,643
Calibration 3     90,435
ssj_ops@calibrated=90,039
100% 98.9% 90,039 89,031
90% 90.5% 81,035 81,482
80% 80.5% 72,031 72,462
70% 69.2% 63,027 62,315
60% 60.6% 54,023 54,540
50% 49.2% 45,019 44,328
40% 40.3% 36,016 36,313
30% 30.2% 27,012 27,234
20% 20.0% 18,008 17,976
10% 9.9% 9,004 8,958
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,950
Calibration 2     91,823
Calibration 3     91,715
ssj_ops@calibrated=91,769
100% 99.8% 91,769 91,601
90% 90.8% 82,592 83,317
80% 81.4% 73,415 74,735
70% 69.0% 64,238 63,357
60% 60.1% 55,061 55,142
50% 49.2% 45,884 45,112
40% 39.8% 36,708 36,557
30% 29.5% 27,531 27,113
20% 19.8% 18,354 18,200
10% 10.0% 9,177 9,175
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,490
Calibration 2     90,650
Calibration 3     91,290
ssj_ops@calibrated=90,970
100% 99.3% 90,970 90,376
90% 90.1% 81,873 81,937
80% 80.4% 72,776 73,133
70% 70.0% 63,679 63,652
60% 60.0% 54,582 54,549
50% 49.7% 45,485 45,204
40% 39.5% 36,388 35,976
30% 29.6% 27,291 26,965
20% 20.2% 18,194 18,419
10% 10.1% 9,097 9,166
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

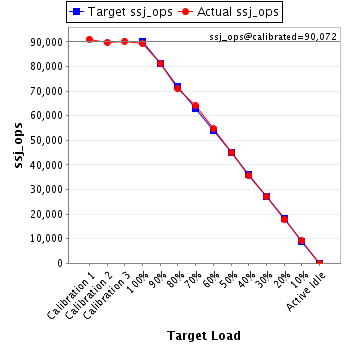

JVM 'RX4770M4.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,109
Calibration 2     89,820
Calibration 3     90,324
ssj_ops@calibrated=90,072
100% 99.3% 90,072 89,437
90% 90.2% 81,065 81,242
80% 78.7% 72,058 70,926
70% 71.1% 63,051 64,060
60% 60.6% 54,043 54,597
50% 49.9% 45,036 44,963
40% 39.6% 36,029 35,705
30% 30.0% 27,022 26,984
20% 19.9% 18,014 17,916
10% 10.1% 9,007 9,116
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,486
Calibration 2     90,631
Calibration 3     90,923
ssj_ops@calibrated=90,777
100% 100.2% 90,777 90,973
90% 88.9% 81,699 80,709
80% 80.0% 72,622 72,650
70% 69.8% 63,544 63,390
60% 60.1% 54,466 54,573
50% 49.9% 45,389 45,290
40% 39.3% 36,311 35,704
30% 30.2% 27,233 27,444
20% 19.9% 18,155 18,062
10% 9.9% 9,078 8,996
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,049
Calibration 2     91,404
Calibration 3     91,725
ssj_ops@calibrated=91,564
100% 99.7% 91,564 91,332
90% 89.1% 82,408 81,582
80% 78.8% 73,251 72,167
70% 69.3% 64,095 63,493
60% 59.9% 54,939 54,817
50% 50.2% 45,782 45,982
40% 39.7% 36,626 36,315
30% 30.4% 27,469 27,865
20% 19.9% 18,313 18,215
10% 9.9% 9,156 9,020
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,378
Calibration 2     91,775
Calibration 3     91,560
ssj_ops@calibrated=91,667
100% 100.0% 91,667 91,652
90% 89.3% 82,501 81,857
80% 78.9% 73,334 72,345
70% 70.3% 64,167 64,447
60% 60.3% 55,000 55,232
50% 50.4% 45,834 46,164
40% 40.2% 36,667 36,886
30% 29.6% 27,500 27,112
20% 20.6% 18,333 18,916
10% 10.1% 9,167 9,254
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,010
Calibration 2     91,426
Calibration 3     92,122
ssj_ops@calibrated=91,774
100% 99.1% 91,774 90,930
90% 90.0% 82,597 82,600
80% 79.3% 73,419 72,752
70% 70.5% 64,242 64,665
60% 60.0% 55,064 55,042
50% 49.8% 45,887 45,712
40% 40.2% 36,710 36,910
30% 29.6% 27,532 27,177
20% 20.0% 18,355 18,335
10% 9.6% 9,177 8,854
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,870
Calibration 2     91,340
Calibration 3     91,494
ssj_ops@calibrated=91,417
100% 100.1% 91,417 91,472
90% 89.1% 82,275 81,409
80% 79.1% 73,134 72,287
70% 70.7% 63,992 64,611
60% 60.5% 54,850 55,274
50% 49.6% 45,709 45,350
40% 39.3% 36,567 35,934
30% 30.7% 27,425 28,057
20% 20.2% 18,283 18,453
10% 10.0% 9,142 9,142
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,195
Calibration 2     90,834
Calibration 3     90,771
ssj_ops@calibrated=90,803
100% 99.8% 90,803 90,651
90% 91.0% 81,722 82,605
80% 80.5% 72,642 73,125
70% 70.3% 63,562 63,833
60% 59.5% 54,482 54,044
50% 49.8% 45,401 45,221
40% 39.8% 36,321 36,151
30% 30.4% 27,241 27,586
20% 19.8% 18,161 17,980
10% 10.1% 9,080 9,198
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,262
Calibration 2     91,889
Calibration 3     91,857
ssj_ops@calibrated=91,873
100% 100.1% 91,873 92,007
90% 90.7% 82,686 83,330
80% 80.1% 73,498 73,549
70% 70.0% 64,311 64,283
60% 60.4% 55,124 55,511
50% 49.6% 45,936 45,609
40% 39.7% 36,749 36,438
30% 30.4% 27,562 27,953
20% 19.7% 18,375 18,100
10% 9.9% 9,187 9,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,792
Calibration 2     90,898
Calibration 3     90,952
ssj_ops@calibrated=90,925
100% 100.6% 90,925 91,435
90% 89.9% 81,832 81,705
80% 81.0% 72,740 73,672
70% 69.7% 63,647 63,364
60% 59.9% 54,555 54,420
50% 50.4% 45,462 45,825
40% 40.3% 36,370 36,686
30% 30.4% 27,277 27,683
20% 20.2% 18,185 18,350
10% 10.0% 9,092 9,070
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,717
Calibration 2     91,283
Calibration 3     91,937
ssj_ops@calibrated=91,610
100% 100.6% 91,610 92,167
90% 89.3% 82,449 81,788
80% 79.9% 73,288 73,212
70% 71.0% 64,127 65,015
60% 59.8% 54,966 54,822
50% 50.3% 45,805 46,060
40% 39.9% 36,644 36,540
30% 29.7% 27,483 27,179
20% 20.2% 18,322 18,480
10% 10.2% 9,161 9,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,332
Calibration 2     90,784
Calibration 3     91,050
ssj_ops@calibrated=90,917
100% 99.8% 90,917 90,694
90% 89.0% 81,825 80,952
80% 79.9% 72,734 72,616
70% 69.7% 63,642 63,355
60% 59.5% 54,550 54,099
50% 50.9% 45,458 46,275
40% 39.9% 36,367 36,247
30% 30.3% 27,275 27,586
20% 20.1% 18,183 18,277
10% 9.7% 9,092 8,846
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,856
Calibration 2     92,107
Calibration 3     92,466
ssj_ops@calibrated=92,287
100% 100.2% 92,287 92,447
90% 89.2% 83,058 82,346
80% 81.5% 73,829 75,226
70% 69.9% 64,601 64,543
60% 60.1% 55,372 55,449
50% 49.7% 46,143 45,863
40% 39.3% 36,915 36,268
30% 30.5% 27,686 28,141
20% 20.0% 18,457 18,474
10% 10.1% 9,229 9,318
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,174
Calibration 2     94,431
Calibration 3     93,789
ssj_ops@calibrated=94,110
100% 100.1% 94,110 94,219
90% 89.7% 84,699 84,456
80% 80.0% 75,288 75,302
70% 70.9% 65,877 66,754
60% 59.2% 56,466 55,740
50% 49.7% 47,055 46,733
40% 40.3% 37,644 37,925
30% 30.1% 28,233 28,361
20% 20.3% 18,822 19,069
10% 9.7% 9,411 9,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,786
Calibration 2     91,405
Calibration 3     91,253
ssj_ops@calibrated=91,329
100% 100.2% 91,329 91,482
90% 90.9% 82,196 82,992
80% 80.1% 73,063 73,142
70% 70.9% 63,930 64,753
60% 59.8% 54,797 54,645
50% 50.1% 45,665 45,713
40% 39.8% 36,532 36,363
30% 29.7% 27,399 27,090
20% 20.0% 18,266 18,254
10% 10.4% 9,133 9,525
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

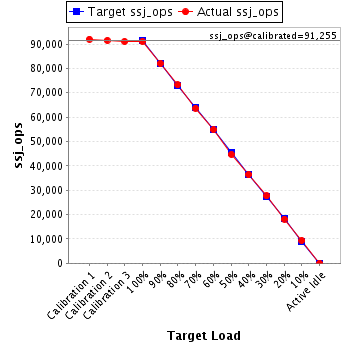

JVM 'RX4770M4.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,992
Calibration 2     91,486
Calibration 3     91,024
ssj_ops@calibrated=91,255
100% 99.8% 91,255 91,106
90% 89.8% 82,129 81,990
80% 80.2% 73,004 73,213
70% 69.8% 63,878 63,683
60% 60.1% 54,753 54,835
50% 49.0% 45,627 44,684
40% 39.9% 36,502 36,369
30% 30.3% 27,376 27,637
20% 19.9% 18,251 18,148
10% 10.3% 9,125 9,400
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,836
Calibration 2     91,872
Calibration 3     92,177
ssj_ops@calibrated=92,025
100% 99.7% 92,025 91,785
90% 90.5% 82,822 83,324
80% 80.5% 73,620 74,124
70% 70.3% 64,417 64,659
60% 60.3% 55,215 55,532
50% 49.9% 46,012 45,946
40% 40.6% 36,810 37,379
30% 30.1% 27,607 27,656
20% 20.0% 18,405 18,362
10% 9.7% 9,202 8,962
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,137
Calibration 2     94,067
Calibration 3     93,746
ssj_ops@calibrated=93,907
100% 99.8% 93,907 93,724
90% 89.6% 84,516 84,156
80% 80.0% 75,125 75,117
70% 69.9% 65,735 65,610
60% 61.1% 56,344 57,367
50% 49.9% 46,953 46,842
40% 40.1% 37,563 37,663
30% 30.2% 28,172 28,371
20% 19.8% 18,781 18,567
10% 10.0% 9,391 9,415
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

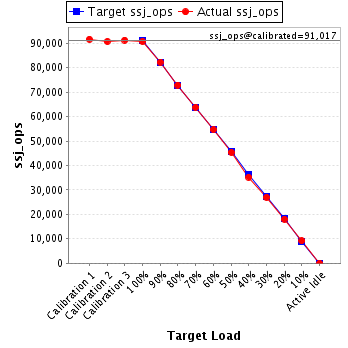

JVM 'RX4770M4.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,656
Calibration 2     90,728
Calibration 3     91,306
ssj_ops@calibrated=91,017
100% 99.7% 91,017 90,746
90% 90.4% 81,915 82,311
80% 80.0% 72,813 72,853
70% 70.1% 63,712 63,831
60% 60.0% 54,610 54,635
50% 49.8% 45,508 45,366
40% 38.7% 36,407 35,252
30% 29.7% 27,305 26,991
20% 19.9% 18,203 18,077
10% 10.1% 9,102 9,224
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,964
Calibration 2     92,023
Calibration 3     91,854
ssj_ops@calibrated=91,939
100% 100.2% 91,939 92,135
90% 90.6% 82,745 83,310
80% 80.2% 73,551 73,729
70% 69.8% 64,357 64,168
60% 60.2% 55,163 55,363
50% 50.9% 45,969 46,758
40% 40.1% 36,776 36,841
30% 29.6% 27,582 27,219
20% 19.5% 18,388 17,895
10% 9.8% 9,194 9,041
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,860
Calibration 2     94,155
Calibration 3     94,320
ssj_ops@calibrated=94,238
100% 99.6% 94,238 93,886
90% 88.7% 84,814 83,569
80% 80.1% 75,390 75,448
70% 69.8% 65,966 65,743
60% 60.0% 56,543 56,537
50% 49.9% 47,119 47,004
40% 39.6% 37,695 37,304
30% 30.4% 28,271 28,658
20% 19.8% 18,848 18,620
10% 10.2% 9,424 9,624
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,388
Calibration 2     91,974
Calibration 3     92,080
ssj_ops@calibrated=92,027
100% 99.5% 92,027 91,585
90% 90.0% 82,824 82,859
80% 80.8% 73,621 74,366
70% 69.6% 64,419 64,082
60% 59.0% 55,216 54,330
50% 50.0% 46,013 46,025
40% 39.8% 36,811 36,645
30% 29.6% 27,608 27,217
20% 19.5% 18,405 17,908
10% 10.1% 9,203 9,287
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,005
Calibration 2     89,825
Calibration 3     90,489
ssj_ops@calibrated=90,157
100% 99.7% 90,157 89,851
90% 90.0% 81,141 81,149
80% 80.1% 72,126 72,186
70% 70.5% 63,110 63,566
60% 59.6% 54,094 53,697
50% 50.4% 45,078 45,471
40% 39.6% 36,063 35,659
30% 30.3% 27,047 27,353
20% 20.6% 18,031 18,558
10% 10.0% 9,016 9,004
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,720
Calibration 2     91,412
Calibration 3     91,558
ssj_ops@calibrated=91,485
100% 99.5% 91,485 91,036
90% 88.6% 82,337 81,081
80% 80.0% 73,188 73,184
70% 70.9% 64,040 64,897
60% 59.8% 54,891 54,667
50% 49.3% 45,743 45,073
40% 40.5% 36,594 37,086
30% 29.3% 27,446 26,814
20% 20.1% 18,297 18,418
10% 10.2% 9,149 9,342
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,575
Calibration 2     91,522
Calibration 3     91,356
ssj_ops@calibrated=91,439
100% 99.9% 91,439 91,350
90% 89.8% 82,295 82,078
80% 79.7% 73,151 72,901
70% 69.2% 64,007 63,287
60% 60.3% 54,863 55,157
50% 49.6% 45,720 45,312
40% 39.9% 36,576 36,487
30% 29.8% 27,432 27,279
20% 19.5% 18,288 17,875
10% 9.8% 9,144 8,916
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

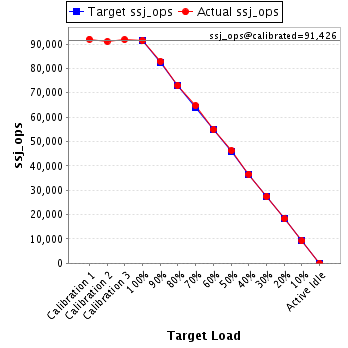

JVM 'RX4770M4.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,997
Calibration 2     91,042
Calibration 3     91,810
ssj_ops@calibrated=91,426
100% 100.0% 91,426 91,436
90% 90.6% 82,283 82,856
80% 79.8% 73,141 72,931
70% 70.8% 63,998 64,715
60% 60.0% 54,855 54,868
50% 50.6% 45,713 46,269
40% 40.0% 36,570 36,592
30% 30.0% 27,428 27,407
20% 20.0% 18,285 18,268
10% 10.0% 9,143 9,184
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,452
Calibration 2     91,689
Calibration 3     91,582
ssj_ops@calibrated=91,636
100% 99.7% 91,636 91,389
90% 89.9% 82,472 82,394
80% 79.4% 73,309 72,803
70% 70.4% 64,145 64,533
60% 61.2% 54,981 56,044
50% 49.8% 45,818 45,599
40% 39.7% 36,654 36,392
30% 29.8% 27,491 27,328
20% 19.8% 18,327 18,172
10% 9.6% 9,164 8,804
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,502
Calibration 2     91,851
Calibration 3     91,710
ssj_ops@calibrated=91,781
100% 99.7% 91,781 91,499
90% 89.1% 82,603 81,809
80% 80.5% 73,425 73,929
70% 71.1% 64,246 65,244
60% 59.4% 55,068 54,516
50% 51.1% 45,890 46,921
40% 39.7% 36,712 36,473
30% 29.7% 27,534 27,288
20% 19.9% 18,356 18,255
10% 10.1% 9,178 9,292
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,623
Calibration 2     92,500
Calibration 3     92,563
ssj_ops@calibrated=92,531
100% 100.0% 92,531 92,547
90% 89.5% 83,278 82,853
80% 80.6% 74,025 74,579
70% 70.8% 64,772 65,493
60% 58.8% 55,519 54,407
50% 49.4% 46,266 45,685
40% 40.7% 37,012 37,679
30% 30.1% 27,759 27,815
20% 19.7% 18,506 18,251
10% 9.9% 9,253 9,125
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,331
Calibration 2     91,659
Calibration 3     91,839
ssj_ops@calibrated=91,749
100% 100.5% 91,749 92,232
90% 91.1% 82,574 83,603
80% 80.9% 73,399 74,229
70% 69.2% 64,224 63,530
60% 60.3% 55,049 55,285
50% 50.3% 45,874 46,185
40% 39.9% 36,700 36,625
30% 30.1% 27,525 27,572
20% 20.0% 18,350 18,336
10% 10.5% 9,175 9,629
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,017
Calibration 2     91,816
Calibration 3     91,704
ssj_ops@calibrated=91,760
100% 99.2% 91,760 91,058
90% 89.7% 82,584 82,304
80% 79.7% 73,408 73,115
70% 70.2% 64,232 64,427
60% 60.0% 55,056 55,033
50% 50.3% 45,880 46,152
40% 40.1% 36,704 36,755
30% 30.1% 27,528 27,581
20% 20.0% 18,352 18,389
10% 10.2% 9,176 9,366
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,153
Calibration 2     90,878
Calibration 3     90,754
ssj_ops@calibrated=90,816
100% 100.0% 90,816 90,855
90% 90.5% 81,734 82,173
80% 79.9% 72,653 72,605
70% 70.4% 63,571 63,898
60% 60.3% 54,489 54,743
50% 49.7% 45,408 45,136
40% 40.6% 36,326 36,850
30% 30.1% 27,245 27,313
20% 19.5% 18,163 17,712
10% 10.1% 9,082 9,183
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,644
Calibration 2     91,980
Calibration 3     92,369
ssj_ops@calibrated=92,175
100% 99.6% 92,175 91,825
90% 90.0% 82,957 82,992
80% 80.1% 73,740 73,853
70% 69.6% 64,522 64,148
60% 59.7% 55,305 55,047
50% 50.1% 46,087 46,169
40% 39.8% 36,870 36,731
30% 30.0% 27,652 27,628
20% 19.5% 18,435 18,011
10% 10.3% 9,217 9,492
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,752
Calibration 2     91,443
Calibration 3     91,664
ssj_ops@calibrated=91,553
100% 100.2% 91,553 91,766
90% 89.5% 82,398 81,956
80% 80.0% 73,243 73,220
70% 70.1% 64,087 64,175
60% 59.7% 54,932 54,662
50% 49.3% 45,777 45,158
40% 39.2% 36,621 35,877
30% 30.1% 27,466 27,523
20% 19.4% 18,311 17,729
10% 10.0% 9,155 9,196
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

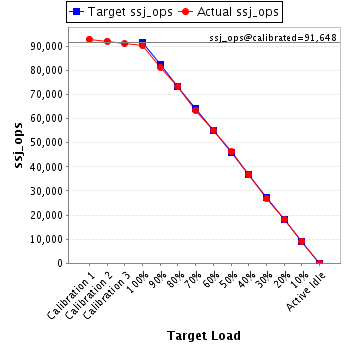

JVM 'RX4770M4.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,001
Calibration 2     92,194
Calibration 3     91,103
ssj_ops@calibrated=91,648
100% 98.7% 91,648 90,444
90% 88.9% 82,483 81,435
80% 80.2% 73,319 73,524
70% 69.2% 64,154 63,392
60% 60.3% 54,989 55,277
50% 50.4% 45,824 46,228
40% 40.3% 36,659 36,905
30% 29.4% 27,494 26,958
20% 20.0% 18,330 18,287
10% 10.0% 9,165 9,171
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,764
Calibration 2     91,298
Calibration 3     91,969
ssj_ops@calibrated=91,633
100% 100.6% 91,633 92,194
90% 90.4% 82,470 82,855
80% 79.3% 73,307 72,649
70% 69.1% 64,143 63,309
60% 59.8% 54,980 54,818
50% 49.8% 45,817 45,676
40% 39.7% 36,653 36,396
30% 29.5% 27,490 27,002
20% 19.8% 18,327 18,186
10% 10.0% 9,163 9,125
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,317
Calibration 2     92,884
Calibration 3     93,628
ssj_ops@calibrated=93,256
100% 99.8% 93,256 93,110
90% 90.3% 83,930 84,188
80% 80.5% 74,604 75,027
70% 69.5% 65,279 64,823
60% 59.4% 55,953 55,391
50% 50.3% 46,628 46,943
40% 40.2% 37,302 37,448
30% 29.7% 27,977 27,702
20% 20.0% 18,651 18,639
10% 9.6% 9,326 8,949
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,781
Calibration 2     90,980
Calibration 3     92,001
ssj_ops@calibrated=91,490
100% 100.6% 91,490 92,028
90% 91.5% 82,341 83,692
80% 79.4% 73,192 72,656
70% 70.4% 64,043 64,440
60% 60.9% 54,894 55,710
50% 50.5% 45,745 46,247
40% 40.2% 36,596 36,796
30% 30.0% 27,447 27,420
20% 20.1% 18,298 18,358
10% 10.1% 9,149 9,246
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,126
Calibration 2     91,469
Calibration 3     91,916
ssj_ops@calibrated=91,693
100% 99.9% 91,693 91,563
90% 90.2% 82,523 82,717
80% 79.9% 73,354 73,244
70% 70.0% 64,185 64,199
60% 60.0% 55,016 54,985
50% 49.9% 45,846 45,726
40% 40.7% 36,677 37,298
30% 29.8% 27,508 27,298
20% 20.3% 18,339 18,601
10% 9.9% 9,169 9,066
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,266
Calibration 2     91,681
Calibration 3     91,972
ssj_ops@calibrated=91,826
100% 100.2% 91,826 92,012
90% 89.7% 82,644 82,360
80% 80.1% 73,461 73,590
70% 69.6% 64,278 63,896
60% 60.8% 55,096 55,873
50% 50.1% 45,913 46,026
40% 39.8% 36,731 36,509
30% 30.1% 27,548 27,605
20% 20.4% 18,365 18,743
10% 9.9% 9,183 9,112
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,322
Calibration 2     91,168
Calibration 3     91,884
ssj_ops@calibrated=91,526
100% 100.0% 91,526 91,493
90% 90.6% 82,373 82,958
80% 79.6% 73,221 72,874
70% 70.3% 64,068 64,375
60% 60.0% 54,916 54,935
50% 49.1% 45,763 44,944
40% 40.5% 36,610 37,033
30% 30.0% 27,458 27,425
20% 19.9% 18,305 18,224
10% 10.3% 9,153 9,462
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,390
Calibration 2     91,630
Calibration 3     92,257
ssj_ops@calibrated=91,944
100% 100.2% 91,944 92,145
90% 90.1% 82,749 82,820
80% 80.2% 73,555 73,774
70% 69.0% 64,361 63,455
60% 59.7% 55,166 54,882
50% 50.3% 45,972 46,287
40% 40.5% 36,778 37,194
30% 30.5% 27,583 28,037
20% 19.5% 18,389 17,958
10% 10.1% 9,194 9,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,207
Calibration 2     91,894
Calibration 3     91,684
ssj_ops@calibrated=91,789
100% 99.9% 91,789 91,730
90% 90.3% 82,610 82,894
80% 79.9% 73,431 73,308
70% 69.1% 64,253 63,435
60% 59.4% 55,074 54,551
50% 49.9% 45,895 45,807
40% 40.4% 36,716 37,060
30% 29.9% 27,537 27,407
20% 20.4% 18,358 18,734
10% 10.0% 9,179 9,220
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,893
Calibration 2     90,313
Calibration 3     90,293
ssj_ops@calibrated=90,303
100% 99.6% 90,303 89,980
90% 89.8% 81,272 81,091
80% 80.0% 72,242 72,198
70% 70.5% 63,212 63,666
60% 61.0% 54,182 55,108
50% 50.8% 45,151 45,839
40% 40.0% 36,121 36,156
30% 29.8% 27,091 26,924
20% 20.4% 18,061 18,387
10% 9.9% 9,030 8,970
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,723
Calibration 2     92,032
Calibration 3     92,280
ssj_ops@calibrated=92,156
100% 100.1% 92,156 92,203
90% 90.3% 82,941 83,220
80% 79.5% 73,725 73,275
70% 70.2% 64,509 64,682
60% 60.8% 55,294 56,004
50% 49.5% 46,078 45,594
40% 39.7% 36,862 36,601
30% 29.9% 27,647 27,570
20% 20.3% 18,431 18,668
10% 10.3% 9,216 9,461
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,246
Calibration 2     92,447
Calibration 3     93,036
ssj_ops@calibrated=92,742
100% 99.8% 92,742 92,587
90% 90.5% 83,467 83,957
80% 79.8% 74,193 73,965
70% 71.2% 64,919 65,989
60% 59.7% 55,645 55,389
50% 50.2% 46,371 46,519
40% 40.0% 37,097 37,069
30% 30.9% 27,822 28,674
20% 19.8% 18,548 18,374
10% 10.2% 9,274 9,445
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,467
Calibration 2     92,252
Calibration 3     92,210
ssj_ops@calibrated=92,231
100% 99.8% 92,231 92,082
90% 90.3% 83,008 83,318
80% 79.8% 73,785 73,574
70% 68.9% 64,562 63,503
60% 60.2% 55,339 55,520
50% 50.6% 46,115 46,652
40% 39.3% 36,892 36,262
30% 30.1% 27,669 27,790
20% 19.9% 18,446 18,357
10% 10.1% 9,223 9,358
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,753
Calibration 2     92,126
Calibration 3     91,465
ssj_ops@calibrated=91,796
100% 99.3% 91,796 91,176
90% 89.7% 82,616 82,373
80% 79.6% 73,437 73,098
70% 69.5% 64,257 63,782
60% 60.5% 55,077 55,578
50% 50.2% 45,898 46,046
40% 40.1% 36,718 36,828
30% 30.2% 27,539 27,742
20% 19.8% 18,359 18,166
10% 9.9% 9,180 9,045
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,306
Calibration 2     91,711
Calibration 3     91,914
ssj_ops@calibrated=91,813
100% 100.6% 91,813 92,367
90% 90.4% 82,631 83,011
80% 79.2% 73,450 72,740
70% 69.5% 64,269 63,765
60% 60.0% 55,088 55,060
50% 49.5% 45,906 45,491
40% 39.7% 36,725 36,438
30% 29.6% 27,544 27,202
20% 20.1% 18,363 18,445
10% 9.8% 9,181 8,954
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,607
Calibration 2     89,639
Calibration 3     90,594
ssj_ops@calibrated=90,116
100% 99.4% 90,116 89,535
90% 89.6% 81,105 80,757
80% 79.2% 72,093 71,379
70% 70.3% 63,081 63,370
60% 59.6% 54,070 53,734
50% 50.9% 45,058 45,872
40% 39.9% 36,047 35,923
30% 30.0% 27,035 26,990
20% 20.2% 18,023 18,240
10% 9.6% 9,012 8,688
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,506
Calibration 2     88,395
Calibration 3     88,634
ssj_ops@calibrated=88,514
100% 100.7% 88,514 89,101
90% 90.1% 79,663 79,726
80% 78.9% 70,812 69,853
70% 69.7% 61,960 61,737
60% 60.4% 53,109 53,455
50% 50.4% 44,257 44,585
40% 40.2% 35,406 35,541
30% 30.1% 26,554 26,648
20% 19.5% 17,703 17,257
10% 10.5% 8,851 9,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,603
Calibration 2     91,223
Calibration 3     91,545
ssj_ops@calibrated=91,384
100% 99.3% 91,384 90,700
90% 90.5% 82,246 82,717
80% 80.9% 73,107 73,974
70% 70.3% 63,969 64,238
60% 60.7% 54,830 55,494
50% 49.6% 45,692 45,324
40% 39.6% 36,554 36,202
30% 30.2% 27,415 27,558
20% 20.0% 18,277 18,300
10% 9.7% 9,138 8,906
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,111
Calibration 2     92,335
Calibration 3     92,663
ssj_ops@calibrated=92,499
100% 100.4% 92,499 92,832
90% 90.1% 83,249 83,341
80% 80.0% 73,999 74,015
70% 70.1% 64,750 64,837
60% 60.9% 55,500 56,370
50% 50.2% 46,250 46,409
40% 39.6% 37,000 36,617
30% 29.4% 27,750 27,168
20% 20.3% 18,500 18,816
10% 9.9% 9,250 9,175
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,636
Calibration 2     90,770
Calibration 3     91,535
ssj_ops@calibrated=91,153
100% 100.7% 91,153 91,778
90% 89.4% 82,037 81,461
80% 78.9% 72,922 71,874
70% 70.4% 63,807 64,135
60% 60.2% 54,692 54,875
50% 50.1% 45,576 45,665
40% 39.9% 36,461 36,392
30% 29.9% 27,346 27,299
20% 19.8% 18,231 18,079
10% 10.2% 9,115 9,325
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,746
Calibration 2     91,381
Calibration 3     91,325
ssj_ops@calibrated=91,353
100% 99.6% 91,353 90,977
90% 90.1% 82,218 82,340
80% 80.6% 73,082 73,608
70% 70.7% 63,947 64,587
60% 59.4% 54,812 54,239
50% 49.3% 45,676 45,029
40% 39.8% 36,541 36,386
30% 31.0% 27,406 28,339
20% 20.3% 18,271 18,576
10% 10.1% 9,135 9,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,516
Calibration 2     94,318
Calibration 3     94,245
ssj_ops@calibrated=94,281
100% 99.9% 94,281 94,213
90% 90.3% 84,853 85,176
80% 79.9% 75,425 75,337
70% 69.7% 65,997 65,723
60% 59.8% 56,569 56,384
50% 50.5% 47,141 47,594
40% 39.5% 37,712 37,248
30% 30.2% 28,284 28,502
20% 20.5% 18,856 19,293
10% 10.0% 9,428 9,437
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,208
Calibration 2     91,434
Calibration 3     91,673
ssj_ops@calibrated=91,553
100% 100.0% 91,553 91,556
90% 90.3% 82,398 82,704
80% 80.2% 73,243 73,465
70% 69.8% 64,087 63,930
60% 60.6% 54,932 55,497
50% 49.3% 45,777 45,121
40% 40.3% 36,621 36,931
30% 30.1% 27,466 27,513
20% 19.9% 18,311 18,212
10% 10.3% 9,155 9,454
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,012
Calibration 2     92,930
Calibration 3     92,899
ssj_ops@calibrated=92,914
100% 100.0% 92,914 92,952
90% 90.2% 83,623 83,852
80% 80.6% 74,331 74,853
70% 70.1% 65,040 65,125
60% 59.2% 55,749 55,010
50% 50.4% 46,457 46,836
40% 39.7% 37,166 36,883
30% 30.0% 27,874 27,886
20% 19.7% 18,583 18,332
10% 9.9% 9,291 9,199
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,153
Calibration 2     90,193
Calibration 3     90,507
ssj_ops@calibrated=90,350
100% 99.6% 90,350 89,982
90% 89.5% 81,315 80,834
80% 79.8% 72,280 72,110
70% 70.4% 63,245 63,568
60% 59.7% 54,210 53,984
50% 49.8% 45,175 45,018
40% 40.1% 36,140 36,267
30% 29.9% 27,105 26,990
20% 20.0% 18,070 18,114
10% 9.7% 9,035 8,767
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,315
Calibration 2     91,598
Calibration 3     91,982
ssj_ops@calibrated=91,790
100% 99.8% 91,790 91,581
90% 89.2% 82,611 81,866
80% 81.0% 73,432 74,395
70% 69.4% 64,253 63,737
60% 59.4% 55,074 54,566
50% 49.9% 45,895 45,774
40% 39.7% 36,716 36,395
30% 29.8% 27,537 27,367
20% 20.1% 18,358 18,478
10% 10.0% 9,179 9,225
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,923
Calibration 2     90,987
Calibration 3     90,951
ssj_ops@calibrated=90,969
100% 99.9% 90,969 90,894
90% 89.3% 81,872 81,274
80% 80.9% 72,775 73,556
70% 69.7% 63,678 63,407
60% 60.7% 54,581 55,248
50% 50.3% 45,484 45,785
40% 39.5% 36,388 35,953
30% 29.7% 27,291 27,038
20% 19.7% 18,194 17,959
10% 10.0% 9,097 9,083
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,770
Calibration 2     91,307
Calibration 3     91,793
ssj_ops@calibrated=91,550
100% 100.0% 91,550 91,562
90% 90.5% 82,395 82,820
80% 80.0% 73,240 73,224
70% 70.3% 64,085 64,356
60% 59.8% 54,930 54,792
50% 49.7% 45,775 45,457
40% 40.4% 36,620 37,025
30% 29.9% 27,465 27,414
20% 19.8% 18,310 18,154
10% 9.9% 9,155 9,037
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,859
Calibration 2     92,038
Calibration 3     92,367
ssj_ops@calibrated=92,202
100% 100.2% 92,202 92,416
90% 91.2% 82,982 84,070
80% 79.6% 73,762 73,390
70% 70.2% 64,541 64,698
60% 59.1% 55,321 54,466
50% 49.0% 46,101 45,209
40% 40.4% 36,881 37,285
30% 30.2% 27,661 27,840
20% 19.4% 18,440 17,844
10% 10.0% 9,220 9,225
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,679
Calibration 2     90,166
Calibration 3     90,506
ssj_ops@calibrated=90,336
100% 99.9% 90,336 90,271
90% 89.6% 81,303 80,925
80% 79.5% 72,269 71,790
70% 69.4% 63,235 62,675
60% 59.6% 54,202 53,821
50% 49.4% 45,168 44,615
40% 39.9% 36,134 36,065
30% 29.8% 27,101 26,940
20% 20.2% 18,067 18,252
10% 9.8% 9,034 8,833
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.081' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,009
Calibration 2     91,936
Calibration 3     92,346
ssj_ops@calibrated=92,141
100% 100.1% 92,141 92,190
90% 89.6% 82,927 82,577
80% 79.3% 73,713 73,104
70% 68.9% 64,499 63,439
60% 60.1% 55,285 55,371
50% 49.7% 46,071 45,813
40% 39.8% 36,856 36,668
30% 29.8% 27,642 27,486
20% 19.8% 18,428 18,216
10% 9.9% 9,214 9,150
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.082' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,976
Calibration 2     90,982
Calibration 3     91,000
ssj_ops@calibrated=90,991
100% 99.9% 90,991 90,885
90% 89.7% 81,892 81,660
80% 80.7% 72,793 73,434
70% 69.8% 63,694 63,470
60% 59.5% 54,595 54,106
50% 50.6% 45,496 46,010
40% 40.7% 36,396 37,049
30% 29.8% 27,297 27,159
20% 20.3% 18,198 18,443
10% 9.7% 9,099 8,808
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.083' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,114
Calibration 2     90,580
Calibration 3     90,826
ssj_ops@calibrated=90,703
100% 100.0% 90,703 90,676
90% 90.4% 81,633 81,991
80% 79.5% 72,562 72,096
70% 69.8% 63,492 63,332
60% 59.3% 54,422 53,804
50% 50.4% 45,351 45,675
40% 39.7% 36,281 36,013
30% 29.5% 27,211 26,791
20% 20.2% 18,141 18,278
10% 10.2% 9,070 9,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.084' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,096
Calibration 2     90,925
Calibration 3     90,731
ssj_ops@calibrated=90,828
100% 99.3% 90,828 90,151
90% 90.1% 81,745 81,794
80% 79.3% 72,662 71,988
70% 69.8% 63,580 63,424
60% 60.1% 54,497 54,547
50% 50.0% 45,414 45,387
40% 40.3% 36,331 36,588
30% 29.4% 27,248 26,680
20% 19.5% 18,166 17,694
10% 9.8% 9,083 8,892
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.085' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,920
Calibration 2     90,806
Calibration 3     90,696
ssj_ops@calibrated=90,751
100% 100.4% 90,751 91,117
90% 89.1% 81,676 80,858
80% 79.6% 72,601 72,237
70% 69.7% 63,526 63,254
60% 59.7% 54,450 54,161
50% 50.0% 45,375 45,392
40% 39.3% 36,300 35,645
30% 29.5% 27,225 26,814
20% 20.3% 18,150 18,464
10% 10.2% 9,075 9,225
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.086' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,057
Calibration 2     90,820
Calibration 3     90,345
ssj_ops@calibrated=90,583
100% 98.9% 90,583 89,597
90% 90.6% 81,524 82,061
80% 79.8% 72,466 72,250
70% 70.5% 63,408 63,864
60% 60.0% 54,350 54,326
50% 49.9% 45,291 45,230
40% 39.9% 36,233 36,158
30% 30.1% 27,175 27,290
20% 19.8% 18,117 17,954
10% 10.0% 9,058 9,024
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.087' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,520
Calibration 2     91,319
Calibration 3     91,275
ssj_ops@calibrated=91,297
100% 98.6% 91,297 90,013
90% 89.6% 82,167 81,813
80% 79.7% 73,038 72,771
70% 69.7% 63,908 63,668
60% 60.2% 54,778 54,962
50% 49.9% 45,649 45,526
40% 40.1% 36,519 36,581
30% 29.9% 27,389 27,320
20% 20.0% 18,259 18,216
10% 9.9% 9,130 9,033
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.088' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,152
Calibration 2     90,027
Calibration 3     89,927
ssj_ops@calibrated=89,977
100% 100.4% 89,977 90,302
90% 89.9% 80,980 80,924
80% 81.0% 71,982 72,883
70% 69.2% 62,984 62,272
60% 59.5% 53,986 53,579
50% 50.3% 44,989 45,222
40% 39.6% 35,991 35,602
30% 30.2% 26,993 27,162
20% 20.1% 17,995 18,047
10% 10.1% 8,998 9,048
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.089' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,281
Calibration 2     92,717
Calibration 3     92,679
ssj_ops@calibrated=92,698
100% 100.5% 92,698 93,207
90% 89.7% 83,428 83,153
80% 81.1% 74,158 75,168
70% 70.4% 64,888 65,247
60% 59.6% 55,619 55,284
50% 50.3% 46,349 46,641
40% 40.3% 37,079 37,368
30% 30.7% 27,809 28,483
20% 20.2% 18,540 18,724
10% 10.3% 9,270 9,575
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.090' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,004
Calibration 2     92,600
Calibration 3     91,589
ssj_ops@calibrated=92,094
100% 100.1% 92,094 92,169
90% 90.0% 82,885 82,897
80% 79.6% 73,675 73,305
70% 69.6% 64,466 64,143
60% 59.5% 55,257 54,782
50% 49.3% 46,047 45,408
40% 39.8% 36,838 36,618
30% 30.6% 27,628 28,217
20% 20.0% 18,419 18,437
10% 9.9% 9,209 9,126
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.091' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,941
Calibration 2     91,811
Calibration 3     91,703
ssj_ops@calibrated=91,757
100% 100.6% 91,757 92,296
90% 89.0% 82,581 81,646
80% 79.5% 73,406 72,978
70% 70.9% 64,230 65,088
60% 59.7% 55,054 54,805
50% 50.4% 45,879 46,274
40% 40.2% 36,703 36,896
30% 29.1% 27,527 26,690
20% 19.8% 18,351 18,141
10% 10.0% 9,176 9,218
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.092' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,970
Calibration 2     91,830
Calibration 3     92,908
ssj_ops@calibrated=92,369
100% 100.6% 92,369 92,897
90% 89.6% 83,132 82,798
80% 80.5% 73,895 74,386
70% 69.4% 64,658 64,119
60% 60.2% 55,422 55,575
50% 49.1% 46,185 45,376
40% 40.3% 36,948 37,261
30% 29.9% 27,711 27,632
20% 20.2% 18,474 18,612
10% 10.0% 9,237 9,258
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.093' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,987
Calibration 2     92,000
Calibration 3     91,803
ssj_ops@calibrated=91,902
100% 100.4% 91,902 92,260
90% 90.1% 82,711 82,818
80% 81.2% 73,521 74,591
70% 69.8% 64,331 64,173
60% 60.3% 55,141 55,390
50% 50.3% 45,951 46,181
40% 40.5% 36,761 37,187
30% 30.0% 27,570 27,575
20% 19.7% 18,380 18,065
10% 10.1% 9,190 9,295
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.094' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,155
Calibration 2     90,609
Calibration 3     90,165
ssj_ops@calibrated=90,387
100% 100.1% 90,387 90,512
90% 89.7% 81,348 81,034
80% 80.0% 72,309 72,299
70% 70.0% 63,271 63,241
60% 59.3% 54,232 53,643
50% 50.3% 45,193 45,509
40% 39.8% 36,155 35,946
30% 29.6% 27,116 26,796
20% 20.0% 18,077 18,063
10% 10.1% 9,039 9,154
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.095' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,973
Calibration 2     90,528
Calibration 3     90,785
ssj_ops@calibrated=90,657
100% 99.5% 90,657 90,164
90% 91.0% 81,591 82,527
80% 80.1% 72,525 72,651
70% 69.8% 63,460 63,263
60% 59.1% 54,394 53,578
50% 50.3% 45,328 45,569
40% 39.4% 36,263 35,725
30% 29.7% 27,197 26,913
20% 20.0% 18,131 18,166
10% 10.0% 9,066 9,039
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.096' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,261
Calibration 2     90,362
Calibration 3     90,699
ssj_ops@calibrated=90,531
100% 100.0% 90,531 90,489
90% 89.4% 81,478 80,914
80% 80.0% 72,424 72,395
70% 69.7% 63,371 63,108
60% 59.4% 54,318 53,795
50% 49.5% 45,265 44,788
40% 39.8% 36,212 36,032
30% 29.7% 27,159 26,916
20% 20.2% 18,106 18,274
10% 9.7% 9,053 8,775
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.097' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,434
Calibration 2     93,851
Calibration 3     93,113
ssj_ops@calibrated=93,482
100% 100.5% 93,482 93,992
90% 90.3% 84,134 84,401
80% 80.4% 74,786 75,204
70% 69.1% 65,437 64,594
60% 59.8% 56,089 55,887
50% 50.3% 46,741 47,007
40% 39.4% 37,393 36,812
30% 30.1% 28,045 28,150
20% 19.8% 18,696 18,471
10% 10.4% 9,348 9,720
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.098' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,352
Calibration 2     92,204
Calibration 3     91,383
ssj_ops@calibrated=91,793
100% 100.1% 91,793 91,922
90% 89.8% 82,614 82,439
80% 80.1% 73,434 73,554
70% 70.5% 64,255 64,720
60% 59.0% 55,076 54,133
50% 50.5% 45,897 46,385
40% 40.0% 36,717 36,720
30% 30.2% 27,538 27,743
20% 19.7% 18,359 18,070
10% 10.4% 9,179 9,504
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.099' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,691
Calibration 2     90,953
Calibration 3     91,286
ssj_ops@calibrated=91,120
100% 100.1% 91,120 91,240
90% 89.3% 82,008 81,353
80% 80.4% 72,896 73,225
70% 71.1% 63,784 64,743
60% 59.8% 54,672 54,521
50% 51.0% 45,560 46,453
40% 40.2% 36,448 36,602
30% 29.3% 27,336 26,662
20% 20.2% 18,224 18,367
10% 9.5% 9,112 8,670
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.100' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,116
Calibration 2     92,603
Calibration 3     92,682
ssj_ops@calibrated=92,643
100% 99.9% 92,643 92,584
90% 89.6% 83,378 82,999
80% 79.6% 74,114 73,772
70% 70.3% 64,850 65,082
60% 60.0% 55,586 55,572
50% 49.9% 46,321 46,220
40% 40.4% 37,057 37,442
30% 29.8% 27,793 27,653
20% 19.7% 18,529 18,253
10% 9.4% 9,264 8,704
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.101' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,521
Calibration 2     92,982
Calibration 3     93,505
ssj_ops@calibrated=93,243
100% 99.8% 93,243 93,023
90% 89.7% 83,919 83,654
80% 79.9% 74,595 74,456
70% 70.0% 65,270 65,307
60% 60.8% 55,946 56,716
50% 50.6% 46,622 47,146
40% 39.0% 37,297 36,395
30% 29.0% 27,973 26,995
20% 20.1% 18,649 18,741
10% 10.4% 9,324 9,691
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.102' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,843
Calibration 2     92,260
Calibration 3     91,796
ssj_ops@calibrated=92,028
100% 99.5% 92,028 91,613
90% 89.9% 82,825 82,691
80% 80.2% 73,623 73,803
70% 69.4% 64,420 63,844
60% 59.7% 55,217 54,937
50% 49.8% 46,014 45,802
40% 40.2% 36,811 36,975
30% 30.4% 27,608 27,953
20% 20.1% 18,406 18,456
10% 9.8% 9,203 9,016
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.103' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,609
Calibration 2     90,822
Calibration 3     91,113
ssj_ops@calibrated=90,967
100% 99.8% 90,967 90,803
90% 89.5% 81,870 81,455
80% 80.3% 72,774 73,046
70% 70.2% 63,677 63,831
60% 59.3% 54,580 53,948
50% 49.2% 45,484 44,717
40% 40.3% 36,387 36,693
30% 30.0% 27,290 27,310
20% 19.5% 18,193 17,783
10% 9.9% 9,097 9,027
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.104' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,518
Calibration 2     91,738
Calibration 3     92,093
ssj_ops@calibrated=91,915
100% 99.9% 91,915 91,823
90% 88.6% 82,724 81,429
80% 80.0% 73,532 73,561
70% 69.5% 64,341 63,865
60% 58.8% 55,149 54,038
50% 50.0% 45,958 45,949
40% 39.7% 36,766 36,464
30% 29.4% 27,575 27,047
20% 19.9% 18,383 18,295
10% 9.9% 9,192 9,137
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.105' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,747
Calibration 2     90,171
Calibration 3     89,745
ssj_ops@calibrated=89,958
100% 99.9% 89,958 89,882
90% 90.3% 80,962 81,253
80% 79.8% 71,967 71,806
70% 70.7% 62,971 63,590
60% 60.1% 53,975 54,098
50% 50.0% 44,979 44,992
40% 40.1% 35,983 36,050
30% 29.8% 26,987 26,788
20% 20.6% 17,992 18,549
10% 10.1% 8,996 9,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.106' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,797
Calibration 2     92,533
Calibration 3     92,368
ssj_ops@calibrated=92,451
100% 99.2% 92,451 91,749
90% 90.9% 83,206 84,016
80% 79.7% 73,961 73,715
70% 69.7% 64,716 64,396
60% 60.1% 55,471 55,564
50% 49.2% 46,225 45,467
40% 40.3% 36,980 37,276
30% 29.7% 27,735 27,495
20% 20.4% 18,490 18,817
10% 9.9% 9,245 9,129
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.107' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,281
Calibration 2     92,337
Calibration 3     92,054
ssj_ops@calibrated=92,196
100% 99.6% 92,196 91,862
90% 89.6% 82,976 82,620
80% 79.7% 73,757 73,519
70% 70.2% 64,537 64,701
60% 59.7% 55,317 55,013
50% 50.2% 46,098 46,250
40% 39.5% 36,878 36,405
30% 29.4% 27,659 27,083
20% 19.5% 18,439 17,940
10% 10.3% 9,220 9,532
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.108' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,745
Calibration 2     90,708
Calibration 3     90,503
ssj_ops@calibrated=90,606
100% 99.8% 90,606 90,454
90% 90.8% 81,545 82,315
80% 79.7% 72,485 72,184
70% 70.0% 63,424 63,425
60% 60.0% 54,363 54,405
50% 50.2% 45,303 45,493
40% 39.6% 36,242 35,907
30% 29.9% 27,182 27,111
20% 20.4% 18,121 18,517
10% 10.3% 9,061 9,321
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.109' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,668
Calibration 2     93,204
Calibration 3     93,538
ssj_ops@calibrated=93,371
100% 99.8% 93,371 93,210
90% 90.0% 84,034 83,990
80% 79.2% 74,697 73,953
70% 70.2% 65,360 65,568
60% 60.6% 56,023 56,540
50% 50.6% 46,686 47,246
40% 39.5% 37,348 36,892
30% 30.3% 28,011 28,265
20% 20.3% 18,674 18,970
10% 9.8% 9,337 9,122
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.110' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,013
Calibration 2     90,613
Calibration 3     90,663
ssj_ops@calibrated=90,638
100% 99.8% 90,638 90,487
90% 90.9% 81,574 82,385
80% 79.3% 72,511 71,861
70% 68.9% 63,447 62,454
60% 59.4% 54,383 53,846
50% 50.5% 45,319 45,752
40% 39.2% 36,255 35,493
30% 29.7% 27,191 26,913
20% 20.1% 18,128 18,241
10% 10.6% 9,064 9,616
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.111' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,536
Calibration 2     90,511
Calibration 3     90,321
ssj_ops@calibrated=90,416
100% 100.1% 90,416 90,507
90% 90.4% 81,374 81,775
80% 79.7% 72,333 72,049
70% 70.1% 63,291 63,417
60% 60.9% 54,250 55,038
50% 49.8% 45,208 45,029
40% 40.1% 36,166 36,240
30% 29.8% 27,125 26,988
20% 19.9% 18,083 18,032
10% 10.2% 9,042 9,242
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.112' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,719
Calibration 2     91,906
Calibration 3     91,602
ssj_ops@calibrated=91,754
100% 99.9% 91,754 91,692
90% 90.3% 82,579 82,837
80% 79.7% 73,403 73,110
70% 70.6% 64,228 64,773
60% 60.7% 55,052 55,709
50% 49.8% 45,877 45,672
40% 39.5% 36,702 36,272
30% 29.7% 27,526 27,291
20% 20.0% 18,351 18,357
10% 10.1% 9,175 9,229
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
