Lenovo Global Technology ThinkSystem SN550 ssj_ops@100% = 4,942,739
ssj_ops@100% per JVM = 88,263
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, Beijing, China Test Date: Oct 11, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,153,037
Calibration 2     5,040,174
Calibration 3     4,970,830
ssj_ops@calibrated=5,005,502
100% 98.7% 5,005,502 4,942,739
90% 90.2% 4,504,952 4,514,710
80% 80.0% 4,004,402 4,005,846
70% 69.8% 3,503,851 3,495,566
60% 60.1% 3,003,301 3,005,915
50% 50.1% 2,502,751 2,506,368
40% 40.0% 2,002,201 2,003,305
30% 30.0% 1,501,651 1,499,177
20% 20.0% 1,001,100 1,000,928
10% 10.0% 500,550 499,106
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28 Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,3,5,8,10,12,13,15,17,20,22 and 24 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB M.2 SSD (Lenovo P/N SSD7A20774)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Connection X722 for 10GBASE-T
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter
OS Version: Version 6.3.9600 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE[0,2] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: IVE111C
Management Firmware Version: TEI307N
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
R7-192.001 87,981
R7-192.002 89,931
R7-192.003 88,398
R7-192.004 87,968
R7-192.005 91,663
R7-192.006 89,755
R7-192.007 90,501
R7-192.008 89,631
R7-192.009 89,414
R7-192.010 87,928
R7-192.011 88,775
R7-192.012 89,980
R7-192.013 89,343
R7-192.014 88,531
R7-192.015 88,301
R7-192.016 89,277
R7-192.017 89,227
R7-192.018 88,164
R7-192.019 87,826
R7-192.020 89,043
R7-192.021 89,075
R7-192.022 86,201
R7-192.023 90,707
R7-192.024 88,690
R7-192.025 88,748
R7-192.026 88,391
R7-192.027 88,820
R7-192.028 87,760
R7-192.029 87,309
R7-192.030 88,442
R7-192.031 87,213
R7-192.032 88,006
R7-192.033 88,152
R7-192.034 88,293
R7-192.035 87,420
R7-192.036 87,624
R7-192.037 89,042
R7-192.038 86,215
R7-192.039 86,251
R7-192.040 87,857
R7-192.041 89,574
R7-192.042 86,837
R7-192.043 87,623
R7-192.044 90,290
R7-192.045 87,043
R7-192.046 85,563
R7-192.047 86,519
R7-192.048 88,244
R7-192.049 86,931
R7-192.050 86,597
R7-192.051 87,862
R7-192.052 88,295
R7-192.053 89,370
R7-192.054 86,479
R7-192.055 87,515
R7-192.056 86,146
ssj_ops@100% 4,942,739
ssj_ops@100% per JVM 88,263

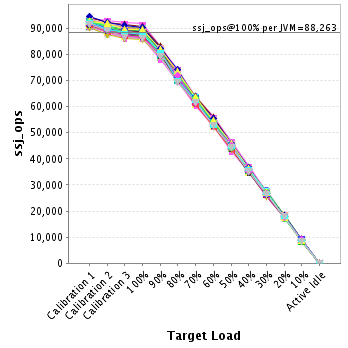

Graph of per-instance results
JVM 'R7-192.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,612
Calibration 2     88,990
Calibration 3     88,674
ssj_ops@calibrated=88,832
100% 99.0% 88,832 87,981
90% 89.1% 79,949 79,164
80% 81.0% 71,066 71,975
70% 69.6% 62,182 61,849
60% 59.4% 53,299 52,800
50% 49.9% 44,416 44,370
40% 40.9% 35,533 36,290
30% 30.1% 26,650 26,708
20% 19.8% 17,766 17,570
10% 10.3% 8,883 9,162
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,636
Calibration 2     91,351
Calibration 3     90,573
ssj_ops@calibrated=90,962
100% 98.9% 90,962 89,931
90% 90.4% 81,866 82,187
80% 80.5% 72,770 73,195
70% 70.1% 63,674 63,746
60% 60.0% 54,577 54,581
50% 49.8% 45,481 45,306
40% 39.6% 36,385 36,052
30% 30.8% 27,289 28,040
20% 19.9% 18,192 18,125
10% 9.5% 9,096 8,679
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,772
Calibration 2     90,139
Calibration 3     88,626
ssj_ops@calibrated=89,383
100% 98.9% 89,383 88,398
90% 90.1% 80,444 80,523
80% 80.2% 71,506 71,650
70% 71.0% 62,568 63,432
60% 60.4% 53,630 53,952
50% 50.7% 44,691 45,287
40% 40.7% 35,753 36,388
30% 29.7% 26,815 26,582
20% 19.9% 17,877 17,786
10% 10.3% 8,938 9,204
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,731
Calibration 2     89,450
Calibration 3     88,805
ssj_ops@calibrated=89,128
100% 98.7% 89,128 87,968
90% 90.9% 80,215 81,028
80% 81.4% 71,302 72,547
70% 69.6% 62,389 62,009
60% 59.7% 53,477 53,236
50% 50.6% 44,564 45,070
40% 39.7% 35,651 35,389
30% 29.6% 26,738 26,348
20% 19.9% 17,826 17,693
10% 9.7% 8,913 8,633
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

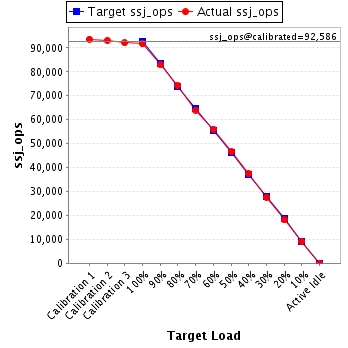

JVM 'R7-192.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,665
Calibration 2     93,058
Calibration 3     92,114
ssj_ops@calibrated=92,586
100% 99.0% 92,586 91,663
90% 89.6% 83,327 82,924
80% 80.2% 74,069 74,283
70% 69.2% 64,810 64,057
60% 60.6% 55,552 56,102
50% 50.5% 46,293 46,719
40% 40.4% 37,034 37,405
30% 29.8% 27,776 27,577
20% 19.5% 18,517 18,083
10% 9.9% 9,259 9,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,467
Calibration 2     91,058
Calibration 3     90,099
ssj_ops@calibrated=90,578
100% 99.1% 90,578 89,755
90% 90.2% 81,521 81,674
80% 79.4% 72,463 71,931
70% 70.0% 63,405 63,382
60% 60.3% 54,347 54,647
50% 49.5% 45,289 44,805
40% 39.2% 36,231 35,544
30% 29.8% 27,174 27,034
20% 19.8% 18,116 17,920
10% 10.0% 9,058 9,062
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,403
Calibration 2     91,447
Calibration 3     91,003
ssj_ops@calibrated=91,225
100% 99.2% 91,225 90,501
90% 90.7% 82,102 82,715
80% 79.9% 72,980 72,888
70% 70.3% 63,857 64,175
60% 61.0% 54,735 55,688
50% 50.2% 45,612 45,800
40% 40.0% 36,490 36,455
30% 30.1% 27,367 27,480
20% 20.2% 18,245 18,440
10% 9.7% 9,122 8,874
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,436
Calibration 2     90,532
Calibration 3     89,957
ssj_ops@calibrated=90,245
100% 99.3% 90,245 89,631
90% 90.7% 81,220 81,877
80% 80.0% 72,196 72,240
70% 70.0% 63,171 63,174
60% 60.5% 54,147 54,627
50% 50.4% 45,122 45,448
40% 40.0% 36,098 36,081
30% 29.8% 27,073 26,903
20% 19.7% 18,049 17,779
10% 9.8% 9,024 8,862
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,867
Calibration 2     90,453
Calibration 3     89,772
ssj_ops@calibrated=90,113
100% 99.2% 90,113 89,414
90% 90.1% 81,101 81,169
80% 79.6% 72,090 71,771
70% 69.4% 63,079 62,499
60% 59.9% 54,068 53,940
50% 49.9% 45,056 44,965
40% 40.2% 36,045 36,232
30% 29.9% 27,034 26,973
20% 19.5% 18,023 17,577
10% 10.0% 9,011 8,983
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,210
Calibration 2     89,626
Calibration 3     87,892
ssj_ops@calibrated=88,759
100% 99.1% 88,759 87,928
90% 90.3% 79,883 80,155
80% 80.2% 71,007 71,149
70% 70.3% 62,131 62,439
60% 59.9% 53,255 53,171
50% 49.6% 44,379 44,051
40% 39.6% 35,504 35,184
30% 29.6% 26,628 26,240
20% 20.3% 17,752 17,975
10% 10.0% 8,876 8,842
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,627
Calibration 2     90,009
Calibration 3     89,229
ssj_ops@calibrated=89,619
100% 99.1% 89,619 88,775
90% 88.5% 80,657 79,292
80% 80.0% 71,695 71,701
70% 69.4% 62,733 62,160
60% 59.7% 53,771 53,542
50% 49.9% 44,810 44,690
40% 39.3% 35,848 35,234
30% 30.0% 26,886 26,923
20% 20.2% 17,924 18,110
10% 9.4% 8,962 8,449
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,502
Calibration 2     91,467
Calibration 3     90,196
ssj_ops@calibrated=90,831
100% 99.1% 90,831 89,980
90% 91.2% 81,748 82,816
80% 79.3% 72,665 72,044
70% 70.0% 63,582 63,625
60% 60.3% 54,499 54,753
50% 49.8% 45,416 45,228
40% 40.0% 36,333 36,377
30% 29.8% 27,249 27,090
20% 20.0% 18,166 18,158
10% 10.0% 9,083 9,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,989
Calibration 2     90,560
Calibration 3     89,820
ssj_ops@calibrated=90,190
100% 99.1% 90,190 89,343
90% 90.5% 81,171 81,652
80% 80.0% 72,152 72,117
70% 69.4% 63,133 62,548
60% 59.4% 54,114 53,559
50% 50.2% 45,095 45,304
40% 39.1% 36,076 35,292
30% 29.1% 27,057 26,272
20% 19.5% 18,038 17,602
10% 10.1% 9,019 9,121
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,667
Calibration 2     90,027
Calibration 3     89,236
ssj_ops@calibrated=89,632
100% 98.8% 89,632 88,531
90% 89.7% 80,668 80,365
80% 81.7% 71,705 73,188
70% 70.7% 62,742 63,365
60% 59.6% 53,779 53,438
50% 50.1% 44,816 44,929
40% 40.4% 35,853 36,185
30% 29.8% 26,889 26,749
20% 20.3% 17,926 18,210
10% 9.9% 8,963 8,879
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,160
Calibration 2     89,773
Calibration 3     89,447
ssj_ops@calibrated=89,610
100% 98.5% 89,610 88,301
90% 91.1% 80,649 81,627
80% 79.1% 71,688 70,856
70% 69.9% 62,727 62,637
60% 59.1% 53,766 52,919
50% 50.7% 44,805 45,459
40% 39.8% 35,844 35,665
30% 30.1% 26,883 26,991
20% 20.1% 17,922 18,015
10% 10.2% 8,961 9,124
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,529
Calibration 2     90,520
Calibration 3     89,667
ssj_ops@calibrated=90,094
100% 99.1% 90,094 89,277
90% 90.6% 81,084 81,603
80% 80.3% 72,075 72,369
70% 69.7% 63,066 62,759
60% 59.9% 54,056 53,937
50% 49.9% 45,047 44,951
40% 39.7% 36,038 35,771
30% 29.9% 27,028 26,923
20% 20.2% 18,019 18,162
10% 10.1% 9,009 9,111
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,985
Calibration 2     90,578
Calibration 3     89,579
ssj_ops@calibrated=90,078
100% 99.1% 90,078 89,227
90% 89.8% 81,071 80,933
80% 80.1% 72,063 72,186
70% 69.7% 63,055 62,795
60% 59.8% 54,047 53,890
50% 49.4% 45,039 44,478
40% 40.3% 36,031 36,330
30% 29.8% 27,024 26,834
20% 20.0% 18,016 18,007
10% 10.1% 9,008 9,124
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,720
Calibration 2     88,772
Calibration 3     88,932
ssj_ops@calibrated=88,852
100% 99.2% 88,852 88,164
90% 88.7% 79,967 78,838
80% 79.2% 71,081 70,372
70% 69.2% 62,196 61,467
60% 60.0% 53,311 53,321
50% 49.7% 44,426 44,118
40% 39.8% 35,541 35,341
30% 30.8% 26,656 27,329
20% 20.0% 17,770 17,815
10% 10.2% 8,885 9,083
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,263
Calibration 2     88,966
Calibration 3     88,444
ssj_ops@calibrated=88,705
100% 99.0% 88,705 87,826
90% 91.7% 79,835 81,349
80% 80.5% 70,964 71,385
70% 70.2% 62,094 62,241
60% 60.4% 53,223 53,536
50% 49.8% 44,353 44,144
40% 40.4% 35,482 35,840
30% 30.1% 26,612 26,723
20% 19.6% 17,741 17,416
10% 9.8% 8,871 8,687
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,599
Calibration 2     90,701
Calibration 3     89,951
ssj_ops@calibrated=90,326
100% 98.6% 90,326 89,043
90% 90.0% 81,293 81,288
80% 79.9% 72,261 72,148
70% 69.5% 63,228 62,762
60% 60.4% 54,195 54,556
50% 49.3% 45,163 44,567
40% 39.5% 36,130 35,634
30% 29.8% 27,098 26,919
20% 20.0% 18,065 18,032
10% 10.1% 9,033 9,120
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,781
Calibration 2     90,968
Calibration 3     90,089
ssj_ops@calibrated=90,528
100% 98.4% 90,528 89,075
90% 90.0% 81,475 81,475
80% 78.6% 72,423 71,150
70% 70.1% 63,370 63,475
60% 60.1% 54,317 54,437
50% 49.9% 45,264 45,163
40% 40.0% 36,211 36,251
30% 30.4% 27,158 27,493
20% 20.3% 18,106 18,347
10% 10.0% 9,053 9,029
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,181
Calibration 2     87,654
Calibration 3     86,903
ssj_ops@calibrated=87,279
100% 98.8% 87,279 86,201
90% 90.9% 78,551 79,299
80% 80.4% 69,823 70,182
70% 69.3% 61,095 60,458
60% 60.7% 52,367 52,961
50% 49.8% 43,639 43,455
40% 39.7% 34,912 34,606
30% 30.0% 26,184 26,140
20% 20.4% 17,456 17,770
10% 10.1% 8,728 8,803
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,025
Calibration 2     92,225
Calibration 3     91,471
ssj_ops@calibrated=91,848
100% 98.8% 91,848 90,707
90% 90.5% 82,663 83,154
80% 79.7% 73,478 73,233
70% 69.4% 64,294 63,711
60% 60.7% 55,109 55,759
50% 50.1% 45,924 46,038
40% 39.9% 36,739 36,659
30% 29.6% 27,554 27,149
20% 19.9% 18,370 18,258
10% 9.8% 9,185 9,042
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,141
Calibration 2     90,441
Calibration 3     89,941
ssj_ops@calibrated=90,191
100% 98.3% 90,191 88,690
90% 90.6% 81,172 81,690
80% 79.1% 72,153 71,383
70% 69.9% 63,134 63,081
60% 59.9% 54,115 54,061
50% 50.0% 45,095 45,130
40% 39.9% 36,076 35,942
30% 30.0% 27,057 27,080
20% 20.0% 18,038 18,002
10% 9.8% 9,019 8,879
Active Idle   0 0

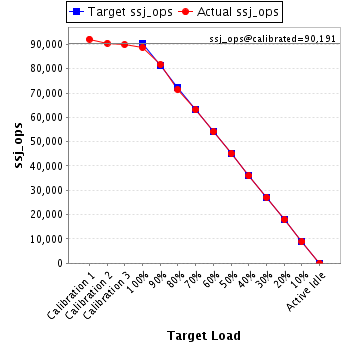

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,602
Calibration 2     90,221
Calibration 3     89,394
ssj_ops@calibrated=89,808
100% 98.8% 89,808 88,748
90% 90.6% 80,827 81,335
80% 79.7% 71,846 71,594
70% 69.8% 62,865 62,702
60% 60.8% 53,885 54,562
50% 50.3% 44,904 45,133
40% 40.0% 35,923 35,896
30% 30.5% 26,942 27,357
20% 19.9% 17,962 17,858
10% 10.0% 8,981 8,981
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,279
Calibration 2     89,313
Calibration 3     88,986
ssj_ops@calibrated=89,150
100% 99.1% 89,150 88,391
90% 89.2% 80,235 79,488
80% 80.0% 71,320 71,329
70% 70.3% 62,405 62,647
60% 59.7% 53,490 53,250
50% 50.5% 44,575 45,011
40% 40.4% 35,660 36,019
30% 29.6% 26,745 26,425
20% 20.2% 17,830 18,004
10% 9.9% 8,915 8,818
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,111
Calibration 2     89,982
Calibration 3     89,208
ssj_ops@calibrated=89,595
100% 99.1% 89,595 88,820
90% 90.0% 80,636 80,643
80% 79.7% 71,676 71,394
70% 70.6% 62,717 63,252
60% 60.8% 53,757 54,461
50% 50.0% 44,798 44,755
40% 40.5% 35,838 36,313
30% 28.9% 26,879 25,919
20% 19.7% 17,919 17,687
10% 9.8% 8,960 8,783
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,707
Calibration 2     89,128
Calibration 3     88,288
ssj_ops@calibrated=88,708
100% 98.9% 88,708 87,760
90% 90.6% 79,837 80,371
80% 79.5% 70,967 70,492
70% 68.8% 62,096 61,020
60% 60.3% 53,225 53,447
50% 50.0% 44,354 44,392
40% 41.1% 35,483 36,456
30% 30.2% 26,612 26,810
20% 20.0% 17,742 17,762
10% 10.3% 8,871 9,150
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,807
Calibration 2     89,530
Calibration 3     87,570
ssj_ops@calibrated=88,550
100% 98.6% 88,550 87,309
90% 90.6% 79,695 80,208
80% 80.1% 70,840 70,969
70% 71.1% 61,985 62,919
60% 59.5% 53,130 52,725
50% 49.9% 44,275 44,187
40% 39.9% 35,420 35,344
30% 29.5% 26,565 26,086
20% 20.1% 17,710 17,811
10% 10.2% 8,855 9,070
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,478
Calibration 2     90,361
Calibration 3     88,508
ssj_ops@calibrated=89,434
100% 98.9% 89,434 88,442
90% 90.1% 80,491 80,561
80% 79.8% 71,547 71,371
70% 69.8% 62,604 62,409
60% 59.5% 53,661 53,229
50% 49.7% 44,717 44,452
40% 40.2% 35,774 35,965
30% 29.5% 26,830 26,387
20% 20.4% 17,887 18,269
10% 10.2% 8,943 9,099
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,636
Calibration 2     89,449
Calibration 3     87,842
ssj_ops@calibrated=88,645
100% 98.4% 88,645 87,213
90% 89.5% 79,781 79,346
80% 80.1% 70,916 70,998
70% 69.5% 62,052 61,586
60% 59.9% 53,187 53,113
50% 50.0% 44,323 44,291
40% 39.6% 35,458 35,060
30% 29.6% 26,594 26,261
20% 19.7% 17,729 17,501
10% 9.7% 8,865 8,596
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,230
Calibration 2     89,791
Calibration 3     88,657
ssj_ops@calibrated=89,224
100% 98.6% 89,224 88,006
90% 90.6% 80,301 80,880
80% 79.2% 71,379 70,679
70% 70.2% 62,457 62,665
60% 59.7% 53,534 53,310
50% 50.8% 44,612 45,302
40% 40.3% 35,689 35,966
30% 30.1% 26,767 26,873
20% 19.9% 17,845 17,799
10% 10.1% 8,922 8,975
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,595
Calibration 2     90,479
Calibration 3     88,656
ssj_ops@calibrated=89,567
100% 98.4% 89,567 88,152
90% 89.1% 80,611 79,779
80% 80.8% 71,654 72,396
70% 69.4% 62,697 62,136
60% 59.6% 53,740 53,345
50% 49.5% 44,784 44,293
40% 40.2% 35,827 35,999
30% 30.1% 26,870 26,945
20% 20.2% 17,913 18,137
10% 10.3% 8,957 9,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,401
Calibration 2     89,781
Calibration 3     88,546
ssj_ops@calibrated=89,164
100% 99.0% 89,164 88,293
90% 90.2% 80,247 80,392
80% 80.2% 71,331 71,515
70% 69.3% 62,415 61,822
60% 59.7% 53,498 53,248
50% 51.4% 44,582 45,836
40% 39.9% 35,665 35,572
30% 30.8% 26,749 27,472
20% 19.9% 17,833 17,709
10% 10.2% 8,916 9,117
Active Idle   0 0

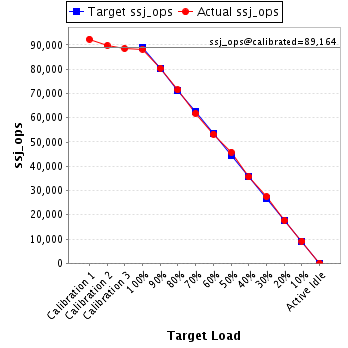

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,658
Calibration 2     89,650
Calibration 3     87,782
ssj_ops@calibrated=88,716
100% 98.5% 88,716 87,420
90% 89.9% 79,844 79,757
80% 81.0% 70,973 71,828
70% 69.1% 62,101 61,289
60% 60.0% 53,230 53,265
50% 50.0% 44,358 44,401
40% 39.7% 35,486 35,198
30% 30.2% 26,615 26,761
20% 20.2% 17,743 17,900
10% 10.0% 8,872 8,867
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,632
Calibration 2     88,951
Calibration 3     87,663
ssj_ops@calibrated=88,307
100% 99.2% 88,307 87,624
90% 90.0% 79,476 79,465
80% 80.3% 70,646 70,924
70% 69.9% 61,815 61,757
60% 59.5% 52,984 52,583
50% 50.3% 44,154 44,387
40% 40.5% 35,323 35,774
30% 29.2% 26,492 25,771
20% 20.6% 17,661 18,165
10% 10.0% 8,831 8,846
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,474
Calibration 2     90,825
Calibration 3     89,521
ssj_ops@calibrated=90,173
100% 98.7% 90,173 89,042
90% 89.2% 81,156 80,436
80% 80.1% 72,139 72,194
70% 70.7% 63,121 63,743
60% 60.3% 54,104 54,413
50% 50.0% 45,087 45,042
40% 39.3% 36,069 35,481
30% 29.8% 27,052 26,887
20% 20.5% 18,035 18,519
10% 10.1% 9,017 9,129
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,986
Calibration 2     88,306
Calibration 3     86,823
ssj_ops@calibrated=87,564
100% 98.5% 87,564 86,215
90% 90.6% 78,808 79,299
80% 80.3% 70,051 70,309
70% 69.5% 61,295 60,852
60% 60.0% 52,538 52,504
50% 50.4% 43,782 44,166
40% 39.7% 35,026 34,803
30% 30.4% 26,269 26,596
20% 20.3% 17,513 17,791
10% 10.2% 8,756 8,933
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,552
Calibration 2     88,392
Calibration 3     86,288
ssj_ops@calibrated=87,340
100% 98.8% 87,340 86,251
90% 89.2% 78,606 77,897
80% 79.9% 69,872 69,789
70% 69.1% 61,138 60,315
60% 60.1% 52,404 52,454
50% 49.0% 43,670 42,754
40% 40.1% 34,936 34,983
30% 29.8% 26,202 26,019
20% 19.8% 17,468 17,252
10% 9.8% 8,734 8,537
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,335
Calibration 2     89,986
Calibration 3     88,226
ssj_ops@calibrated=89,106
100% 98.6% 89,106 87,857
90% 90.9% 80,195 81,031
80% 79.9% 71,285 71,172
70% 69.7% 62,374 62,137
60% 59.9% 53,463 53,387
50% 50.3% 44,553 44,834
40% 40.3% 35,642 35,919
30% 30.5% 26,732 27,148
20% 20.3% 17,821 18,091
10% 9.7% 8,911 8,621
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,343
Calibration 2     91,834
Calibration 3     89,908
ssj_ops@calibrated=90,871
100% 98.6% 90,871 89,574
90% 90.4% 81,784 82,153
80% 80.7% 72,697 73,301
70% 69.4% 63,610 63,101
60% 60.6% 54,523 55,068
50% 50.1% 45,436 45,547
40% 39.9% 36,348 36,254
30% 30.0% 27,261 27,299
20% 20.3% 18,174 18,479
10% 9.7% 9,087 8,775
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,206
Calibration 2     88,924
Calibration 3     87,302
ssj_ops@calibrated=88,113
100% 98.6% 88,113 86,837
90% 90.3% 79,302 79,559
80% 79.5% 70,490 70,055
70% 70.1% 61,679 61,774
60% 59.7% 52,868 52,614
50% 50.0% 44,056 44,033
40% 40.3% 35,245 35,495
30% 31.0% 26,434 27,289
20% 19.8% 17,623 17,479
10% 10.0% 8,811 8,815
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,906
Calibration 2     90,028
Calibration 3     88,143
ssj_ops@calibrated=89,086
100% 98.4% 89,086 87,623
90% 90.6% 80,177 80,736
80% 80.6% 71,268 71,843
70% 69.8% 62,360 62,183
60% 60.3% 53,451 53,684
50% 50.5% 44,543 44,985
40% 40.3% 35,634 35,919
30% 29.6% 26,726 26,352
20% 20.2% 17,817 17,977
10% 10.1% 8,909 8,996
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,593
Calibration 2     92,396
Calibration 3     90,979
ssj_ops@calibrated=91,688
100% 98.5% 91,688 90,290
90% 89.8% 82,519 82,381
80% 80.8% 73,350 74,099
70% 69.0% 64,181 63,233
60% 60.6% 55,013 55,569
50% 50.1% 45,844 45,952
40% 40.1% 36,675 36,805
30% 29.3% 27,506 26,856
20% 19.8% 18,338 18,114
10% 10.0% 9,169 9,204
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,803
Calibration 2     89,063
Calibration 3     87,287
ssj_ops@calibrated=88,175
100% 98.7% 88,175 87,043
90% 90.3% 79,357 79,595
80% 79.8% 70,540 70,341
70% 70.3% 61,722 62,029
60% 60.2% 52,905 53,118
50% 50.0% 44,087 44,075
40% 39.8% 35,270 35,115
30% 31.1% 26,452 27,383
20% 20.3% 17,635 17,869
10% 10.1% 8,817 8,925
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,504
Calibration 2     87,782
Calibration 3     86,066
ssj_ops@calibrated=86,924
100% 98.4% 86,924 85,563
90% 91.2% 78,232 79,294
80% 80.5% 69,539 69,954
70% 70.3% 60,847 61,080
60% 60.3% 52,154 52,445
50% 50.1% 43,462 43,590
40% 40.6% 34,770 35,257
30% 29.6% 26,077 25,739
20% 20.1% 17,385 17,433
10% 9.6% 8,692 8,334
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,379
Calibration 2     88,702
Calibration 3     86,930
ssj_ops@calibrated=87,816
100% 98.5% 87,816 86,519
90% 90.7% 79,035 79,624
80% 80.4% 70,253 70,628
70% 69.1% 61,471 60,711
60% 61.1% 52,690 53,682
50% 50.0% 43,908 43,896
40% 40.2% 35,127 35,281
30% 29.3% 26,345 25,739
20% 20.0% 17,563 17,581
10% 10.1% 8,782 8,850
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,639
Calibration 2     90,055
Calibration 3     88,383
ssj_ops@calibrated=89,219
100% 98.9% 89,219 88,244
90% 89.2% 80,297 79,604
80% 78.6% 71,375 70,151
70% 70.3% 62,453 62,707
60% 60.6% 53,532 54,100
50% 50.4% 44,610 44,948
40% 40.4% 35,688 36,054
30% 29.9% 26,766 26,678
20% 19.8% 17,844 17,663
10% 9.7% 8,922 8,696
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,497
Calibration 2     89,059
Calibration 3     87,134
ssj_ops@calibrated=88,097
100% 98.7% 88,097 86,931
90% 90.4% 79,287 79,605
80% 79.7% 70,477 70,197
70% 70.3% 61,668 61,961
60% 59.8% 52,858 52,695
50% 50.1% 44,048 44,116
40% 39.3% 35,239 34,607
30% 29.9% 26,429 26,326
20% 20.1% 17,619 17,703
10% 10.0% 8,810 8,850
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,509
Calibration 2     88,765
Calibration 3     87,123
ssj_ops@calibrated=87,944
100% 98.5% 87,944 86,597
90% 91.2% 79,150 80,230
80% 80.0% 70,355 70,317
70% 69.2% 61,561 60,823
60% 59.5% 52,767 52,354
50% 49.7% 43,972 43,704
40% 40.4% 35,178 35,552
30% 29.8% 26,383 26,203
20% 20.0% 17,589 17,554
10% 9.9% 8,794 8,708
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,239
Calibration 2     90,094
Calibration 3     88,669
ssj_ops@calibrated=89,382
100% 98.3% 89,382 87,862
90% 89.8% 80,443 80,246
80% 79.5% 71,505 71,038
70% 70.5% 62,567 63,008
60% 59.5% 53,629 53,150
50% 50.2% 44,691 44,852
40% 40.1% 35,753 35,883
30% 30.0% 26,814 26,814
20% 20.1% 17,876 17,942
10% 10.2% 8,938 9,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,530
Calibration 2     90,712
Calibration 3     88,590
ssj_ops@calibrated=89,651
100% 98.5% 89,651 88,295
90% 89.3% 80,686 80,067
80% 80.5% 71,721 72,171
70% 70.4% 62,756 63,154
60% 60.0% 53,791 53,762
50% 49.6% 44,826 44,509
40% 39.8% 35,861 35,664
30% 30.1% 26,895 27,015
20% 19.2% 17,930 17,175
10% 9.8% 8,965 8,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,566
Calibration 2     91,787
Calibration 3     89,573
ssj_ops@calibrated=90,680
100% 98.6% 90,680 89,370
90% 90.3% 81,612 81,869
80% 80.8% 72,544 73,306
70% 70.0% 63,476 63,479
60% 60.4% 54,408 54,805
50% 50.4% 45,340 45,726
40% 40.0% 36,272 36,240
30% 29.7% 27,204 26,920
20% 19.5% 18,136 17,662
10% 9.8% 9,068 8,887
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,959
Calibration 2     89,128
Calibration 3     87,432
ssj_ops@calibrated=88,280
100% 98.0% 88,280 86,479
90% 90.4% 79,452 79,805
80% 81.7% 70,624 72,096
70% 69.8% 61,796 61,583
60% 59.8% 52,968 52,780
50% 51.0% 44,140 45,040
40% 39.6% 35,312 34,991
30% 30.5% 26,484 26,902
20% 20.0% 17,656 17,612
10% 10.3% 8,828 9,114
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,345
Calibration 2     89,733
Calibration 3     88,312
ssj_ops@calibrated=89,023
100% 98.3% 89,023 87,515
90% 91.1% 80,121 81,091
80% 78.8% 71,218 70,158
70% 69.9% 62,316 62,207
60% 59.1% 53,414 52,652
50% 49.9% 44,511 44,440
40% 40.7% 35,609 36,218
30% 30.4% 26,707 27,046
20% 19.8% 17,805 17,604
10% 10.0% 8,902 8,866
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R7-192.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,571
Calibration 2     89,199
Calibration 3     86,617
ssj_ops@calibrated=87,908
100% 98.0% 87,908 86,146
90% 90.1% 79,117 79,168
80% 78.8% 70,326 69,294
70% 69.9% 61,536 61,438
60% 60.0% 52,745 52,732
50% 50.3% 43,954 44,242
40% 39.9% 35,163 35,075
30% 30.0% 26,372 26,398
20% 20.5% 17,582 17,977
10% 9.6% 8,791 8,439
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
