Lenovo Global Technology ThinkSystem SN550 ssj_ops@100% = 4,979,076
ssj_ops@100% per JVM = 88,912
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, Beijing, China Test Date: Oct 11, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,152,163
Calibration 2     5,027,084
Calibration 3     4,960,032
ssj_ops@calibrated=4,993,558
100% 99.7% 4,993,558 4,979,076
90% 90.4% 4,494,202 4,513,128
80% 80.0% 3,994,846 3,992,852
70% 70.0% 3,495,490 3,494,908
60% 59.9% 2,996,135 2,989,068
50% 50.1% 2,496,779 2,503,881
40% 39.9% 1,997,423 1,993,227
30% 30.0% 1,498,067 1,498,288
20% 19.9% 998,712 994,580
10% 10.0% 499,356 498,718
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28 Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,3,5,8,10,12,13,15,17,20,22 and 24 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB M.2 SSD (Lenovo P/N SSD7A20774)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Connection X722 for 10GBASE-T
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter
OS Version: Version 6.3.9600 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE[0,2] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: IVE111C
Management Firmware Version: TEI307N
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
L5-187.001 88,817
L5-187.002 90,754
L5-187.003 88,576
L5-187.004 88,577
L5-187.005 88,998
L5-187.006 89,920
L5-187.007 88,076
L5-187.008 92,599
L5-187.009 90,222
L5-187.010 88,072
L5-187.011 86,952
L5-187.012 88,498
L5-187.013 89,397
L5-187.014 89,204
L5-187.015 89,311
L5-187.016 89,822
L5-187.017 89,257
L5-187.018 89,213
L5-187.019 87,460
L5-187.020 92,093
L5-187.021 89,621
L5-187.022 88,779
L5-187.023 90,120
L5-187.024 90,077
L5-187.025 88,696
L5-187.026 89,546
L5-187.027 88,876
L5-187.028 89,067
L5-187.029 90,468
L5-187.030 88,345
L5-187.031 88,247
L5-187.032 87,809
L5-187.033 88,658
L5-187.034 88,760
L5-187.035 87,965
L5-187.036 88,117
L5-187.037 89,168
L5-187.038 87,356
L5-187.039 88,070
L5-187.040 88,072
L5-187.041 89,842
L5-187.042 88,727
L5-187.043 87,327
L5-187.044 90,871
L5-187.045 88,205
L5-187.046 88,363
L5-187.047 88,102
L5-187.048 88,253
L5-187.049 88,383
L5-187.050 87,597
L5-187.051 87,768
L5-187.052 88,403
L5-187.053 88,133
L5-187.054 90,438
L5-187.055 88,088
L5-187.056 88,938
ssj_ops@100% 4,979,076
ssj_ops@100% per JVM 88,912
Graph of per-instance results
JVM 'L5-187.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,889
Calibration 2     89,112
Calibration 3     88,830
ssj_ops@calibrated=88,971
100% 99.8% 88,971 88,817
90% 89.5% 80,074 79,621
80% 80.8% 71,177 71,887
70% 69.8% 62,279 62,109
60% 60.1% 53,382 53,483
50% 50.7% 44,485 45,153
40% 39.5% 35,588 35,134
30% 29.6% 26,691 26,340
20% 19.8% 17,794 17,577
10% 9.7% 8,897 8,604
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,051
Calibration 2     90,888
Calibration 3     90,338
ssj_ops@calibrated=90,613
100% 100.2% 90,613 90,754
90% 89.1% 81,552 80,748
80% 79.7% 72,491 72,211
70% 69.6% 63,429 63,039
60% 59.3% 54,368 53,769
50% 50.0% 45,307 45,336
40% 39.7% 36,245 36,006
30% 30.0% 27,184 27,211
20% 20.4% 18,123 18,465
10% 10.1% 9,061 9,158
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,151
Calibration 2     88,671
Calibration 3     88,114
ssj_ops@calibrated=88,392
100% 100.2% 88,392 88,576
90% 90.6% 79,553 80,079
80% 80.9% 70,714 71,486
70% 69.9% 61,875 61,788
60% 59.5% 53,035 52,596
50% 50.1% 44,196 44,326
40% 39.5% 35,357 34,945
30% 30.2% 26,518 26,691
20% 20.3% 17,678 17,958
10% 10.0% 8,839 8,866
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,513
Calibration 2     89,307
Calibration 3     88,560
ssj_ops@calibrated=88,934
100% 99.6% 88,934 88,577
90% 89.6% 80,040 79,672
80% 79.9% 71,147 71,088
70% 70.3% 62,254 62,555
60% 60.1% 53,360 53,492
50% 50.9% 44,467 45,226
40% 39.4% 35,573 35,064
30% 30.4% 26,680 27,005
20% 20.1% 17,787 17,853
10% 10.1% 8,893 8,995
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,559
Calibration 2     89,318
Calibration 3     89,332
ssj_ops@calibrated=89,325
100% 99.6% 89,325 88,998
90% 90.4% 80,392 80,765
80% 79.9% 71,460 71,342
70% 69.5% 62,527 62,069
60% 59.7% 53,595 53,369
50% 50.1% 44,662 44,785
40% 40.1% 35,730 35,844
30% 29.9% 26,797 26,696
20% 20.0% 17,865 17,867
10% 10.0% 8,932 8,904
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,647
Calibration 2     89,818
Calibration 3     89,650
ssj_ops@calibrated=89,734
100% 100.2% 89,734 89,920
90% 88.9% 80,761 79,732
80% 79.9% 71,787 71,675
70% 70.5% 62,814 63,301
60% 59.9% 53,841 53,721
50% 49.9% 44,867 44,781
40% 39.2% 35,894 35,142
30% 30.1% 26,920 27,002
20% 20.2% 17,947 18,094
10% 10.4% 8,973 9,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,670
Calibration 2     88,548
Calibration 3     88,579
ssj_ops@calibrated=88,563
100% 99.4% 88,563 88,076
90% 91.8% 79,707 81,338
80% 79.7% 70,851 70,584
70% 70.0% 61,994 61,959
60% 59.1% 53,138 52,303
50% 49.7% 44,282 43,985
40% 39.9% 35,425 35,369
30% 30.2% 26,569 26,724
20% 19.8% 17,713 17,551
10% 10.2% 8,856 8,999
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,540
Calibration 2     92,287
Calibration 3     92,229
ssj_ops@calibrated=92,258
100% 100.4% 92,258 92,599
90% 89.3% 83,032 82,397
80% 80.7% 73,806 74,410
70% 70.2% 64,580 64,739
60% 60.5% 55,355 55,791
50% 50.0% 46,129 46,100
40% 40.3% 36,903 37,169
30% 30.3% 27,677 27,990
20% 20.0% 18,452 18,442
10% 10.1% 9,226 9,325
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,076
Calibration 2     90,298
Calibration 3     90,138
ssj_ops@calibrated=90,218
100% 100.0% 90,218 90,222
90% 89.4% 81,196 80,677
80% 81.6% 72,174 73,625
70% 69.5% 63,153 62,742
60% 59.8% 54,131 53,978
50% 50.1% 45,109 45,196
40% 40.5% 36,087 36,505
30% 30.8% 27,065 27,802
20% 20.1% 18,044 18,162
10% 10.1% 9,022 9,154
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,141
Calibration 2     88,512
Calibration 3     88,182
ssj_ops@calibrated=88,347
100% 99.7% 88,347 88,072
90% 89.2% 79,512 78,805
80% 80.6% 70,678 71,179
70% 71.4% 61,843 63,069
60% 60.1% 53,008 53,112
50% 49.9% 44,174 44,096
40% 39.6% 35,339 34,952
30% 29.8% 26,504 26,312
20% 20.1% 17,669 17,737
10% 10.1% 8,835 8,881
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,027
Calibration 2     87,496
Calibration 3     87,408
ssj_ops@calibrated=87,452
100% 99.4% 87,452 86,952
90% 91.0% 78,707 79,561
80% 80.2% 69,961 70,168
70% 69.1% 61,216 60,414
60% 59.9% 52,471 52,358
50% 49.6% 43,726 43,384
40% 39.9% 34,981 34,927
30% 29.8% 26,236 26,026
20% 19.9% 17,490 17,425
10% 9.9% 8,745 8,637
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,083
Calibration 2     89,772
Calibration 3     88,989
ssj_ops@calibrated=89,381
100% 99.0% 89,381 88,498
90% 90.3% 80,443 80,671
80% 80.6% 71,504 72,034
70% 69.7% 62,566 62,262
60% 59.1% 53,628 52,867
50% 49.4% 44,690 44,110
40% 40.1% 35,752 35,816
30% 30.4% 26,814 27,146
20% 20.5% 17,876 18,292
10% 10.4% 8,938 9,286
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,524
Calibration 2     90,043
Calibration 3     90,029
ssj_ops@calibrated=90,036
100% 99.3% 90,036 89,397
90% 90.8% 81,032 81,793
80% 78.9% 72,029 71,027
70% 69.7% 63,025 62,796
60% 60.8% 54,021 54,727
50% 50.5% 45,018 45,490
40% 40.5% 36,014 36,478
30% 29.9% 27,011 26,962
20% 19.5% 18,007 17,520
10% 9.6% 9,004 8,625
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,075
Calibration 2     89,453
Calibration 3     88,770
ssj_ops@calibrated=89,111
100% 100.1% 89,111 89,204
90% 89.9% 80,200 80,135
80% 79.4% 71,289 70,713
70% 68.9% 62,378 61,420
60% 60.1% 53,467 53,553
50% 49.4% 44,556 43,978
40% 39.5% 35,644 35,175
30% 30.7% 26,733 27,337
20% 19.6% 17,822 17,478
10% 9.9% 8,911 8,793
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,084
Calibration 2     89,086
Calibration 3     89,078
ssj_ops@calibrated=89,082
100% 100.3% 89,082 89,311
90% 90.2% 80,174 80,371
80% 78.7% 71,265 70,129
70% 70.1% 62,357 62,474
60% 59.9% 53,449 53,330
50% 49.5% 44,541 44,084
40% 40.2% 35,633 35,783
30% 30.3% 26,725 26,965
20% 20.0% 17,816 17,798
10% 9.9% 8,908 8,795
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,623
Calibration 2     90,186
Calibration 3     89,049
ssj_ops@calibrated=89,617
100% 100.2% 89,617 89,822
90% 91.7% 80,656 82,176
80% 80.9% 71,694 72,505
70% 69.7% 62,732 62,495
60% 59.4% 53,770 53,216
50% 49.7% 44,809 44,495
40% 41.0% 35,847 36,773
30% 29.5% 26,885 26,427
20% 19.7% 17,923 17,655
10% 9.6% 8,962 8,587
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,975
Calibration 2     89,239
Calibration 3     88,768
ssj_ops@calibrated=89,003
100% 100.3% 89,003 89,257
90% 90.9% 80,103 80,882
80% 80.0% 71,203 71,166
70% 70.7% 62,302 62,928
60% 59.3% 53,402 52,779
50% 50.9% 44,502 45,324
40% 40.1% 35,601 35,670
30% 29.8% 26,701 26,515
20% 20.2% 17,801 18,007
10% 10.2% 8,900 9,092
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,453
Calibration 2     89,433
Calibration 3     89,089
ssj_ops@calibrated=89,261
100% 99.9% 89,261 89,213
90% 90.4% 80,335 80,693
80% 80.4% 71,409 71,754
70% 70.8% 62,483 63,170
60% 59.5% 53,557 53,130
50% 50.2% 44,631 44,768
40% 40.2% 35,704 35,844
30% 31.1% 26,778 27,768
20% 20.0% 17,852 17,862
10% 9.8% 8,926 8,704
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,222
Calibration 2     88,325
Calibration 3     87,205
ssj_ops@calibrated=87,765
100% 99.7% 87,765 87,460
90% 90.8% 78,988 79,688
80% 80.5% 70,212 70,613
70% 69.7% 61,435 61,166
60% 59.7% 52,659 52,426
50% 50.8% 43,882 44,570
40% 39.6% 35,106 34,713
30% 30.4% 26,329 26,640
20% 19.9% 17,553 17,483
10% 10.0% 8,776 8,741
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,088
Calibration 2     92,160
Calibration 3     91,353
ssj_ops@calibrated=91,757
100% 100.4% 91,757 92,093
90% 89.4% 82,581 82,074
80% 80.1% 73,405 73,452
70% 69.7% 64,230 63,965
60% 60.3% 55,054 55,347
50% 50.0% 45,878 45,850
40% 39.9% 36,703 36,634
30% 30.1% 27,527 27,622
20% 20.1% 18,351 18,458
10% 10.0% 9,176 9,154
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,326
Calibration 2     89,646
Calibration 3     89,002
ssj_ops@calibrated=89,324
100% 100.3% 89,324 89,621
90% 90.4% 80,392 80,769
80% 79.4% 71,459 70,895
70% 70.6% 62,527 63,092
60% 59.9% 53,595 53,537
50% 49.7% 44,662 44,403
40% 39.9% 35,730 35,619
30% 29.7% 26,797 26,568
20% 19.9% 17,865 17,774
10% 9.5% 8,932 8,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,928
Calibration 2     89,594
Calibration 3     88,744
ssj_ops@calibrated=89,169
100% 99.6% 89,169 88,779
90% 89.4% 80,252 79,723
80% 78.4% 71,335 69,903
70% 69.8% 62,418 62,235
60% 59.8% 53,501 53,280
50% 50.3% 44,584 44,826
40% 40.6% 35,668 36,172
30% 30.6% 26,751 27,315
20% 19.8% 17,834 17,662
10% 9.7% 8,917 8,605
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,833
Calibration 2     90,261
Calibration 3     89,180
ssj_ops@calibrated=89,720
100% 100.4% 89,720 90,120
90% 89.9% 80,748 80,617
80% 79.7% 71,776 71,491
70% 70.4% 62,804 63,121
60% 60.4% 53,832 54,199
50% 50.1% 44,860 44,969
40% 39.8% 35,888 35,694
30% 29.6% 26,916 26,589
20% 20.2% 17,944 18,154
10% 9.8% 8,972 8,796
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,449
Calibration 2     89,984
Calibration 3     89,952
ssj_ops@calibrated=89,968
100% 100.1% 89,968 90,077
90% 91.2% 80,971 82,072
80% 79.7% 71,974 71,739
70% 70.1% 62,977 63,058
60% 60.6% 53,981 54,518
50% 50.0% 44,984 44,958
40% 40.6% 35,987 36,544
30% 29.8% 26,990 26,770
20% 19.8% 17,994 17,821
10% 10.0% 8,997 8,992
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,582
Calibration 2     88,771
Calibration 3     88,297
ssj_ops@calibrated=88,534
100% 100.2% 88,534 88,696
90% 90.6% 79,680 80,248
80% 78.9% 70,827 69,822
70% 70.3% 61,974 62,222
60% 60.5% 53,120 53,556
50% 50.7% 44,267 44,865
40% 39.8% 35,414 35,260
30% 30.1% 26,560 26,629
20% 20.1% 17,707 17,809
10% 10.1% 8,853 8,929
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,186
Calibration 2     89,243
Calibration 3     89,014
ssj_ops@calibrated=89,129
100% 100.5% 89,129 89,546
90% 91.1% 80,216 81,178
80% 79.3% 71,303 70,658
70% 70.5% 62,390 62,824
60% 60.3% 53,477 53,738
50% 50.2% 44,564 44,781
40% 39.7% 35,651 35,409
30% 30.3% 26,739 26,970
20% 19.6% 17,826 17,504
10% 9.8% 8,913 8,769
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,610
Calibration 2     89,256
Calibration 3     88,329
ssj_ops@calibrated=88,792
100% 100.1% 88,792 88,876
90% 90.7% 79,913 80,494
80% 79.0% 71,034 70,176
70% 69.7% 62,155 61,932
60% 59.3% 53,275 52,611
50% 50.9% 44,396 45,196
40% 39.5% 35,517 35,076
30% 30.2% 26,638 26,858
20% 20.5% 17,758 18,166
10% 9.9% 8,879 8,790
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,723
Calibration 2     89,347
Calibration 3     88,930
ssj_ops@calibrated=89,139
100% 99.9% 89,139 89,067
90% 89.8% 80,225 80,087
80% 79.2% 71,311 70,595
70% 69.6% 62,397 62,025
60% 59.5% 53,483 53,066
50% 50.5% 44,569 44,990
40% 38.9% 35,656 34,681
30% 29.8% 26,742 26,589
20% 19.9% 17,828 17,769
10% 10.3% 8,914 9,195
Active Idle   0 0

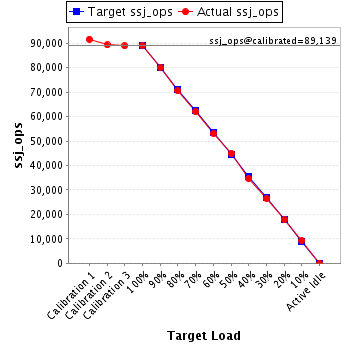

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,168
Calibration 2     91,971
Calibration 3     90,116
ssj_ops@calibrated=91,044
100% 99.4% 91,044 90,468
90% 90.9% 81,939 82,750
80% 79.3% 72,835 72,177
70% 70.5% 63,731 64,144
60% 60.0% 54,626 54,654
50% 50.6% 45,522 46,067
40% 40.1% 36,417 36,466
30% 30.2% 27,313 27,534
20% 19.7% 18,209 17,904
10% 10.2% 9,104 9,252
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,826
Calibration 2     89,499
Calibration 3     87,758
ssj_ops@calibrated=88,629
100% 99.7% 88,629 88,345
90% 90.6% 79,766 80,334
80% 80.2% 70,903 71,037
70% 70.4% 62,040 62,391
60% 60.0% 53,177 53,197
50% 50.1% 44,314 44,446
40% 40.5% 35,452 35,927
30% 29.5% 26,589 26,182
20% 19.4% 17,726 17,220
10% 10.1% 8,863 8,929
Active Idle   0 0

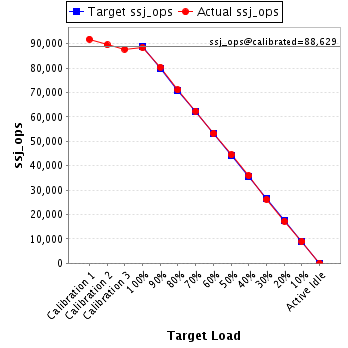

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,557
Calibration 2     89,775
Calibration 3     87,890
ssj_ops@calibrated=88,833
100% 99.3% 88,833 88,247
90% 92.2% 79,949 81,908
80% 79.9% 71,066 70,939
70% 69.1% 62,183 61,412
60% 60.4% 53,300 53,617
50% 49.9% 44,416 44,355
40% 39.2% 35,533 34,812
30% 30.1% 26,650 26,731
20% 19.8% 17,767 17,556
10% 9.8% 8,883 8,704
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,788
Calibration 2     89,631
Calibration 3     87,664
ssj_ops@calibrated=88,648
100% 99.1% 88,648 87,809
90% 90.9% 79,783 80,549
80% 79.4% 70,918 70,404
70% 69.9% 62,053 61,941
60% 60.0% 53,189 53,218
50% 50.9% 44,324 45,163
40% 39.9% 35,459 35,353
30% 30.6% 26,594 27,088
20% 20.1% 17,730 17,848
10% 9.7% 8,865 8,556
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,193
Calibration 2     89,506
Calibration 3     87,697
ssj_ops@calibrated=88,601
100% 100.1% 88,601 88,658
90% 90.3% 79,741 80,011
80% 81.1% 70,881 71,853
70% 69.5% 62,021 61,595
60% 58.8% 53,161 52,087
50% 50.0% 44,301 44,316
40% 39.6% 35,441 35,055
30% 29.4% 26,580 26,074
20% 19.8% 17,720 17,508
10% 10.0% 8,860 8,845
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,884
Calibration 2     90,336
Calibration 3     88,423
ssj_ops@calibrated=89,380
100% 99.3% 89,380 88,760
90% 91.5% 80,442 81,802
80% 80.5% 71,504 71,915
70% 69.8% 62,566 62,372
60% 59.4% 53,628 53,079
50% 50.4% 44,690 45,020
40% 39.3% 35,752 35,164
30% 29.6% 26,814 26,489
20% 19.7% 17,876 17,620
10% 10.6% 8,938 9,512
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,735
Calibration 2     89,474
Calibration 3     87,708
ssj_ops@calibrated=88,591
100% 99.3% 88,591 87,965
90% 89.5% 79,732 79,311
80% 79.3% 70,873 70,283
70% 70.3% 62,014 62,318
60% 59.5% 53,155 52,729
50% 50.1% 44,296 44,358
40% 40.5% 35,436 35,841
30% 29.6% 26,577 26,179
20% 20.0% 17,718 17,757
10% 10.2% 8,859 9,066
Active Idle   0 0

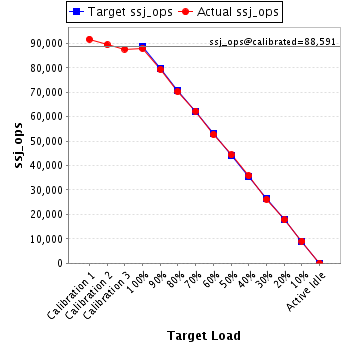

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,907
Calibration 2     89,433
Calibration 3     88,069
ssj_ops@calibrated=88,751
100% 99.3% 88,751 88,117
90% 90.2% 79,876 80,063
80% 80.0% 71,001 71,003
70% 70.2% 62,126 62,337
60% 59.6% 53,251 52,925
50% 50.4% 44,376 44,689
40% 39.3% 35,500 34,872
30% 30.5% 26,625 27,055
20% 19.6% 17,750 17,437
10% 10.0% 8,875 8,875
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,164
Calibration 2     90,911
Calibration 3     89,055
ssj_ops@calibrated=89,983
100% 99.1% 89,983 89,168
90% 90.8% 80,985 81,717
80% 79.3% 71,986 71,397
70% 71.0% 62,988 63,906
60% 60.1% 53,990 54,111
50% 50.8% 44,991 45,674
40% 40.3% 35,993 36,299
30% 29.8% 26,995 26,808
20% 19.7% 17,997 17,703
10% 10.0% 8,998 8,971
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,427
Calibration 2     88,906
Calibration 3     87,126
ssj_ops@calibrated=88,016
100% 99.3% 88,016 87,356
90% 90.2% 79,214 79,356
80% 80.4% 70,412 70,723
70% 70.0% 61,611 61,655
60% 60.4% 52,809 53,135
50% 50.9% 44,008 44,762
40% 40.9% 35,206 36,019
30% 29.6% 26,405 26,019
20% 19.6% 17,603 17,209
10% 10.0% 8,802 8,821
Active Idle   0 0

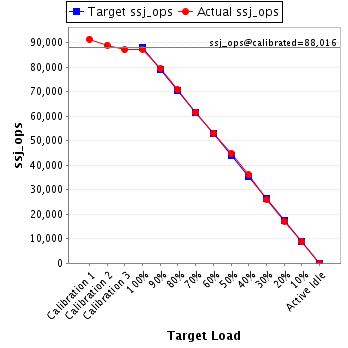

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,894
Calibration 2     88,801
Calibration 3     87,360
ssj_ops@calibrated=88,081
100% 100.0% 88,081 88,070
90% 91.1% 79,273 80,209
80% 80.0% 70,465 70,450
70% 70.0% 61,656 61,654
60% 59.3% 52,848 52,197
50% 49.9% 44,040 43,920
40% 40.2% 35,232 35,380
30% 29.7% 26,424 26,180
20% 20.1% 17,616 17,665
10% 10.0% 8,808 8,787
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,150
Calibration 2     89,625
Calibration 3     87,704
ssj_ops@calibrated=88,665
100% 99.3% 88,665 88,072
90% 89.4% 79,798 79,270
80% 80.7% 70,932 71,517
70% 70.0% 62,065 62,085
60% 60.7% 53,199 53,858
50% 48.8% 44,332 43,300
40% 39.3% 35,466 34,837
30% 29.7% 26,599 26,361
20% 19.6% 17,733 17,349
10% 9.7% 8,866 8,625
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,286
Calibration 2     91,240
Calibration 3     89,387
ssj_ops@calibrated=90,314
100% 99.5% 90,314 89,842
90% 90.3% 81,282 81,562
80% 81.2% 72,251 73,332
70% 71.0% 63,220 64,122
60% 60.1% 54,188 54,323
50% 50.5% 45,157 45,602
40% 40.4% 36,125 36,497
30% 29.5% 27,094 26,649
20% 20.0% 18,063 18,024
10% 9.9% 9,031 8,971
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,645
Calibration 2     90,312
Calibration 3     88,503
ssj_ops@calibrated=89,408
100% 99.2% 89,408 88,727
90% 89.6% 80,467 80,121
80% 80.3% 71,526 71,803
70% 69.6% 62,585 62,243
60% 60.0% 53,645 53,660
50% 50.2% 44,704 44,864
40% 39.2% 35,763 35,044
30% 30.1% 26,822 26,951
20% 20.0% 17,882 17,884
10% 9.9% 8,941 8,875
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,110
Calibration 2     89,846
Calibration 3     87,286
ssj_ops@calibrated=88,566
100% 98.6% 88,566 87,327
90% 90.4% 79,710 80,070
80% 80.3% 70,853 71,163
70% 70.3% 61,996 62,275
60% 58.9% 53,140 52,180
50% 49.8% 44,283 44,132
40% 39.9% 35,426 35,351
30% 29.4% 26,570 26,019
20% 20.2% 17,713 17,916
10% 9.8% 8,857 8,698
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,014
Calibration 2     91,850
Calibration 3     90,229
ssj_ops@calibrated=91,040
100% 99.8% 91,040 90,871
90% 90.0% 81,936 81,927
80% 79.9% 72,832 72,715
70% 69.2% 63,728 62,972
60% 59.9% 54,624 54,560
50% 50.1% 45,520 45,629
40% 40.8% 36,416 37,125
30% 29.9% 27,312 27,205
20% 20.0% 18,208 18,237
10% 10.0% 9,104 9,066
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,985
Calibration 2     89,426
Calibration 3     87,510
ssj_ops@calibrated=88,468
100% 99.7% 88,468 88,205
90% 90.0% 79,621 79,654
80% 81.6% 70,774 72,169
70% 70.0% 61,928 61,943
60% 59.8% 53,081 52,891
50% 50.6% 44,234 44,790
40% 40.1% 35,387 35,500
30% 30.5% 26,540 26,995
20% 20.4% 17,694 18,037
10% 10.1% 8,847 8,979
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,267
Calibration 2     89,434
Calibration 3     87,789
ssj_ops@calibrated=88,611
100% 99.7% 88,611 88,363
90% 90.5% 79,750 80,159
80% 79.6% 70,889 70,575
70% 68.5% 62,028 60,739
60% 60.3% 53,167 53,457
50% 49.5% 44,306 43,863
40% 40.0% 35,445 35,420
30% 29.9% 26,583 26,508
20% 19.2% 17,722 17,025
10% 9.8% 8,861 8,666
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,276
Calibration 2     89,230
Calibration 3     87,491
ssj_ops@calibrated=88,361
100% 99.7% 88,361 88,102
90% 91.1% 79,525 80,479
80% 79.3% 70,689 70,066
70% 69.2% 61,852 61,137
60% 60.2% 53,016 53,164
50% 50.0% 44,180 44,210
40% 40.3% 35,344 35,569
30% 29.5% 26,508 26,041
20% 19.5% 17,672 17,228
10% 10.1% 8,836 8,920
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,855
Calibration 2     89,446
Calibration 3     87,561
ssj_ops@calibrated=88,504
100% 99.7% 88,504 88,253
90% 92.4% 79,653 81,815
80% 79.7% 70,803 70,499
70% 70.0% 61,953 61,936
60% 59.7% 53,102 52,825
50% 49.5% 44,252 43,789
40% 39.9% 35,401 35,302
30% 29.5% 26,551 26,069
20% 20.2% 17,701 17,840
10% 10.2% 8,850 9,032
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,829
Calibration 2     90,390
Calibration 3     87,955
ssj_ops@calibrated=89,173
100% 99.1% 89,173 88,383
90% 89.8% 80,255 80,069
80% 80.4% 71,338 71,687
70% 70.7% 62,421 63,009
60% 58.8% 53,504 52,460
50% 49.5% 44,586 44,124
40% 39.7% 35,669 35,376
30% 29.2% 26,752 26,066
20% 19.4% 17,835 17,305
10% 10.0% 8,917 8,928
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,265
Calibration 2     89,224
Calibration 3     86,747
ssj_ops@calibrated=87,986
100% 99.6% 87,986 87,597
90% 90.3% 79,187 79,418
80% 80.1% 70,388 70,483
70% 68.9% 61,590 60,584
60% 59.9% 52,791 52,708
50% 51.2% 43,993 45,026
40% 39.1% 35,194 34,363
30% 29.4% 26,396 25,839
20% 19.6% 17,597 17,272
10% 9.8% 8,799 8,608
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,463
Calibration 2     89,398
Calibration 3     87,261
ssj_ops@calibrated=88,330
100% 99.4% 88,330 87,768
90% 90.8% 79,497 80,179
80% 79.7% 70,664 70,367
70% 69.7% 61,831 61,578
60% 58.6% 52,998 51,773
50% 50.1% 44,165 44,234
40% 39.6% 35,332 34,956
30% 30.5% 26,499 26,907
20% 19.9% 17,666 17,559
10% 10.0% 8,833 8,873
Active Idle   0 0

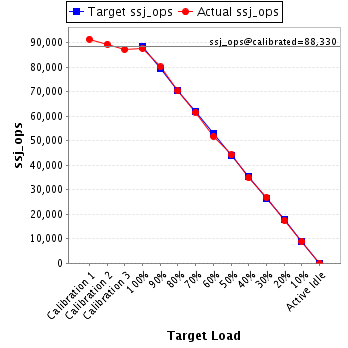

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,849
Calibration 2     90,263
Calibration 3     88,017
ssj_ops@calibrated=89,140
100% 99.2% 89,140 88,403
90% 88.8% 80,226 79,133
80% 78.9% 71,312 70,346
70% 69.6% 62,398 62,021
60% 59.6% 53,484 53,161
50% 50.6% 44,570 45,103
40% 39.8% 35,656 35,481
30% 29.8% 26,742 26,544
20% 20.6% 17,828 18,350
10% 10.3% 8,914 9,170
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,128
Calibration 2     89,353
Calibration 3     86,940
ssj_ops@calibrated=88,146
100% 100.0% 88,146 88,133
90% 90.7% 79,332 79,958
80% 79.4% 70,517 69,998
70% 70.3% 61,702 61,997
60% 60.2% 52,888 53,023
50% 50.3% 44,073 44,342
40% 40.2% 35,259 35,416
30% 30.5% 26,444 26,889
20% 19.8% 17,629 17,490
10% 10.4% 8,815 9,170
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,948
Calibration 2     91,911
Calibration 3     89,632
ssj_ops@calibrated=90,772
100% 99.6% 90,772 90,438
90% 92.3% 81,694 83,746
80% 80.4% 72,617 72,949
70% 70.0% 63,540 63,524
60% 59.8% 54,463 54,272
50% 50.0% 45,386 45,407
40% 39.9% 36,309 36,222
30% 30.5% 27,231 27,675
20% 20.0% 18,154 18,127
10% 9.8% 9,077 8,880
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,269
Calibration 2     89,573
Calibration 3     87,589
ssj_ops@calibrated=88,581
100% 99.4% 88,581 88,088
90% 89.6% 79,723 79,372
80% 79.8% 70,865 70,700
70% 70.6% 62,007 62,535
60% 61.0% 53,148 54,062
50% 49.4% 44,290 43,775
40% 39.7% 35,432 35,146
30% 30.2% 26,574 26,730
20% 20.0% 17,716 17,711
10% 10.1% 8,858 8,975
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L5-187.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,255
Calibration 2     90,264
Calibration 3     88,426
ssj_ops@calibrated=89,345
100% 99.5% 89,345 88,938
90% 90.8% 80,411 81,121
80% 80.6% 71,476 71,973
70% 71.1% 62,542 63,517
60% 60.3% 53,607 53,888
50% 50.3% 44,673 44,899
40% 40.3% 35,738 36,040
30% 30.3% 26,804 27,033
20% 19.5% 17,869 17,458
10% 9.8% 8,935 8,746
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
