Lenovo Global Technology ThinkSystem SN550 ssj_ops@100% = 4,953,628
ssj_ops@100% per JVM = 88,458
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, Beijing, China Test Date: Oct 11, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,154,719
Calibration 2     5,016,546
Calibration 3     4,937,660
ssj_ops@calibrated=4,977,103
100% 99.5% 4,977,103 4,953,628
90% 90.4% 4,479,393 4,500,056
80% 79.9% 3,981,682 3,974,635
70% 69.9% 3,483,972 3,479,969
60% 59.9% 2,986,262 2,983,584
50% 49.9% 2,488,551 2,482,099
40% 40.0% 1,990,841 1,990,980
30% 30.0% 1,493,131 1,491,635
20% 20.0% 995,421 993,347
10% 10.0% 497,710 498,781
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28 Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,3,5,8,10,12,13,15,17,20,22 and 24 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB M.2 SSD (Lenovo P/N SSD7A20774)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Connection X722 for 10GBASE-T
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter
OS Version: Version 6.3.9600 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE[0,2] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: IVE111C
Management Firmware Version: TEI307N
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
L1-179.001 88,384
L1-179.002 90,121
L1-179.003 88,108
L1-179.004 87,349
L1-179.005 88,867
L1-179.006 88,024
L1-179.007 89,328
L1-179.008 89,448
L1-179.009 90,272
L1-179.010 87,992
L1-179.011 88,801
L1-179.012 87,410
L1-179.013 89,526
L1-179.014 87,755
L1-179.015 90,491
L1-179.016 89,253
L1-179.017 89,228
L1-179.018 89,596
L1-179.019 88,704
L1-179.020 88,809
L1-179.021 88,126
L1-179.022 88,714
L1-179.023 89,717
L1-179.024 90,066
L1-179.025 88,423
L1-179.026 89,230
L1-179.027 89,301
L1-179.028 88,168
L1-179.029 87,855
L1-179.030 88,424
L1-179.031 87,204
L1-179.032 86,285
L1-179.033 88,833
L1-179.034 88,065
L1-179.035 88,031
L1-179.036 88,978
L1-179.037 89,525
L1-179.038 87,280
L1-179.039 87,025
L1-179.040 88,237
L1-179.041 87,992
L1-179.042 87,333
L1-179.043 87,836
L1-179.044 88,063
L1-179.045 87,552
L1-179.046 87,533
L1-179.047 87,880
L1-179.048 88,445
L1-179.049 87,208
L1-179.050 87,771
L1-179.051 87,569
L1-179.052 89,808
L1-179.053 90,046
L1-179.054 87,981
L1-179.055 86,928
L1-179.056 88,732
ssj_ops@100% 4,953,628
ssj_ops@100% per JVM 88,458

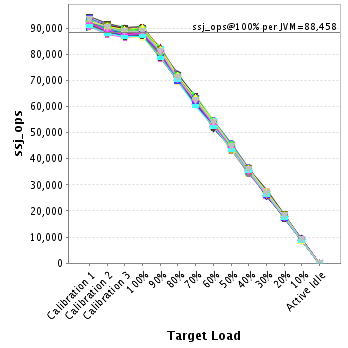

Graph of per-instance results
JVM 'L1-179.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,174
Calibration 2     90,085
Calibration 3     88,436
ssj_ops@calibrated=89,261
100% 99.0% 89,261 88,384
90% 88.4% 80,335 78,873
80% 80.4% 71,409 71,759
70% 69.1% 62,483 61,663
60% 59.9% 53,557 53,474
50% 49.8% 44,630 44,428
40% 40.8% 35,704 36,417
30% 29.8% 26,778 26,638
20% 19.9% 17,852 17,799
10% 9.8% 8,926 8,736
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,486
Calibration 2     91,396
Calibration 3     89,932
ssj_ops@calibrated=90,664
100% 99.4% 90,664 90,121
90% 90.2% 81,598 81,788
80% 79.5% 72,531 72,061
70% 69.0% 63,465 62,596
60% 60.2% 54,398 54,615
50% 50.4% 45,332 45,684
40% 40.4% 36,266 36,607
30% 30.0% 27,199 27,171
20% 19.9% 18,133 18,067
10% 10.2% 9,066 9,290
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,623
Calibration 2     89,036
Calibration 3     87,903
ssj_ops@calibrated=88,469
100% 99.6% 88,469 88,108
90% 89.4% 79,622 79,100
80% 80.8% 70,775 71,476
70% 69.9% 61,928 61,829
60% 60.5% 53,082 53,491
50% 49.6% 44,235 43,919
40% 39.5% 35,388 34,931
30% 30.5% 26,541 27,019
20% 19.6% 17,694 17,343
10% 9.7% 8,847 8,562
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,271
Calibration 2     88,840
Calibration 3     87,804
ssj_ops@calibrated=88,322
100% 98.9% 88,322 87,349
90% 89.9% 79,490 79,359
80% 80.3% 70,658 70,880
70% 70.2% 61,826 61,986
60% 61.5% 52,993 54,309
50% 50.2% 44,161 44,324
40% 40.8% 35,329 36,044
30% 29.4% 26,497 25,980
20% 20.3% 17,664 17,956
10% 10.1% 8,832 8,891
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,964
Calibration 2     90,310
Calibration 3     89,116
ssj_ops@calibrated=89,713
100% 99.1% 89,713 88,867
90% 89.7% 80,742 80,454
80% 80.5% 71,771 72,191
70% 70.5% 62,799 63,286
60% 59.5% 53,828 53,396
50% 50.5% 44,857 45,297
40% 39.6% 35,885 35,537
30% 30.0% 26,914 26,917
20% 19.9% 17,943 17,841
10% 9.9% 8,971 8,879
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,465
Calibration 2     89,706
Calibration 3     88,686
ssj_ops@calibrated=89,196
100% 98.7% 89,196 88,024
90% 90.3% 80,276 80,558
80% 80.3% 71,357 71,657
70% 70.3% 62,437 62,676
60% 60.7% 53,518 54,166
50% 50.2% 44,598 44,800
40% 39.9% 35,678 35,620
30% 29.8% 26,759 26,614
20% 20.0% 17,839 17,807
10% 10.0% 8,920 8,917
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,837
Calibration 2     90,440
Calibration 3     89,192
ssj_ops@calibrated=89,816
100% 99.5% 89,816 89,328
90% 90.3% 80,834 81,105
80% 79.4% 71,853 71,340
70% 70.1% 62,871 62,943
60% 59.3% 53,890 53,293
50% 50.2% 44,908 45,072
40% 40.3% 35,926 36,169
30% 30.2% 26,945 27,163
20% 20.0% 17,963 17,945
10% 10.0% 8,982 9,008
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,722
Calibration 2     90,878
Calibration 3     89,309
ssj_ops@calibrated=90,093
100% 99.3% 90,093 89,448
90% 90.4% 81,084 81,435
80% 80.8% 72,075 72,806
70% 70.1% 63,065 63,134
60% 60.0% 54,056 54,035
50% 49.3% 45,047 44,428
40% 39.5% 36,037 35,615
30% 30.6% 27,028 27,528
20% 19.9% 18,019 17,934
10% 10.3% 9,009 9,313
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,475
Calibration 2     91,117
Calibration 3     89,773
ssj_ops@calibrated=90,445
100% 99.8% 90,445 90,272
90% 90.4% 81,401 81,796
80% 79.0% 72,356 71,481
70% 70.6% 63,312 63,879
60% 59.5% 54,267 53,840
50% 49.4% 45,223 44,699
40% 39.6% 36,178 35,826
30% 30.0% 27,134 27,166
20% 19.8% 18,089 17,938
10% 10.1% 9,045 9,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,509
Calibration 2     89,250
Calibration 3     87,817
ssj_ops@calibrated=88,534
100% 99.4% 88,534 87,992
90% 92.4% 79,680 81,771
80% 80.3% 70,827 71,118
70% 69.9% 61,974 61,915
60% 59.3% 53,120 52,503
50% 50.0% 44,267 44,255
40% 39.9% 35,413 35,364
30% 29.2% 26,560 25,812
20% 19.7% 17,707 17,406
10% 10.0% 8,853 8,833
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,133
Calibration 2     89,484
Calibration 3     88,420
ssj_ops@calibrated=88,952
100% 99.8% 88,952 88,801
90% 90.6% 80,057 80,547
80% 78.8% 71,162 70,054
70% 69.8% 62,267 62,066
60% 60.4% 53,371 53,744
50% 49.7% 44,476 44,223
40% 40.3% 35,581 35,847
30% 30.8% 26,686 27,354
20% 20.6% 17,790 18,307
10% 9.8% 8,895 8,725
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,894
Calibration 2     88,708
Calibration 3     86,973
ssj_ops@calibrated=87,840
100% 99.5% 87,840 87,410
90% 90.5% 79,056 79,468
80% 79.3% 70,272 69,661
70% 69.2% 61,488 60,768
60% 60.2% 52,704 52,923
50% 49.1% 43,920 43,147
40% 40.9% 35,136 35,916
30% 30.1% 26,352 26,407
20% 20.1% 17,568 17,674
10% 10.3% 8,784 9,016
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

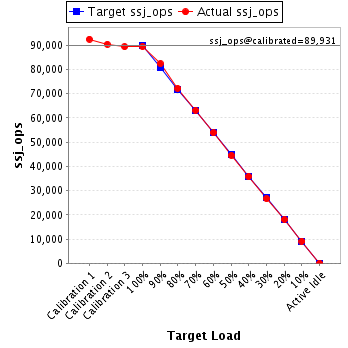

JVM 'L1-179.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,553
Calibration 2     90,439
Calibration 3     89,424
ssj_ops@calibrated=89,931
100% 99.5% 89,931 89,526
90% 91.7% 80,938 82,474
80% 80.3% 71,945 72,245
70% 70.3% 62,952 63,210
60% 59.9% 53,959 53,880
50% 49.5% 44,966 44,527
40% 39.8% 35,973 35,811
30% 29.6% 26,979 26,655
20% 20.1% 17,986 18,070
10% 10.1% 8,993 9,094
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,502
Calibration 2     88,999
Calibration 3     87,844
ssj_ops@calibrated=88,421
100% 99.2% 88,421 87,755
90% 90.3% 79,579 79,878
80% 80.6% 70,737 71,300
70% 70.8% 61,895 62,603
60% 60.3% 53,053 53,337
50% 50.3% 44,211 44,472
40% 40.4% 35,369 35,745
30% 30.1% 26,526 26,586
20% 20.3% 17,684 17,913
10% 10.0% 8,842 8,801
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,467
Calibration 2     91,832
Calibration 3     90,339
ssj_ops@calibrated=91,086
100% 99.3% 91,086 90,491
90% 89.8% 81,977 81,816
80% 79.3% 72,869 72,241
70% 69.8% 63,760 63,588
60% 59.7% 54,651 54,379
50% 49.8% 45,543 45,394
40% 39.9% 36,434 36,318
30% 31.0% 27,326 28,212
20% 20.4% 18,217 18,596
10% 10.2% 9,109 9,279
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

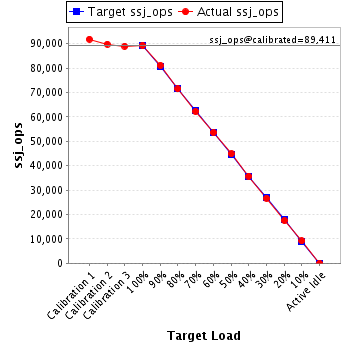

JVM 'L1-179.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,846
Calibration 2     89,815
Calibration 3     89,008
ssj_ops@calibrated=89,411
100% 99.8% 89,411 89,253
90% 90.7% 80,470 81,097
80% 79.9% 71,529 71,470
70% 69.6% 62,588 62,263
60% 60.0% 53,647 53,654
50% 50.2% 44,706 44,903
40% 39.9% 35,765 35,716
30% 29.8% 26,823 26,682
20% 19.5% 17,882 17,470
10% 10.3% 8,941 9,178
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,217
Calibration 2     89,968
Calibration 3     88,380
ssj_ops@calibrated=89,174
100% 100.1% 89,174 89,228
90% 90.4% 80,257 80,589
80% 80.8% 71,339 72,064
70% 69.4% 62,422 61,888
60% 59.3% 53,504 52,840
50% 49.7% 44,587 44,348
40% 39.8% 35,670 35,532
30% 29.2% 26,752 26,083
20% 19.6% 17,835 17,520
10% 10.2% 8,917 9,125
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,700
Calibration 2     90,815
Calibration 3     89,727
ssj_ops@calibrated=90,271
100% 99.3% 90,271 89,596
90% 91.3% 81,244 82,396
80% 79.8% 72,217 72,002
70% 71.0% 63,190 64,103
60% 60.4% 54,163 54,516
50% 49.8% 45,136 44,985
40% 39.3% 36,109 35,456
30% 30.5% 27,081 27,527
20% 19.9% 18,054 17,962
10% 10.2% 9,027 9,237
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,126
Calibration 2     89,664
Calibration 3     88,365
ssj_ops@calibrated=89,014
100% 99.7% 89,014 88,704
90% 90.1% 80,113 80,214
80% 79.9% 71,211 71,115
70% 69.5% 62,310 61,900
60% 60.3% 53,409 53,653
50% 49.6% 44,507 44,126
40% 39.5% 35,606 35,183
30% 29.3% 26,704 26,091
20% 20.2% 17,803 17,943
10% 9.8% 8,901 8,766
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,411
Calibration 2     91,123
Calibration 3     88,454
ssj_ops@calibrated=89,789
100% 98.9% 89,789 88,809
90% 90.8% 80,810 81,523
80% 79.7% 71,831 71,572
70% 69.5% 62,852 62,372
60% 59.5% 53,873 53,412
50% 50.3% 44,894 45,200
40% 39.8% 35,915 35,725
30% 30.2% 26,937 27,110
20% 20.2% 17,958 18,176
10% 9.7% 8,979 8,708
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,767
Calibration 2     89,169
Calibration 3     87,911
ssj_ops@calibrated=88,540
100% 99.5% 88,540 88,126
90% 92.0% 79,686 81,423
80% 79.6% 70,832 70,480
70% 69.4% 61,978 61,450
60% 59.3% 53,124 52,476
50% 49.2% 44,270 43,537
40% 39.7% 35,416 35,137
30% 30.4% 26,562 26,939
20% 20.3% 17,708 17,942
10% 10.1% 8,854 8,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,527
Calibration 2     89,189
Calibration 3     88,090
ssj_ops@calibrated=88,639
100% 100.1% 88,639 88,714
90% 89.0% 79,775 78,880
80% 80.7% 70,911 71,523
70% 69.7% 62,047 61,799
60% 59.4% 53,184 52,610
50% 50.0% 44,320 44,310
40% 39.7% 35,456 35,229
30% 30.2% 26,592 26,787
20% 19.5% 17,728 17,303
10% 9.9% 8,864 8,800
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,839
Calibration 2     91,061
Calibration 3     89,803
ssj_ops@calibrated=90,432
100% 99.2% 90,432 89,717
90% 91.0% 81,389 82,272
80% 78.7% 72,346 71,161
70% 68.9% 63,303 62,347
60% 58.8% 54,259 53,150
50% 49.7% 45,216 44,959
40% 39.7% 36,173 35,912
30% 29.7% 27,130 26,858
20% 19.8% 18,086 17,886
10% 10.3% 9,043 9,341
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

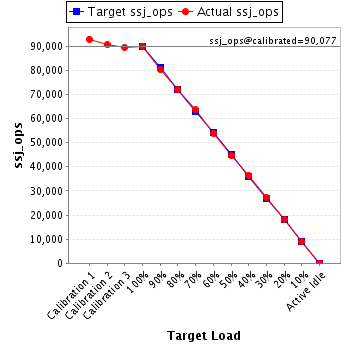

JVM 'L1-179.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,920
Calibration 2     90,669
Calibration 3     89,485
ssj_ops@calibrated=90,077
100% 100.0% 90,077 90,066
90% 89.1% 81,070 80,289
80% 80.2% 72,062 72,224
70% 70.6% 63,054 63,627
60% 59.9% 54,046 53,975
50% 49.6% 45,039 44,641
40% 40.5% 36,031 36,440
30% 30.1% 27,023 27,091
20% 20.1% 18,015 18,128
10% 9.9% 9,008 8,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,177
Calibration 2     89,670
Calibration 3     88,171
ssj_ops@calibrated=88,920
100% 99.4% 88,920 88,423
90% 91.1% 80,028 80,991
80% 79.6% 71,136 70,812
70% 70.3% 62,244 62,492
60% 59.6% 53,352 52,999
50% 49.7% 44,460 44,207
40% 40.1% 35,568 35,623
30% 30.0% 26,676 26,703
20% 19.6% 17,784 17,461
10% 10.0% 8,892 8,924
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

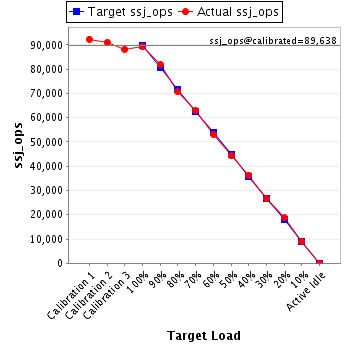

JVM 'L1-179.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,383
Calibration 2     90,998
Calibration 3     88,277
ssj_ops@calibrated=89,638
100% 99.5% 89,638 89,230
90% 91.4% 80,674 81,916
80% 78.8% 71,710 70,659
70% 70.2% 62,746 62,966
60% 59.4% 53,783 53,257
50% 49.4% 44,819 44,271
40% 40.6% 35,855 36,369
30% 29.7% 26,891 26,586
20% 20.8% 17,928 18,660
10% 10.0% 8,964 9,000
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,220
Calibration 2     90,450
Calibration 3     89,095
ssj_ops@calibrated=89,773
100% 99.5% 89,773 89,301
90% 89.9% 80,795 80,737
80% 78.9% 71,818 70,865
70% 70.2% 62,841 62,996
60% 59.6% 53,864 53,483
50% 49.6% 44,886 44,545
40% 39.8% 35,909 35,724
30% 29.7% 26,932 26,633
20% 20.0% 17,955 17,933
10% 10.2% 8,977 9,138
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,279
Calibration 2     88,731
Calibration 3     87,584
ssj_ops@calibrated=88,157
100% 100.0% 88,157 88,168
90% 90.0% 79,342 79,319
80% 79.3% 70,526 69,877
70% 70.0% 61,710 61,719
60% 60.0% 52,894 52,931
50% 49.9% 44,079 44,028
40% 39.8% 35,263 35,112
30% 30.2% 26,447 26,625
20% 20.1% 17,631 17,753
10% 10.2% 8,816 8,991
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

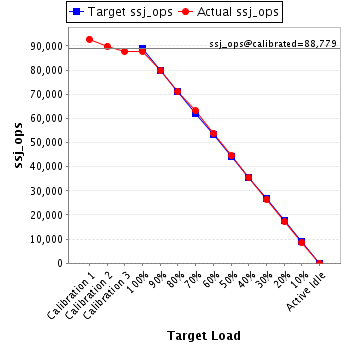

JVM 'L1-179.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,799
Calibration 2     89,791
Calibration 3     87,768
ssj_ops@calibrated=88,779
100% 99.0% 88,779 87,855
90% 89.8% 79,901 79,753
80% 80.1% 71,024 71,141
70% 71.0% 62,146 63,077
60% 60.6% 53,268 53,838
50% 50.2% 44,390 44,581
40% 39.9% 35,512 35,446
30% 30.0% 26,634 26,594
20% 19.5% 17,756 17,312
10% 9.6% 8,878 8,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,071
Calibration 2     89,442
Calibration 3     88,021
ssj_ops@calibrated=88,732
100% 99.7% 88,732 88,424
90% 89.7% 79,859 79,620
80% 80.2% 70,985 71,202
70% 70.0% 62,112 62,112
60% 59.8% 53,239 53,048
50% 50.2% 44,366 44,510
40% 39.7% 35,493 35,234
30% 29.3% 26,620 25,961
20% 20.1% 17,746 17,850
10% 9.9% 8,873 8,765
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,417
Calibration 2     88,179
Calibration 3     86,723
ssj_ops@calibrated=87,451
100% 99.7% 87,451 87,204
90% 90.3% 78,706 78,971
80% 80.0% 69,961 69,977
70% 69.7% 61,215 60,920
60% 59.7% 52,470 52,207
50% 49.3% 43,725 43,117
40% 40.3% 34,980 35,233
30% 30.2% 26,235 26,445
20% 19.8% 17,490 17,324
10% 10.0% 8,745 8,720
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,909
Calibration 2     87,877
Calibration 3     86,273
ssj_ops@calibrated=87,075
100% 99.1% 87,075 86,285
90% 89.9% 78,367 78,256
80% 79.8% 69,660 69,453
70% 70.2% 60,952 61,098
60% 59.3% 52,245 51,678
50% 49.7% 43,537 43,270
40% 40.2% 34,830 35,037
30% 30.3% 26,122 26,411
20% 20.0% 17,415 17,439
10% 10.0% 8,707 8,704
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,289
Calibration 2     90,108
Calibration 3     88,399
ssj_ops@calibrated=89,254
100% 99.5% 89,254 88,833
90% 90.4% 80,328 80,676
80% 80.2% 71,403 71,563
70% 70.7% 62,478 63,069
60% 60.5% 53,552 53,991
50% 49.2% 44,627 43,942
40% 40.0% 35,701 35,725
30% 29.1% 26,776 26,010
20% 20.0% 17,851 17,831
10% 9.9% 8,925 8,812
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,359
Calibration 2     88,575
Calibration 3     87,739
ssj_ops@calibrated=88,157
100% 99.9% 88,157 88,065
90% 89.9% 79,341 79,213
80% 79.4% 70,526 70,036
70% 70.1% 61,710 61,805
60% 60.6% 52,894 53,432
50% 50.1% 44,078 44,157
40% 40.1% 35,263 35,330
30% 30.0% 26,447 26,446
20% 20.1% 17,631 17,762
10% 10.1% 8,816 8,876
Active Idle   0 0

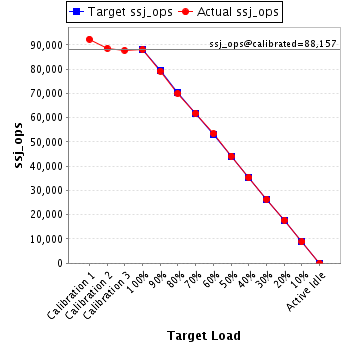

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,919
Calibration 2     88,392
Calibration 3     87,489
ssj_ops@calibrated=87,941
100% 100.1% 87,941 88,031
90% 91.5% 79,147 80,442
80% 79.3% 70,352 69,715
70% 70.0% 61,558 61,527
60% 60.5% 52,764 53,169
50% 50.0% 43,970 43,950
40% 39.6% 35,176 34,866
30% 30.2% 26,382 26,537
20% 19.5% 17,588 17,157
10% 10.0% 8,794 8,781
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,550
Calibration 2     89,742
Calibration 3     88,665
ssj_ops@calibrated=89,204
100% 99.7% 89,204 88,978
90% 90.1% 80,283 80,337
80% 79.4% 71,363 70,819
70% 70.5% 62,443 62,918
60% 60.2% 53,522 53,732
50% 49.9% 44,602 44,527
40% 39.3% 35,681 35,069
30% 29.9% 26,761 26,697
20% 19.5% 17,841 17,417
10% 10.2% 8,920 9,066
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,264
Calibration 2     90,165
Calibration 3     88,714
ssj_ops@calibrated=89,440
100% 100.1% 89,440 89,525
90% 90.4% 80,496 80,861
80% 78.9% 71,552 70,606
70% 69.1% 62,608 61,772
60% 60.0% 53,664 53,706
50% 50.5% 44,720 45,134
40% 40.2% 35,776 35,979
30% 29.9% 26,832 26,774
20% 19.3% 17,888 17,303
10% 9.8% 8,944 8,754
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,865
Calibration 2     88,965
Calibration 3     86,900
ssj_ops@calibrated=87,933
100% 99.3% 87,933 87,280
90% 89.7% 79,139 78,887
80% 79.5% 70,346 69,863
70% 70.5% 61,553 62,027
60% 59.4% 52,760 52,269
50% 49.6% 43,966 43,649
40% 39.2% 35,173 34,445
30% 29.8% 26,380 26,236
20% 20.2% 17,587 17,736
10% 9.8% 8,793 8,650
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,535
Calibration 2     87,682
Calibration 3     86,449
ssj_ops@calibrated=87,066
100% 100.0% 87,066 87,025
90% 90.1% 78,359 78,462
80% 80.6% 69,652 70,200
70% 69.6% 60,946 60,609
60% 60.6% 52,239 52,791
50% 49.8% 43,533 43,326
40% 39.5% 34,826 34,383
30% 30.1% 26,120 26,192
20% 19.9% 17,413 17,293
10% 9.8% 8,707 8,529
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,731
Calibration 2     88,923
Calibration 3     87,291
ssj_ops@calibrated=88,107
100% 100.1% 88,107 88,237
90% 92.8% 79,296 81,738
80% 80.0% 70,485 70,484
70% 70.4% 61,675 61,999
60% 60.6% 52,864 53,415
50% 50.3% 44,053 44,312
40% 40.7% 35,243 35,864
30% 30.4% 26,432 26,770
20% 19.7% 17,621 17,335
10% 10.3% 8,811 9,095
Active Idle   0 0

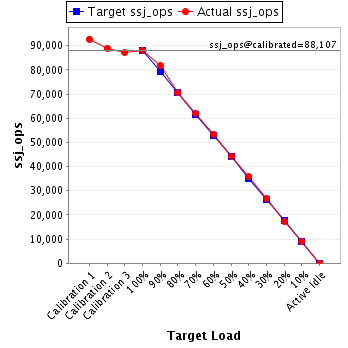

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,684
Calibration 2     89,267
Calibration 3     88,053
ssj_ops@calibrated=88,660
100% 99.2% 88,660 87,992
90% 89.8% 79,794 79,589
80% 79.5% 70,928 70,464
70% 68.9% 62,062 61,066
60% 60.1% 53,196 53,281
50% 49.6% 44,330 43,967
40% 39.9% 35,464 35,369
30% 30.9% 26,598 27,404
20% 20.1% 17,732 17,826
10% 9.9% 8,866 8,808
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,452
Calibration 2     88,019
Calibration 3     87,576
ssj_ops@calibrated=87,797
100% 99.5% 87,797 87,333
90% 89.5% 79,018 78,570
80% 79.6% 70,238 69,899
70% 69.0% 61,458 60,610
60% 60.1% 52,678 52,738
50% 49.4% 43,899 43,349
40% 39.1% 35,119 34,302
30% 30.4% 26,339 26,674
20% 19.5% 17,559 17,162
10% 10.1% 8,780 8,909
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,745
Calibration 2     89,275
Calibration 3     87,994
ssj_ops@calibrated=88,635
100% 99.1% 88,635 87,836
90% 91.3% 79,771 80,951
80% 80.5% 70,908 71,329
70% 70.0% 62,044 62,052
60% 59.7% 53,181 52,956
50% 49.7% 44,317 44,020
40% 40.2% 35,454 35,624
30% 29.9% 26,590 26,460
20% 19.7% 17,727 17,479
10% 10.0% 8,863 8,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,335
Calibration 2     89,321
Calibration 3     87,697
ssj_ops@calibrated=88,509
100% 99.5% 88,509 88,063
90% 91.3% 79,658 80,773
80% 80.7% 70,807 71,400
70% 70.3% 61,956 62,240
60% 58.3% 53,105 51,569
50% 50.2% 44,254 44,392
40% 40.0% 35,404 35,420
30% 29.0% 26,553 25,632
20% 20.2% 17,702 17,846
10% 10.2% 8,851 8,995
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,660
Calibration 2     89,512
Calibration 3     86,917
ssj_ops@calibrated=88,214
100% 99.2% 88,214 87,552
90% 90.2% 79,393 79,525
80% 80.0% 70,572 70,555
70% 70.0% 61,750 61,756
60% 60.3% 52,929 53,195
50% 49.3% 44,107 43,509
40% 40.6% 35,286 35,811
30% 30.5% 26,464 26,886
20% 20.5% 17,643 18,070
10% 10.1% 8,821 8,899
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,123
Calibration 2     88,938
Calibration 3     87,135
ssj_ops@calibrated=88,037
100% 99.4% 88,037 87,533
90% 90.0% 79,233 79,241
80% 79.4% 70,429 69,875
70% 69.9% 61,626 61,509
60% 60.6% 52,822 53,350
50% 48.9% 44,018 43,067
40% 39.9% 35,215 35,150
30% 29.4% 26,411 25,912
20% 19.9% 17,607 17,541
10% 10.0% 8,804 8,796
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,696
Calibration 2     89,006
Calibration 3     87,533
ssj_ops@calibrated=88,269
100% 99.6% 88,269 87,880
90% 90.7% 79,443 80,084
80% 81.7% 70,616 72,104
70% 70.1% 61,789 61,853
60% 60.6% 52,962 53,498
50% 50.0% 44,135 44,137
40% 39.7% 35,308 35,016
30% 29.5% 26,481 26,023
20% 20.0% 17,654 17,637
10% 9.9% 8,827 8,716
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,404
Calibration 2     89,425
Calibration 3     88,226
ssj_ops@calibrated=88,825
100% 99.6% 88,825 88,445
90% 90.4% 79,943 80,265
80% 79.8% 71,060 70,870
70% 69.6% 62,178 61,831
60% 60.0% 53,295 53,286
50% 50.2% 44,413 44,584
40% 40.2% 35,530 35,670
30% 30.0% 26,648 26,665
20% 19.5% 17,765 17,353
10% 10.2% 8,883 9,074
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,292
Calibration 2     88,606
Calibration 3     86,581
ssj_ops@calibrated=87,593
100% 99.6% 87,593 87,208
90% 89.9% 78,834 78,704
80% 80.0% 70,075 70,068
70% 70.1% 61,315 61,372
60% 59.4% 52,556 52,024
50% 51.0% 43,797 44,709
40% 40.4% 35,037 35,353
30% 30.0% 26,278 26,266
20% 19.8% 17,519 17,307
10% 10.3% 8,759 9,008
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,488
Calibration 2     88,793
Calibration 3     87,349
ssj_ops@calibrated=88,071
100% 99.7% 88,071 87,771
90% 90.7% 79,264 79,852
80% 79.4% 70,457 69,896
70% 68.9% 61,650 60,681
60% 59.3% 52,842 52,266
50% 50.7% 44,035 44,622
40% 40.3% 35,228 35,510
30% 29.6% 26,421 26,075
20% 20.0% 17,614 17,628
10% 10.0% 8,807 8,849
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,022
Calibration 2     88,498
Calibration 3     87,031
ssj_ops@calibrated=87,764
100% 99.8% 87,764 87,569
90% 91.5% 78,988 80,307
80% 79.5% 70,212 69,816
70% 69.3% 61,435 60,830
60% 60.6% 52,659 53,157
50% 50.3% 43,882 44,106
40% 40.8% 35,106 35,772
30% 29.9% 26,329 26,245
20% 20.0% 17,553 17,578
10% 9.9% 8,776 8,675
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,411
Calibration 2     90,660
Calibration 3     89,233
ssj_ops@calibrated=89,947
100% 99.8% 89,947 89,808
90% 89.6% 80,952 80,595
80% 79.7% 71,957 71,708
70% 70.1% 62,963 63,047
60% 59.4% 53,968 53,439
50% 50.5% 44,973 45,408
40% 40.0% 35,979 35,971
30% 30.2% 26,984 27,172
20% 20.0% 17,989 18,030
10% 9.8% 8,995 8,783
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,466
Calibration 2     90,767
Calibration 3     89,420
ssj_ops@calibrated=90,094
100% 99.9% 90,094 90,046
90% 90.7% 81,084 81,755
80% 79.7% 72,075 71,830
70% 70.5% 63,066 63,527
60% 60.2% 54,056 54,227
50% 49.7% 45,047 44,797
40% 40.3% 36,038 36,339
30% 29.9% 27,028 26,982
20% 20.2% 18,019 18,157
10% 9.7% 9,009 8,732
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,798
Calibration 2     88,987
Calibration 3     87,637
ssj_ops@calibrated=88,312
100% 99.6% 88,312 87,981
90% 91.8% 79,481 81,057
80% 79.8% 70,649 70,471
70% 70.5% 61,818 62,230
60% 60.1% 52,987 53,069
50% 50.0% 44,156 44,177
40% 39.8% 35,325 35,164
30% 29.7% 26,494 26,258
20% 20.0% 17,662 17,671
10% 10.4% 8,831 9,171
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,668
Calibration 2     87,759
Calibration 3     86,681
ssj_ops@calibrated=87,220
100% 99.7% 87,220 86,928
90% 90.2% 78,498 78,646
80% 80.4% 69,776 70,106
70% 69.0% 61,054 60,150
60% 59.9% 52,332 52,219
50% 49.9% 43,610 43,498
40% 40.4% 34,888 35,253
30% 30.2% 26,166 26,297
20% 19.9% 17,444 17,393
10% 9.9% 8,722 8,671
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'L1-179.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,278
Calibration 2     90,029
Calibration 3     88,847
ssj_ops@calibrated=89,438
100% 99.2% 89,438 88,732
90% 90.4% 80,494 80,858
80% 79.5% 71,551 71,091
70% 69.6% 62,607 62,216
60% 60.0% 53,663 53,693
50% 49.8% 44,719 44,552
40% 39.9% 35,775 35,721
30% 29.8% 26,831 26,671
20% 20.3% 17,888 18,181
10% 10.0% 8,944 8,958
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
