Lenovo Global Technology ThinkSystem SR650 SPECpower_ssj2008 = 11,406 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Taipei, Taiwan Test Date: Sep 18, 2017
Hardware Availability: Aug-2017 Software Availability: Sep-2017 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 2,532,117 183 13,841
90% 90.3% 2,293,104 163 14,066
80% 80.0% 2,031,750 144 14,089
70% 70.0% 1,776,863 129 13,783
60% 60.1% 1,524,473 117 13,031
50% 49.9% 1,266,465 106 11,908
40% 39.9% 1,013,581 97.4 10,408
30% 30.1% 763,471 88.8 8,600
20% 20.1% 509,202 79.8 6,379
10% 10.0% 253,847 70.3 3,611
Active Idle 0 45.6 0
∑ssj_ops / ∑power = 11,406

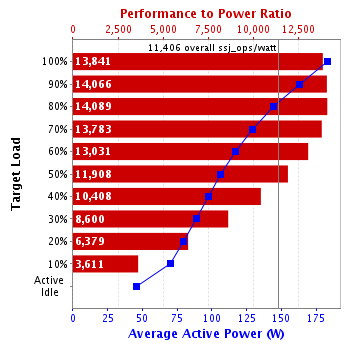

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: The machine type of the SUT is 7X05.
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR650
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176 CPU 2.10 GHz (Intel Turbo Boost Technology up to 2.80 GHz)
CPU Characteristics: 28 core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 28 cores, 1 chip, 28 cores/chip
Hardware Threads: 56 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 96
# and size of DIMM: 6 x 16384 MB
Memory Details: 6 x 16GB 2Rx8 PC4-2666V-R; Slots 1, 3, 5, 8, 10 and 12 populated.
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:7N67A00884
Disk Drive: 1 x 32 GB M.2 SSD (Lenovo P/N: 7N47A00129)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1Gb 2-Port RJ45 LOM (Lenovo P/N: 7ZT7A00544)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Lenovo Power Plan V1.0 for Windows Server 2012 R2 in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Standard
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0] /AFFINITY [3, C, 30, C0, C000, 30000, C0000, 30000000, C0000000, 300000000, C00000000, C0000000000, 300000000000, C00000000000]; start /NODE [1] /AFFINITY [3, C, 30, 3000, C000, 30000, C0000, 30000000, C0000000, 300000000, 30000000000, C0000000000, 300000000000, C00000000000]
JVM Instances: 28
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: IVE111C
Management Firmware Version: CDI305Q
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x iDataPlex dx320 Server
CPU Description: Intel Xeon CPU L5420
Memory amount (GB): 24
Software
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise Edition
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build pwa6460sr5-20090529_04(SR5))
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa, Inc.
Model: WT210
Serial Number: 91H245649
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML/ROC
Accredited by: ETC, Taiwan
Calibration Label: 17-07-BAC-121-03
Date of Calibration: 9-Jul-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International
Model: Watchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 56 due to a known inconsistency in processor reporting with this Java version.
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 183 20.2
90% 163 20.1
80% 144 20.1
70% 129 20.2
60% 117 20.4
50% 106 20.6
40% 97.4 20.8
30% 88.8 20.7
20% 79.8 20.7
10% 70.3 20.8
Active Idle 45.6 20.8
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 20.1 63
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     2,559,196
Calibration 2     2,536,983
Calibration 3     2,539,250
ssj_ops@calibrated=2,538,117
100% 99.8% 2,538,117 2,532,117
90% 90.3% 2,284,305 2,293,104
80% 80.0% 2,030,494 2,031,750
70% 70.0% 1,776,682 1,776,863
60% 60.1% 1,522,870 1,524,473
50% 49.9% 1,269,058 1,266,465
40% 39.9% 1,015,247 1,013,581
30% 30.1% 761,435 763,471
20% 20.1% 507,623 509,202
10% 10.0% 253,812 253,847
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
