Quanta Computer Inc. QuantaGrid T42S-2U ssj_ops@100% = 4,924,712
ssj_ops@100% per JVM = 1,231,178
Test Sponsor: Quanta Computer Inc. SPEC License #: 9050 Test Method: Multi Node
Tested By: Quanta Computer Inc. Test Location: Taoyuan, TW, R.O.C Test Date: Sep 26, 2017
Hardware Availability: Jul-2017 Software Availability: Sep-2016 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,952,989
Calibration 2     4,895,032
Calibration 3     4,899,457
ssj_ops@calibrated=4,897,244
100% 100.6% 4,897,244 4,924,712
90% 90.1% 4,407,520 4,411,148
80% 80.0% 3,917,796 3,916,392
70% 69.9% 3,428,071 3,424,136
60% 60.0% 2,938,347 2,940,221
50% 49.9% 2,448,622 2,445,141
40% 40.0% 1,958,898 1,957,258
30% 30.0% 1,469,173 1,466,785
20% 20.0% 979,449 981,621
10% 10.0% 489,724 491,594
Active Idle   0 0
Graph of results
System Under Test
Set: 'T42S-2U'
Set Identifier: T42S-2U
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Quanta Computer Inc.
Model: QuantaGrid T42S-2U
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28 core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-PA0; slots A0, B0, C0, D0, E0, F0, populated for both Processor sockets
Power Supply Quantity and Rating (W): 1 x 2200
Power Supply Details: None
Disk Drive: 1 x 256G SATA SSD,Quanta P/N ABSAV256008
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel I357 Gigabit Ethernet controllerQuanta P/N 3GS5BMA00D0
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power plan in OS
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600 (Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx13g -Xms13g -Xmn11g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=24 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+OptimizeStringConcat -XX:+UseStringCache
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: 3A03E7
Management Firmware Version: 3.20
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Specpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this java version
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WINDOWS-5SEDD45.001 1,206,033
WINDOWS-5SEDD45.002 1,197,360
WINDOWS-5SEDD45.003 1,252,079
WINDOWS-5SEDD45.004 1,269,239
ssj_ops@100% 4,924,712
ssj_ops@100% per JVM 1,231,178
Graph of per-instance results
JVM 'WINDOWS-5SEDD45.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,226,389
Calibration 2     1,232,318
Calibration 3     1,231,545
ssj_ops@calibrated=1,231,931
100% 97.9% 1,231,931 1,206,033
90% 90.0% 1,108,738 1,108,905
80% 79.9% 985,545 984,340
70% 70.0% 862,352 862,230
60% 60.1% 739,159 740,130
50% 49.7% 615,966 612,531
40% 39.9% 492,773 491,240
30% 29.8% 369,579 366,771
20% 19.9% 246,386 245,573
10% 10.0% 123,193 123,574
Active Idle   0 0

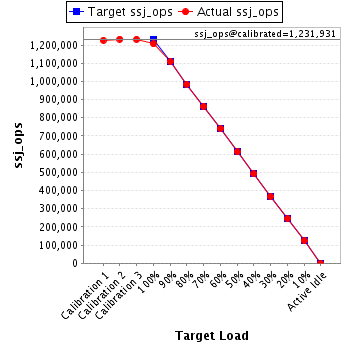

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-5SEDD45.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,210,194
Calibration 2     1,214,933
Calibration 3     1,214,274
ssj_ops@calibrated=1,214,604
100% 98.6% 1,214,604 1,197,360
90% 90.3% 1,093,143 1,096,467
80% 79.9% 971,683 970,409
70% 70.1% 850,223 851,641
60% 60.0% 728,762 728,327
50% 50.0% 607,302 607,902
40% 40.1% 485,842 486,539
30% 30.1% 364,381 365,905
20% 20.1% 242,921 243,953
10% 10.1% 121,460 122,829
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-5SEDD45.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,249,756
Calibration 2     1,214,793
Calibration 3     1,218,837
ssj_ops@calibrated=1,216,815
100% 102.9% 1,216,815 1,252,079
90% 90.1% 1,095,134 1,096,192
80% 79.7% 973,452 969,760
70% 69.8% 851,771 849,046
60% 60.2% 730,089 732,157
50% 50.1% 608,408 609,152
40% 40.0% 486,726 486,655
30% 29.8% 365,045 362,192
20% 20.1% 243,363 244,096
10% 10.1% 121,682 122,413
Active Idle   0 0

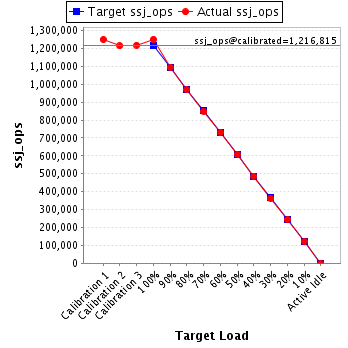

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-5SEDD45.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,266,650
Calibration 2     1,232,987
Calibration 3     1,234,800
ssj_ops@calibrated=1,233,894
100% 102.9% 1,233,894 1,269,239
90% 89.9% 1,110,505 1,109,584
80% 80.4% 987,115 991,882
70% 69.8% 863,726 861,219
60% 59.9% 740,336 739,607
50% 49.9% 616,947 615,557
40% 39.9% 493,558 492,824
30% 30.1% 370,168 371,918
20% 20.1% 246,779 247,999
10% 10.0% 123,389 122,777
Active Idle   0 0

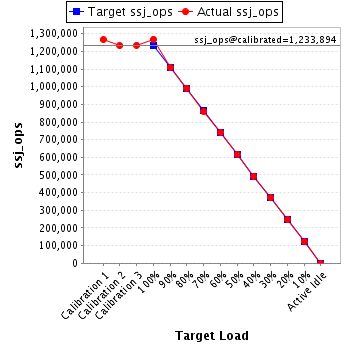

Graph of results
See the JVM Instance Performance Report for additional details.
