Huawei Technologies Co., Ltd Fusion Server 2288H V5 SPECpower_ssj2008 = 12,968 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Jun 18, 2017
Hardware Availability: Jul-2017 Software Availability: Jan-2015 Publication: Jul 11, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.9% 5,941,377 461 12,882
90% 90.2% 5,362,581 381 14,083
80% 79.9% 4,753,465 313 15,181
70% 70.0% 4,160,796 277 15,029
60% 60.1% 3,573,477 233 15,362
50% 49.9% 2,969,633 201 14,739
40% 39.9% 2,374,390 182 13,065
30% 29.9% 1,778,877 162 10,985
20% 19.9% 1,186,091 142 8,375
10% 10.0% 596,165 120 4,957
Active Idle 0 49.6 0
∑ssj_ops / ∑power = 12,968

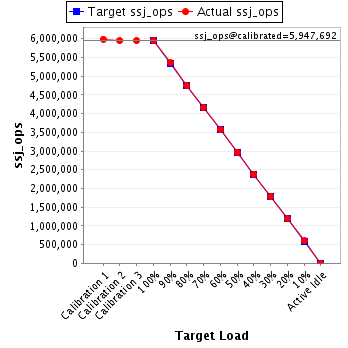

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Fusion Server 2288H V5
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28-Core, 2.1GHz, 38.5MB L3 Cache (Intel Turbo Boost Technology up to 2.8GHz)
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 12 x 16GB 2Rx8 PC4-2666V ECC RDIMM;slots DIMM000, DIMM010, DIMM020, DIMM030, DIMM040, DIMM050,DIMM100, DIMM110, DIMM120, DIMM130, DIMM140, and DIMM150 populated
Power Supply Quantity and Rating (W): 1 x 550
Power Supply Details: Huawei P/N 02131255
Disk Drive: 1 x 240GB SSD 2.5" SATA Huawei P/N 02311HGX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel X722 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced (recommended) Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2,] /AFFINITY [3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE [1,3,] /AFFINITY [3,C,30,3000,C000,30000,C0000,30000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000];
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 0.20
Management Firmware Version: 2.53
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: FusionServer RH2288 V3
CPU Description: 2 x E5-2698 V4
Memory amount (GB): 128
Software
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91MC13547
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: B17000815-0076
Date of Calibration: 13-Feb-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
.
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 461 22.2
90% 381 22.2
80% 313 22.3
70% 277 22.4
60% 233 22.5
50% 201 22.2
40% 182 22.2
30% 162 22.3
20% 142 22.6
10% 120 22.8
Active Idle 49.6 22.8
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 22.2 101
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,990,050
Calibration 2     5,948,572
Calibration 3     5,946,812
ssj_ops@calibrated=5,947,692
100% 99.9% 5,947,692 5,941,377
90% 90.2% 5,352,923 5,362,581
80% 79.9% 4,758,154 4,753,465
70% 70.0% 4,163,385 4,160,796
60% 60.1% 3,568,615 3,573,477
50% 49.9% 2,973,846 2,969,633
40% 39.9% 2,379,077 2,374,390
30% 29.9% 1,784,308 1,778,877
20% 19.9% 1,189,538 1,186,091
10% 10.0% 594,769 596,165
Active Idle   0 0
