Quanta Computer Inc. QuantaGrid D52B-2U SPECpower_ssj2008 = 12,047 overall ssj_ops/watt
Test Sponsor: Quanta Computer Inc. SPEC License #: 9050 Test Method: Single Node
Tested By: Quanta Cloud Technology Test Location: Taoyuan, TW, R.O.C Test Date: Jun 21, 2017
Hardware Availability: Jul-2017 Software Availability: Sep-2016 Publication: Jul 11, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 98.5% 5,457,796 454 12,019
90% 90.1% 4,993,245 398 12,532
80% 80.0% 4,433,469 331 13,389
70% 70.0% 3,878,631 274 14,138
60% 59.9% 3,319,463 238 13,941
50% 49.9% 2,765,735 203 13,618
40% 40.0% 2,215,868 178 12,474
30% 30.0% 1,660,587 156 10,662
20% 20.0% 1,109,387 135 8,193
10% 10.0% 553,417 114 4,846
Active Idle 0 40.3 0
∑ssj_ops / ∑power = 12,047

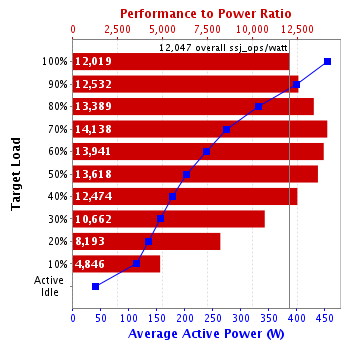

Graph of results
System Under Test
Set: 'S5B'
Set Identifier: S5B
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Quanta Computer Inc.
Model: QuantaGrid D52B-2U
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28 core, 2.5GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per chip
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 16GB 2Rx4 PC4-2666V-RE1-12-PA0; slots A0, B0, C0, D0, E0, F0, populated for both Processor sockets
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: ARTESYN MC800B6-3-4R-02
Disk Drive: 1 x 120G SATA SSD Quanta P/N:ABS120HC007
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Controller I210, 1-port
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power plan in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 3A05
Management Firmware Version: 3.13
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Intel Corporation
Model: A08
CPU Description: Intel Core(TM)2Duo CPU E7000
Memory amount (GB): 2
Software
Operating System (OS): Windows Server 2008 R2 Datacenter 64-bit SP1
JVM Vendor: Oracle Corporation
JVM Version: Hotspot(TM) 64-Bit Server VM,version 1.8.0_60
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA Electric International Pte. Ltd.
Model: WT210
Serial Number: 91MC16750
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Electronics Testing Center,Taiwan
Calibration Label: Q10680060
Date of Calibration: 16-Oct-2016
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 454 21.6
90% 398 21.6
80% 331 21.7
70% 274 21.8
60% 238 21.8
50% 203 21.7
40% 178 21.6
30% 156 21.6
20% 135 21.5
10% 114 21.4
Active Idle 40.3 21.4
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 60 Hz / 1 phase / 2 wires 21.4 250
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,595,971
Calibration 2     5,528,152
Calibration 3     5,554,019
ssj_ops@calibrated=5,541,086
100% 98.5% 5,541,086 5,457,796
90% 90.1% 4,986,977 4,993,245
80% 80.0% 4,432,869 4,433,469
70% 70.0% 3,878,760 3,878,631
60% 59.9% 3,324,651 3,319,463
50% 49.9% 2,770,543 2,765,735
40% 40.0% 2,216,434 2,215,868
30% 30.0% 1,662,326 1,660,587
20% 20.0% 1,108,217 1,109,387
10% 10.0% 554,109 553,417
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
