Huawei Technologies Co., Ltd FusionServer CH121 V3 ssj_ops@100% = 3,096,337
ssj_ops@100% per JVM = 193,521
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Sep 18, 2016
Hardware Availability: Mar-2016 Software Availability: Jan-2015 Publication: Dec 21, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,128,274
Calibration 2     3,100,104
Calibration 3     3,101,022
ssj_ops@calibrated=3,100,563
100% 99.9% 3,100,563 3,096,337
90% 90.0% 2,790,507 2,791,847
80% 80.0% 2,480,450 2,481,970
70% 70.0% 2,170,394 2,170,124
60% 59.8% 1,860,338 1,855,079
50% 50.0% 1,550,281 1,549,694
40% 40.0% 1,240,225 1,240,024
30% 30.0% 930,169 931,334
20% 20.0% 620,113 620,786
10% 10.0% 310,056 309,399
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 8
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: FusionServer CH121 V3
Form Factor: 12U
CPU Name: Intel Xeon E5-2683 V4
CPU Characteristics: 16-Core, 2.1GHz, 40MB L3 Cache (Intel Turbo Boost Technology up to 3.0GHz)
CPU Frequency (MHz): 2100
CPU(s) Enabled: 32 cores, 2 chips, 16 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 40 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 32GB 2Rx4 PC4-2400T ECC RDIMM;slots DIMM000, DIMM001, DIMM010, DIMM011, DIMM020, DIMM021, DIMM030, DIMM030, DIMM100, DIMM101, DIMM110, DIMM111, DIMM120, DIMM121, DIMM130, and DIMM131 populated
Power Supply Quantity and Rating (W): 6 x 3000
Power Supply Details: Shared
Disk Drive: 2 x 300GB HDD 2.5" SAS Huawei P/N 02311EXX
Disk Controller: LSI 3008
# and type of Network Interface Cards (NICs) Installed: 1 x Quad-port 10Gigabit Ethernet controller CNA Mezzanine Card Huawei P/N 03022ATY
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1400m -Xms1575m -Xmx1575m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=4 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000,F000000000000,F0000000000000,F00000000000000,F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1575
JVM Maximum Heap (MB): 1575
JVM Address Bits: 64
Boot Firmware Version: 3.26
Management Firmware Version: 2.08
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-GJIUEU859PS.001 193,716
WIN-GJIUEU859PS.002 194,665
WIN-GJIUEU859PS.003 194,216
WIN-GJIUEU859PS.004 197,204
WIN-GJIUEU859PS.005 194,725
WIN-GJIUEU859PS.006 190,109
WIN-GJIUEU859PS.007 190,787
WIN-GJIUEU859PS.008 189,494
WIN-GJIUEU859PS.009 194,711
WIN-GJIUEU859PS.010 195,785
WIN-GJIUEU859PS.011 192,895
WIN-GJIUEU859PS.012 195,195
WIN-GJIUEU859PS.013 195,089
WIN-GJIUEU859PS.014 191,186
WIN-GJIUEU859PS.015 193,304
WIN-GJIUEU859PS.016 193,257
ssj_ops@100% 3,096,337
ssj_ops@100% per JVM 193,521

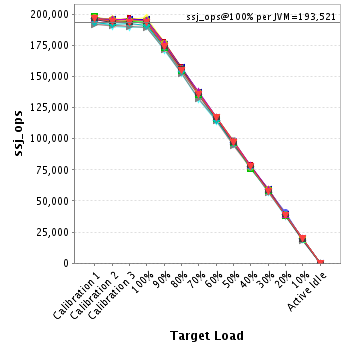

Graph of per-instance results
JVM 'WIN-GJIUEU859PS.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,608
Calibration 2     194,958
Calibration 3     194,040
ssj_ops@calibrated=194,499
100% 99.6% 194,499 193,716
90% 89.9% 175,049 174,883
80% 79.6% 155,599 154,876
70% 70.0% 136,149 136,067
60% 59.6% 116,699 115,891
50% 50.1% 97,249 97,451
40% 39.8% 77,800 77,436
30% 30.0% 58,350 58,278
20% 20.0% 38,900 38,898
10% 10.2% 19,450 19,796
Active Idle   0 0

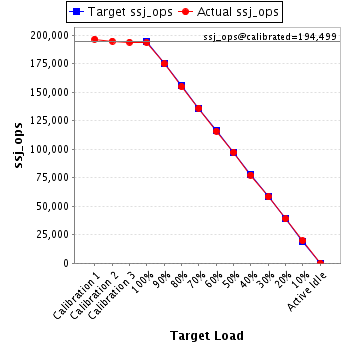

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GJIUEU859PS.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,560
Calibration 2     194,105
Calibration 3     195,276
ssj_ops@calibrated=194,691
100% 100.0% 194,691 194,665
90% 90.0% 175,222 175,144
80% 80.2% 155,753 156,171
70% 70.1% 136,283 136,412
60% 59.5% 116,814 115,767
50% 50.4% 97,345 98,193
40% 39.7% 77,876 77,341
30% 29.9% 58,407 58,204
20% 20.8% 38,938 40,549
10% 9.7% 19,469 18,867
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GJIUEU859PS.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,622
Calibration 2     194,560
Calibration 3     194,072
ssj_ops@calibrated=194,316
100% 99.9% 194,316 194,216
90% 90.1% 174,884 175,097
80% 80.0% 155,453 155,379
70% 70.3% 136,021 136,537
60% 60.1% 116,589 116,762
50% 50.4% 97,158 97,881
40% 40.1% 77,726 77,908
30% 30.0% 58,295 58,240
20% 19.9% 38,863 38,684
10% 9.8% 19,432 19,112
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GJIUEU859PS.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,457
Calibration 2     196,239
Calibration 3     195,938
ssj_ops@calibrated=196,088
100% 100.6% 196,088 197,204
90% 90.5% 176,480 177,534
80% 79.8% 156,871 156,523
70% 69.1% 137,262 135,546
60% 59.7% 117,653 117,147
50% 50.2% 98,044 98,474
40% 39.5% 78,435 77,540
30% 30.1% 58,827 59,018
20% 20.1% 39,218 39,480
10% 10.0% 19,609 19,554
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GJIUEU859PS.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,455
Calibration 2     193,651
Calibration 3     195,550
ssj_ops@calibrated=194,600
100% 100.1% 194,600 194,725
90% 89.8% 175,140 174,681
80% 79.4% 155,680 154,546
70% 70.0% 136,220 136,317
60% 59.3% 116,760 115,441
50% 49.6% 97,300 96,460
40% 40.1% 77,840 78,045
30% 30.3% 58,380 58,873
20% 19.9% 38,920 38,773
10% 10.0% 19,460 19,539
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GJIUEU859PS.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,752
Calibration 2     190,481
Calibration 3     189,153
ssj_ops@calibrated=189,817
100% 100.2% 189,817 190,109
90% 90.1% 170,835 171,041
80% 80.1% 151,853 151,997
70% 69.3% 132,872 131,632
60% 59.9% 113,890 113,636
50% 50.2% 94,908 95,315
40% 40.4% 75,927 76,605
30% 29.7% 56,945 56,459
20% 20.0% 37,963 37,906
10% 10.2% 18,982 19,271
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GJIUEU859PS.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,481
Calibration 2     190,472
Calibration 3     192,069
ssj_ops@calibrated=191,270
100% 99.7% 191,270 190,787
90% 89.6% 172,143 171,384
80% 80.2% 153,016 153,442
70% 70.5% 133,889 134,816
60% 59.5% 114,762 113,832
50% 49.6% 95,635 94,822
40% 39.9% 76,508 76,333
30% 30.0% 57,381 57,455
20% 20.1% 38,254 38,405
10% 10.0% 19,127 19,078
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GJIUEU859PS.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,343
Calibration 2     190,982
Calibration 3     189,711
ssj_ops@calibrated=190,346
100% 99.6% 190,346 189,494
90% 90.0% 171,312 171,278
80% 80.0% 152,277 152,301
70% 69.4% 133,242 132,159
60% 60.0% 114,208 114,289
50% 49.6% 95,173 94,414
40% 40.9% 76,139 77,867
30% 29.9% 57,104 56,900
20% 20.2% 38,069 38,468
10% 9.8% 19,035 18,604
Active Idle   0 0

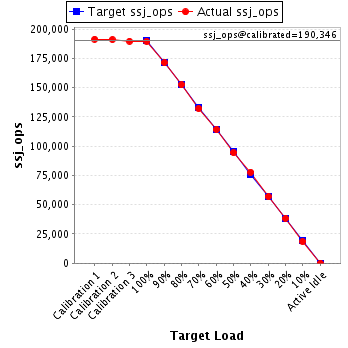

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GJIUEU859PS.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,769
Calibration 2     194,794
Calibration 3     196,405
ssj_ops@calibrated=195,599
100% 99.5% 195,599 194,711
90% 90.8% 176,039 177,583
80% 80.3% 156,479 157,042
70% 69.9% 136,919 136,810
60% 59.8% 117,360 116,957
50% 50.0% 97,800 97,720
40% 40.3% 78,240 78,769
30% 30.0% 58,680 58,598
20% 19.8% 39,120 38,809
10% 10.1% 19,560 19,777
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GJIUEU859PS.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,522
Calibration 2     195,761
Calibration 3     195,950
ssj_ops@calibrated=195,855
100% 100.0% 195,855 195,785
90% 89.8% 176,270 175,910
80% 80.4% 156,684 157,545
70% 70.0% 137,099 137,128
60% 59.7% 117,513 116,975
50% 49.7% 97,928 97,300
40% 39.8% 78,342 77,895
30% 30.4% 58,757 59,489
20% 19.9% 39,171 38,923
10% 10.1% 19,586 19,715
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GJIUEU859PS.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,241
Calibration 2     192,984
Calibration 3     193,821
ssj_ops@calibrated=193,403
100% 99.7% 193,403 192,895
90% 89.7% 174,062 173,487
80% 79.8% 154,722 154,432
70% 70.1% 135,382 135,560
60% 60.0% 116,042 116,121
50% 50.2% 96,701 97,100
40% 39.5% 77,361 76,462
30% 30.3% 58,021 58,656
20% 19.9% 38,681 38,438
10% 10.2% 19,340 19,666
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GJIUEU859PS.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,099
Calibration 2     195,503
Calibration 3     194,880
ssj_ops@calibrated=195,192
100% 100.0% 195,192 195,195
90% 90.6% 175,672 176,835
80% 80.0% 156,153 156,094
70% 70.1% 136,634 136,922
60% 59.9% 117,115 116,823
50% 50.0% 97,596 97,519
40% 39.5% 78,077 77,128
30% 30.2% 58,557 58,891
20% 20.0% 39,038 38,986
10% 10.0% 19,519 19,554
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GJIUEU859PS.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,465
Calibration 2     196,039
Calibration 3     195,543
ssj_ops@calibrated=195,791
100% 99.6% 195,791 195,089
90% 90.0% 176,212 176,255
80% 80.0% 156,633 156,603
70% 70.3% 137,054 137,597
60% 59.7% 117,475 116,946
50% 49.8% 97,896 97,465
40% 39.9% 78,317 78,205
30% 30.1% 58,737 58,971
20% 19.9% 39,158 38,888
10% 10.0% 19,579 19,611
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GJIUEU859PS.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,690
Calibration 2     191,949
Calibration 3     192,172
ssj_ops@calibrated=192,061
100% 99.5% 192,061 191,186
90% 90.1% 172,855 172,982
80% 80.2% 153,648 153,956
70% 70.4% 134,442 135,180
60% 59.9% 115,236 114,967
50% 50.1% 96,030 96,178
40% 40.1% 76,824 76,978
30% 29.9% 57,618 57,444
20% 20.2% 38,412 38,776
10% 9.9% 19,206 18,970
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GJIUEU859PS.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,921
Calibration 2     193,565
Calibration 3     193,102
ssj_ops@calibrated=193,333
100% 100.0% 193,333 193,304
90% 89.9% 174,000 173,840
80% 81.0% 154,667 156,656
70% 70.2% 135,333 135,715
60% 60.3% 116,000 116,586
50% 49.9% 96,667 96,408
40% 40.2% 77,333 77,813
30% 30.0% 58,000 58,089
20% 19.9% 38,667 38,523
10% 9.7% 19,333 18,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-GJIUEU859PS.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,289
Calibration 2     194,061
Calibration 3     193,341
ssj_ops@calibrated=193,701
100% 99.8% 193,701 193,257
90% 89.8% 174,331 173,913
80% 79.7% 154,961 154,406
70% 70.1% 135,591 135,724
60% 60.4% 116,221 116,940
50% 50.1% 96,851 96,993
40% 40.1% 77,480 77,699
30% 29.8% 58,110 57,770
20% 19.8% 38,740 38,280
10% 10.1% 19,370 19,528
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
