Hewlett Packard Enterprise ProLiant DL560 Gen9 SPECpower_ssj2008 = 8,151 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jun 1, 2016
Hardware Availability: Jun-2016 Software Availability: Jan-2015 Publication: Jun 22, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 549 20.9
Calibration 2 559 20.6
Calibration 3 559 20.6
100% 557 20.9
90% 498 21.2
80% 433 21.1
70% 382 21.0
60% 340 21.1
50% 315 20.9
40% 289 20.9
30% 257 20.8
20% 218 20.4
10% 178 20.4
Active Idle 86.3 20.8

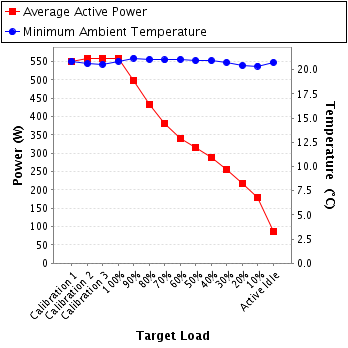

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53023
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: HPE Metrology
Calibration Label: 705437
Date of Calibration: 05-Apr-2016
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.0-efc0c004-20160120
Setup Description: SUT Power Supplies 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 2.65 5.0 0.984 549 0.5%
Calibration 2 211 300.0 2.70 5.0 0.984 559 0.5%
Calibration 3 210 300.0 2.70 5.0 0.984 559 0.5%
100% 210 300.0 2.69 5.0 0.984 557 0.5%
90% 210 300.0 2.42 5.0 0.980 498 0.5%
80% 210 300.0 2.11 5.0 0.979 433 0.5%
70% 211 300.0 1.86 5.0 0.975 382 0.6%
60% 213 300.0 1.65 5.0 0.970 340 0.6%
50% 212 300.0 1.54 2.0 0.965 315 0.4%
40% 212 300.0 1.42 2.0 0.961 289 0.4%
30% 212 300.0 1.27 2.0 0.955 257 0.4%
20% 212 300.0 1.09 2.0 0.943 218 0.5%
10% 212 300.0 0.908 1.0 0.927 178 0.4%
Active Idle 212 300.0 0.495 0.5 0.822 86.3 0.5%

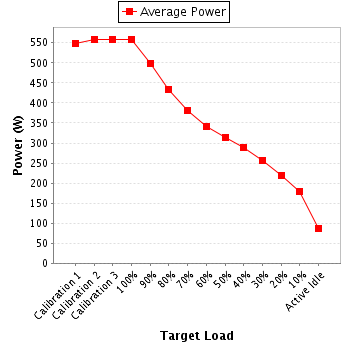

Power details for pwr1
