Huawei Technologies Co., Ltd Fusion Server XH620 V3 ssj_ops@100% = 3,998,169
ssj_ops@100% per JVM = 199,908
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Apr 11, 2016
Hardware Availability: Mar-2016 Software Availability: Jan-2015 Publication: Apr 27, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,034,032
Calibration 2     3,995,489
Calibration 3     4,001,561
ssj_ops@calibrated=3,998,525
100% 100.0% 3,998,525 3,998,169
90% 89.0% 3,598,672 3,558,804
80% 81.3% 3,198,820 3,249,955
70% 70.0% 2,798,967 2,798,411
60% 60.1% 2,399,115 2,401,302
50% 50.0% 1,999,262 1,999,832
40% 40.0% 1,599,410 1,599,882
30% 30.0% 1,199,557 1,200,591
20% 20.0% 799,705 801,201
10% 10.0% 399,852 398,386
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Fusion Server XH620 V3
Form Factor: 4U
CPU Name: Intel Xeon E5-2698 V4
CPU Characteristics: 20-Core, 2.2GHz, 50MB L3 Cache (Intel Turbo Boost Technology up to 3.6GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 40 cores, 2 chips, 20 cores/chip
Hardware Threads: 80 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 50 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8 GB
Memory Details: 8GB 2Rx8 PC4-2400T ECC RDIMM;slots DIMM000, DIMM010, DIMM020, DIMM030,DIMM100, DIMM110, DIMM120, and DIMM130 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB SATADOM Huawei P/N 06010249
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel i350 Gigabit Ethernet controller Huawei P/N 02311HDL
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx1575m -Xms1575m -Xmn1420m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=4 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [F,F0,F00,F000,F0000]
JVM Instances: 20
JVM Initial Heap (MB): 1575
JVM Maximum Heap (MB): 1575
JVM Address Bits: 64
Boot Firmware Version: 3.16
Management Firmware Version: 2.02
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-LES8ARAV926.001 201,254
WIN-LES8ARAV926.002 199,536
WIN-LES8ARAV926.003 202,439
WIN-LES8ARAV926.004 202,395
WIN-LES8ARAV926.005 198,965
WIN-LES8ARAV926.006 199,667
WIN-LES8ARAV926.007 198,156
WIN-LES8ARAV926.008 200,462
WIN-LES8ARAV926.009 198,616
WIN-LES8ARAV926.010 199,151
WIN-LES8ARAV926.011 197,685
WIN-LES8ARAV926.012 202,785
WIN-LES8ARAV926.013 199,782
WIN-LES8ARAV926.014 199,771
WIN-LES8ARAV926.015 202,919
WIN-LES8ARAV926.016 200,296
WIN-LES8ARAV926.017 200,798
WIN-LES8ARAV926.018 198,514
WIN-LES8ARAV926.019 199,116
WIN-LES8ARAV926.020 195,864
ssj_ops@100% 3,998,169
ssj_ops@100% per JVM 199,908

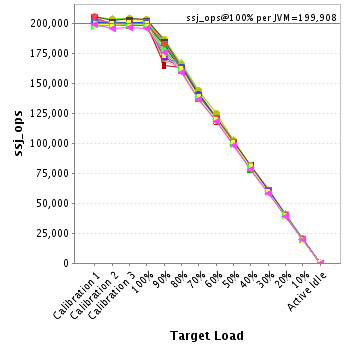

Graph of per-instance results
JVM 'WIN-LES8ARAV926.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     200,697
Calibration 2     199,308
Calibration 3     199,885
ssj_ops@calibrated=199,597
100% 100.8% 199,597 201,254
90% 91.9% 179,637 183,452
80% 80.6% 159,677 160,797
70% 69.5% 139,718 138,702
60% 59.8% 119,758 119,294
50% 50.0% 99,798 99,818
40% 39.7% 79,839 79,298
30% 30.1% 59,879 60,105
20% 20.3% 39,919 40,450
10% 10.0% 19,960 20,052
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LES8ARAV926.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     202,760
Calibration 2     198,528
Calibration 3     200,113
ssj_ops@calibrated=199,321
100% 100.1% 199,321 199,536
90% 91.7% 179,389 182,845
80% 81.3% 159,456 162,001
70% 69.7% 139,524 138,960
60% 60.1% 119,592 119,840
50% 50.1% 99,660 99,820
40% 40.4% 79,728 80,448
30% 29.8% 59,796 59,481
20% 20.2% 39,864 40,317
10% 9.9% 19,932 19,687
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

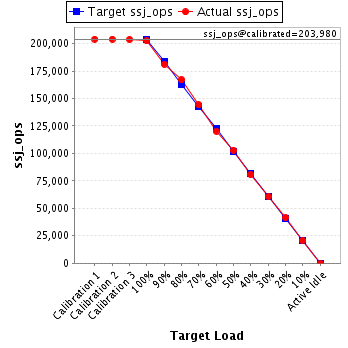

JVM 'WIN-LES8ARAV926.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     204,059
Calibration 2     204,071
Calibration 3     203,889
ssj_ops@calibrated=203,980
100% 99.2% 203,980 202,439
90% 88.9% 183,582 181,371
80% 81.9% 163,184 167,002
70% 70.7% 142,786 144,165
60% 59.0% 122,388 120,333
50% 50.4% 101,990 102,898
40% 39.7% 81,592 80,946
30% 29.8% 61,194 60,831
20% 20.4% 40,796 41,530
10% 10.0% 20,398 20,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LES8ARAV926.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     203,433
Calibration 2     202,983
Calibration 3     202,151
ssj_ops@calibrated=202,567
100% 99.9% 202,567 202,395
90% 87.7% 182,310 177,668
80% 81.2% 162,054 164,513
70% 70.1% 141,797 141,962
60% 60.0% 121,540 121,641
50% 50.3% 101,283 101,955
40% 40.2% 81,027 81,509
30% 30.2% 60,770 61,184
20% 20.2% 40,513 40,959
10% 9.7% 20,257 19,618
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LES8ARAV926.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     203,395
Calibration 2     197,990
Calibration 3     199,141
ssj_ops@calibrated=198,565
100% 100.2% 198,565 198,965
90% 91.7% 178,709 182,028
80% 80.8% 158,852 160,402
70% 70.7% 138,996 140,301
60% 60.4% 119,139 120,020
50% 49.5% 99,283 98,317
40% 40.1% 79,426 79,616
30% 30.1% 59,570 59,705
20% 19.8% 39,713 39,284
10% 10.2% 19,857 20,194
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LES8ARAV926.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     201,182
Calibration 2     201,113
Calibration 3     200,645
ssj_ops@calibrated=200,879
100% 99.4% 200,879 199,667
90% 91.3% 180,791 183,308
80% 80.8% 160,703 162,363
70% 69.9% 140,616 140,428
60% 60.5% 120,528 121,620
50% 49.6% 100,440 99,640
40% 40.1% 80,352 80,537
30% 30.2% 60,264 60,575
20% 20.2% 40,176 40,622
10% 10.0% 20,088 20,107
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

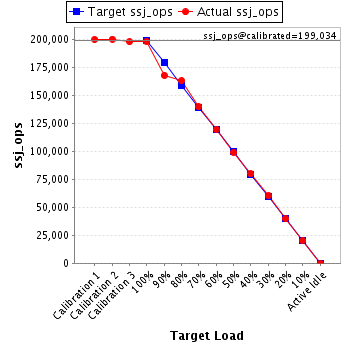

JVM 'WIN-LES8ARAV926.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,873
Calibration 2     200,219
Calibration 3     197,849
ssj_ops@calibrated=199,034
100% 99.6% 199,034 198,156
90% 84.3% 179,131 167,824
80% 81.9% 159,227 163,074
70% 70.2% 139,324 139,760
60% 60.2% 119,420 119,862
50% 49.8% 99,517 99,178
40% 40.1% 79,614 79,854
30% 30.2% 59,710 60,116
20% 19.9% 39,807 39,673
10% 10.0% 19,903 19,949
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LES8ARAV926.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     201,718
Calibration 2     200,261
Calibration 3     200,218
ssj_ops@calibrated=200,240
100% 100.1% 200,240 200,462
90% 84.6% 180,216 169,399
80% 82.0% 160,192 164,153
70% 70.4% 140,168 140,896
60% 59.8% 120,144 119,722
50% 49.8% 100,120 99,671
40% 40.0% 80,096 80,107
30% 29.6% 60,072 59,332
20% 20.4% 40,048 40,797
10% 10.0% 20,024 20,015
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LES8ARAV926.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     201,174
Calibration 2     198,511
Calibration 3     199,027
ssj_ops@calibrated=198,769
100% 99.9% 198,769 198,616
90% 82.9% 178,892 164,802
80% 82.0% 159,015 162,933
70% 70.1% 139,138 139,277
60% 59.5% 119,261 118,289
50% 50.1% 99,385 99,610
40% 40.2% 79,508 79,839
30% 30.4% 59,631 60,333
20% 20.0% 39,754 39,824
10% 10.1% 19,877 19,983
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LES8ARAV926.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     200,113
Calibration 2     199,365
Calibration 3     199,527
ssj_ops@calibrated=199,446
100% 99.9% 199,446 199,151
90% 90.9% 179,501 181,387
80% 80.4% 159,557 160,320
70% 69.7% 139,612 138,964
60% 60.0% 119,668 119,624
50% 49.5% 99,723 98,739
40% 40.6% 79,778 81,011
30% 29.8% 59,834 59,491
20% 19.6% 39,889 39,104
10% 10.0% 19,945 20,044
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LES8ARAV926.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,643
Calibration 2     197,744
Calibration 3     197,745
ssj_ops@calibrated=197,745
100% 100.0% 197,745 197,685
90% 92.2% 177,970 182,294
80% 81.0% 158,196 160,254
70% 69.5% 138,421 137,473
60% 60.1% 118,647 118,888
50% 50.3% 98,872 99,493
40% 39.3% 79,098 77,723
30% 29.9% 59,323 59,047
20% 20.3% 39,549 40,141
10% 10.0% 19,774 19,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LES8ARAV926.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     205,378
Calibration 2     203,336
Calibration 3     203,476
ssj_ops@calibrated=203,406
100% 99.7% 203,406 202,785
90% 91.5% 183,065 186,149
80% 81.5% 162,725 165,797
70% 70.6% 142,384 143,634
60% 61.4% 122,044 124,814
50% 50.2% 101,703 102,019
40% 40.0% 81,362 81,400
30% 30.0% 61,022 60,924
20% 20.1% 40,681 40,873
10% 10.0% 20,341 20,270
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LES8ARAV926.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     205,048
Calibration 2     198,722
Calibration 3     200,655
ssj_ops@calibrated=199,689
100% 100.0% 199,689 199,782
90% 86.2% 179,720 172,098
80% 81.3% 159,751 162,415
70% 69.5% 139,782 138,706
60% 60.2% 119,813 120,148
50% 49.9% 99,844 99,594
40% 39.9% 79,876 79,619
30% 30.5% 59,907 60,890
20% 20.0% 39,938 39,894
10% 10.0% 19,969 20,044
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LES8ARAV926.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     200,934
Calibration 2     199,524
Calibration 3     199,127
ssj_ops@calibrated=199,326
100% 100.2% 199,326 199,771
90% 88.7% 179,393 176,711
80% 81.6% 159,460 162,630
70% 70.3% 139,528 140,189
60% 59.6% 119,595 118,722
50% 50.5% 99,663 100,620
40% 40.1% 79,730 79,842
30% 29.5% 59,798 58,830
20% 20.0% 39,865 39,792
10% 9.9% 19,933 19,741
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LES8ARAV926.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     205,619
Calibration 2     201,966
Calibration 3     203,751
ssj_ops@calibrated=202,859
100% 100.0% 202,859 202,919
90% 91.3% 182,573 185,152
80% 80.6% 162,287 163,427
70% 69.5% 142,001 140,972
60% 60.0% 121,715 121,671
50% 49.8% 101,429 101,061
40% 40.0% 81,144 81,204
30% 30.4% 60,858 61,693
20% 19.9% 40,572 40,445
10% 9.8% 20,286 19,805
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LES8ARAV926.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     204,409
Calibration 2     199,126
Calibration 3     199,605
ssj_ops@calibrated=199,365
100% 100.5% 199,365 200,296
90% 91.5% 179,429 182,507
80% 81.1% 159,492 161,782
70% 69.9% 139,556 139,278
60% 60.5% 119,619 120,622
50% 50.4% 99,683 100,564
40% 39.8% 79,746 79,280
30% 30.5% 59,810 60,733
20% 19.9% 39,873 39,683
10% 10.0% 19,937 19,845
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LES8ARAV926.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     200,096
Calibration 2     199,981
Calibration 3     200,786
ssj_ops@calibrated=200,384
100% 100.2% 200,384 200,798
90% 86.0% 180,345 172,377
80% 82.0% 160,307 164,411
70% 70.7% 140,269 141,652
60% 59.8% 120,230 119,744
50% 49.8% 100,192 99,816
40% 40.0% 80,153 80,183
30% 30.3% 60,115 60,813
20% 20.0% 40,077 40,044
10% 10.3% 20,038 20,615
Active Idle   0 0

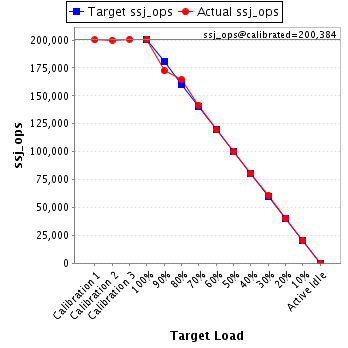

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LES8ARAV926.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,544
Calibration 2     198,338
Calibration 3     198,576
ssj_ops@calibrated=198,457
100% 100.0% 198,457 198,514
90% 89.8% 178,611 178,159
80% 81.3% 158,766 161,335
70% 69.5% 138,920 137,943
60% 60.3% 119,074 119,699
50% 49.9% 99,229 98,956
40% 40.0% 79,383 79,451
30% 29.7% 59,537 58,905
20% 19.9% 39,691 39,531
10% 9.8% 19,846 19,517
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LES8ARAV926.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,168
Calibration 2     198,950
Calibration 3     199,420
ssj_ops@calibrated=199,185
100% 100.0% 199,185 199,116
90% 87.3% 179,267 173,850
80% 81.2% 159,348 161,683
70% 69.5% 139,430 138,404
60% 59.7% 119,511 118,947
50% 50.0% 99,593 99,688
40% 39.9% 79,674 79,556
30% 29.7% 59,756 59,176
20% 19.8% 39,837 39,340
10% 9.7% 19,919 19,287
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LES8ARAV926.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,789
Calibration 2     195,451
Calibration 3     195,973
ssj_ops@calibrated=195,712
100% 100.1% 195,712 195,864
90% 89.6% 176,141 175,425
80% 81.1% 156,570 158,664
70% 69.9% 136,999 136,747
60% 60.2% 117,427 117,802
50% 50.3% 97,856 98,377
40% 40.1% 78,285 78,457
30% 29.9% 58,714 58,428
20% 19.9% 39,142 38,897
10% 9.9% 19,571 19,414
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
